Add to cartQuick View
Autonics (CT4S-1P4) 4-Digit LED Digital Counter (100-240 VAC)
Model:CT4S-1P4
Display method 4-digit 7-segment LED Operation method Counter: Count up, Count down, Count up/down
Timer: Count up, Count downTerminal Terminal block Output Operation SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME Power supply 100-240VAC~ 50/60Hz Time operation POWER ON START
SIGNAL ON STARTExternal Power Supply Max. 12VDC 10%, 100mA
Signal Input Method Voltage input(PNP), No-voltage input(NPN) Max. Counting Speed 1, 30, 1k, 5k, 10k [cps] Min. signal Width 1ms/20ms Memory Protection Approx. 10 years Setting range 0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour Control output_Type 1-stage preset Control output_Relay SPDT (1c): 1 Control output_NPN open collector 1 Protection structure IP65(front panel) Dimension W48 x H48 mm Counter_Counting range -999 to 9999 Counter_Scale Decimal point up to third digit Counter_Min. input signal width RESET: Selectable 1ms/20ms Timer_Min. input signal width INA, INH, RESET: Selectable 1ms/20ms Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Weight Approx. 212g (approx. 159g) Add to cartQuick View -
Add to cartQuick View

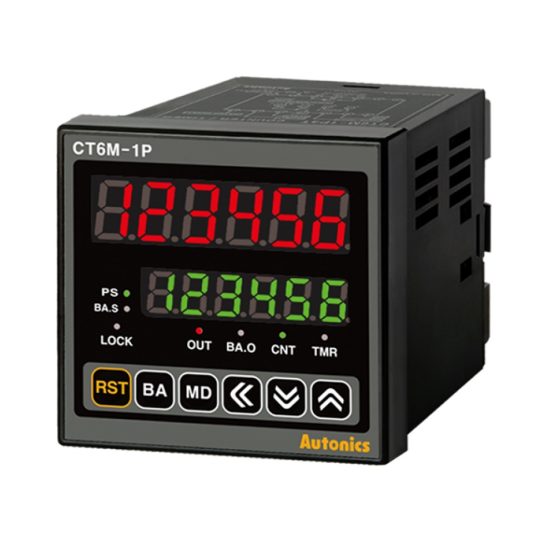

Autonics (CT6M-1P4) 6-Digit Programmable Digital Counter
Model CT6M-1P4 Operation method Counter: Count up, Count down, Count up/down
Timer: Count up, Count downDisplay method 6-digit 7-segment LED Output Operation SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME Power supply 100-240VAC~ 50/60Hz Time operation POWER ON START
SIGNAL ON STARTExternal Power Supply Max. 12VDC @(=) 10%, 100mA Signal Input Method Voltage input(PNP), No-voltage input(NPN) Max. Counting Speed 1, 30, 1k, 5k, 10k [cps] Min. signal Width 1ms/20ms Memory Protection Approx. 10 years Setting range 0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour Control output_Type 1-stage preset Control output_Relay SPDT (1c): 1 Control output_NPN open collector 2 Protection structure IP65(front panel) Approval @(CE) @(CULUS) Counter_Counting range -99999 to 999999 Counter_Scale Decimal point up to fifth digit Counter_Min. input signal width RESET: Selectable 1ms/20ms Timer_Min. input signal width INA, RESET, INHIBIT, BATCH, RESET: Selectable 1ms/20ms Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Weight Approx. 322g (approx. 252g) Add to cartQuick View -
Add to cartQuick View

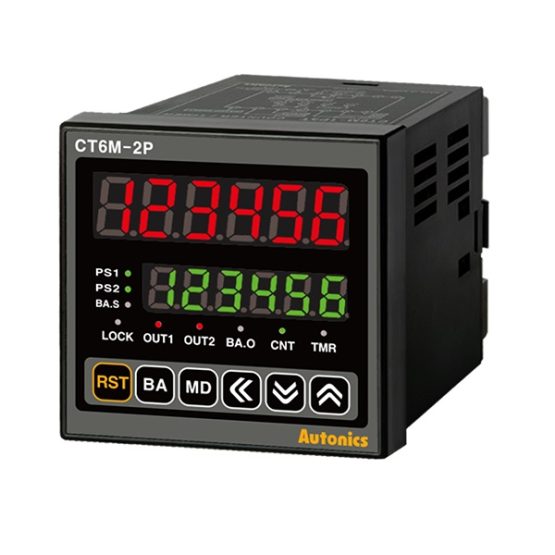

Autonics (CT6M-2P4) 6-Digit LED Digital Counter (100-240 VAC)
Model:CT6M-2P4
Display method 6-digit 7-segment LED Operation method Counter: Count up, Count down, Count up/down
Timer: Count up, Count downTerminal Terminal block Output Operation SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME Power supply 100-240VAC~ 50/60Hz Time operation POWER ON START
SIGNAL ON STARTExternal Power Supply Max. 12VDC 10%, 100mA
Signal Input Method Voltage input(PNP), No-voltage input(NPN) Max. Counting Speed 1, 30, 1k, 5k, 10k [cps] Min. signal Width 1ms/20ms Memory Protection Approx. 10 years Setting range 0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour Control output_Type 2-stage preset Control output_Relay SPST (1a): 1, SPDT (1c): 1 Control output_NPN open collector 3 Protection structure IP65(front panel) Dimension W72 x H72 mm Counter_Counting range -99999 to 999999 Counter_Scale Decimal point up to fifth digit Counter_Min. input signal width RESET: Selectable 1ms/20ms Timer_Min. input signal width INA, RESET, INHIBIT, BATCH, RESET: Selectable 1ms/20ms Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Weight Approx. 322g (approx. 252g) Add to cartQuick View -
Add to cartQuick View

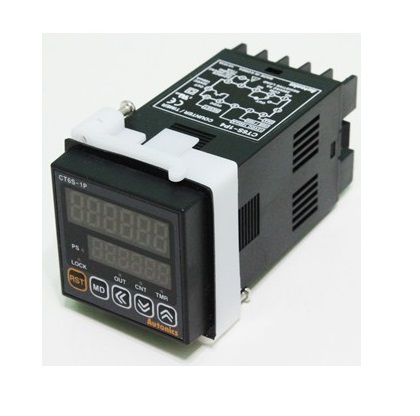

Autonics (CT6S-1P4) 6-Digit LED Digital Counter (100-240 VAC)
Model: CT6S-1P4
Display method 6-digit 7-segment LED Operation method Counter: Count up, Count down, Count up/down
Timer: Count up, Count downTerminal Terminal block Output Operation SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME Power supply 100-240VAC~ 50/60Hz Time operation POWER ON START
SIGNAL ON STARTExternal Power Supply Max. 12VDC 10%, 100mA Signal Input Method Voltage input(PNP), No-voltage input(NPN) Max. Counting Speed 1, 30, 1k, 5k, 10k [cps] Min. signal Width 1ms/20ms Memory Protection Approx. 10 years Setting range 0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour Control output_Type 1-stage preset Control output_Relay SPDT (1c): 1 Control output_NPN open collector 1 Protection structure IP65(front panel) Dimension W48 x H48 mm Counter_Counting range -99999 to 999999 Counter_Scale Decimal point up to fifth digit Counter_Min. input signal width RESET: Selectable 1ms/20ms Timer_Min. input signal width INA, INH, RESET: Selectable 1ms/20ms Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Weight Approx. 212g (approx. 159g) Add to cartQuick View -
Add to cartQuick View

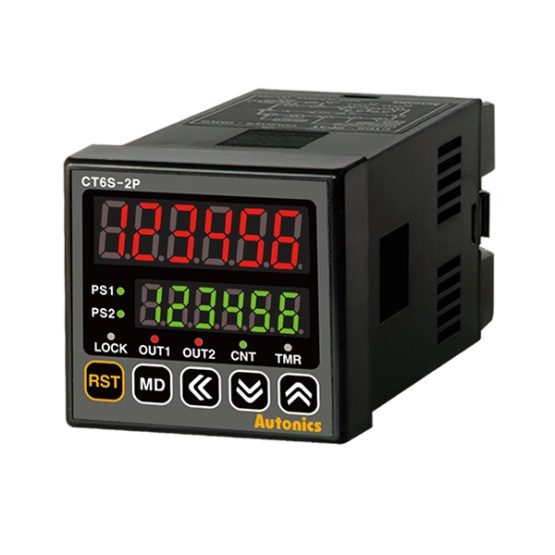

Autonics (CT6S-2P2) 6-Digit Multi Functional Digital Counter
Model CT6S-2P2 Operation method Counter: Count up, Count down, Count up/down
Timer: Count up, Count downDisplay method 6-digit 7-segment LED Output Operation SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME Power supply 24VAC~ 50/60Hz, 24-48VDC @(=) Time operation POWER ON START
SIGNAL ON STARTExternal Power Supply Max. 12VDC @(=) 10%, 100mA Signal Input Method Voltage input(PNP), No-voltage input(NPN) Max. Counting Speed 1, 30, 1k, 5k, 10k [cps] Min. signal Width 1ms/20ms Memory Protection Approx. 10 years Setting range 0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour Control output_Type 2-stage preset Control output_Relay SPST (1a): 2 Control output_NPN open collector 1 Protection structure IP65(front panel) Approval @(CE) @(CULUS) Counter_Counting range -99999 to 999999 Counter_Scale Decimal point up to fifth digit Counter_Min. input signal width RESET: Selectable 1ms/20ms Timer_Min. input signal width INA, INH, RESET: Selectable 1ms/20ms Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Terminal terminal blocks Add to cartQuick View -
Add to cartQuick View

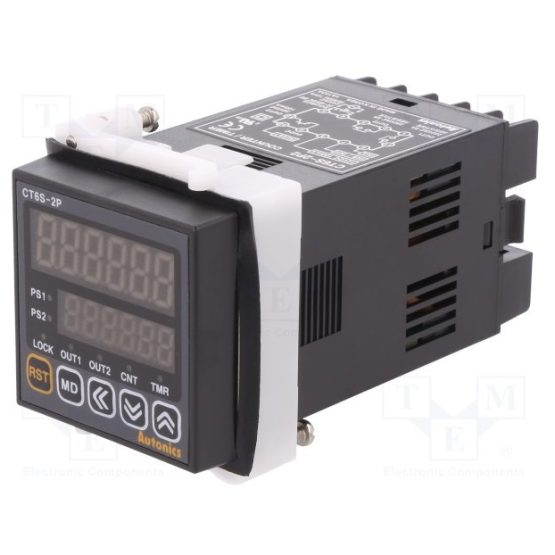

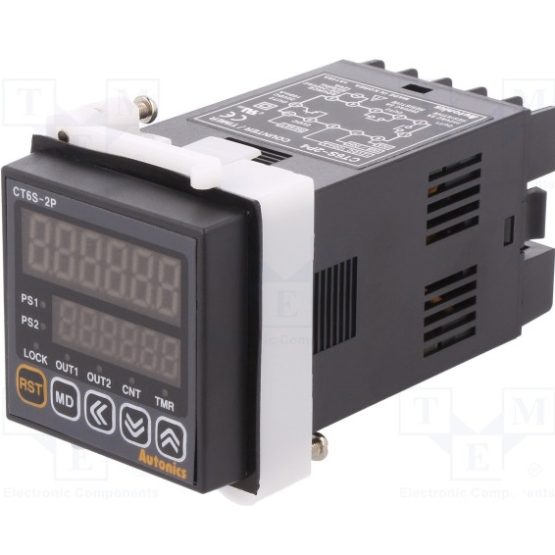

Autonics (CT6S-2P4) 6-Digit LED Digital Counter (100-240 VAC)
Model:CT6S-2P4
Display method 6-digit 7-segment LED Operation method Counter: Count up, Count down, Count up/down
Timer: Count up, Count downTerminal Terminal block Output Operation SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME Power supply 100-240VAC~ 50/60Hz Time operation POWER ON START
SIGNAL ON STARTExternal Power Supply Max. 12VDC 10%, 100mA Signal Input Method Voltage input(PNP), No-voltage input(NPN) Max. Counting Speed 1, 30, 1k, 5k, 10k [cps] Min. signal Width 1ms/20ms Memory Protection Approx. 10 years Setting range 0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour Control output_Type 2-stage preset Control output_Relay SPST (1a): 2 Control output_NPN open collector 1 Protection structure IP65(front panel) Dimension W48 x H48 mm Counter_Counting range -99999 to 999999 Counter_Scale Decimal point up to fifth digit Counter_Min. input signal width RESET: Selectable 1ms/20ms Timer_Min. input signal width INA, INH, RESET: Selectable 1ms/20ms Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Weight Approx. 212g (approx. 159g) Add to cartQuick View -
Add to cartQuick View

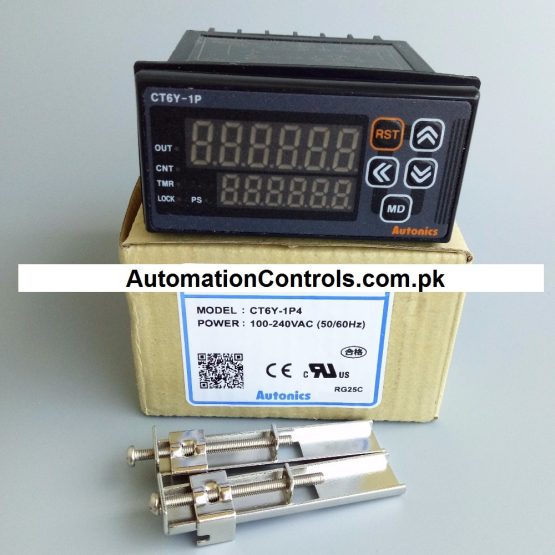

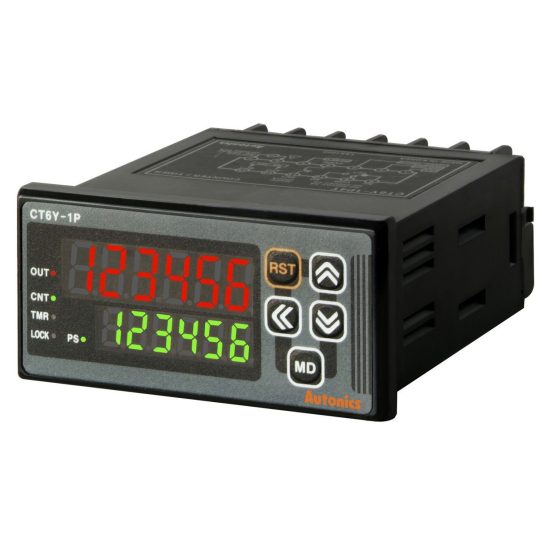

Autonics (CT6Y-1P4) 6-Digit Counter/Timer
Model CT6Y-1P4 Operation method Counter: Count up, Count down, Count up/down
Timer: Count up, Count downDisplay method 6-digit 7-segment Output Operation SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME Power supply 100-240VAC~ 50/60Hz Time operation POWER ON START
SIGNAL ON STARTExternal Power Supply Max. 12VDC @(=) 10%, 100mA Signal Input Method Voltage input(PNP), No-voltage input(NPN) Max. Counting Speed 1, 30, 1k, 5k, 10k [cps] Min. signal Width 1ms/20ms Memory Protection Approx. 10 years Setting range 0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour Control output_Type 1-stage preset Control output_Relay SPDT (1c): 1 Control output_NPN open collector 1 Protection structure IP65(front panel) Approval @(CE) @(CULUS) Counter_Counting range -99999 to 999999 Counter_Scale Decimal point up to fifth digit Counter_Min. input signal width RESET: Selectable 1ms/20ms Timer_Min. input signal width INA, INH, RESET: Selectable 1ms/20ms Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Terminal terminal blocks Add to cartQuick View -
Add to cartQuick View
Autonics (FX4H-1P4) Counter, Timer
Model: FX4H-1P4
Display method 4-digit 7-segment LED Operation method Counter: Count up, Count down, Count up/down
Timer: Count up, Count downTerminal Terminal block Output Operation POWER ON DELAY, FLICKER Power supply 100-240VAC~ 50/60Hz Time operation POWER ON START External Power Supply Max. 12VDC 10% 50mA Signal Input Method Voltage input(PNP), No-voltage input(NPN) Max. Counting Speed 1, 30, 2k, 5k [cps] Min. signal Width 20ms Memory Protection Approx. 10 years Setting range 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 99 hour 59 min, 0.1 hour to 999.9 hour, 1 hour to 9999 hour Control output_Type 1-stage preset Control output_Relay SPDT (1c): 1 Control output_NPN open collector 1 Protection structure IP20(front panel) Dimension 48 x 96 mm Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Weight Approx. 245g (approx. 180g) Add to cartQuick View -
Add to cartQuick View
Autonics (FX4H-2P4) Counter, Timer
Model: FX4H-2P4
Display method 4-digit 7-segment LED Operation method Counter: Count up, Count down, Count up/down
Timer: Count up, Count downTerminal Terminal block Output Operation POWER ON DELAY, FLICKER Power supply 100-240VAC~ 50/60Hz Time operation POWER ON START External Power Supply Max. 12VDC 10% 50mA
Signal Input Method Voltage input(PNP), No-voltage input(NPN) Max. Counting Speed 1, 30, 2k, 5k [cps] Min. signal Width 20ms Memory Protection Approx. 10 years Setting range 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 99 hour 59 min, 0.1 hour to 999.9 hour, 1 hour to 9999 hour Control output_Type 2-stage preset Control output_Relay SPDT (1c): 2 Control output_NPN open collector 2 Protection structure IP20(front panel) Dimension 48 x 96 mm Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Weight Approx. 265g (approx. 200g) Add to cartQuick View -
Add to cartQuick View
Autonics (FX4M-1P4) Counter and Timer
Model:FX4M-1P4
Display method 4-digit 7-segment LED Operation method Counter: Count up, Count down, Count up/down
Timer: Count up, Count downTerminal Terminal block Output Operation POWER ON DELAY, FLICKER Power supply 100-240VAC~ 50/60Hz Time operation POWER ON START External Power Supply Max. 12VDC 10% 50mA
Signal Input Method Voltage input(PNP), No-voltage input(NPN) Max. Counting Speed 1, 30, 2k, 5k [cps] Min. signal Width 20ms Memory Protection Approx. 10 years Setting range 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 99 hour 59 min, 0.1 hour to 999.9 hour, 1 hour to 9999 hour Control output_Type 1-stage preset Control output_Relay SPDT (1c): 1 Control output_NPN open collector 1 Protection structure IP20(front panel) Dimension 72 x 72 mm Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Weight Approx. 245g (approx. 180g) Add to cartQuick View -
Add to cartQuick View
Autonics (FX4M-2P4) Counter, Timer
Model:FX4M-2P4
Display method 4-digit 7-segment LED Operation method Counter: Count up, Count down, Count up/down
Timer: Count up, Count downTerminal Terminal block Output Operation POWER ON DELAY, FLICKER Power supply 100-240VAC~ 50/60Hz Time operation POWER ON START External Power Supply Max. 12VDC 10% 50mA
Signal Input Method Voltage input(PNP), No-voltage input(NPN) Max. Counting Speed 1, 30, 2k, 5k [cps] Min. signal Width 20ms Memory Protection Approx. 10 years Setting range 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 99 hour 59 min, 0.1 hour to 999.9 hour, 1 hour to 9999 hour Control output_Type 2-stage preset Control output_Relay SPDT (1c): 2 Control output_NPN open collector 2 Protection structure IP20(front panel) Dimension 72 x 72 mm Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Weight Approx. 265g (approx. 200g) Add to cartQuick View -
Add to cartQuick View

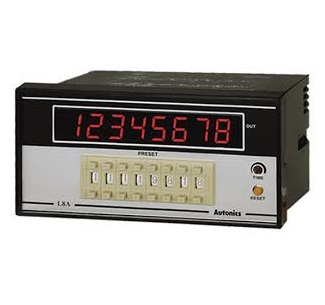

Autonics (L8A) 8-Digit Digital Counter
Product: digital counter meter
Model: L8A
Brand: Autonics
Digit: 8
Power supply: 100-240 VAC
Max. counting speed: 1 cps/3o cps/ 2 kcps/ 5kcps
8 digits counter: Selectable Up, Down, Up/Down mode
Selectable voltage input(PNP) or no-voltage input(NPN)
Decimal point setting(Fixed decimal point of display)
Add to cartQuick View -
Add to cartQuick View

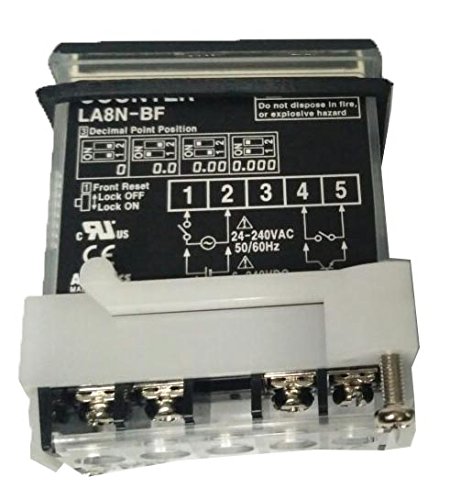

Autonics (LA8N-BF) 8-Digit LCD Digital Counter Built-in-Battery
- Model: LA8N-BF
- Brand: Autonics
- Display method 8-digit 7-segment LCD
- Operation method: Count up
- Terminal: Terminal block
- Power supply: Built-in battery(over 7 years)
- Input Method_Signal: Free voltage input
- Input Method_Reset: No-voltage input(NPN)
- Max. Counting Speed: 20 [cps]
- Min. signal Width: 20ms
- Control output: Indicator
- Protection structure: IP66(front panel)
- Approval: @(CE) @(CULUS)
- Accessories: Mounting bracket, Rubber waterproof ring
- Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
- Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Add to cartQuick View -
Add to cartQuick View

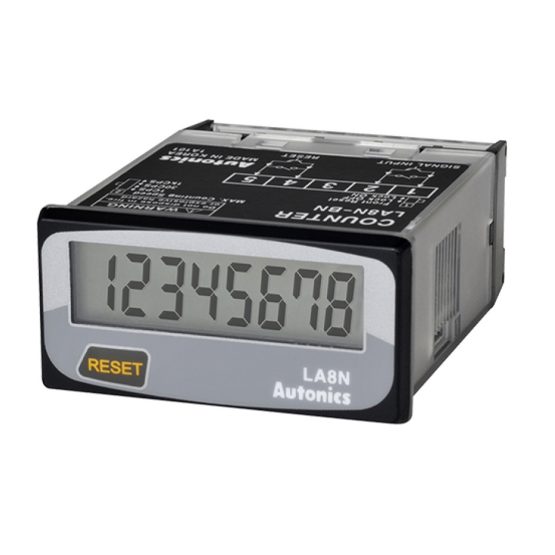

Autonics (LA8N-BN) 8-Digit LCD Digital Counter Built-in-Battery
Model: LA8N-BN
Display method 8-digit 7-segment LCD Operation method Count up, Count down, Count up/down Terminal Terminal block Power supply Built-in battery(over 7 years) Input Method_Signal No-voltage input(NPN) Input Method_Reset No-voltage input(NPN) Max. Counting Speed 1, 30, 1k [cps] Min. signal Width 20ms Control output Indicator Protection structure IP66(front panel) Dimension 48mm *24 mm Accessories Mounting bracket, Rubber waterproof ring Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Weight Approx. 96g (approx. 50g) Add to cartQuick View -
Add to cartQuick View

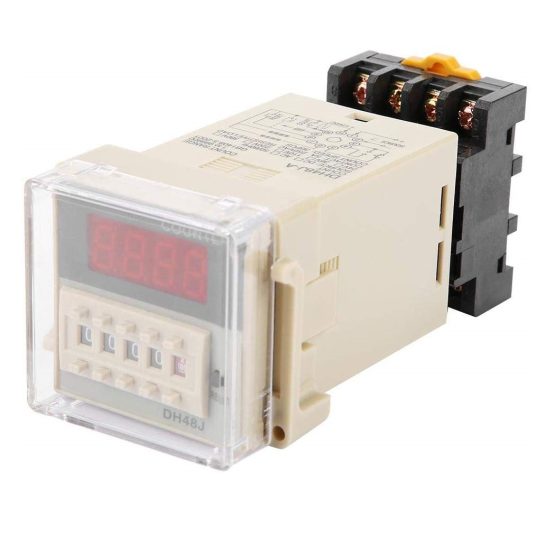

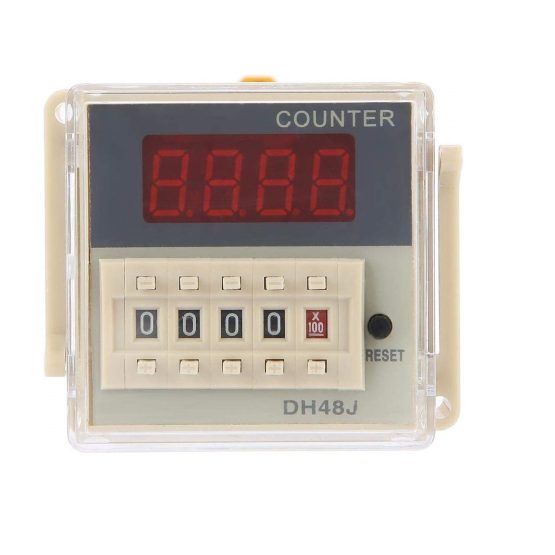

Digital Counter Relay (DH48J) 220V AC NPN Proximity Sensor
Model: DH48J
Voltage: 220/240v AC
Operating mode: Up Count Down Count
Max. Counting speed: 30 cps
Min. Counting pulse: 15 ms
Control style: SPDT
Power: 5 W max
Setting method: dial switch
Show me how: 8-segment 4 – digital display
External size: 48x48x97 mm.
Mount: Panel, Din rail
pins: 8
Counting range: 1-9999
without socket/base
Add to cartQuick View -
Add to cartQuick View

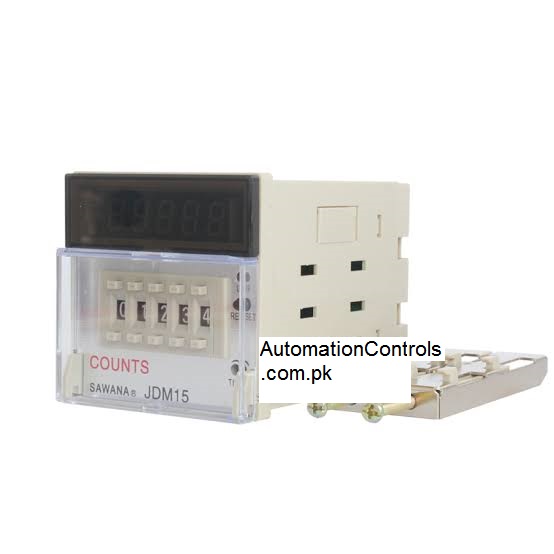

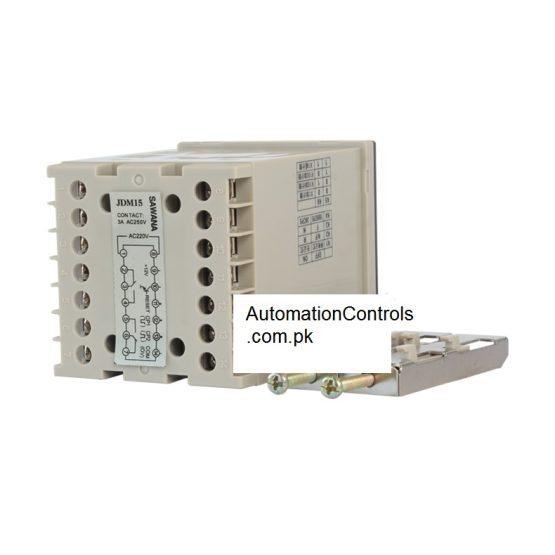

Digital Counter Relay (JDM-15) 5 Digit counting accumulator counter
Model: JDM-15
Counting range: 1-99999
Supply voltage: 220v AC/110v AC
Size: 72mm*72mm
Manufactured: SAWANA
Add to cartQuick View -
Add to cartQuick View
Omron (H7CX-AUD1-N) 6 Digit, 5kHz Counter 12 – 24vdc, 24vac
Model: H7CX-AUD1-N
Supply Voltage: 12 – 24vdc, 24vac
Count mode: seconds
Connection type: screw
Reset mode: Automatic, Manual
Number of Digits: 6
Mounting type: Panel Mount
Count direction: Bi-Directional
Digit height: 10 mm
Maximum Count Frequency: 5kHz
Display range: -99999 → 999999
Measurement Range: -99999 → 999999
Add to cartQuick View -
Add to cartQuick View

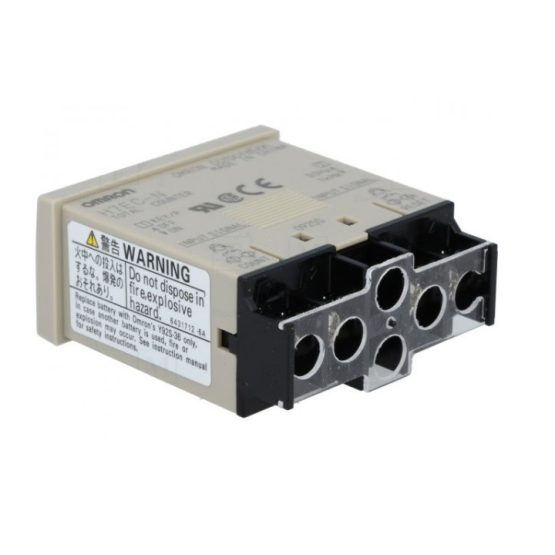

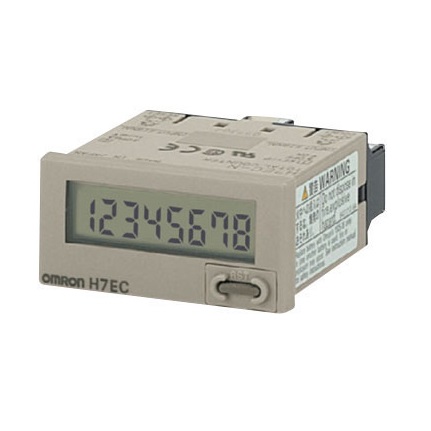

Omron (H7EC-N) 8-Digit LCD Digital Total Counter
Model H7EC-N Type Totalising Counting range 0 – 99999999 LCD backlight Without backlight Number of digits 8 Body color Light grey Installation type On-panel Terminal Screw Relay output 0 Inputs No-voltage Speed 1000 Hz Width 48 mm Height 24 mm Depth 48.5 mm Add to cartQuick View
