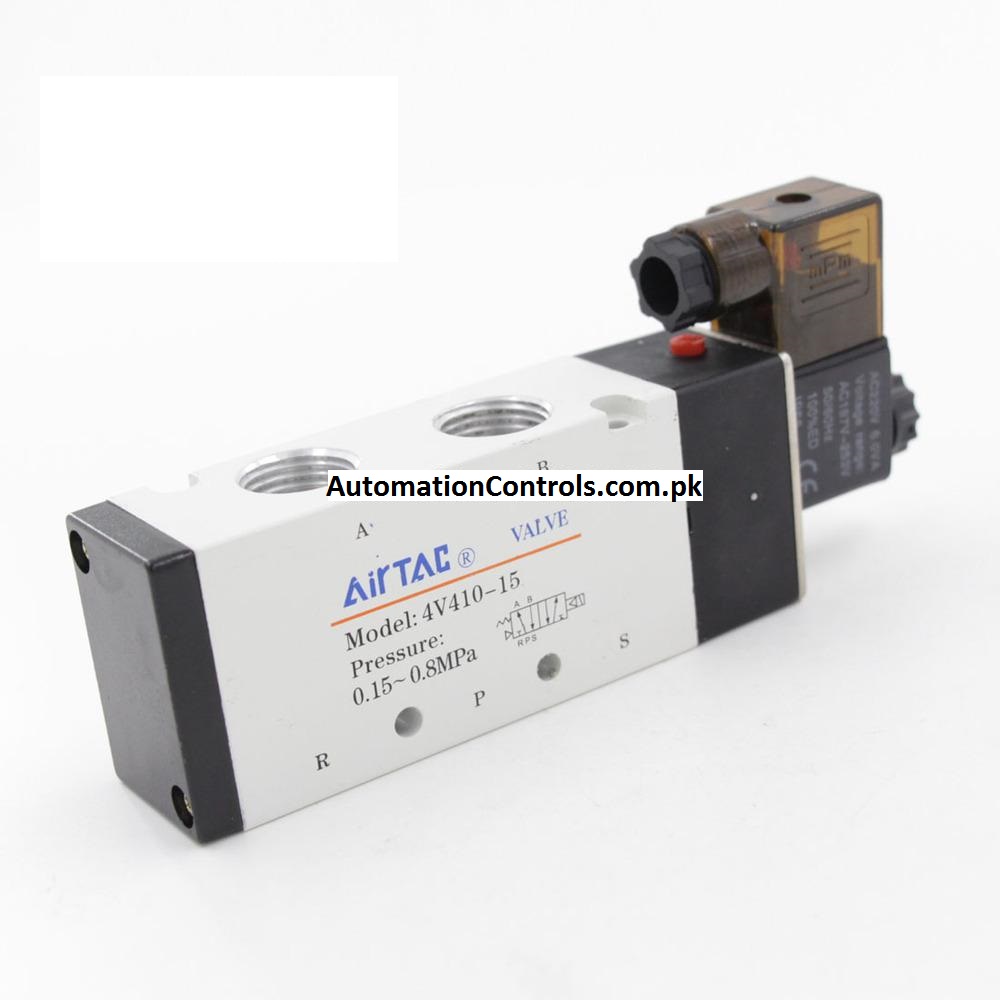

Airtac Solenoid Valve 5way 1/2″ (4V410-15)

Rs 2,600.00

  • Available Voltage (must write in additional information/order notes)
  • 220v AC
  • 110v AC
  • 24v DC
  • 12v DC
  • Brand
Airtac
  • Model
4V410-15
  • Applicable Temperature
-5~50 degree C
  • Solenoid Operation voltage
optional
  • Voltage Range
+/-1%
  • Manufactured
china
  • IP
IP65
  • Response Time sec
0.05 sec
  • Service Time
10 million
  • Position No
Two Position Five Way
  • Effctive Section Area
50mm2 (CV=2.79)
  • Joint Pipe Bore
1/2 Inch
  • Working medium
40 Micron Filtered Air
  • Motion pattern
Inner Guide type
  • Operating method
Inside piloted
  • Pressure range
0.15-0.8 Mpa
  • Max Pressure Resistance
1.2 Mpa



Categories: ,
  • Description
  • Reviews (0)

Description

  • Pilot-oriented mode: Internal pilot or external pilot.
  • Structure in sliding column mode: good tightness and sensitive reaction.
  • Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
  • No need to add oil for lubrication.
  • It is available to form integrated valve group with the base to save installation space.
  • Affiliated manual devices are equipped to facilitate installation and debugging.
  • Several standard voltage grades are optional.

Installation Instructions

  • Before installing, be sure the valve hasnt been damaged via transportation.
  • Its suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.
  • Please notice whether the installation condition accords with technical requirements (such as voltage, actuation frequency, working pressure and scope of application temperature), then the equipment can be installed and used.
  • Notice the flow direction of air during installation, P is the air intake, A (B) is the work port and R (S) is the exhaust outlet.
  • Take measure to avoid vibration and frozen.
  • Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread Seal Tape is used correctly.
  • To keep the dust away, please use the silencer for the exhaust ports. Never forget to install dirt-proof boot in air intake and outlet during dismounting.
  • After installing, please use the manual override to test valve first.
