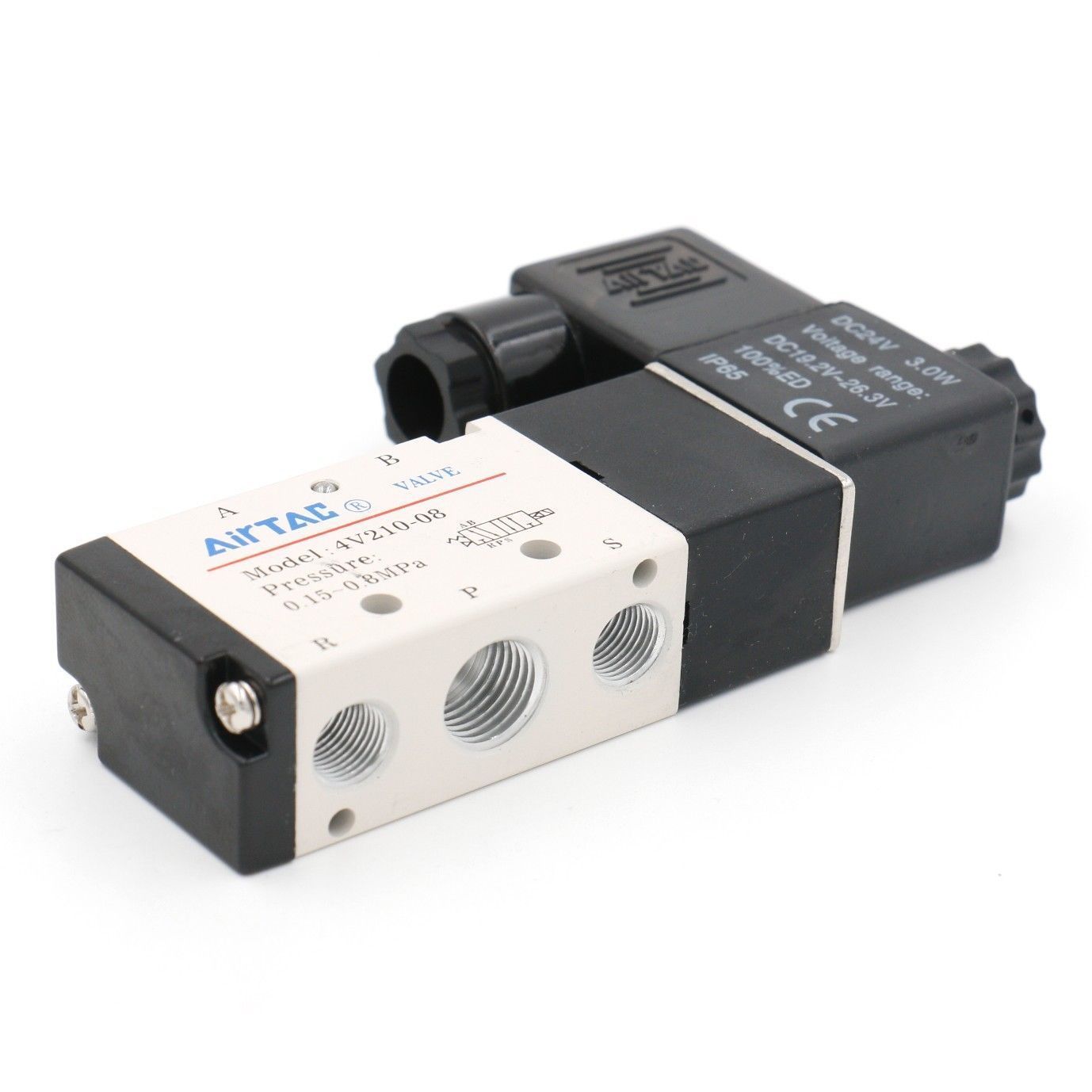

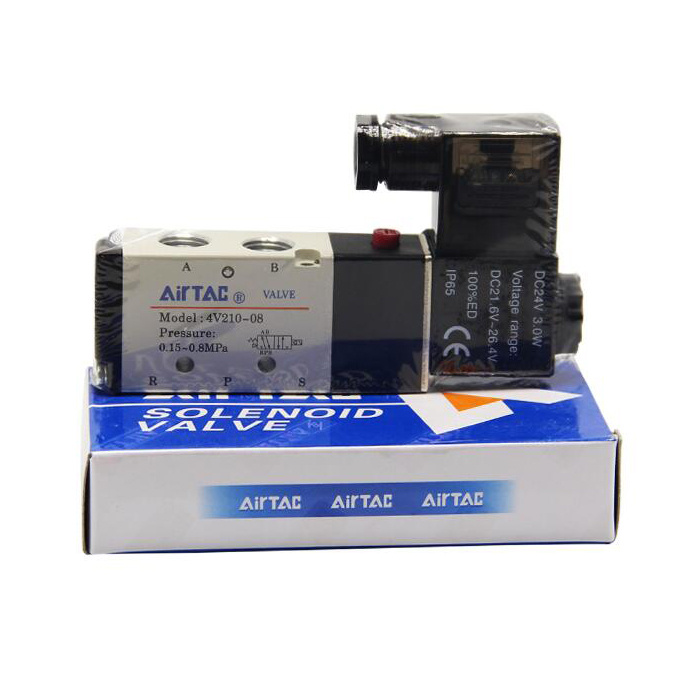

Airtac Solenoid Valve 5way 1/4″ (4v210-08) 3position

Rs 1,600.00

Available coil Voltage (must write any one in additional information/order notes)

220v AC

110v AC

24v DC

12v DC

  • Product Name: Solenoid Valve
  • Model: 4V210-08
  • Working Pressure: 0.15~0.8Mpa
  • Max. Pressure Resistance: 1.2Mpa
  • Operating Temperature: -5~50 DegreeC
  • Current: 250mA
  • Insulation&Protection Class: F. IP65
  • Highest Action Frequency: 4
  • Excitation Time: 0.05 Second
  • Position & Way Number: Two-position, Five-way
  • Effective Sectional Area: 16mm2 (CV=0.89)
  • Joint Pipe Bore: Inlet=Outlet=1/4””, Exhaust=1/8″
  • Total Size: 11.8 x 6.6 x 2.1cm/4.6”” x 2.6”” x 0.8″(L*W*H)
  • External Material: Metal, Plastic
  • Color: White, Black
  • Net Weight: 215g
Categories: ,
  • Description
  • Reviews (1)

Description

  • Pilot-oriented mode: optional for internal or external.
  • Structure in sliding column mode: good tightness and sensitive reaction.
  • Three position solenoid valves have three kinds of central function for your choice.
  • Double control solenoid valves have memory function.
  • Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
  • No need to add oil for lubrication.
  • It is available to form integrated valve group with the base to save installation space.
  • Affiliated manual devices are equipped to facilitate installation and debugging.
  • Several standard voltage grades are optional.
