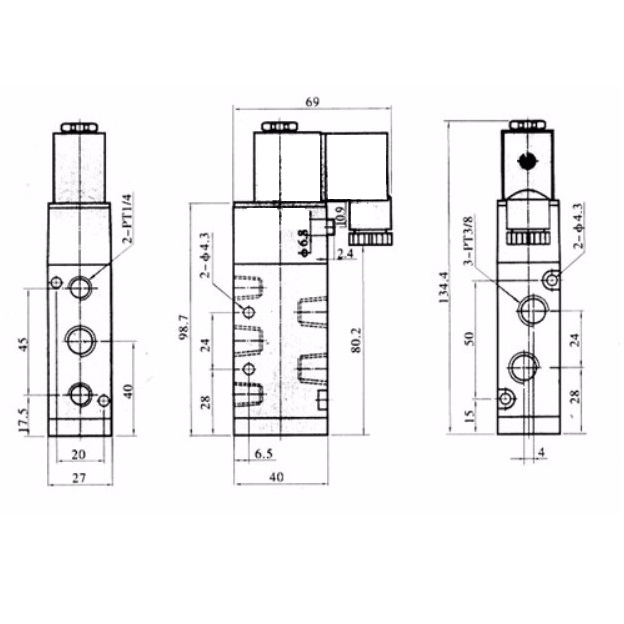

Airtac Solenoid Valve 5way 3/8 (4V310-10)

Rs 1,900.00

Available Voltage (must write in additional information/order notes)

220v AC

110v AC

24v DC

12v DC

Brand: Airtac

Type: 5/2 Way Internal Acting Acting Type Single Solenoid Valve

Model: 4V310-10

Coil voltage: optional

Port size: Air inlet = Air outlet = 3/8 “BSPT

Effective area: 30mm2

Operating temperature range: -5 ~ 55C

Working pressure range: 1.5 ~ 8 (kgf / cm2)

Proof pressure: 10.5 (kgf / cm2)

Voltage range: 10%

Insulation and protection: Class F.IP65

Wiring method: lead and box

Response time: 50ms

Categories: ,
  • Description
  • Reviews (0)

Description

  • Pilot-oriented mode: Internal pilot or external pilot.
  • Structure in sliding column mode: good tightness and sensitive reaction.
  • Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
  • No need to add oil for lubrication.
  • It is available to form integrated valve group with the base to save installation space.
  • Affiliated manual devices are equipped to facilitate installation and debugging.
  • Several standard voltage grades are optional.

Installation Instructions

  • Before installing, be sure the valve hasnt been damaged via transportation.
  • Its suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.
  • Please notice whether the installation condition accords with technical requirements (such as voltage, actuation frequency, working pressure and scope of application temperature), then the equipment can be installed and used.
  • Notice the flow direction of air during installation, P is the air intake, A (B) is the work port and R (S) is the exhaust outlet.
  • Take measure to avoid vibration and frozen.
  • Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread Seal Tape is used correctly.
  • To keep the dust away, please use the silencer for the exhaust ports. Never forget to install dirt-proof boot in air intake and outlet during dismounting.
  • After installing, please use the manual override to test valve first.
