Autonics Switching Mode Power Supply (SPB-120-24) In 100~240 VAC, Out 24 VDC (5 Amp)

Rs 19,500.00

Model: SPB-120-24

Output power 120W
Input Voltage 100-240VAC~ 50/60Hz
Permissible voltage 85-264VAC~ 50/60Hz, 120-370VDC
Output_Voltage 24VDC
Output_Current 5A

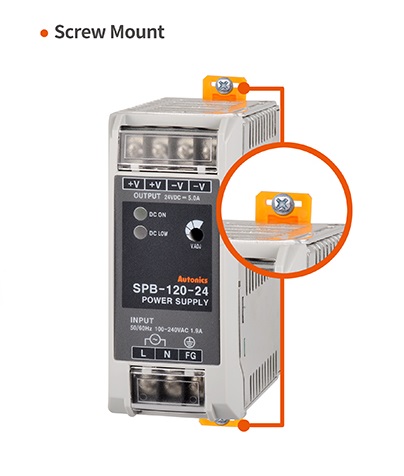

Mounting type DIN Rail
Protection Over-Current/Over-Voltage/Inrush Current/Output Short-Circuit/Remote Control/Output Low-Voltage Indicate/Power Factor Correction/Terminal Cover
Input_Frequency 50/60Hz
Input_Efficiency_100VAC~ 0.85
Input_Efficiency_240VAC~ 0.88
Input_Power factor Min. 0.9
Input_Current consumption_100VAC~ 1.49A
Input_Current consumption_240VAC~ 0.61A
Output type_Voltage adjustment range Max. 5%
Output type_Input fluctuation ratio Max. 0.5%
Output type_Load fluctuation ratio Max. 1%
Output type_Ripple&Ripple noise Max. 1%
Protection structure IP20(IEC standard)
Environment_Ambient temperature -10 to 50℃, storage: -25 to 65℃ (surrounding air temp.: Max. 40℃)
Environment_Ambient humidity 25 to 85%RH, storage: 25 to 90%RH
Weight Approx. 570g(approx. 466g)
