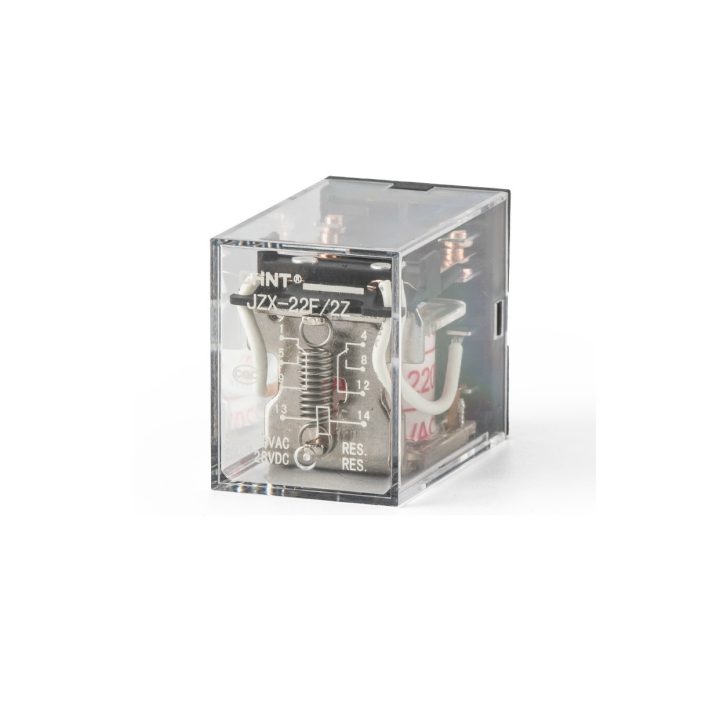

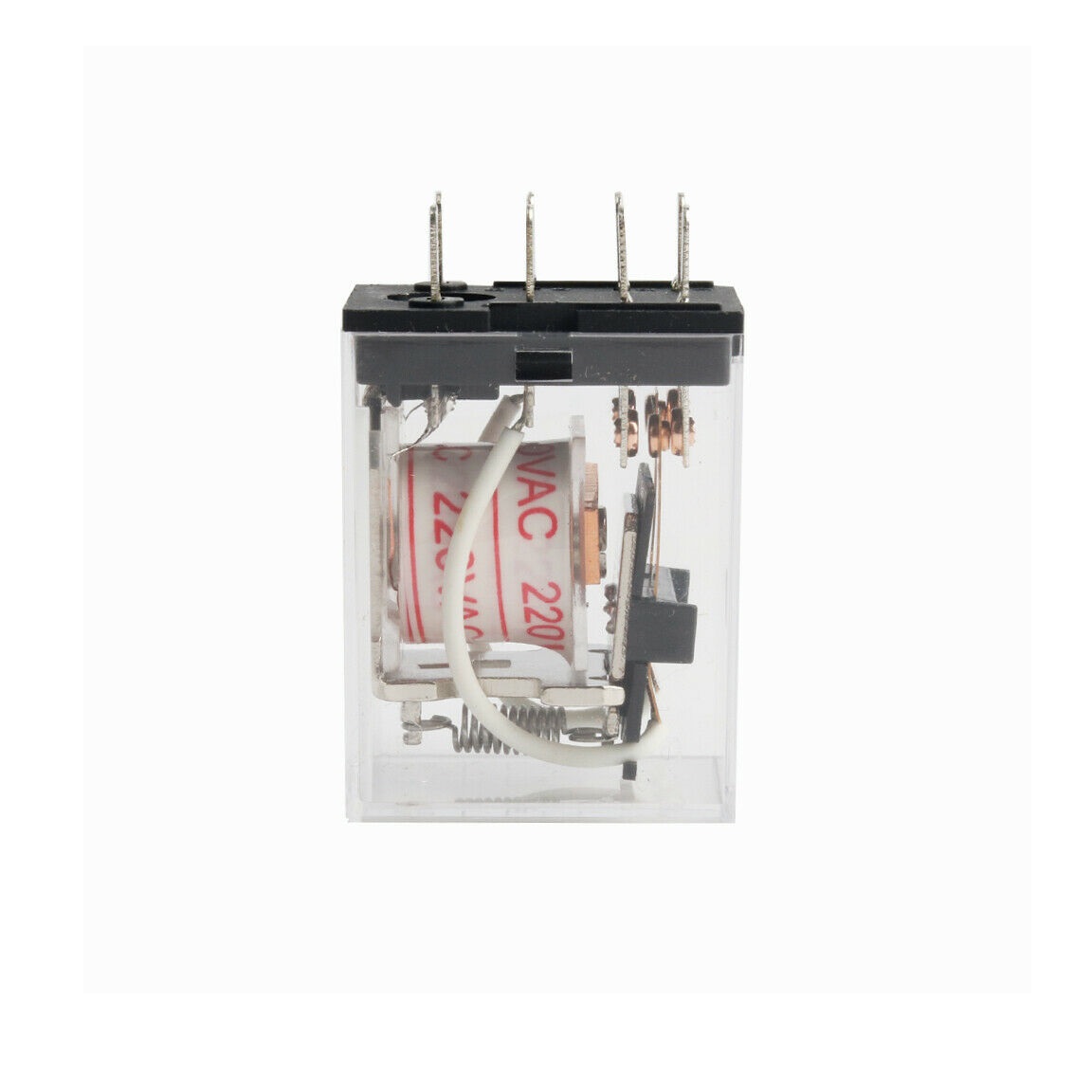

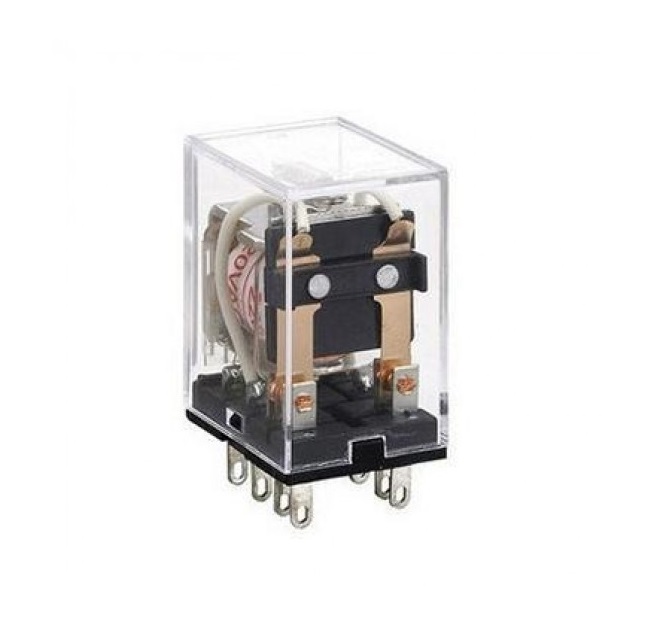

Chint Relay (JZX-22F 2Z) 8 Pin, Flat (Pack of 3pcs)

Rs 7,200.00

Available in these coil voltage (must write any one in additional information/order notes)

  • AC 220 V
  • DC 24 V
  • DC 12 V

Other coil voltages on request

Categories: ,
View cart

Description

  • Product: 8 pin, flat relay
  • Model: JZX-22F 2Z
  • Brand: chint
  • Relay type: 8 pin, flat
  • Contact: 2CO/5 Amp
  • Voltage: optional
  • Mounting: 8 pin flat socket
  • Body material: plastic
  • Certificates: CE,UL etc.

Specification

  • It is an electrically operated switch.
  • It consists of a set of input terminals for a single or multiple control signals, and a set of operating contact terminals.
  • The switch may have any number of contacts in multiple contact forms, such as make contacts, break contacts, or combinations thereof.
  • Relays are used where it is necessary to control a circuit by an independent low-power signal, or where several circuits must be controlled by one signal.
  • This traditional form of a relay uses an electromagnet to close or open the contacts.
  • Relays are used wherever it is necessary to control a high power or high voltage circuit with a low power circuit, especially when galvanic isolation is desirable.
  • High-voltage or high-current devices can be controlled with small, low voltage wiring and pilots switches.
  • Operators can be isolated from the high voltage circuit.
  • Low power devices such as micro processor scan drive relays to control electrical loads beyond their direct drive capability.
  • In an automobile, a starter relay allows the high current of the cranking motor to be controlled with small wiring and contacts in the ignition key.
  • These are mostly used in industrial sectors.

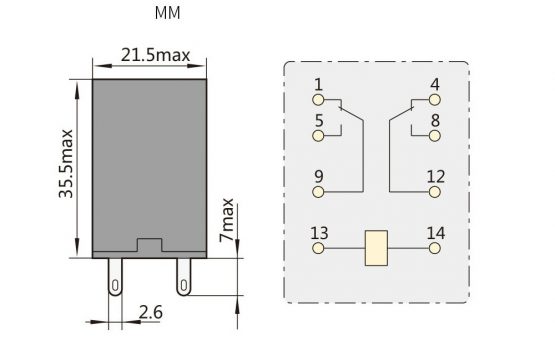

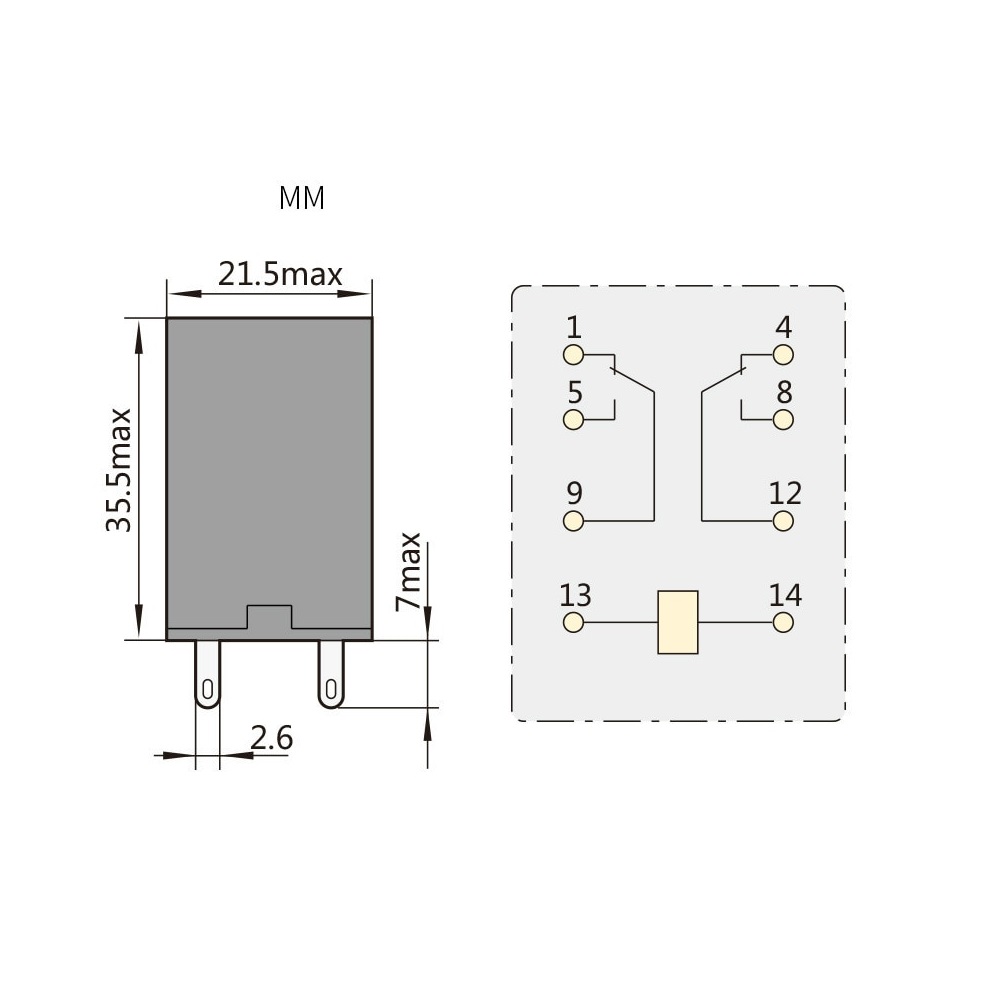

Diagram
