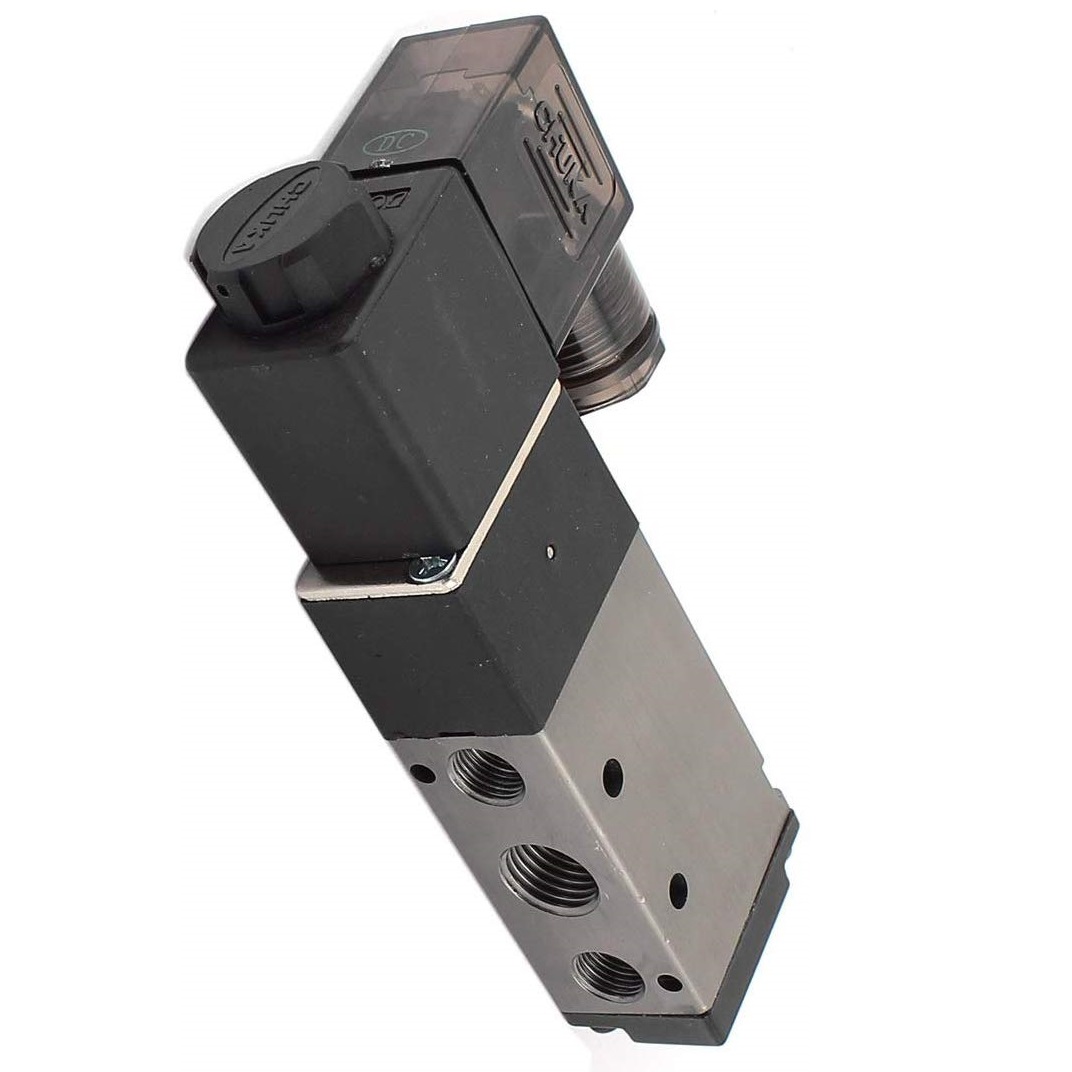

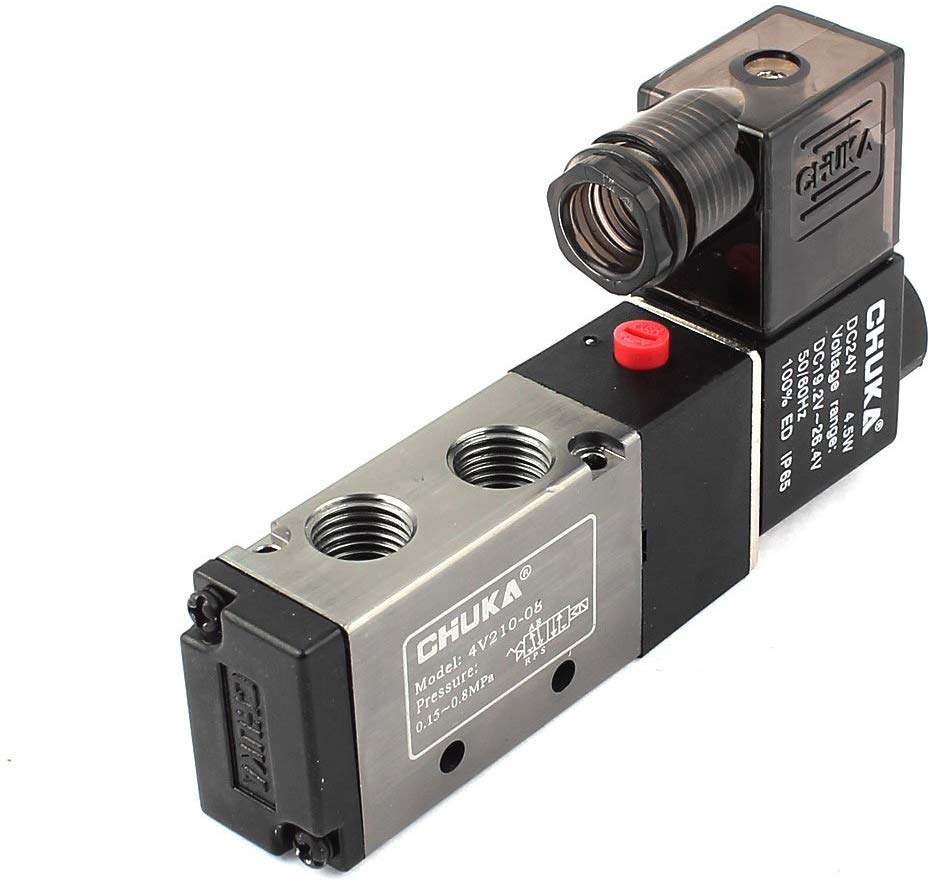

CHUKA Solenoid Valve 5way Giant Open 1/4″ (4V210-08) 5/2 position

Rs 2,950.00

  • Available Voltage: (must choose)
  • 220v AC
  • 110v AC
  • 24v DC
  • 12v DC
  • Product name: solenoid valve.
  • Model: 4V210-08.
  • Brand: CHUKA
  • Pressure: 0.15 ~ 0.8MPa.
  • Pressure resistance: 1.2 Mpa.
  • Operating temperature: -5 ~ 60 degrees Celsius.
  • Frequency: 50/60 Hz.
  • Highest frequency of action: 4.
  • Excitation time: = <0.05 seconds.
  • Effective section area: 30 mm2 (CV = 1.68).
  • Articulated pipe hole: inlet = outlet = G1 / 4 ”, exhaust = G1 / 8 “.
  • Total size: 4.7 x 2.6 x 0.9 in / 4.7 ” x 2.6 ” x 0.9 ” (L * W * T ).
  • External material: plastic, matel.
  • Color: gray, black.
Categories: ,
  • Description
  • Reviews (0)

Description

  • Pilot-oriented mode: optional for internal or external.
  • Structure in sliding column mode: good tightness and sensitive reaction.
  • Three position solenoid valves have three kinds of central function for your choice.
  • Double control solenoid valves have memory function.
  • Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
  • No need to add oil for lubrication.
  • It is available to form integrated valve group with the base to save installation space.
  • Affiliated manual devices are equipped to facilitate installation and debugging.
  • Several standard voltage grades are optional.
