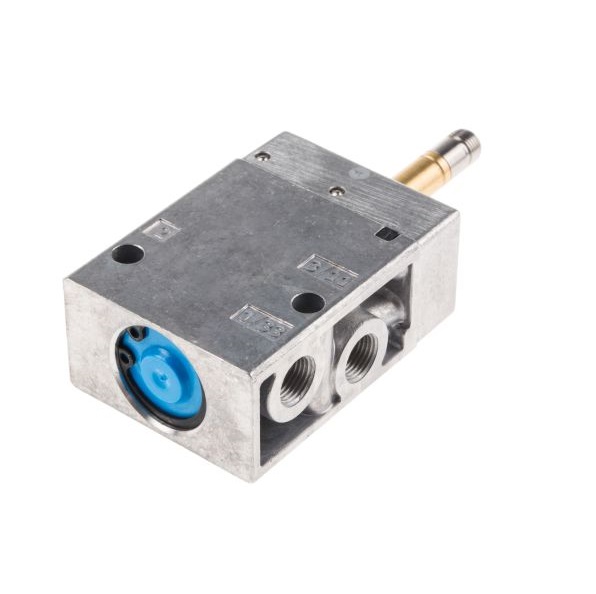

Festo (MFH-3-1/8) Pneumatic Solenoid Valve 3/2 Way (1/8 inch) Thread

Rs 13,500.00

Model:MFH-3-1/8

Mounting style: Through hole

Function: 3/2 way

Connection port thread: G 1/8

Actuation type: Solenoid/spring

Body material: Aluminium

Maximum flow rate: 500L/min

Solenoid power consumption: 4.5 W

Coil voltage: 240 VAC

Minimum operating pressure: 0 Bar

Maximum operating pressure: 8 Bar

Thread standard: BSPP

Number of position: 2

Thread size: 1/8 inch

Number of ports: 3

Categories: ,
  • Description
  • Reviews (0)

Description

  • These Classic range of solenoid pneumatic valves are sturdy and reliable, with an IP65 protection rating and aluminium housing.
  • They have Internal pilot air supply with a compressed air operating medium.
  • Easily interchangeable solenoid coils.
  • They have Electrical actuation with F solenoid coil and mechanical spring reset.
  • The valve has a highly durable poppet seat design.
  • The FESTO solenoid valves have optimised response times with U-ring and servo control and a maximum operating pressure of 8 bar.
  • The Operating temperature range of -5 to 40 C.
  • They also have throttle-able exhaust air function.
