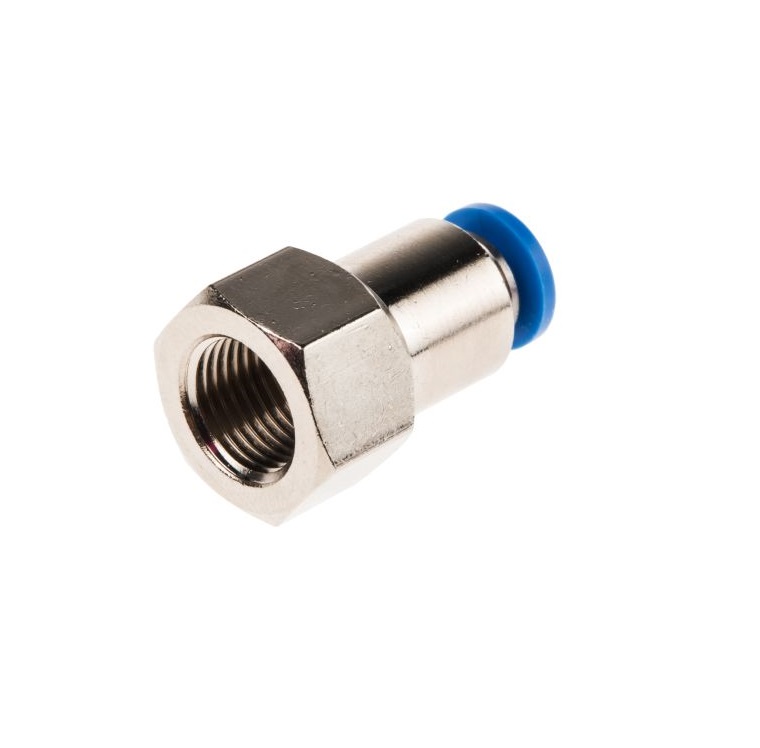

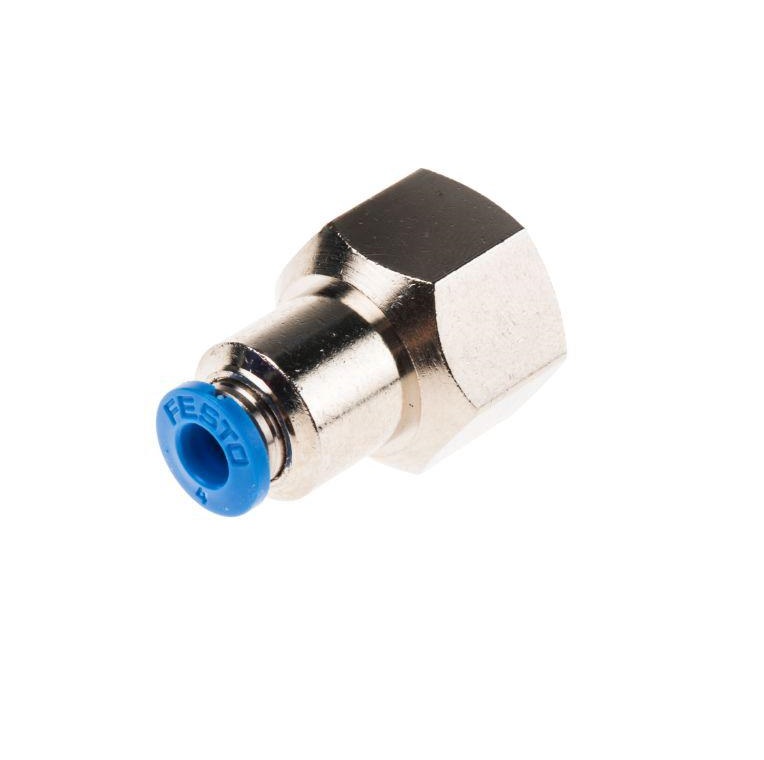

Festo Pneumatic Push-in fitting (QSF-1/8-4-B) 4mm*1/8 inch Straight Female Connector (1 piece)

Rs 450.00

Model: QSF-1/8-4-B

Connection Style Threaded-to-Tube
Connector A G 1/8 inch
Connector B Push In 4 mm
Connector A – Gender Female
Manufacturer Series QS
Mounting Type Inline
Body Material Brass
Maximum Operating Pressure 14 bar
Maximum Operating Temperature +80C
Minimum Operating Temperature -10C
Chemical Resistant No
Food Grade No


  • Description
  • Reviews (0)


  • QSF-1/8-4-B Quick Star from FESTO push-in fitting for core pneumatic applications.
  • The stainless-steel retaining claw within the fitting holds the tubing securely without damaging its surface.


  • Maximum flexibility for each pneumatic fitting
  • Effortless, quick and simple push-in installation
  • Threaded to tube (hose) connection style for use in pneumatic applications
  • Wide operating temperature range of -10 to +80C
  • Air pressure ranges of up to 14 bar
  • Available with a variety of different thread and diameter connector sizes
  • Robust, solid nickel-plated brass with high resistance to corrosion
  • Reliably connected
  • Nickel plater, therefore highly resistant to corrosion
  • The fitting can be aligned after assembly
  • Assembly position – any
  • Operating medium – Compressed air in accordance with ISO8573-1:2010 [7:-:-]
  • Product weight 13g
