Micro Limit Switch (TM-1308) Roller Plunger (Heavy Duty)

Rs 500.00

Product Name: Micro Limit Switch

Model No: TM-1308

Limit switch type: Roller Plunger (Heavy Duty)

Manufactured: china

Contact Form: SPDT NO+NC

Termination Style: Screw Terminal

Terminal Number: 3

Rating: Ui: 380V

Ith: 15A

AC-15

Ue: 250V

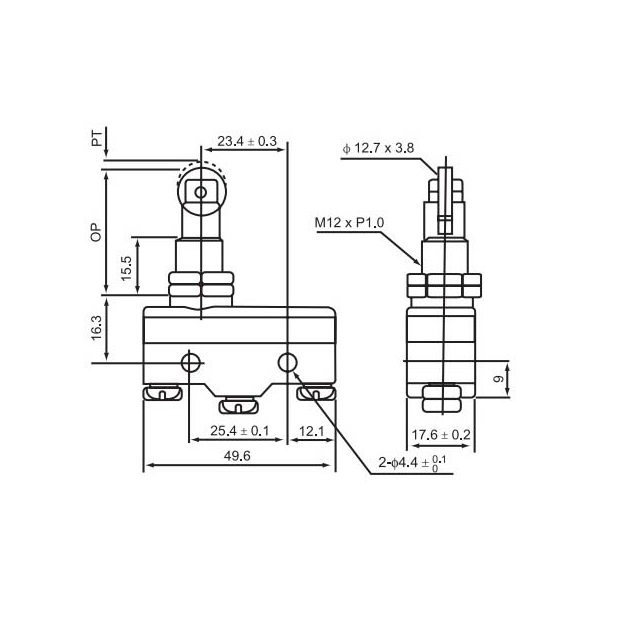

Fixing Holes Dia.: 4mm/0.16inch

Category:
View cart

Description

  • It is operated by the motion of a machine part or presence of an object.
  • They are used for controlling machinery as part of a control system, as a safety interloaks, or to count objects passing a point.It is an electromechanical device that consists of an actuator mechanically linked to a set of contacts. When an object comes into contact with the actuator, the device operates the contacts to make or break an electrical connection.
  • It is an electric switch that is actuated by very little physical force, through the use of a tipping point mechanism, sometimes called an over-center mechanism.
  • It is very common due to it,s low cost but high durability, greater than 1 million cycles and up to 10 million cycles for heavy duty models. This durability is a natural consequence of the design.
  • The defining feature of it is that a relatively small movement at the actuator button produces a relatively large movement at the electrical contacts, which occurs at high speed (regardless of the speed of actuation).
