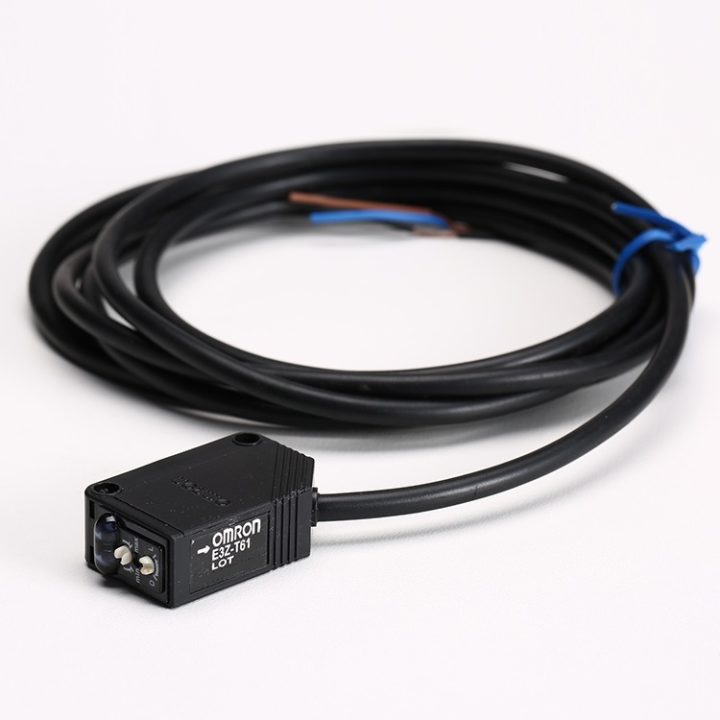

Omron (E3Z-T61) Infrared LED Photo Sensor (Sensing Range 15 Meter)

Rs 15,800.00


Model E3Z-T61
Sensing method Through-beam type
Sensing distance 15 m
Standard sensing object Opaque: 12 mm dia. min.
Directional angle Emitter: 3 to 15
Receiver: 3 to 15
Light source Infrared LED (870 nm)
Power supply voltage 12 to 24 VDC10% ripple (p-p) 10% max.
Current consumption Emitter: 15 mA max.
Receiver: 20 mA max.
Control output NPN open collector
26.4 VDC max.
100 mA max.
Residual voltage: 1 V max. (Load current Less than 10 mA)
Residual voltage: 2 V max. (Load current 10 to 100 mA)
Operation mode Light-ON/Dark-ON selectable
Protective circuit Output short-circuit protection, Output reverse polarity protection, Power supply reverse polarity protection
Response time Operate or reset: 1 ms max.
Sensitivity setting Single-turn adjustment
Ambient illuminance Incandescent lamp: 3000 lux max., Sunlight: 10000 lux max.
Ambient temperature (Operating) -25 to 55℃ (with no icing)
Ambient temperature (Storage) -40 to 70℃ (with no freezing or condensation)
Ambient humidity Operating: 35 to 85% (with no condensation)
Storage: 35 to 95% (with no condensation)
Insulation resistance 20 MΩ min. (500 VDC megger)
Dielectric strength 1000 VAC 50/60 Hz 1 min
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance Destruction: 500 m/s**2 3 times each in X, Y and Z directions
Degree of protection IEC: IP67
Connection method Pre-wired models (Cable length 2 m)
Indicator Operation indicator (orange), Stability indicator (green), Power indicator (orange)
Weight Package: Approx. 120 g
Accessories Instruction manual
Material Case: Polybutylene terephthalate (PBT)
Lens: Denatured Polyarylate
