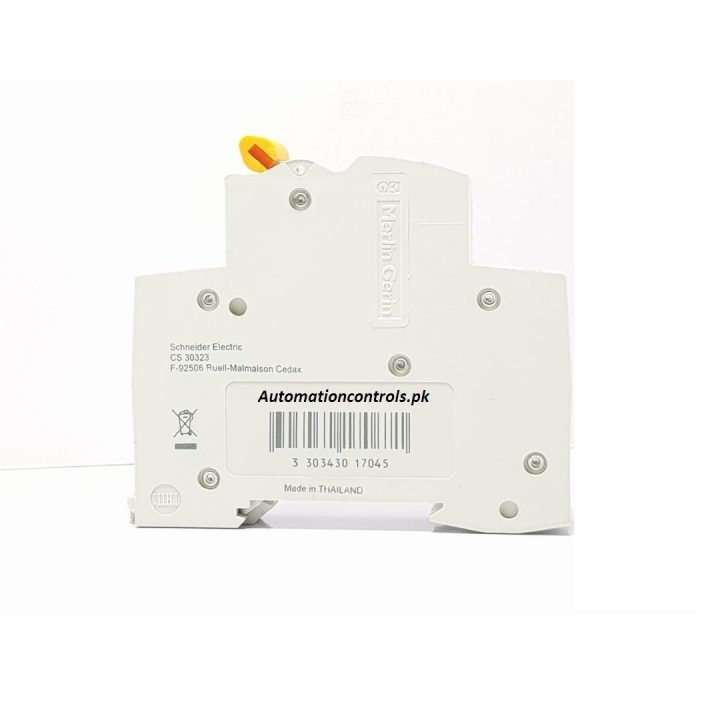

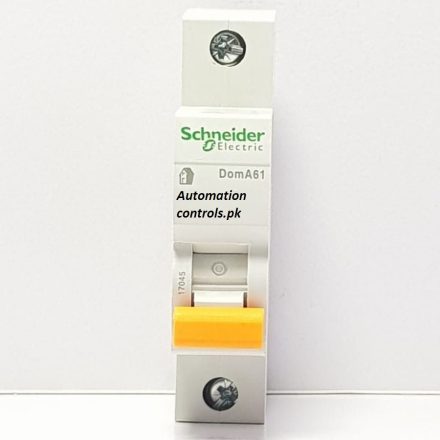

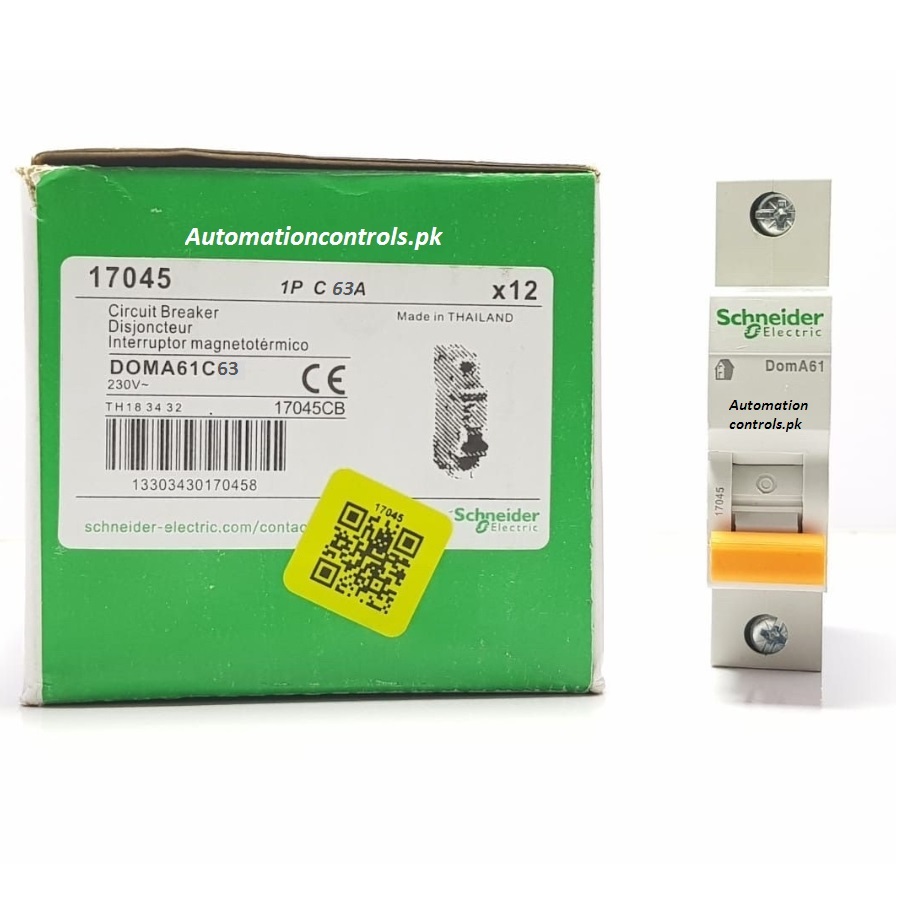

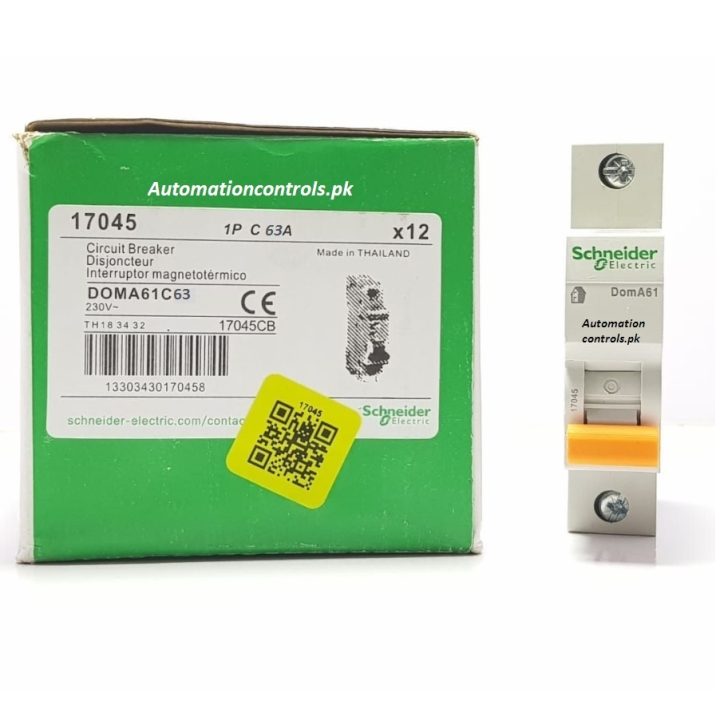

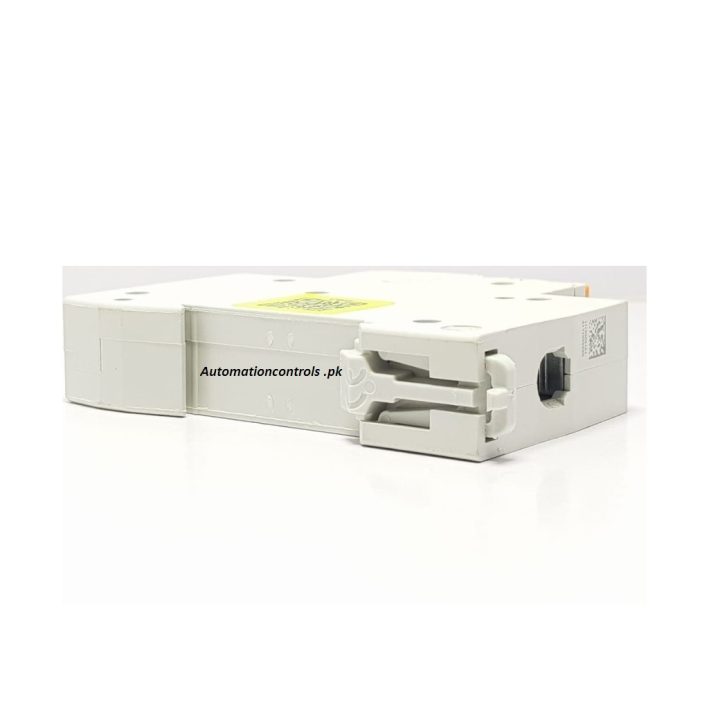

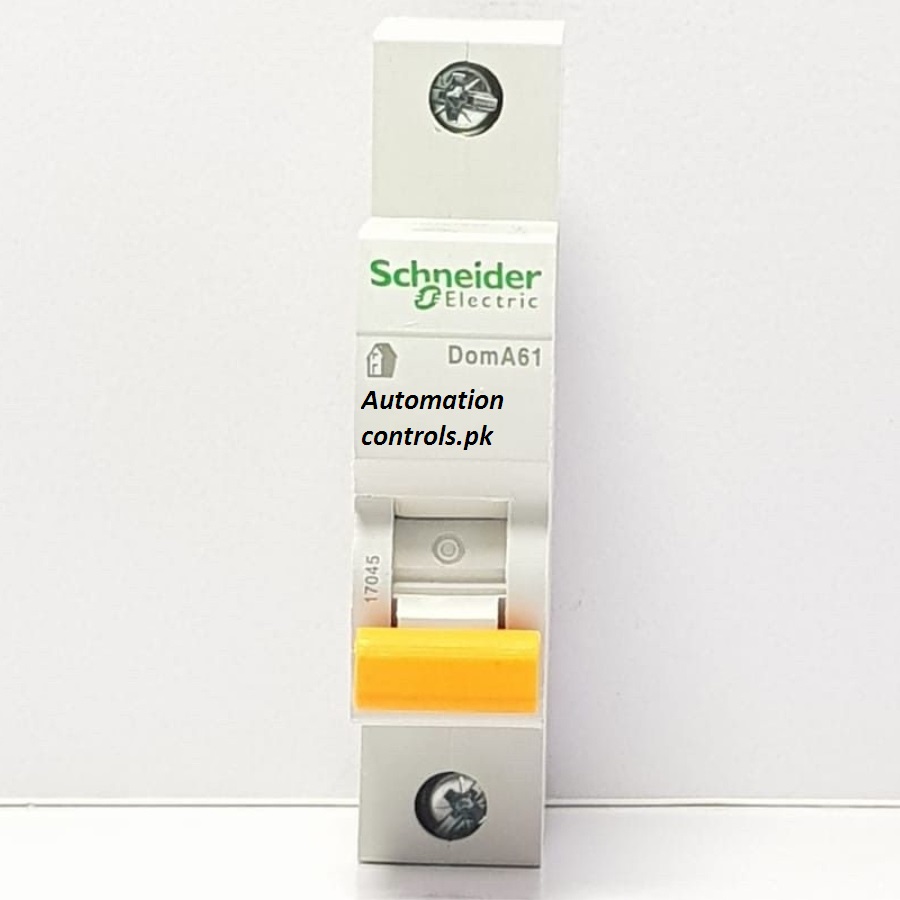

Schneider Domae 1P 63A MCB Miniature circuit breaker

Rs 570.00

model range : Domae

product type : miniature circuit breaker

number of poles : 1P

rated current : 63A

Network type : AC

breaking capacity : 45kA

Control type : toggle on/off

mounting : DIN rail

cash on delivery available

View cart

Description

  • This is the model Domae low voltage miniature circuit breaker (MCB).
  • This is a 1Pole circuit breaker and 63Amp In rated current and C tripping curve.
  • It’s Icn rated short circuit breaking capacity goes up to 4500A at 230VAC.
  • These MCB miniature circuit breaker protects circuit against short circuit and overload current.
  • Fault tripping is indicated on the front panel by the position of the handle (O-I engraved).
  • This product has an electrical endurance up to 10000 cycles and a mechanical endurance up to 20000 cycles.
  • Ue operational voltage is 230VAC.
  • And the operating frequency is 50Hz or 60Hz.
  • It can be easily clipped on a DIN rail.
