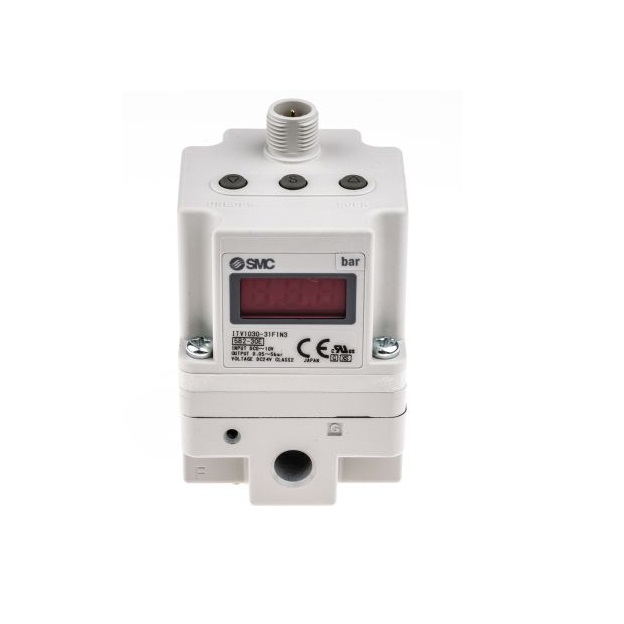

SMC (ITV1030-31F1N3) Electro pneumatic regulator, 1/8 inch

Rs 39,600.00

Pressure Gauge Port Thread Standard: G
Manufacturer Series: ITV1000
Minimum Outlet Pressure: 0.005MPa
Brand: SMC
Integral Check Valve: Without Check Valve
Port Connection: G 1/8
Minimum Operating Temperature: 0C
Maximum Operating Temperature: +50C
Pressure Gauge Port Thread Size: 1/8 in
Pressure Gauge Port Size: G 1/8
Port Connection Thread Size: 1/8 in
Maximum Input Pressure: 1MPa
Maximum Outlet Pressure: 0.5MPa
Port Connection Thread Standard: G
  • Description
  • Reviews (0)

Description

  • It allow proportional control of the regulators output pressure with an electrical input signal.
  • Increasing the input signal will increase the pilot pressure operating a diaphragm controlling air between the supply and output pressure ports.
  • The pressure at the output port will continue to rise until the feedback from the pressure sensor shows the output pressure to be proportional to the input signal.
