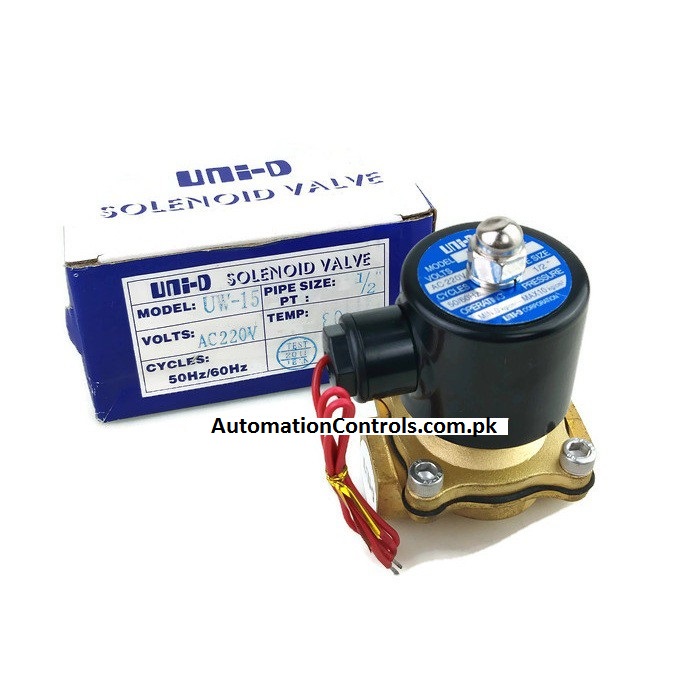

UNI-D Solenoid Valve 2way 1/2″ (UW-15)
Rs 3,900.00
Model: UW-15
Manufactured: UNI-D (china)
Frequency: 50/60Hz
Voltage: 220v AC
Pipe Size: 1/2″
Installation: Fluid direction should be as the arrow shows
Valve Body: Brass
Oil Seal Material: NBR
CV: 4.5
Orifice: 15mm
Fluid temperature: -5C ~ +80C
- Description
- Reviews (1)
Description
- This is direct, multiplex, connected diaphragm, conductive and normally closed (NC) 2/2 way solenoid valve.
- Able to be operated directly under low pressure
- Availability of fluid type：water, air, light oil
- Acceptable for customization Viton (130℃) , Silicone (130℃) and EPDM (130℃)
- Before pipelining, the pipe line must be very clean without any contaminants or any other things not ought to be existed.
- To prolong the life time of the product, Y-line filter should be installed in the front end of solenoid valve.
- AC voltage tolerance：10%；DC voltage tolerance：1%
- It should be installed horizontally, vertical installation is not advisable.
