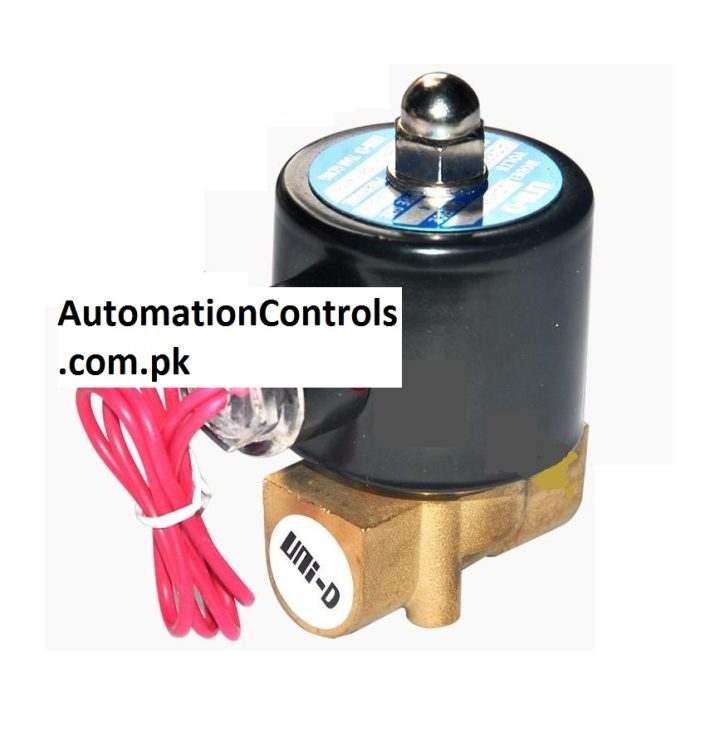

UNI-D Solenoid Valve 2way 3/8 (UD-10)

Rs 2,650.00

Model: UD-10

Manufactured: UNI-D (china)

Frequency: 50/60Hz

Voltage: 220v AC

Pipe Size: 3/8″

Installation: Fluid direction should be as the arrow shows

Valve Body: Brass

Oil Seal Material: NBR

Orifice: 10mm

Fluid temperature: -5C ~ +80C

Categories: ,
  • Description
  • Reviews (0)

Description

  • UD series is direct-acting, conductive, and normally closed (NC) 2/2 way solenoid valve.
  • Able to be operated directly without pressure.
  • Availability of fluid type:water, air, light oil, gas, vacuum.
  • Acceptable for customizeation:Viton (130℃) , Silicone (130℃) and EPDM (130℃).
  • Before pipelining, the pipe line must be very clean without any contaminants or any other things not ought to be existed.
  • To prolong the life time of the product, Y-line filter should be installed in the front end of solenoid valve.
  • It should be installed horizontally;vertical installation is not advisable.
