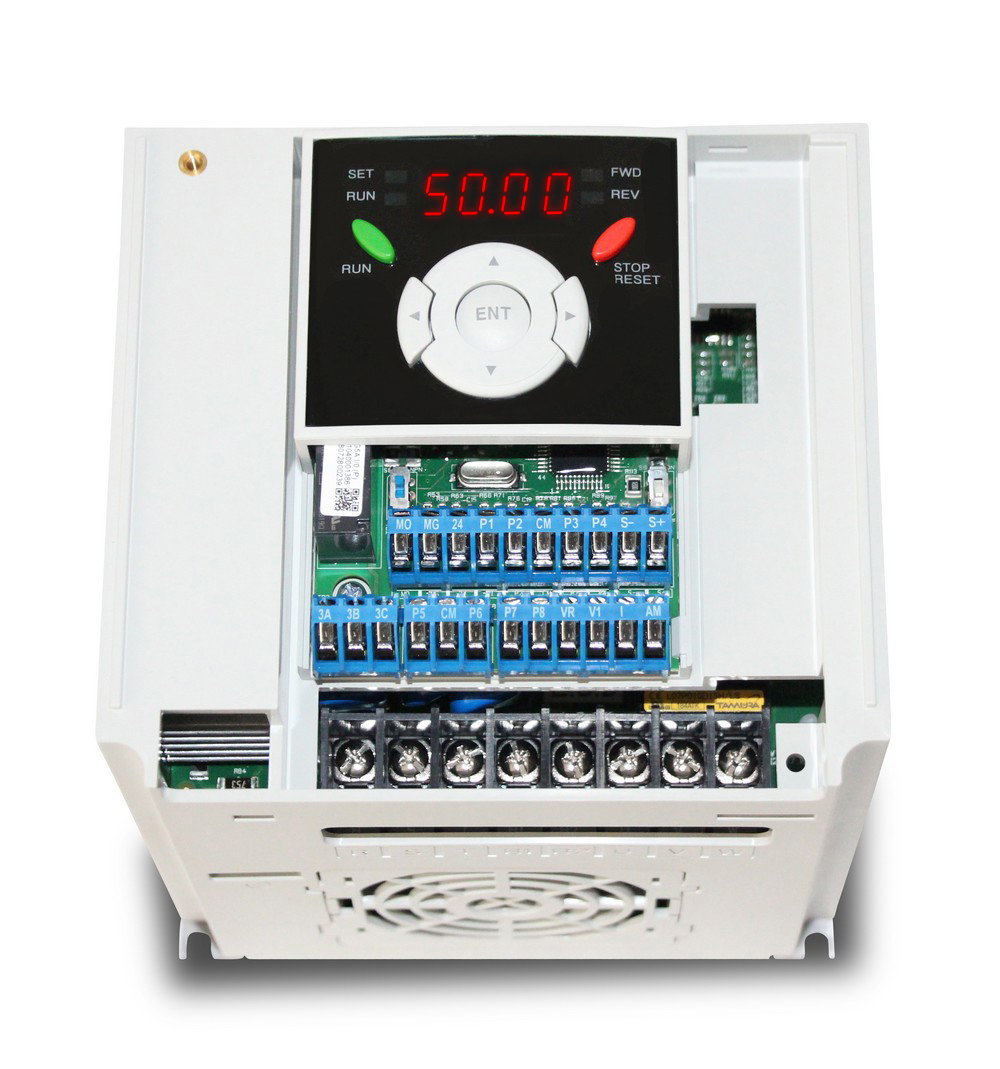

LS (022-IG5A-4) Frequency Inverter 2.2kW, 6Amp
LS (022-IG5A-4) Frequency Inverter 2.2kW, 6Amp - Image 2

LS (022-IG5A-4) Frequency Inverter 2.2kW, 6Amp

Rs 52,500.00

  • V/f Control, Sensorless Vector Control selectable
  • PID-Control for expanded Process Control
  • High Torque within complete motor speed range
  • 0,1-400 Hz output frequency (1000 Hz model on request )
  • 1-15 kHz base frequency
  • Input voltage: optional on demand
  • Analog input 0 to +10 Vdc / -10 to +10 Vdc
  • 150% torque at 0,5 Hz
Category: Brand:

Description

  • Torque Boost manual/automatic
  • Input signal PNP/NPN selectable
  • Control and parameter set for second motor
  • Brake chopper for dynamic braking as standard
  • Automatic setting : vector measurment of the motor and Autotuning
  • Bult-in communication RS485 (LS Bus / Modbus RTU)
  • Fan with On/Off-control, easy to replace Remote control with external keypad and RJ5-cable (Option)
  • Enhanced functions:
  • Sleep & Wake-up function
  • Energy saving
  • KEB-protection (saving of kinetic energy)
  • Leckage current reduction
  • Software(Drive View) for monitoring and parameter setting via computer
