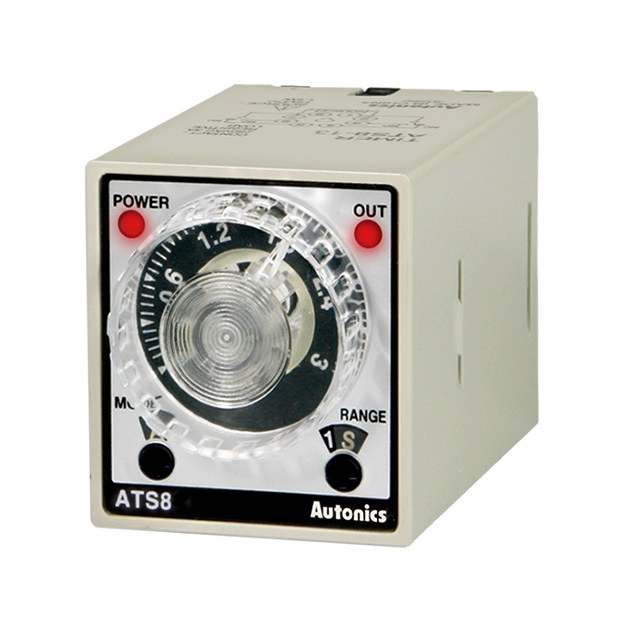

Autonics (ATS8-43) Analogue Timer 8-pin (100-240 VAC, 24-240 VDC) Contact for price

Autonics (ATS8-43) Analogue Timer 8-pin (100-240 VAC, 24-240 VDC) Contact for price

Model: ATS8-43

Operation method Time setting
Output Operation POWER ON DELAY, FLICKER, INTERVAL
Time operation POWER ON START
Terminal 8-pin plug
Power supply 100-240VAC~50/60Hz, 24-240VDC
Setting range 0.3 to 3 sec, 3 to 30 sec, 0.3 to 3 min, 3 to 30 min, 0.3 to 3 hour, 3 to 30 hour
Control output Time-limit SPDT (1c): 2 or Instantaneous SPDT (1c): 1 + Time-limit SPDT (1c): 1 depending on output operation mode
Dimension W38 x H42 mm
Accessories Bracket
Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity 35 to 85% RH
Weight Approx. 95g (approx. 70g)

Categories: , Brand:

Description

  • Socket (8-pin socket) not included.
  • Refer to time specifications for control time setting range by model.
  • The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.

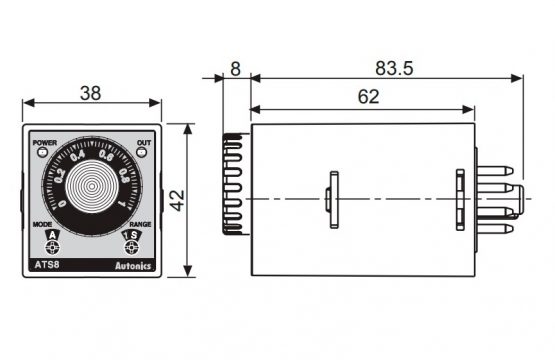

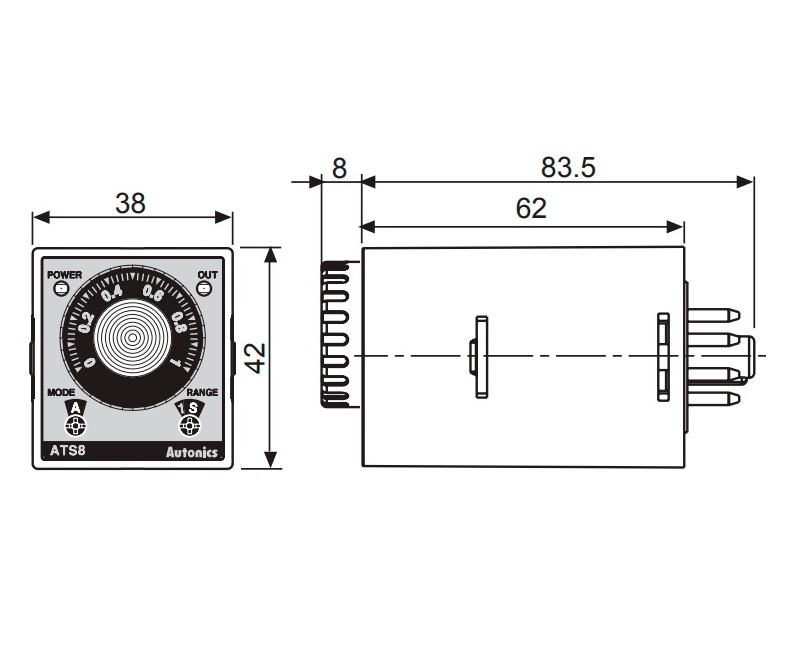

Dimension
