• (H3BA-8) Analoge Timer

    0 out of 5

    Features

    Contact capacity: 250v AC

    Rated current: 5A

    Size: Dimensions: 47*47*90mm / 1.85*1.85*3.54in

    Time range: 0.5sec to 100h

    Rs 1,900.00
  • (MS4S-A) Analogue Timer 100-220v AC

    0 out of 5

    Model: MS4S-A

    Voltage: 100-220v AC

    Time range: 0.1sec-99hours

    No of pins :8pin

    Rs 1,600.00

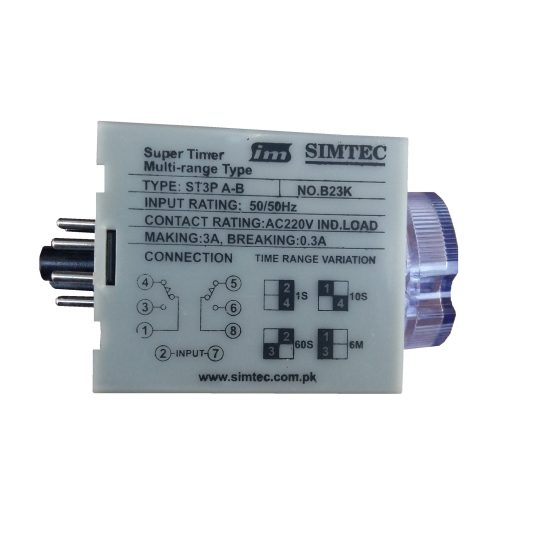

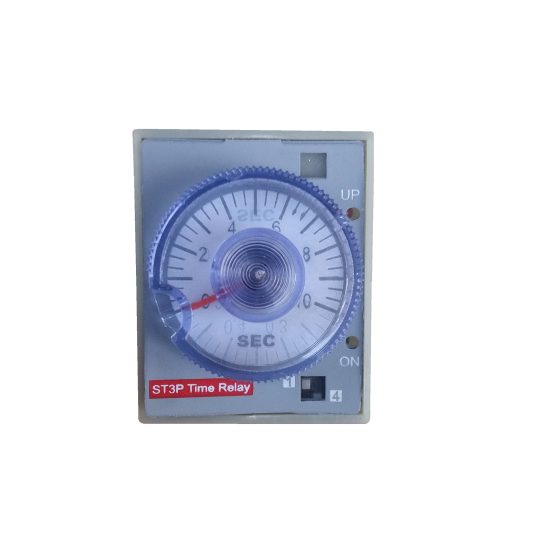

  • (ST3P A-B) Analogue Timer/Time Delay Relay

    0 out of 5
    Model Number: ST3P
    Size: Miniature
    Usage:`4General Purpose
    Theory: Time Relay
    Protect Feature: Sealed
    Contact Load: Low Power
    Dimension: 55H X 40.5W X 57.5D
    Function: Off delay
    Delaying Accuracy: 1%
    Contact Amount: Timed 1 Spdt
    Contact Capacity: 220V 3A
    Rated Voltage: 220V AC
    Mounting device: 8pin socket
    Also available in 440v AC,110v AC,24v DC,12v DC
    Rs 1,000.00
  • Autonics (AT8N) Analogue Timer 8-pin (100-240 VAC, 24-240 VDC)

    0 out of 5

    Model:AT8N

    Operation method Time setting
    Output Operation POWER ON DELAY, FLICKER, INTERVAL
    Time operation POWER ON START
    Terminal 8-pin plug
    Power supply 100-240VAC~, 24-240VDC
    Setting range 0.05 to 0.5 sec, 0.1 to 1 sec, 0.5 to 5 sec, 1 to 10 sec, 0.05 to 0.5 min, 0.1 to 1 min, 0.5 to 5 min, 1 to 10 min, 0.05 to 0.5 hour, 0.1 to 1 hour, 0.5 to 5 hour, 1 to 10 hour, 5 to 50 hour, 10 to 100 hour
    Control output Time-limit SPDT (1c): 2 or Instantaneous SPDT (1c): 1 + Time-limit SPDT (1c): 1 depending on output operation mode
    Accessories Bracket
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH
    Weight Approx. 134.12g (approx. 86.71g)



    Rs 3,200.00

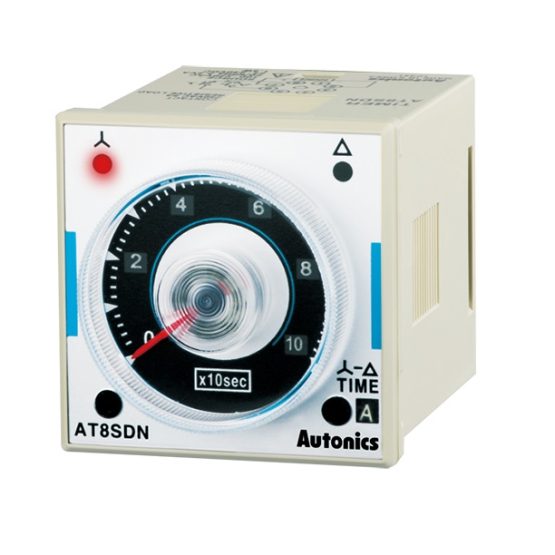

  • Autonics (AT8SDN) Analogue Timer 8-pin (100-240 VAC, 24-240 VDC)

    0 out of 5

    Model: AT8SDN

    Operation method Time setting
    Output Operation STAR-DELTA
    Time operation POWER ON START
    Terminal 8-pin plug
    Power supply 100-240VAC~, 24-240VDC
    Setting range 0.5 to 5 sec, 1 to 10 sec, 5 to 50 sec, 10 to 100 sec
    Control output STAR contact: SPST (1a): 1, DELTA contact: SPST (1a): 1
    Accessories Bracket
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH
    Weight Approx. 90g



    Rs 6,500.00
  • Autonics (ATE8-41) Analogue Timer 8-pin (100-240 VAC, 24-240 VDC)

    0 out of 5

    Model:ATE8-41

    Operation method Time setting
    Output Operation POWER ON DELAY
    Time operation POWER ON START
    Terminal 8-pin plug
    Power supply 100-240VAC~50/60Hz, 24-240VDC
    Setting range 0.1 to 1 sec, 1 to 10 sec, 0.1 to 1 min, 1 to 10 min, 0.1 to 1 hour
    Control output Time-limit SPDT (1c): 1, Instantaneous SPST (1a): 1
    Protection structure IP40(front panel)
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH
    Weight Approx. 122.2g(Approx. 75g)



    Rs 4,900.00
  • Autonics (ATS11-11D) Analogue Timer 11-pin (12 VDC)

    0 out of 5

    Model:ATS11-11D

    Operation method Time setting
    Output Operation SIGNAL ON DELAY, SIGNAL OFF DELAY, SIGNAL ON-OFF DELAY, FLICKER, INTERVAL
    Time operation SIGNAL ON START
    Terminal 11-pin plug
    Power supply 12VDC
    Setting range 0.1 to 1 sec, 1 to 10 sec, 0.1 to 1 min, 1 to 10 min, 0.1 to 1 hour, 1 to 10 hour
    Signal Input Method No-voltage input(NPN)
    Control output Time-limit SPDT (1c): 2
    Dimension W38 x H42 mm
    Min. signal Width START, INHIBIT, RESET: [No-voltage input] – Short-circuit impedance: Max. 1kΩ,
    Residual voltage: Max. 0.5V, Open-circuit impedance: Min. 100kΩ
    Accessories Bracket
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH
    Weight Approx. 95g (approx. 70g)



    Rs 3,200.00
  • Autonics (ATS11-13D) Analogue Timer 11-pin (12 VDC)

    0 out of 5

    Model:ATS11-13D

    Operation method Time setting
    Output Operation SIGNAL ON DELAY, SIGNAL OFF DELAY, SIGNAL ON-OFF DELAY, FLICKER, INTERVAL
    Time operation SIGNAL ON START
    Terminal 11-pin plug
    Power supply 12VDC
    Setting range 0.3 to 3 sec, 3 to 30 sec, 0.3 to 3 min, 3 to 30 min, 0.3 to 3 hour, 3 to 30 hour
    Signal Input Method No-voltage input(NPN)
    Control output Time-limit SPDT (1c): 2
    Dimension W38 x H42 mm
    Min. signal Width START, INHIBIT, RESET: [No-voltage input] – Short-circuit impedance: Max. 1kΩ,
    Residual voltage: Max. 0.5V, Open-circuit impedance: Min. 100kΩ
    Accessories Bracket
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH
    Weight Approx. 95g (approx. 70g)



    Rs 3,200.00
  • Autonics (ATS11-41D) Analogue Timer 11-pin (100-240 VAC, 24-240 VDC)

    0 out of 5

    Model:ATS11-41D

    Operation method Time setting
    Output Operation SIGNAL ON DELAY, SIGNAL OFF DELAY, SIGNAL ON-OFF DELAY, FLICKER, INTERVAL
    Time operation SIGNAL ON START
    Terminal 11-pin plug
    Power supply 100-240VAC~50/60Hz, 24-240VDC
    Setting range 0.1 to 1 sec, 1 to 10 sec, 0.1 to 1 min, 1 to 10 min, 0.1 to 1 hour, 1 to 10 hour
    Signal Input Method No-voltage input(NPN)
    Control output Time-limit SPDT (1c): 2
    Dimension W38 x H42 mm
    Min. signal Width START, INHIBIT, RESET: [No-voltage input] – Short-circuit impedance: Max. 1kΩ,
    Residual voltage: Max. 0.5V, Open-circuit impedance: Min. 100kΩ
    Accessories Bracket
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH
    Weight Approx. 95g (approx. 70g)



    Rs 3,200.00
  • Autonics (ATS11-43D) Analogue Timer 11-pin ( 100-240 VAC, 24-240 VDC )

    0 out of 5

    Model:ATS11-43D

    Operation method Time setting
    Output Operation SIGNAL ON DELAY, SIGNAL OFF DELAY, SIGNAL ON-OFF DELAY, FLICKER, INTERVAL
    Time operation SIGNAL ON START
    Terminal 11-pin plug
    Power supply 100-240VAC~50/60Hz, 24-240VDC
    Setting range 0.3 to 3 sec, 3 to 30 sec, 0.3 to 3 min, 3 to 30 min, 0.3 to 3 hour, 3 to 30 hour
    Signal Input Method No-voltage input(NPN)
    Control output Time-limit SPDT (1c): 2
    Dimension
    W38 x H42 mm
    Min. signal Width START, INHIBIT, RESET: [No-voltage input] – Short-circuit impedance: Max. 1kΩ,
    Residual voltage: Max. 0.5V, Open-circuit impedance: Min. 100kΩ
    Accessories Bracket
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH
    Weight Approx. 95g (approx. 70g)



    Rs 3,200.00
  • Autonics (ATS8-11) Analogue Timer 8-pin (12 VDC)

    0 out of 5

    Model: ATS8-11

    Operation method Time setting
    Output Operation POWER ON DELAY, FLICKER, INTERVAL
    Time operation POWER ON START
    Terminal 8-pin plug
    Power supply 12VDC
    Setting range 0.1 to 1 sec, 1 to 10 sec, 0.1 to 1 min, 1 to 10 min, 0.1 to 1 hour, 1 to 10 hour
    Control output Time-limit SPDT (1c): 2 or Instantaneous SPDT (1c): 1 + Time-limit SPDT (1c): 1 depending on output operation mode
    Dimension W38 x H42 mm
    Accessories Bracket
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH
    Weight Approx. 95g (approx. 70g)
    Rs 3,200.00
  • Autonics (ATS8-13) Analogue Timer 8-pin (12 VDC)

    0 out of 5

    Model:ATS8-13

    Operation method Time setting
    Output Operation POWER ON DELAY, FLICKER, INTERVAL
    Time operation POWER ON START
    Terminal 8-pin plug
    Power supply 12VDC
    Setting range 0.3 to 3 sec, 3 to 30 sec, 0.3 to 3 min, 3 to 30 min, 0.3 to 3 hour, 3 to 30 hour
    Control output Time-limit SPDT (1c): 2 or Instantaneous SPDT (1c): 1 + Time-limit SPDT (1c): 1 depending on output operation mode
    Dimension W38 x H42 mm
    Accessories Bracket
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH
    Weight Approx. 95g (approx. 70g)



    Rs 3,200.00
  • Autonics (ATS8-41) Analogue Timer 8-pin (100-240 VAC, 24-240 VDC)

    0 out of 5

    Model: ATS8-41

    Operation method Time setting
    Output Operation POWER ON DELAY, FLICKER, INTERVAL
    Time operation POWER ON START
    Terminal 8-pin plug
    Power supply 100-240VAC~50/60Hz, 24-240VDC
    Setting range 0.1 to 1 sec, 1 to 10 sec, 0.1 to 1 min, 1 to 10 min, 0.1 to 1 hour, 1 to 10 hour
    Control output Time-limit SPDT (1c): 2 or Instantaneous SPDT (1c): 1 + Time-limit SPDT (1c): 1 depending on output operation mode
    Dimension W38 x H42 mm
    Accessories Bracket
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH
    Weight Approx. 95g (approx. 70g)



    Rs 3,400.00
  • Autonics (ATS8-43) Analogue Timer 8-pin (100-240 VAC, 24-240 VDC)

    0 out of 5

    Model: ATS8-43

    Operation method Time setting
    Output Operation POWER ON DELAY, FLICKER, INTERVAL
    Time operation POWER ON START
    Terminal 8-pin plug
    Power supply 100-240VAC~50/60Hz, 24-240VDC
    Setting range 0.3 to 3 sec, 3 to 30 sec, 0.3 to 3 min, 3 to 30 min, 0.3 to 3 hour, 3 to 30 hour
    Control output Time-limit SPDT (1c): 2 or Instantaneous SPDT (1c): 1 + Time-limit SPDT (1c): 1 depending on output operation mode
    Dimension W38 x H42 mm
    Accessories Bracket
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH
    Weight Approx. 95g (approx. 70g)

    Rs 3,200.00

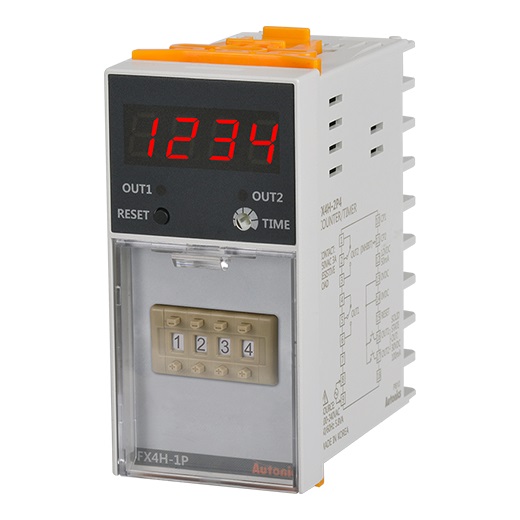

  • Autonics (FX4H-1P4) Counter, Timer

    0 out of 5

    Model: FX4H-1P4

    Display method 4-digit 7-segment LED
    Operation method Counter: Count up, Count down, Count up/down
    Timer: Count up, Count down
    Terminal Terminal block
    Output Operation POWER ON DELAY, FLICKER
    Power supply 100-240VAC~ 50/60Hz
    Time operation POWER ON START
    External Power Supply Max. 12VDC 10% 50mA
    Signal Input Method Voltage input(PNP), No-voltage input(NPN)
    Max. Counting Speed 1, 30, 2k, 5k [cps]
    Min. signal Width 20ms
    Memory Protection Approx. 10 years
    Setting range 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 99 hour 59 min, 0.1 hour to 999.9 hour, 1 hour to 9999 hour
    Control output_Type 1-stage preset
    Control output_Relay SPDT (1c): 1
    Control output_NPN open collector 1
    Protection structure IP20(front panel)
    Dimension 48 x 96 mm
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Weight Approx. 245g (approx. 180g)



    Rs 12,500.00

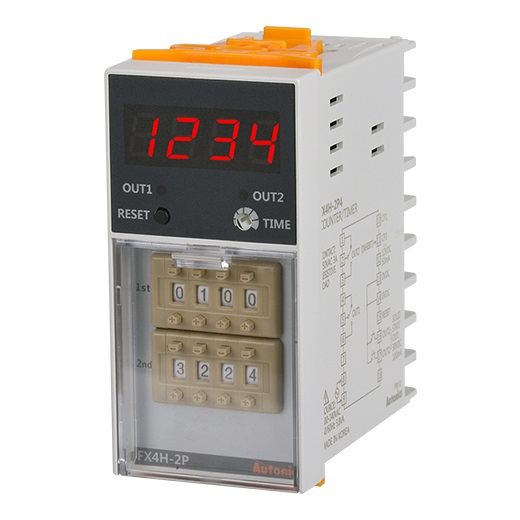

  • Autonics (FX4H-2P4) Counter, Timer

    0 out of 5

    Model: FX4H-2P4

    Display method 4-digit 7-segment LED
    Operation method Counter: Count up, Count down, Count up/down
    Timer: Count up, Count down
    Terminal Terminal block
    Output Operation POWER ON DELAY, FLICKER
    Power supply 100-240VAC~ 50/60Hz
    Time operation POWER ON START
    External Power Supply Max. 12VDC10% 50mA
    Signal Input Method Voltage input(PNP), No-voltage input(NPN)
    Max. Counting Speed 1, 30, 2k, 5k [cps]
    Min. signal Width 20ms
    Memory Protection Approx. 10 years
    Setting range 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 99 hour 59 min, 0.1 hour to 999.9 hour, 1 hour to 9999 hour
    Control output_Type 2-stage preset
    Control output_Relay SPDT (1c): 2
    Control output_NPN open collector 2
    Protection structure IP20(front panel)
    Dimension 48 x 96 mm
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Weight Approx. 265g (approx. 200g)



    Rs 12,500.00

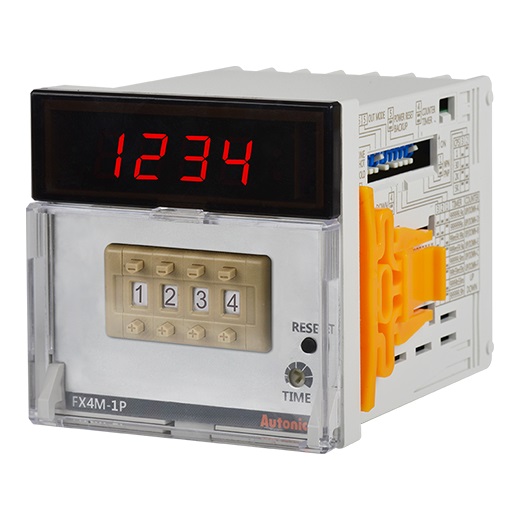

  • Autonics (FX4M-1P4) Counter and Timer

    0 out of 5

    Model:FX4M-1P4

    Display method 4-digit 7-segment LED
    Operation method Counter: Count up, Count down, Count up/down
    Timer: Count up, Count down
    Terminal Terminal block
    Output Operation POWER ON DELAY, FLICKER
    Power supply 100-240VAC~ 50/60Hz
    Time operation POWER ON START
    External Power Supply Max. 12VDC10% 50mA
    Signal Input Method Voltage input(PNP), No-voltage input(NPN)
    Max. Counting Speed 1, 30, 2k, 5k [cps]
    Min. signal Width 20ms
    Memory Protection Approx. 10 years
    Setting range 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 99 hour 59 min, 0.1 hour to 999.9 hour, 1 hour to 9999 hour
    Control output_Type 1-stage preset
    Control output_Relay SPDT (1c): 1
    Control output_NPN open collector 1
    Protection structure IP20(front panel)
    Dimension 72 x 72 mm
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Weight Approx. 245g (approx. 180g)



    Rs 12,500.00
  • Autonics (FX4M-2P4) Counter, Timer

    0 out of 5

    Model:FX4M-2P4

    Display method 4-digit 7-segment LED
    Operation method Counter: Count up, Count down, Count up/down
    Timer: Count up, Count down
    Terminal Terminal block
    Output Operation POWER ON DELAY, FLICKER
    Power supply 100-240VAC~ 50/60Hz
    Time operation POWER ON START
    External Power Supply Max. 12VDC10% 50mA
    Signal Input Method Voltage input(PNP), No-voltage input(NPN)
    Max. Counting Speed 1, 30, 2k, 5k [cps]
    Min. signal Width 20ms
    Memory Protection Approx. 10 years
    Setting range 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 99 hour 59 min, 0.1 hour to 999.9 hour, 1 hour to 9999 hour
    Control output_Type 2-stage preset
    Control output_Relay SPDT (1c): 2
    Control output_NPN open collector 2
    Protection structure IP20(front panel)
    Dimension 72 x 72 mm
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Weight Approx. 265g (approx. 200g)



    Rs 22,000.00
  • Autonics (LE365S-41) Timer

    0 out of 5

    Model:LE365S-41

    Number Of Setting Steps Weekly 48 steps, Yearly 24 steps
    Operation method Time setting
    Output Operation ON/OFF, CYCLE, PULSE
    Terminal Terminal block
    Power supply 100-240VAC~ 50/60Hz
    Memory Protection Approx. 5 years
    Control output_Relay SPST (1a): 1
    Time/Month deviation 15 sec/month
    Time deviation 15sec/month (ambient temperature: 25℃) (4sec/week)
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH
    Dimension 48 x 48 mm



    Rs 19,000.00

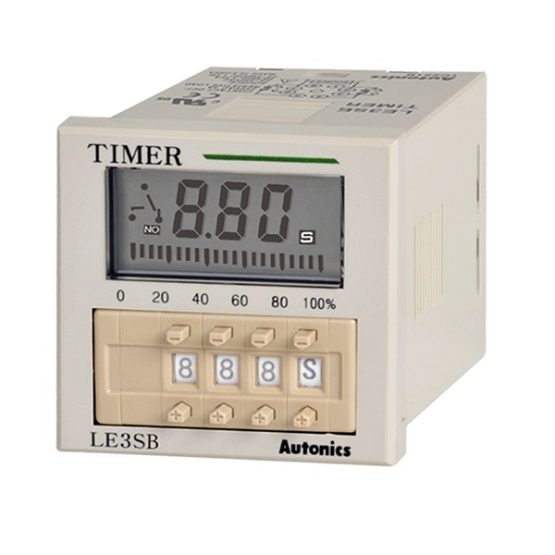

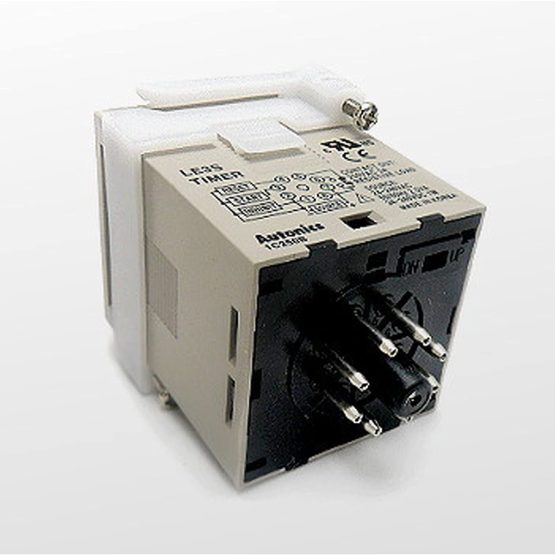

  • Autonics (LE3SB) On Delay Digital Timer

    0 out of 5

    Model: LE3SB

    Display method 3-digit 7-segment LCD
    Operation method Count up, Count down
    Output Operation POWER ON DELAY
    Time operation POWER ON DELAY
    Terminal 8-pin plug
    Power supply 24-240VAC~, 24-240VDC
    Setting range 0.01 sec to 9.99 sec, 0.1 sec to 99.9 sec, 1 sec to 999 sec, 0.1 min to 99.9 min, 1 min to 999 min, 0.1 hour to 99.9 hour, 1 hour to 999 hour, 10 hour to 9990 hour, 0 min 01 sec to 9 min 59 sec, 0 hour 01 min to 9 hour 59 min
    Control output_Relay Time-limit SPDT (1c): 1, Instantaneous SPDT (1c): 1
    Dimension 48 x 48 mm
    Accessories Bracket
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH
    Weight Approx. 105g
    Rs 8,000.00

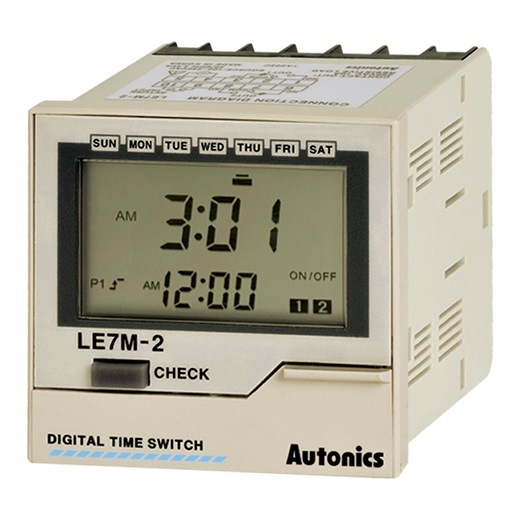

  • Autonics (LE7M-2) Digital Time Switch

    0 out of 5
    Model:LE7M-2
    Number Of Setting Steps Weekly 48 steps, Yearly 24 steps
    Operation method Time setting
    Output Operation ON/OFF, CYCLE, PULSE
    Terminal Terminal block
    Power supply 100-240VAC~ 50/60Hz
    Memory Protection Approx. 5 years
    Control output_Relay SPDT (1c): 2
    Time/Month deviation 15 sec/month
    Time deviation 15sec/month (ambient temperature: 25℃) (4sec/week)
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH
    Dimension 72 x 72 mm

    Rs 24,000.00

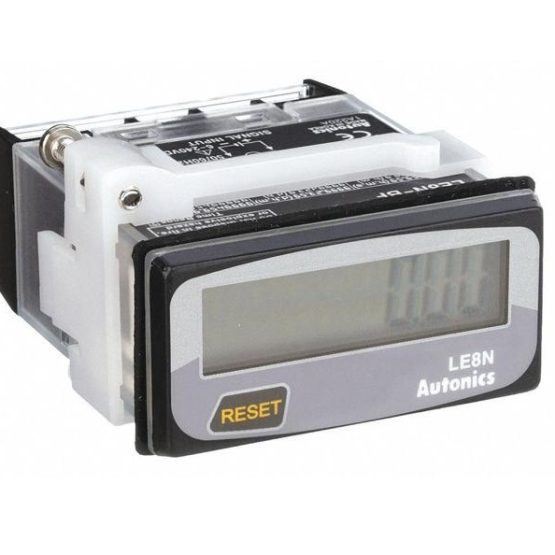

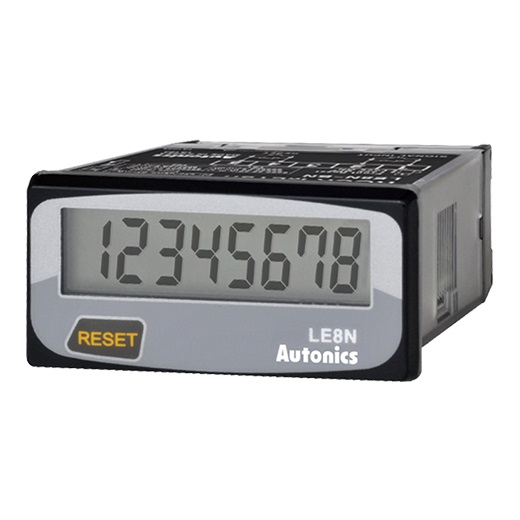

  • Autonics (LE8N-BF) 8-Digit Digital Timer

    0 out of 5

    Model: LE8N-BF

    Display method 8-digit 7-segment LCD
    Operation method Count up
    Time operation POWER ON START
    Terminal Terminal block
    Power supply Built-in battery(over 10 years)
    Setting range 0.01 sec to 9999 hour 59 min 59 sec, 0.1 min to 99999 hour 59.9 min, 1 min to 999999 hour 59 min, 1 min to 9999 day 23 hour 59 min, 0.1 hour to 9999 day 23.9 hour, 1 sec to 99999999 sec, 0.1 min to 9999 hour 59.9 min, 1 min to 99999 hour 59 min, 0.1 hour
    Input Method_Signal Free voltage input
    Input Method_Reset No-voltage input(NPN)
    Control output Indicator
    Protection structure IP66(front panel)
    Dimension 48 x 24 mm
    Min. signal Width SIGNAL, RESET input: Approx. 20ms
    External set switch SW1, SW2, SW3
    Accessories Mounting bracket, Rubber waterproof ring
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH
    Weight Approx. 96g (approx. 50g)



    Rs 8,200.00
  • Autonics (LE8N-BN) 8-Digit Digital Timer

    0 out of 5

    Model:LE8N-BN

    Display method 8-digit 7-segment LCD
    Operation method Count up
    Time operation POWER ON START
    Terminal Terminal block
    Power supply Built-in battery(over 10 years)
    Setting range 0.01 sec to 9999 hour 59 min 59 sec, 0.1 min to 99999 hour 59.9 min, 1 min to 999999 hour 59 min, 1 min to 9999 day 23 hour 59 min, 0.1 hour to 9999 day 23.9 hour, 1 sec to 99999999 sec, 0.1 min to 9999 hour 59.9 min, 1 min to 99999 hour 59 min, 0.1 hour
    Input Method_Signal No-voltage input(NPN)
    Input Method_Reset No-voltage input(NPN)
    Control output Indicator
    Protection structure IP66(front panel)
    Dimension 48 x 24 mm
    Min. signal Width SIGNAL, RESET input: Approx. 20ms
    External set switch SW1, SW2, SW3
    Accessories Mounting bracket, Rubber waterproof ring
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH
    Weight Approx. 96g (approx. 50g)



    Rs 8,200.00

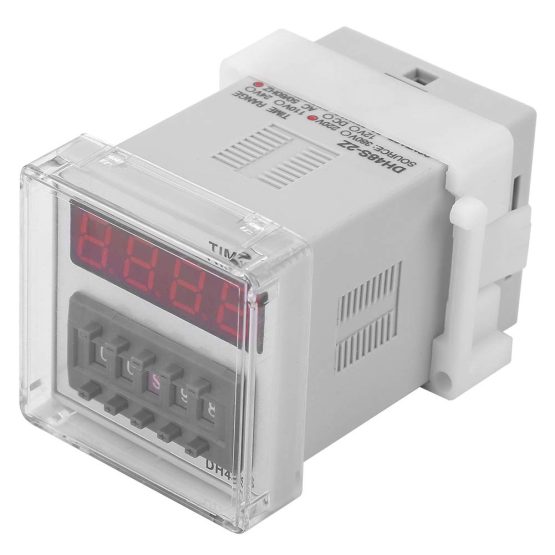

  • DH48S-2Z Digital Time Delay Relay

    0 out of 5

    Features

    Product Name : Digital Time Relay ; Type : DH48S-2Z

    Rated Voltage : AC 220v;Frequency : 50/60Hz; Contact : AC 250V 5A

    Time Range : 0.01S-99H99M

    Rs 2,200.00

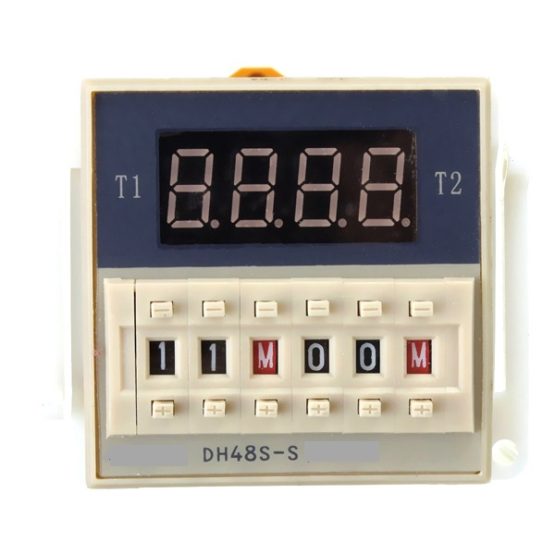

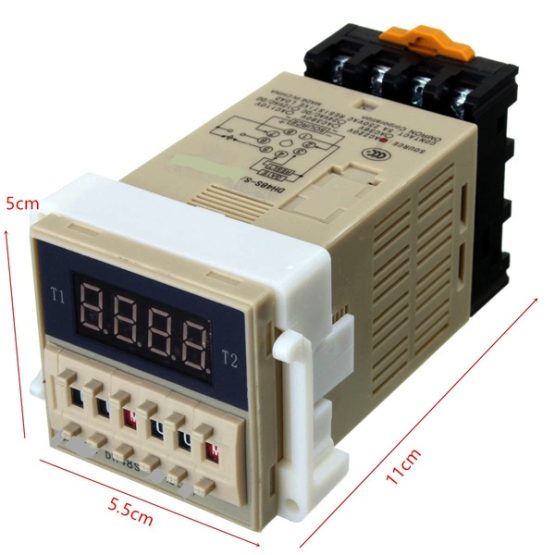

  • DH48S-S Digital Time Delay Relay

    0 out of 5

    Model no: DH48S-S

    Rated Voltage: 220v AC

    Frequency: 50-60Hz

    Net weight : 210g

    Mounting: 8pin circular base

    Timing: 0.1sec-99hours

    Rs 1,700.00
  • im (simtec) Time Delay Relay/ Analogue Timer (ST3P A-B) Adjustable

    0 out of 5
    Model: ST3P A-B Time relay
    Size: Miniature
    Usage: General Purpose
    Theory: Time Relay
    Contact Load: High Power
    Rated voltage: 220v AC
    Ambient temperature: -10~+55℃
    Ambient humidity: 35-85% RH
    Rs 1,200.00

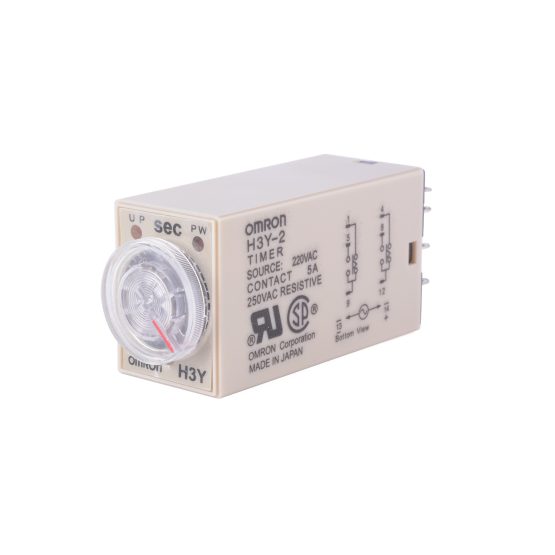

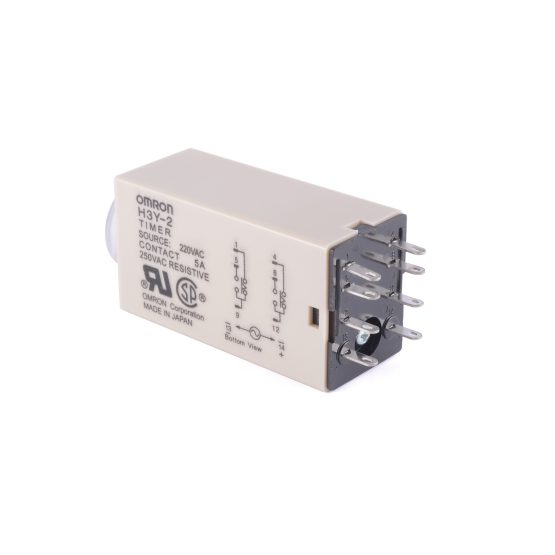

  • Omron Analogue Timer (H3Y-2) AC 220V

    0 out of 5

    Available time range (must write any one in additional information/order notes)

    • 0-1 sec
    • 0-5 sec
    • 0-10 sec
    • 0-30 sec
    • 0-60 sec
    • 0-3 min
    • 0-5 min
    • 0-10 min
    • 0-30 min
    • 0-60 min
    Rs 1,600.00

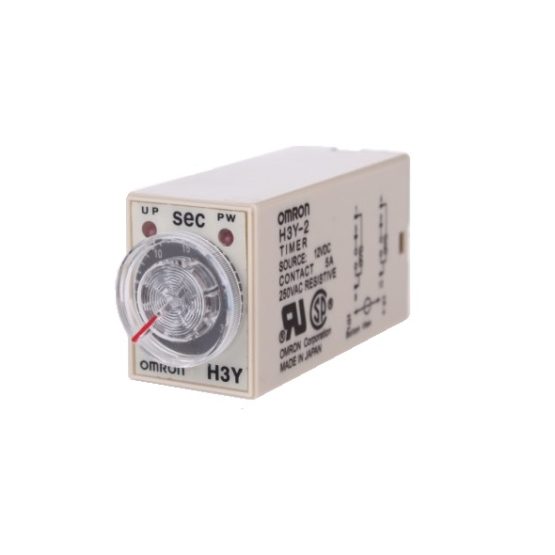

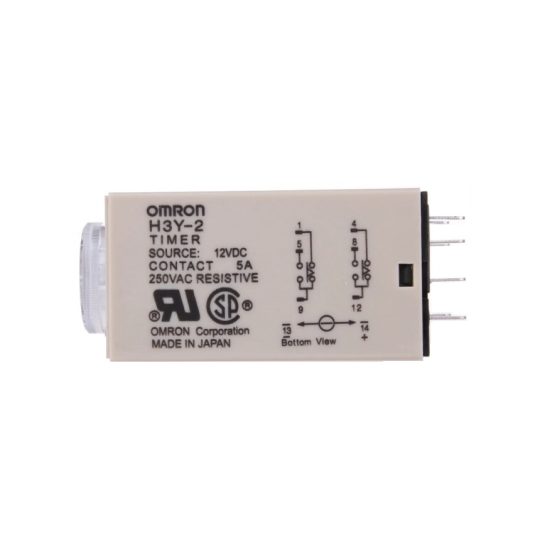

  • Omron Analogue Timer (H3Y-2) DC 12V

    0 out of 5

    Available time range (must write any one in additional information/order notes)

    • 0-1 sec
    • 0-5 sec
    • 0-10 sec
    • 0-30 sec
    • 0-60 sec
    • 0-3 min
    • 0-5 min
    • 0-10 min
    • 0-30 min
    • 0-60 min
    Rs 1,600.00
  • Omron Analogue Timer (H3Y-2) DC 24V

    0 out of 5

    Available time range (must write any one in additional information/order notes)

    • 0-1 sec
    • 0-5 sec
    • 0-10 sec
    • 0-30 sec
    • 0-60 sec
    • 0-3 min
    • 0-5 min
    • 0-10 min
    • 0-30 min
    • 0-60 min
    Rs 1,600.00

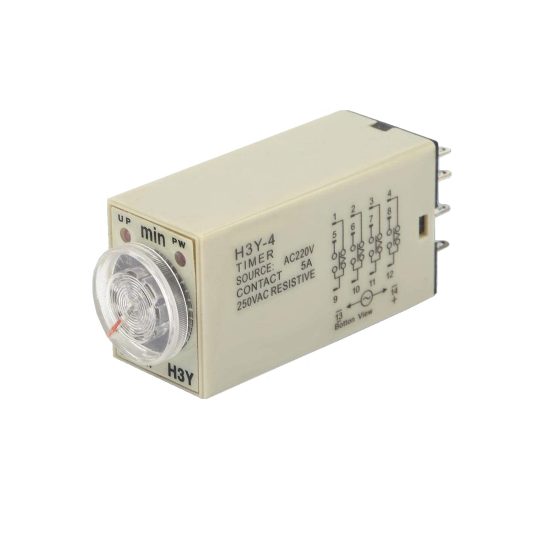

  • Omron Analogue Timer (H3Y-4) AC 220V

    0 out of 5

    Available time range (must write any one in additional information/order notes)

    • 0-1 sec
    • 0-5 sec
    • 0-10 sec
    • 0-30 sec
    • 0-60 sec
    • 0-3 min
    • 0-5 min
    • 0-10 min
    • 0-30 min
    • 0-60 min
    Rs 1,600.00
  • Omron Analogue Timer (H3Y-4) DC 12V

    0 out of 5

    Available time range (must write any one in additional information/order notes)

    • 0-1 sec
    • 0-5 sec
    • 0-10 sec
    • 0-30 sec
    • 0-60 sec
    • 0-3 min
    • 0-5 min
    • 0-10 min
    • 0-30 min
    • 0-60 min
    Rs 1,600.00
  • Omron Analogue Timer (H3Y-4) DC 24V

    0 out of 5

    Available time range (must write any one in additional information/order notes)

    • 0-1 sec
    • 0-5 sec
    • 0-10 sec
    • 0-30 sec
    • 0-60 sec
    • 0-3 min
    • 0-5 min
    • 0-10 min
    • 0-30 min
    • 0-60 min
    Rs 1,600.00
  • Schneider (LA2KT2E) TeSys K -Time delay auxiliary contact block 24-48 V AC/DC (1-30 sec)

    0 out of 5

    Product: Time delay auxiliary contact block

    Model: LA2KT2E

    Brand: Schneider

    Voltage: 24-48 V AC/DC

    Timer type: On delay

    Pole contact composition: 1 C/O

    Time delay range: 1-30 sec

    Height: 1.06 in (27 mm)

    Width: 1.50 in (38 mm)

    Depth: 1.50 in (38 mm)

    Terminals: screw terminals

    Rs 4,500.00
  • Schneider (LA4DT0U) On Delay Electronic Timer 0.1~2 s , 24~250 V DC/AC

    0 out of 5

    Model:LA4DT0U

    product or component type
    Serial timer modules
    time delay range
    0.1~2 s
    poles description
    3P
    timer type On delay
    mounting location
    Top
    [Uc] control circuit voltage
    24…250 V AC 50/60 Hz
    24…250 V DC
    control circuit voltage limits
    By mechanical contact: 0.8…1.1 Uc
    [Ui] rated insulation voltage
    250V conforming to IEC 60947-1
    connections – terminals
    Control circuit: connector 1 cable(s) 1mmflexible with cable end
    Control circuit: connector 1 cable(s) 1mmsolid with cable end
    Control circuit: connector 2 cable(s) 2.5mmflexible without cable end
    Control circuit: connector 2 cable(s) 2.5mmsolid without cable end
    electrical durability
    30Mcycles
    timer type
    On delay
    time delay range
    0.1~2 s
    reset time
    150ms during time delay
    50ms after time delay
    local signalling
    Illuminates during time delay by LED
    [Ures] residual voltage
    3.3V
    net weight
    0.04kg



    Rs 6,450.00
  • Schneider (LA4DT2U) On Delay Electronic Timer 1.5~30 s , 24~250 V DC/AC

    0 out of 5

    Model:LA4DT2U

    product or component type
    Serial timer modules
    time delay range 1.5~30 s
    poles description
    3P
    timer type On delay
    mounting location
    Top
    [Uc] control circuit voltage
    24…250 V AC 50/60 Hz
    24…250 V DC
    control circuit voltage limits
    By mechanical contact: 0.8…1.1 Uc
    [Ui] rated insulation voltage
    250V conforming to IEC 60947-1
    connections – terminals
    Control circuit: connector 1 cable(s) 1mmflexible with cable end
    Control circuit: connector 1 cable(s) 1mmsolid with cable end
    Control circuit: connector 2 cable(s) 2.5mmflexible without cable end
    Control circuit: connector 2 cable(s) 2.5mmsolid without cable end
    electrical durability
    30Mcycles
    timer type
    On delay
    time delay range
    1.5~30 s
    reset time
    150ms during time delay
    50ms after time delay
    local signalling
    Illuminates during time delay by LED
    [Ures] residual voltage
    3.3V
    net weight
    0.04kg



    Rs 6,450.00
  • Schneider (LA4DT4U) On Delay Electronic Timer 25~500 s , 24~250 V DC/AC

    0 out of 5

    Model:LA4DT4U

    product or component type
    Serial timer modules
    time delay range 25~500 sec
    poles description
    3P
    timer type On delay
    Complementary
    mounting location
    Top
    [Uc] control circuit voltage
    24…250 V AC 50/60 Hz
    24…250 V DC
    control circuit voltage limits
    By mechanical contact: 0.8…1.1 Uc
    [Ui] rated insulation voltage
    250V conforming to IEC 60947-1
    connections – terminals
    Control circuit: connector 1 cable(s) 1mmflexible with cable end
    Control circuit: connector 1 cable(s) 1mmsolid with cable end
    Control circuit: connector 2 cable(s) 2.5mmflexible without cable end
    Control circuit: connector 2 cable(s) 2.5mmsolid without cable end
    electrical durability
    30Mcycles
    timer type
    On delay
    time delay range
    25~500 sec
    reset time
    150ms during time delay
    50ms after time delay
    local signalling
    Illuminates during time delay by LED
    [Ures] residual voltage
    3.3V
    net weight
    0.04kg



    Rs 6,450.00
