Description
- Socket 8 pin (not included).
- The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.

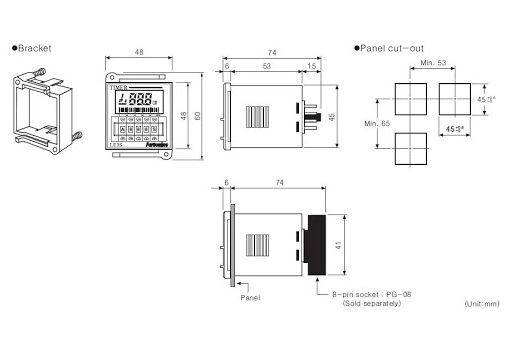

Dimension
Connection

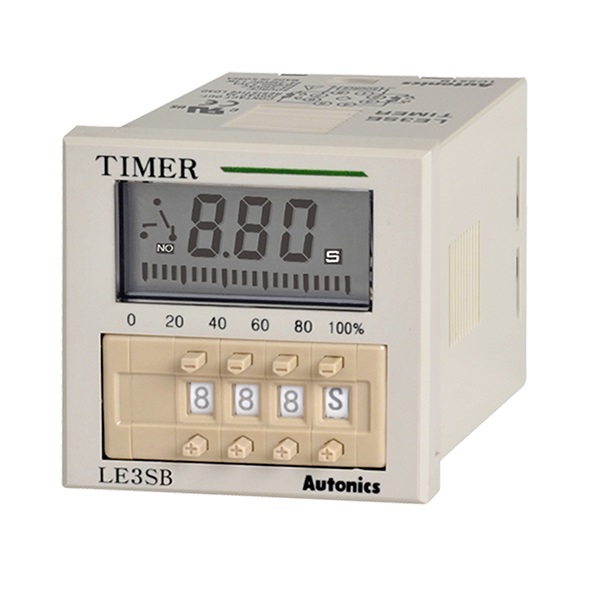

Autonics (LE3SB) On Delay Digital Timer (Contact for price)
Model: LE3SB
| Display method | 3-digit 7-segment LCD |
|---|---|
| Operation method | Count up, Count down |
| Output Operation | POWER ON DELAY |
| Time operation | POWER ON DELAY |
| Terminal | 8-pin plug |
| Power supply | 24-240VAC~, 24-240VDC |
| Setting range | 0.01 sec to 9.99 sec, 0.1 sec to 99.9 sec, 1 sec to 999 sec, 0.1 min to 99.9 min, 1 min to 999 min, 0.1 hour to 99.9 hour, 1 hour to 999 hour, 10 hour to 9990 hour, 0 min 01 sec to 9 min 59 sec, 0 hour 01 min to 9 hour 59 min |
| Control output_Relay | Time-limit SPDT (1c): 1, Instantaneous SPDT (1c): 1 |
| Dimension | 48 x 48 mm |
| Accessories | Bracket |
| Environment_Ambient temperature | -10 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH |
| Weight | Approx. 105g |
