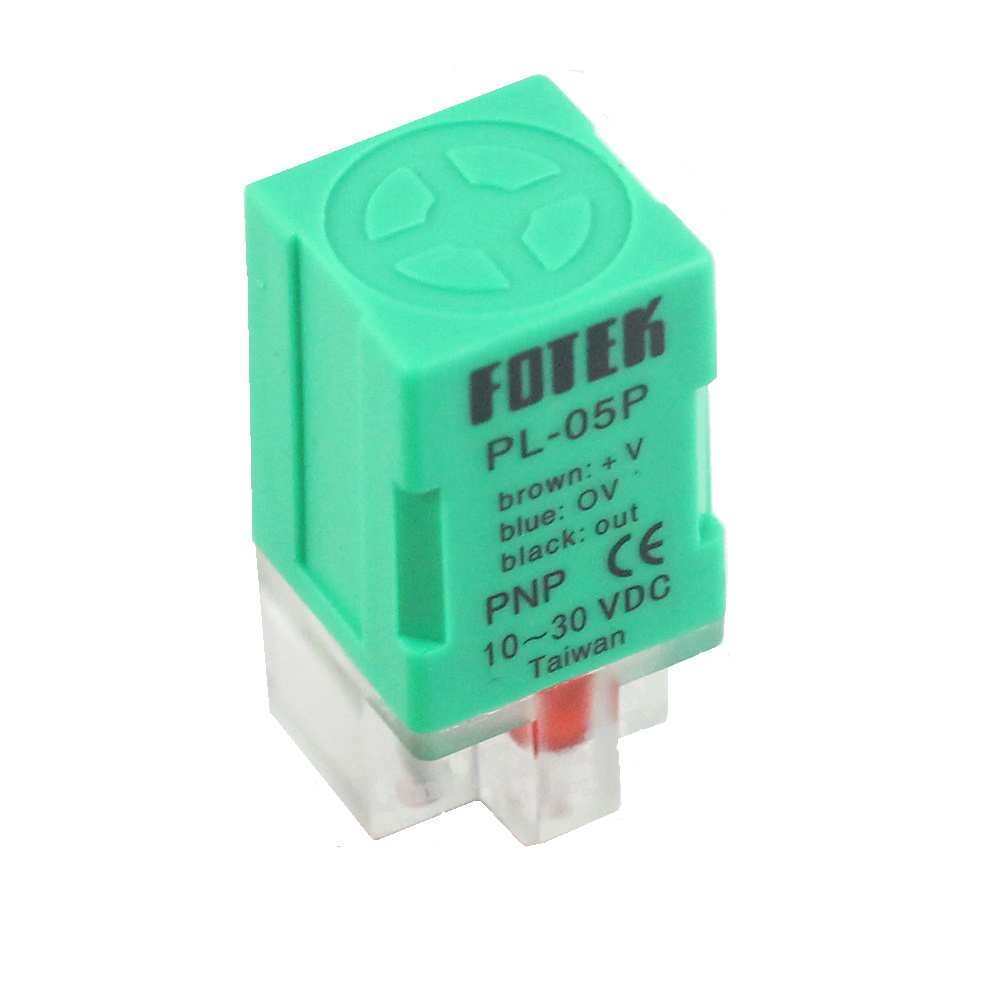

FOTEK Inductive Proximity Sensor (PL-05P) 10-30v DC PNP NO(normally open)

Rs 900.00

Product: Inductive Proximity Sensor

Model: PL-05P

Brand: FOTEK

Supply voltage: 10-3ov DC

Wires: 3 DC wire (Brown, Black, Blue)

Output current: 150 mA

Output type: PNP NO(normally open)

Sensing range: 5mm

Protection degree: IP67

Response frequency: 800Hz

Working temperature: -20 ~+80C

Humidity: 35%~90%RH

Body dimension: 29.3 x 18.6 x 18.0mm, LxWxH

Screw hole: 3.2mm

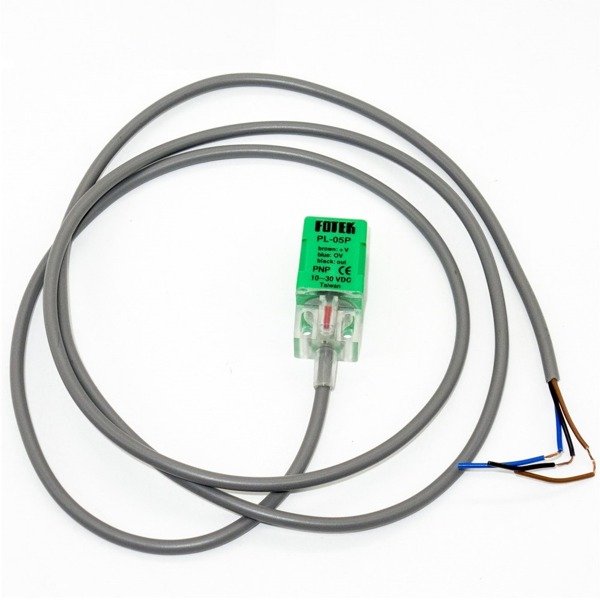

Wire length: 1 meter/100 cm

Material: High-impact plastic

Shape: square

Categories: ,
View cart


  • Inductive Proximity Sensor PL-05P PNP NO(normally open) Switch is used for controlling machinery as part of a control system, as a safety interlock, or to count objects passing a point.
  • This is a type of switch which is an electro-mechanical device that consists of an actuator mechanically linked to a set of contacts.
  • When an object comes into contact with the actuator, the device operates the contacts to make or break an electrical connection.
  • Being an inductive switch, no physical contact is required between the switch and the metallic surface being sensed.
  • These sensor switches are used in a variety of applications and environments because of their ruggedness, ease of installation, and reliability of operation.
  • They can determine the presence or absence, passing, positioning, and end of travel of an object.
