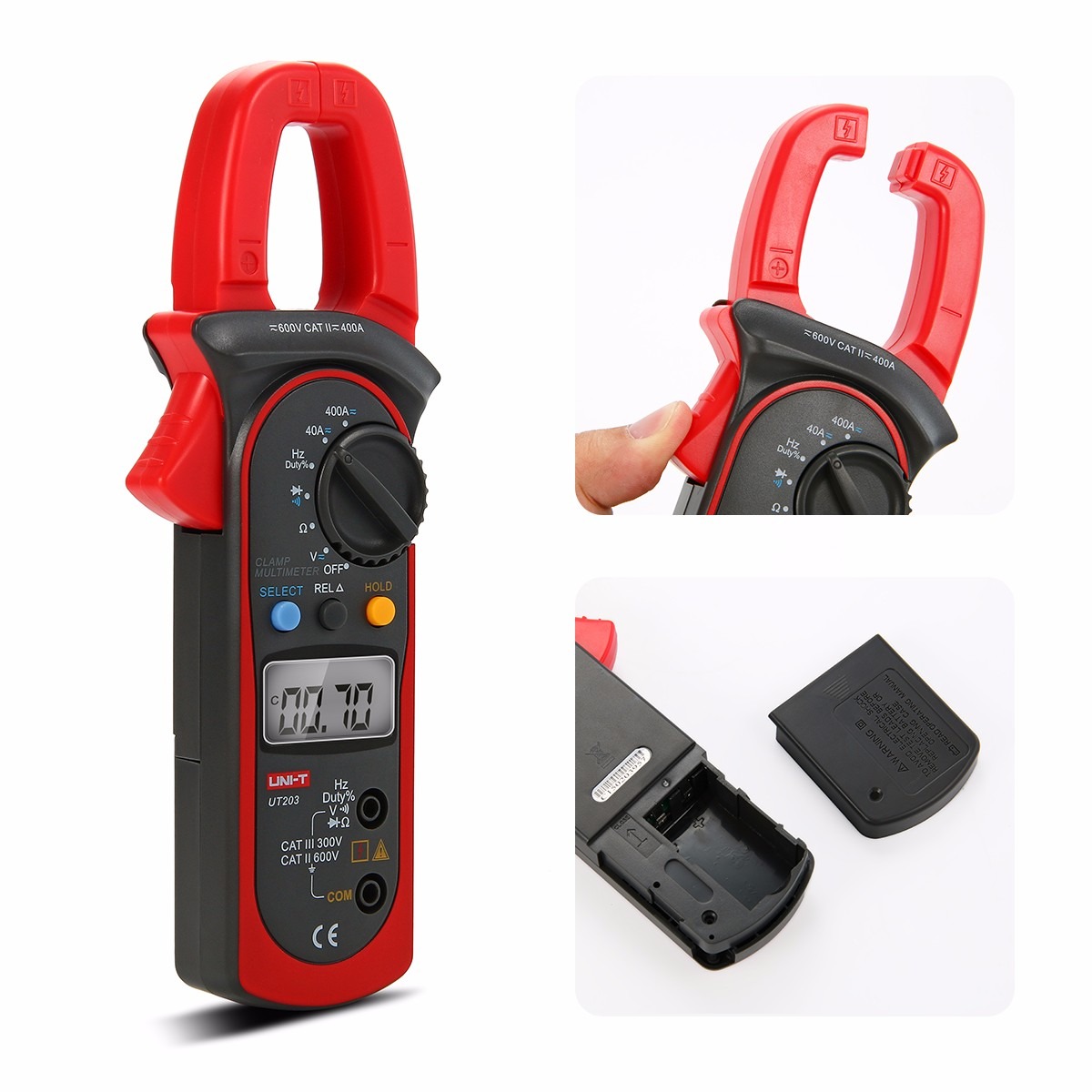

UNI-T (UT-203) Digital Clamp Multimeter DC/AC Voltage & Current,, resistance, frequency, duty cycle, continuity Tester.

Rs 5,900.00

  • Model: UT-203
  • Made: china
  • LCD Size : 36 x 18mm
  • Product Size : 210 x 75.6 x 30mm
  • Auto Range
  • Diode Test
  • Continuity Buzzer
  • Max Hold
  • Data Hold
  • Icon Display
  • Sleep Mode
  • Low Battery Display
  • InputImpedance: 10 M Ohm
  • Power Supply 9V battery

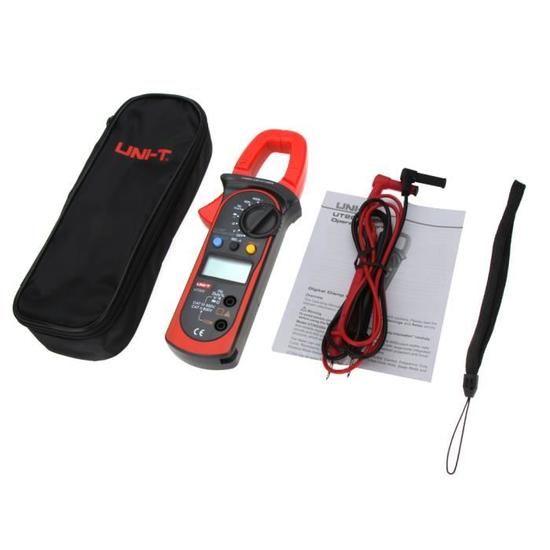

  • Test Lead 1 pair Incluided.
  • Measuring functions:
    • AC/DC voltage
    • AC/DC current
    • Resistance
    • Diode check
    • Continuity test
    • Duty cycle
  • Description
  • Reviews (0)

Description

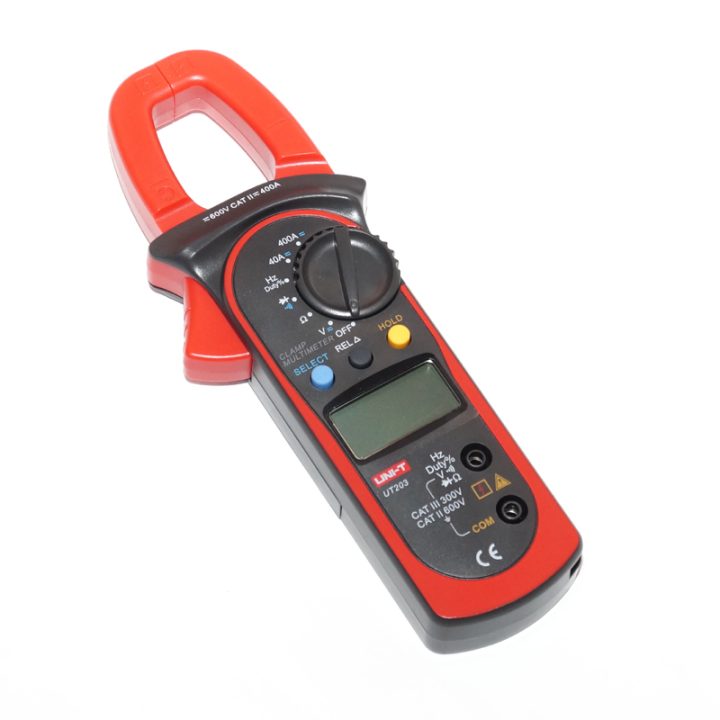

UNI-T UT203 Digital Clamp Multimeter DC AC Current Voltmeter Tester.
Digital clamp meter UNI-T UT203 is a reliable and low consumption clamp multi-meter. Digital clamp meter UNI-T UT203 measures AC/DC voltage and current, resistance, frequency, duty cycle, also continuity test. This clamp meter has overload protection, safe and reliable to use, it really works pretty well.

SPECIFICATION:
DC Voltage: 400mV / 4V / 40V / 400V / 600V
– best accuracy: +/- (0.8%+1)
AC Voltage: 4V / 40V / 400V / 600V
– best accuracy: +/- (1%+5)
DC Current: 40A / 400A
– best accuracy: +/- (2%+3)
AC Current: 40A / 400A
– best accuracy: +/- (2.5%+5)
Resistance: 400 Ohm / 4 kOhm / 40 kOhm / 400 kOhm / 4 MOhm / 40 MOhm
-best accuracy: +/- (1%+2)
Frequency: 10Hz – 1MHz
– best accuracy: +/- (0.1%+3)
Duty cycle: 0.1% ~ 99.9%

SPECIAL FUNCTIONS:
Auto ranging
Diode
Continuity buzzer
Relative mode
Data hold
Full icon display
Sleep mode
Low battery display
Input impedance for DC Voltage: 10 MOhm
Max. display 3999 (35.6 x 18mm)

GENERAL CHARACTERISTICS:

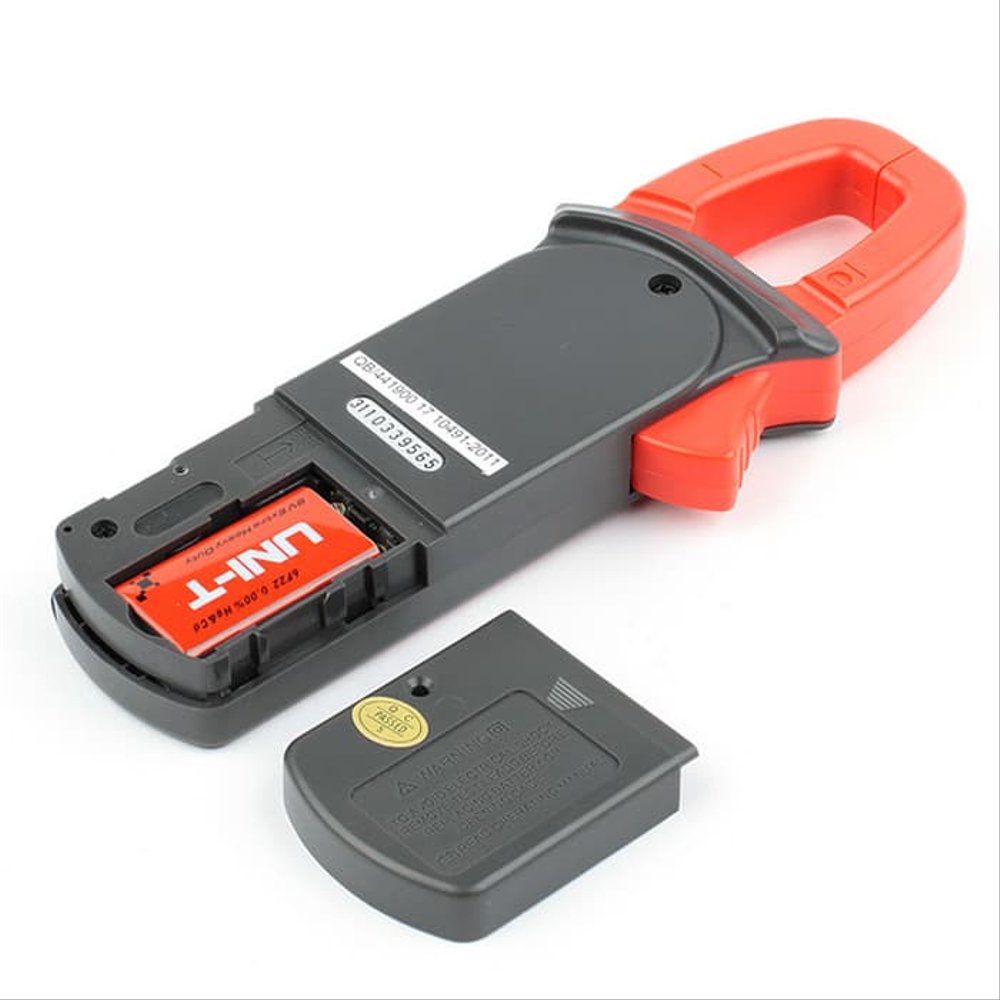

Power: 9V bat. (6F22)
Product size: 210 x 75.6 x 30mm
