Temperature Controllers
  • (12 kW) Water Heater with Incoloy Heating Element, Thermostat Included, 415 VAC

    0 out of 5

    Tank heater type: BSP Thread

    Power rating: 12 kW

    Heating element material: Incoloy

    Immersed length: 609 mm

    Thermostat included: Yes

    Power supply: 415 VAC

    Rs 69,000.00
  • (300 W) Water Heater with Explosion Proof Glass Heating Element, Thermostat Included, 220-240 VAC

    0 out of 5

    Tank heater type: Straight immersion

    Power rating: 300 W

    Heating element material: Explosion proof glass

    Immersed length: 350 mm

    Thermostat included: Yes

    Heating element diameter: 22 mm

    Supply voltage: 220 – 240 VAC

    Rs 6,600.00
  • 3 kW Water Heater with Aqualoy Heating Element, Thermostat Included, 240 V

    0 out of 5

    Tank Heater type: Immersion

    Power Rating: 3 kW

    Heating element material: Aqualoy

    Immersed length: 11 inch

    Thermostat included: Yes

    Supply voltage: 240 VAC

    Rs 8,100.00
  • 3-Digit LED Digital Temperature Controller (E5EN-YR40K)

    0 out of 5

    Product: Digital temperature controller

    Model: E5EN-YR40K

    Supply voltage: AC 220V AC or 110V AC

    Digital LED indicator: yes

    Size: 48mm*96mm

    3-digit LED display

    Thermocouple: K-type

    Precision: +-1.5%F.S

    Setting method: button

    Temperature control range: 0~399 degree Celsius

    Working temperature: -10 ~ 55 C

    Weight: (290 g) Approx

    Rs 2,400.00
  • Analogue Temperature Controller (E5C2) 48mm*48mm

    0 out of 5

    Product: analogue temperature controller

    Model: E5C2

    Brand: omron

    Number of pins: 8

    Mounting: 8pin base (not included)

    Power supply: 220v AC

    Input type: thermocouple k-type

    Resistive load: 3A 250V AC

    Display size: 48mm*48mm

    Hole size: 45mm*45mm

    Alarm output: none

    Temperature range: 0-200 degree celcius

    Compact size and light weight, easy to operate.

    High accuracy, stable and reliable performance.

    Rs 2,600.00
  • Analogue Temperature Controller TEA-2001

    0 out of 5

    Model: TEA-2001

    Size: 96mm*96mm

    voltage/frequency: 220v ac/50-60Hz

    range: 0-400c

    Rs 2,100.00
  • Analogue Temperature Controller TED-2001

    0 out of 5

    Model: TED-2001

    Size: 72mm*72mm

    voltage/frequency: 220v ac/50-60Hz

    range: 0-400c

    Rs 2,100.00
  • Digital Temperature Controller (XMTD-2001) 220VAC

    0 out of 5

    Model: XMTD-2001

    Size: 72mm*72mm

    voltage/frequency: 220v ac/50-60Hz

    input: k-type

    range: 0-399c

    Rs 2,550.00
  • Digital Temperature Controller XMTA-2001

    0 out of 5

    Model: XMTA-2001

    Size: 96mm*96mm

    voltage/frequency: 220v ac/50-60Hz

    input: k-type

    range: 0-399c

    Rs 2,100.00
  • JKN Digital Temperature Controller (K-965)

    0 out of 5
    Rs 2,400.00
  • JKN Digital Temperature Controller (K-966)

    0 out of 5
    Rs 2,400.00
  • JKN Digital Temperature Controller K-725

    0 out of 5
    Rs 2,400.00
  • JKN Digital Temperature Controller K-726

    0 out of 5
    Rs 2,400.00
  • KA Temperature Controller (R8-100-FK02-M*AN) 48mm*48mm

    0 out of 5

    Product: temperature controller

    Model: R8-100-FK02-M*AN

    Brand: KA

    Supply voltage: AC 220V

    Display size: 48mm*48mm

    Display: digital

    Output, alarm and self-tuning can be indicated by: LED

    High quality with great accuracy and long life

    Rs 3,800.00
  • KA Temperature Controller (R8-700) 72mm*72mm

    0 out of 5

    Product: temperature controller

    Model: R8-700

    Brand: KA

    Supply voltage: AC 220V

    Display size: 72mm*72mm

    Display: digital

    Output, alarm and self-tuning can be indicated by: LED

    High quality with great accuracy and long life

    Rs 3,800.00
  • KA Temperature Controller (R8-900) 96mm*96mm

    0 out of 5

    Product: temperature controller

    Model: R8-900

    Brand: KA

    Supply voltage: AC 220V

    Display size: 96mm*96mm

    Display: digital

    Output, alarm and self-tuning can be indicated by: LED

    High quality with great accuracy and long life

    Rs 3,700.00
  • Omron Digital Temperature Controller (E5CC-QX2A SM-800) 48 mm 48 mm

    0 out of 5

    Model: E5CC-QX2A SM-800

    Power supply voltage 100 to 240 VAC, 50/60 Hz
    Operating voltage range 85% to 110% of rated supply voltage
    Power consumption Models with option selection of 000:5.2 VA max. at 100 to 240 VAC, and 3.1 VA max. at
    24 VAC or 1.6 W max. at 24 VDC
    Sensor input Temperature input
    Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, or PL II
    Platinum resistance thermometer: Pt100 or JPt100
    Infrared temperature sensor (ES1B): 10 to 70C, 60 to 120C, 115 to 165C, or
    140 to 260C
    Analog input
    Current input: 4 to 20 mA or 0 to 20 mA
    Voltage input: 1 to 5 V, 0 to 5 V, or 0 to 10 V
    Input impedance Current input: 150 Ω max., Voltage input: 1 MΩ min.
    (Use a 1:1 connection when connecting the ES2-HB-N/THB-N.)
    Control method ON/OFF control or 2-PID control (with auto-tuning)
    Control
    output
    Relay output E5CC-800:
    SPST-NO, 250 VAC, 3 A (resistive load), electrical life: 100,000 operations, minimum
    applicable load: 5 V, 10 mA
    E5CC-U-800:
    SPDT, 250 VAC, 3 A (resistive load), electrical life: 100,000 operations, minimum
    applicable load: 5 V, 10 mA
    Voltage output
    (for driving SSR)
    Output voltage: 12 VDC 20% (PNP), max. load current: 21 mA, with short-circuit
    protection circuit
    Linear current
    output
    4 to 20 mA DC/0 to 20 mA DC, load: 500 Ω max., resolution: approx. 10,000
    Auxiliary
    output
    Number of outputs 2
    Output
    specifications
    SPST-NO relay outputs, 250 VAC, Models with 2 outputs: 3 A (resistive load),
    Electrical life: 100,000 operations, Minimum applicable load: 10 mA at 5 V
    Event
    input
    Number of inputs 2
    External contact
    input
    specifications
    Contact input: ON: 1 kΩ max., OFF: 100 kΩ min.
    Non-contact input: ON: Residual voltage: 1.5 V max., OFF: Leakage current: 0.1 mA max.
    Current flow: Approx. 7 mA per contact
    Setting method Digital setting using front panel keys
    Indication method 11-segment digital display and individual indicators
    Character height: PV: 15.2 mm, SV: 7.1 mm
    Other functions Manual output, heating/cooling control, loop burnout alarm, SP ramp, other alarm
    functions, heater burnout (HB) alarm (including SSR failure (HS) alarm), 40% AT, 100%
    AT, MV limiter, input digital filter, self tuning, PV input shift, run/stop, protection
    functions, temperature status display, moving average of input value
    Ambient operating
    temperature
    -10 to 55C (with no condensation or icing),
    for 3-year warranty: -10 to 50C (with no condensation or icing)
    Ambient operating humidity 25% to 85%
    Storage temperature -25 to 65C (with no condensation or icing)
    Altitude 2,000 m max.
    Recommended fuse T2A, 250 VAC, time lag, low shut-off capacity
    Installation environment Installation Category II, Pollution Class 2 (IEC 61010-1 compliant)
    Rs 24,500.00
  • Omron Digital Temperature Controller (E5CWL-Q1TC) 48 mm* 48 mm

    0 out of 5

    Model: E5CWL-Q1TC

    Power supply voltage 100 to 240 VAC, 50/60 Hz
    Operating voltage range 85% to 110% of rated supply voltage
    Power consumption 3.5 VA
    Sensor input Models with thermocouple inputs
    Thermocouple: K, J, T, R, or S
    Models with platinum resistance thermometer inputs
    Platinum resistance thermometer: Pt100
    Control
    output
    Relay output SPST-NO, 250 VAC, 3 A (resistive load), electrical life: 100,000 operations,
    minimum load: 5 V, 10 mA
    Voltage output
    (for driving SSR)
    Output voltage: 12 VDC +25%/-15% (PNP), max. load current: 21 mA, with short-
    circuit protection circuit
    Alarm output * SPST-NO, 250 VAC, 1 A (resistive load), electrical life: 100,000 operations, minimum load: 5 V, 10 mA
    Control method ON/OFF control or 2-PID control (with auto-tuning)
    Setting method Digital setting using front panel keys
    Indication method 7-segment digital display and individual indicators
    Character height: E5CSL: 21.7 mm, E5CWL: 16.2 mm (PV), E5EWL: 20 mm (PV)
    Other functions Temperature input shift, run/stop, protection functions, etc.



    Rs 5,500.00
  • Omron Digital Temperature Controller (E5CWL-R1TC) 48 mm* 48 mm

    0 out of 5

    Model: E5CWL-R1TC

    Power supply voltage 100 to 240 VAC, 50/60 Hz
    Operating voltage range 85% to 110% of rated supply voltage
    Power consumption 3.5 VA
    Sensor input Models with thermocouple inputs
    Thermocouple: K, J, T, R, or S
    Models with platinum resistance thermometer inputs
    Platinum resistance thermometer: Pt100
    Control
    output
    Relay output SPST-NO, 250 VAC, 3 A (resistive load), electrical life: 100,000 operations,
    minimum load: 5 V, 10 mA
    Voltage output
    (for driving SSR)
    Output voltage: 12 VDC +25%/-15% (PNP), max. load current: 21 mA, with short-
    circuit protection circuit
    Alarm output * SPST-NO, 250 VAC, 1 A (resistive load), electrical life: 100,000 operations, minimum load: 5 V, 10 mA
    Control method ON/OFF control or 2-PID control (with auto-tuning)
    Setting method Digital setting using front panel keys
    Indication method 7-segment digital display and individual indicators
    Character height: E5CSL: 21.7 mm, E5CWL: 16.2 mm (PV), E5EWL: 20 mm (PV)
    Other functions Temperature input shift, run/stop, protection functions, etc.



    Rs 5,500.00
  • Omron LED Digital Temperature Controller (E5C4-R20K)

    0 out of 5

    Product: LED Digital temperature controller

    Model: E5C4-R20K

    Number of pins: 8

    Base: 8pin (not included)

    Power supply: 220v AC

    Input type: thermocouple k-type

    Resistive load: 3A 250V AC

    Display size: 48mm*48mm

    Hole size: 45mm*45mm

    Alarm output: none

    Temperature range: 0-399 degrees

    LCD digital display for easy reading.

    Compact size and light weight, easy to operate.

    High accuracy, stable and reliable performance.

    Rs 2,300.00
  • RKC Temperature Controller REX-C100

    4.00 out of 5

    Model no: REX-C100

    Size: 48mm*48mm

    Rated Voltage: 250V AC

    Input: K-type

    Temperature Range: 0-1300c



    Rs 2,100.00
  • RKC Temperature Controller REX-C400

    0 out of 5

    Model no: REX-C400

    Size: 48mm*96mm

    Rated Voltage: 250V AC

    Input: K-type

    Temperature Range: 0-1300c

    Rs 2,100.00
  • RKC Temperature Controller REX-C410

    0 out of 5

    Model no: REX-C410

    Size: 96mm*48mm

    Rated Voltage: 250V AC

    Input: K-type

    Temperature Range: 0-1300c

    Rs 2,100.00
  • RKC Temperature Controller REX-C700

    0 out of 5

    Model no: REX-C700

    Size: 72*72

    Rated Voltage: 250V AC

    Input: K-type

    Temperature Range: 0-1300c

    Rs 2,100.00

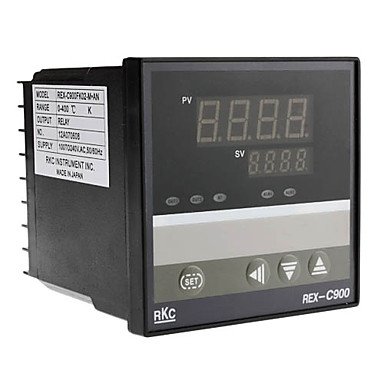

  • RKC Temperature Controller REX-C900

    0 out of 5
    Rs 2,700.00
