Omron Digital Temperature Controller (E5CC-QX2A SM-800) 48 mm 48 mm

Rs 24,500.00

Model: E5CC-QX2A SM-800

Power supply voltage 100 to 240 VAC, 50/60 Hz
Operating voltage range 85% to 110% of rated supply voltage
Power consumption Models with option selection of 000:5.2 VA max. at 100 to 240 VAC, and 3.1 VA max. at
24 VAC or 1.6 W max. at 24 VDC
Sensor input Temperature input
Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, or PL II
Platinum resistance thermometer: Pt100 or JPt100
Infrared temperature sensor (ES1B): 10 to 70C, 60 to 120C, 115 to 165C, or
140 to 260C
Analog input
Current input: 4 to 20 mA or 0 to 20 mA
Voltage input: 1 to 5 V, 0 to 5 V, or 0 to 10 V
Input impedance Current input: 150 Ω max., Voltage input: 1 MΩ min.
(Use a 1:1 connection when connecting the ES2-HB-N/THB-N.)
Control method ON/OFF control or 2-PID control (with auto-tuning)
Relay output E5CC-800:
SPST-NO, 250 VAC, 3 A (resistive load), electrical life: 100,000 operations, minimum
applicable load: 5 V, 10 mA
SPDT, 250 VAC, 3 A (resistive load), electrical life: 100,000 operations, minimum
applicable load: 5 V, 10 mA
Voltage output
(for driving SSR)
Output voltage: 12 VDC 20% (PNP), max. load current: 21 mA, with short-circuit
protection circuit
Linear current
4 to 20 mA DC/0 to 20 mA DC, load: 500 Ω max., resolution: approx. 10,000
Number of outputs 2
SPST-NO relay outputs, 250 VAC, Models with 2 outputs: 3 A (resistive load),
Electrical life: 100,000 operations, Minimum applicable load: 10 mA at 5 V
Number of inputs 2
External contact
Contact input: ON: 1 kΩ max., OFF: 100 kΩ min.
Non-contact input: ON: Residual voltage: 1.5 V max., OFF: Leakage current: 0.1 mA max.
Current flow: Approx. 7 mA per contact
Setting method Digital setting using front panel keys
Indication method 11-segment digital display and individual indicators
Character height: PV: 15.2 mm, SV: 7.1 mm
Other functions Manual output, heating/cooling control, loop burnout alarm, SP ramp, other alarm
functions, heater burnout (HB) alarm (including SSR failure (HS) alarm), 40% AT, 100%
AT, MV limiter, input digital filter, self tuning, PV input shift, run/stop, protection
functions, temperature status display, moving average of input value
Ambient operating
-10 to 55C (with no condensation or icing),
for 3-year warranty: -10 to 50C (with no condensation or icing)
Ambient operating humidity 25% to 85%
Storage temperature -25 to 65C (with no condensation or icing)
Altitude 2,000 m max.
Recommended fuse T2A, 250 VAC, time lag, low shut-off capacity
Installation environment Installation Category II, Pollution Class 2 (IEC 61010-1 compliant)
View cart


  • The white PV display with a height of 15.2 mm improves visibility.
  • High-speed sampling at 50 ms.
  • Select from models with screw terminal blocks, models with
    Push-In Plus terminal blocks for reduced wiring work, and
    Plug-in Models that can be removed from the terminal block.

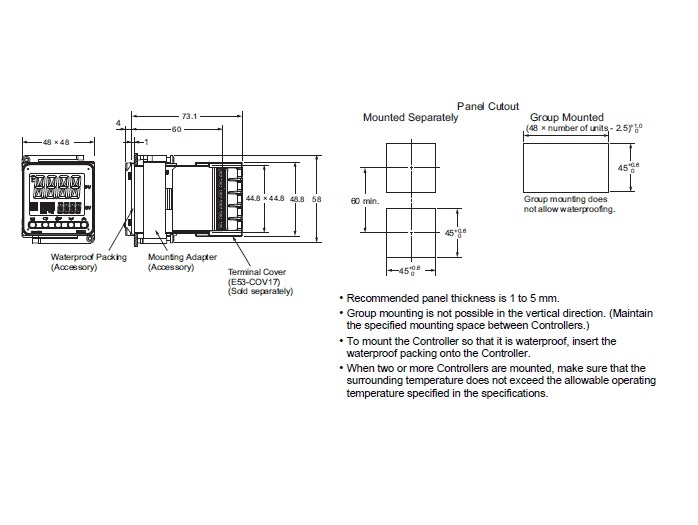

  • Short body with depth of only 60 mm. (Screw Terminal Blocks)
  • Easy connections to a PLC with programless communications.


Detailed information
