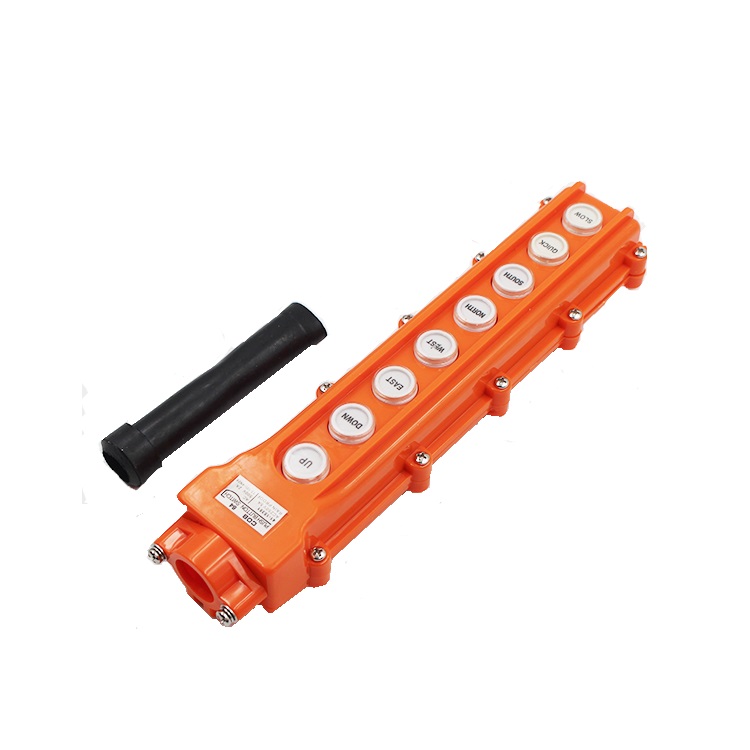

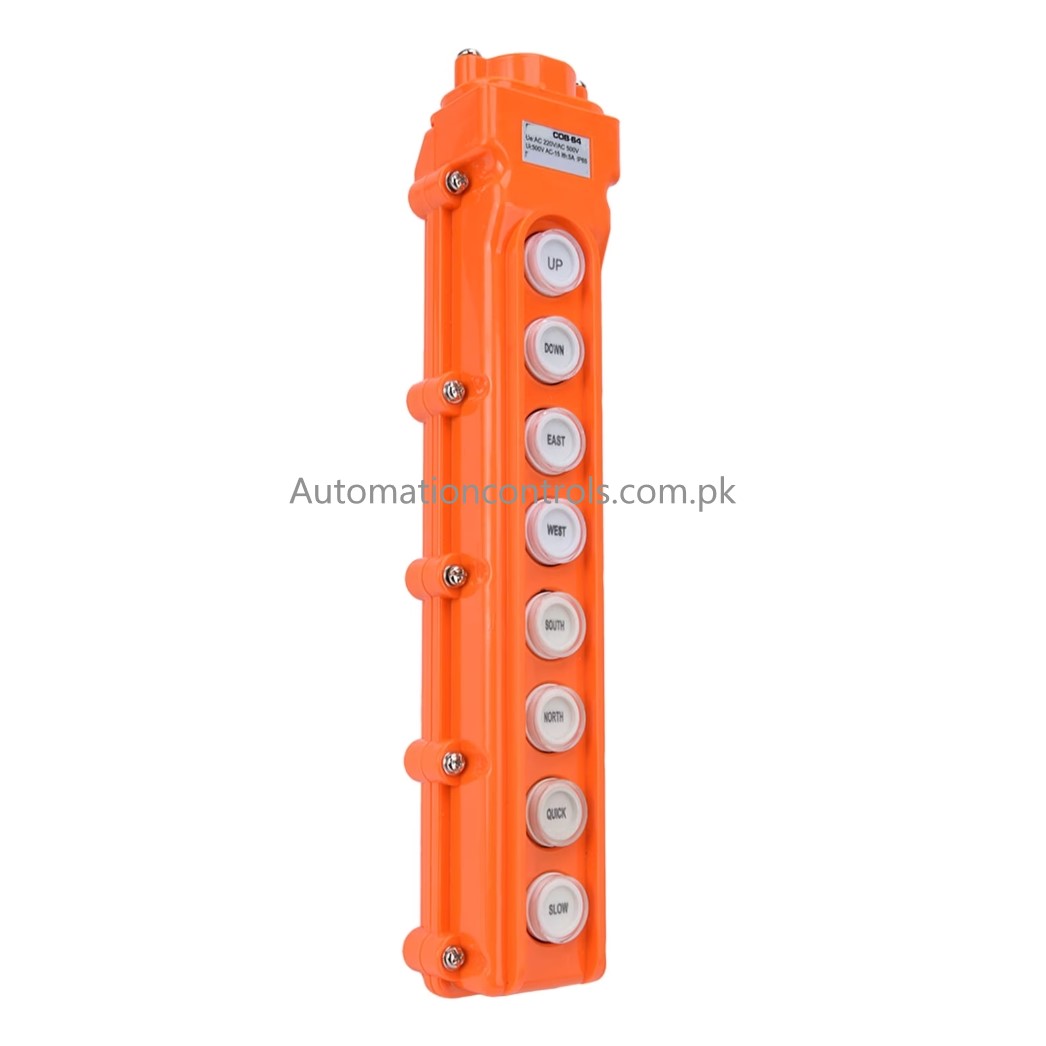

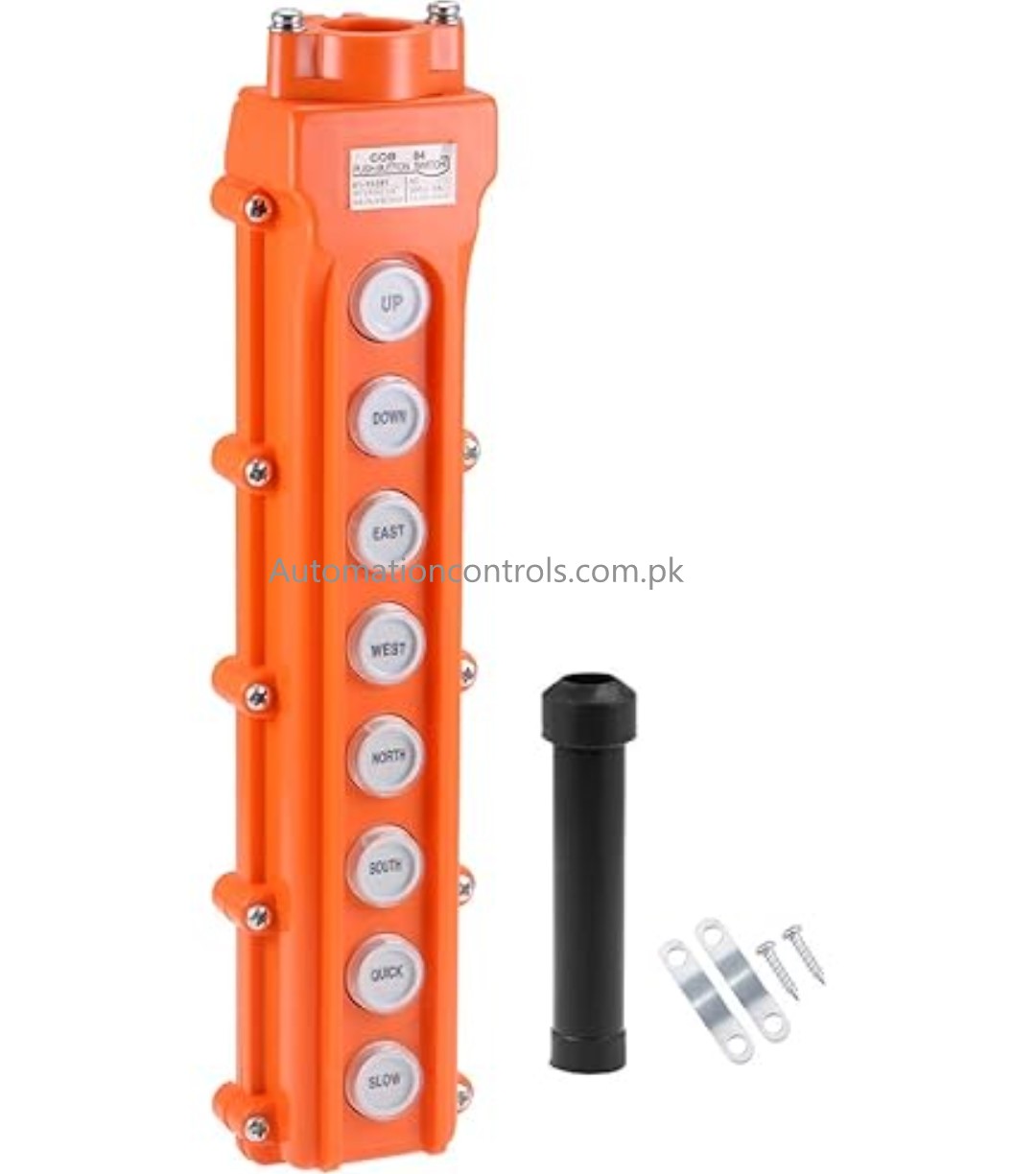

COB-64 Push Button Switch Rain Proof

Rs 1,900.00

Model: COB-64

Material: plastic

Water proof: yes

Colour: Orange.

Ambient operating temperature: -20 ~ + 131 F.

Contact structure: composite button.

Contact resistance: 50 (Ω)

Insulation resistance: 50 (MΩ).

Push buttons: 8 ways, up, down, east, west, north, south, quick, slow.

Type of contact: momentary.

Easy to use and easy to install.

Small size and easy to carry.

  • Description
  • Reviews (0)

Description

  • The COB series are used in controlling circuit of AC 50HZ or 60HZ, Voltage to 660V, DC coltage below 400v, it is used for controlling signal and interlocking.
  • The main body adopts zinc alloy and high grade anti-flaming plastic, the contact adopts circuit of AC voltage 380v, 50hz or 60hz, DC vooltage below 380V.
  • Used as kinds of indication signal, warning signal, accident signal and other signals.
  • These are rain proof crane control push button switch which are newly developed products.
  • These are made up of very high quality fine plastic, and there design are very beautiful.
  • These have advanced and big contact capacity, mechanical interlocking , and if necessary they can achieve interlock circuit to assure the more safety and reliable using.
  • The products matched cable jacket and waterproof rubber sealing strip, have a good (IP65 level) performance of dust and rain.
  • So these are most suitable for the remote controll in outdoor, rainy and snowy, dusty and damp environment, such as electric hoist, open conveyor blt, building line etc.
