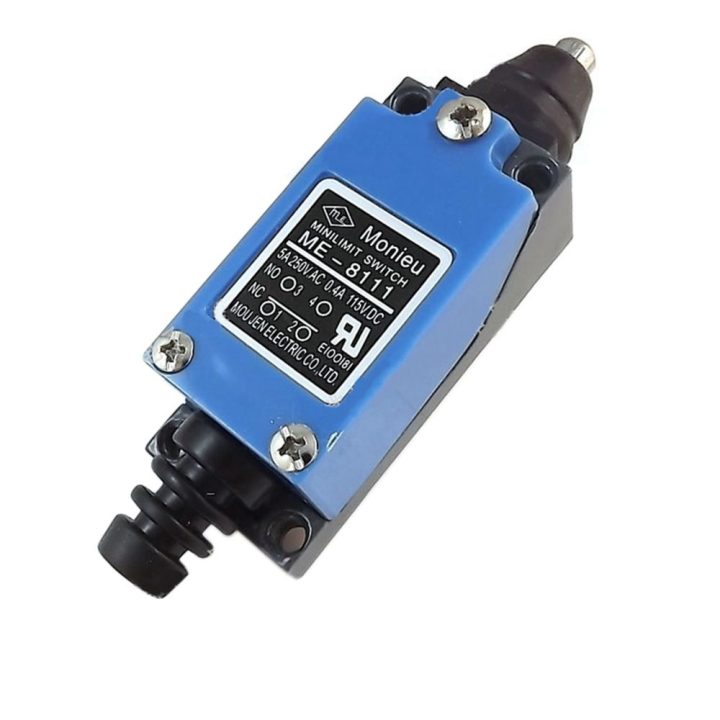

Limit Switch (ME-8111) Plunger Type
Product: Limit switch
Drive type: standard pin plunger, automatic reset
Pin diameter: 6.8 mm
Contact Configuration: 2 NC + 2 NO
Power supply: AC 250V 5A, DC 115V 0.4A
Operating Temperature: -5~+65
Attachment thread diameter: 4.5 mm

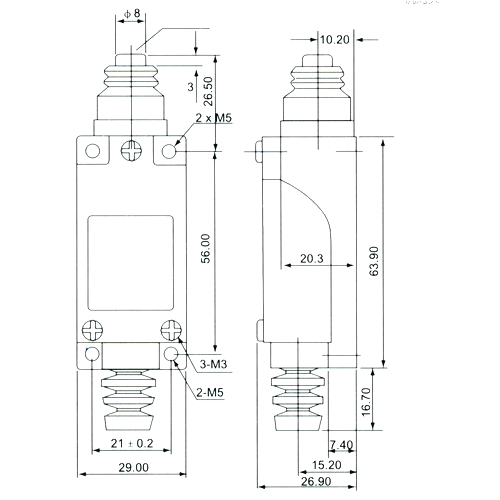

Mounting hole spacing: 56 mm x 21 mm
Overall dimensions: 99 x 28 x 25 m
Mechanical Life : 10,000,000 operations
Electrical Life: 500,000 operations
- Reviews (0)

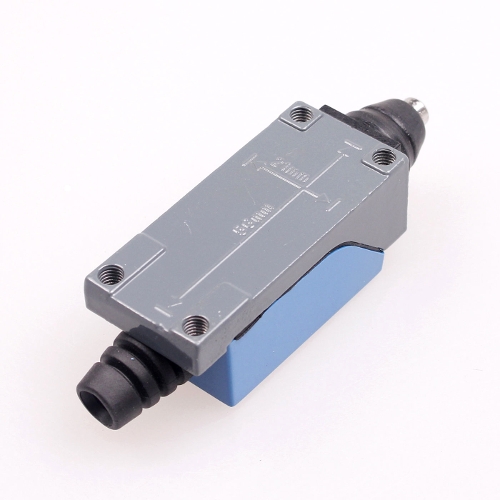

- This Limit switch features a compact design and a long mechanical life.
- They have easy wiring with full open terminals and dust, water, oil proof construction.
- A strong body with a combination of reinforced plastic and aluminium Die Casting components.
- It is operated by the motion of a machine part or presence of an object.
- The defining feature of it is that a relatively small movement at the actuator button produces a relatively large movement at the electrical contacts, which occurs at high speed (regardless of the speed of actuation).
- Click and open image for full view.
