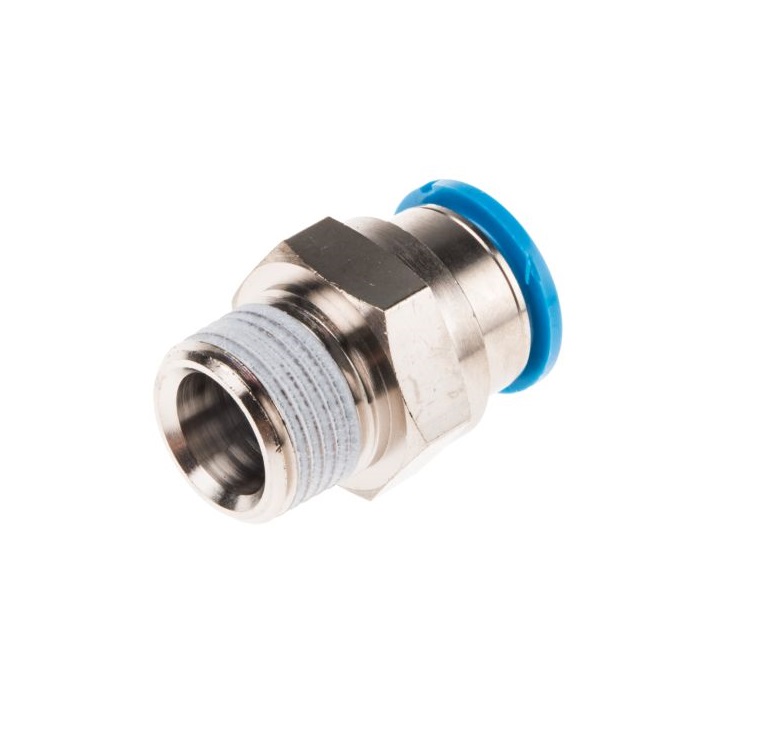

Festo Pneumatic Push-in fitting (QS-3/8-12) 12mm*3/8 inch Straight Connector (1 piece)

Rs 510.00

Model: QS-3/8-12

Connection Style Threaded-to-Tube
Connector A R 3/8 inch
Connector B Push In 12 mm
Connector A – Gender Male
Manufacturer Series QS
Mounting Type Inline
Body Material Brass
Maximum Operating Pressure 14 bar
Maximum Operating Temperature +80C
Minimum Operating Temperature -10C
Chemical Resistant No
Food Grade No



  • Description
  • Reviews (0)

Description

  • The QS-3/8-12 from Festo is a high quality pneumatic connector which offers both maximum flexibility and quick installation due to the convenient push-in fitting type.

Features

  • Maximum flexibility for each pneumatic fitting
  • Effortless, quick and simple push-in installation
  • Threaded to tube (hose) connection style for use in pneumatic applications
  • Wide operating temperature range of -10 to +80C
  • Air pressure ranges of up to 14 bar
  • Available with a variety of different thread and diameter connector sizes
  • Robust, solid nickel-plated brass with high resistance to corrosion
  • Male thread R 3/8
  • Tubing size O.D 12 mm
  • Push in type fitting ensuring quick and simple installation
  • Threaded to tube connector style
  • Strong and durable brass with nickel plated housing material
  • Any mounting position
