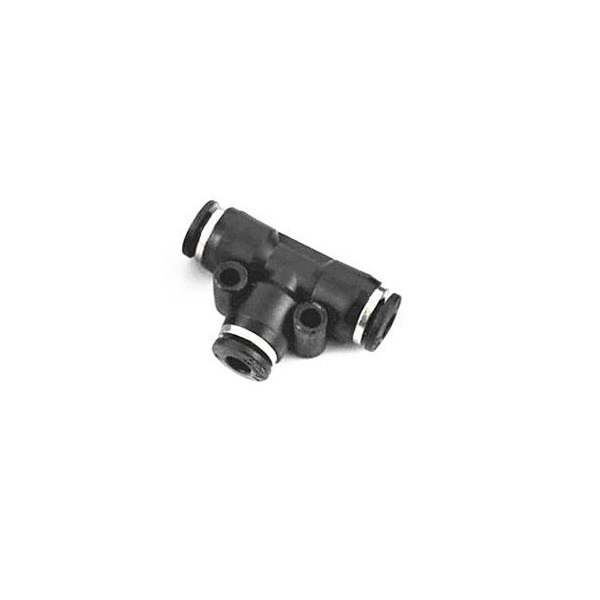

Pneumatic Tee 4mm*4mm*4mm Push In Fitting (10 Pcs)
Mentioned price is of 1 packet = 10 pcs
Product: Pneumatic Tee for 4mm pneumatic pipe
Type: air hose fitting
Connection: push fit/Push to connect
Shape of fitting: Tee shape
Size: 4mm (all 3 sides)
Fluid Admitted: Air, Vacuum
Working Pressure: 0-1.0MPa/0-150psi
Proof Pressure: 120psi.
Seal O-ring: NBR
Lock Claw: Stainless Steel (SUS)
Working Temperature:0-60C /30～140F
Negative Pressure: -100Kpa
- Reviews (0)
- Except the air and water, dont attempt to use the fittings on other fluids.
- The tube fitting is prohibited where spark and fire might be occurred.
- The tube fitting is prohibited if water temperature is above 60 degrees celsius.
- Never apply tube joint with additional external load (bending, twist or
pulling), otherwise damage or leakage will be occurred.
- Check the end of tubing for a right angle cutting and check the external surface of
tubing for any damage or scratch.
- Please refer to following instruction when you insert the air tubing into the joint, you will have two-step feeling.
- Section one is locking claw.
- Section two is sealing ring.
- Must insert tube into section two.
- Sleeve is used in tubing connection and disconnection.
- After connection of tube joint and tubing, always try to pull tubing and ensure
its firm connection.
- Always use proper tool to tighten external hexagonal and internal hexagonal parts of
the tube fitting.
- Always apply recommended torque on screws otherwise extra torque
might damage thread and cause air leakage while insufficient torque might cause
loose screws and air leakage.
- After Screws are tightened,you may adjust the direction of tubing with most of our
- If it is hard in adjustment,you may apply recommended torque to turn
screw to adjust direction of tubing.
