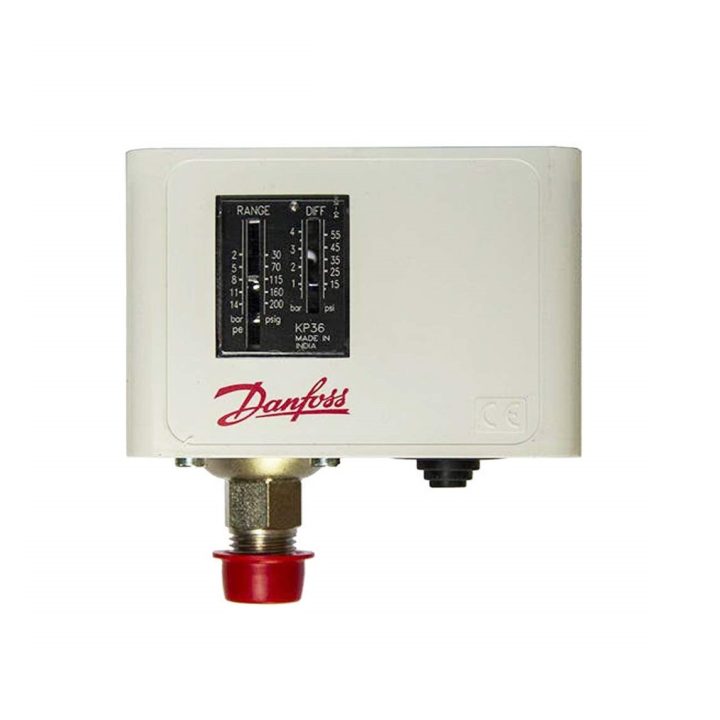

Danfoss Pressure Switch KP36

Rs 5,800.00

Product: Air control pressure switch

Brand: Danfoss

Model: KP 36 (060-110891)

Regulation range: 2 bar to 14 bar.

Differential pressure range: 0.7 bar to 4 bar

Ambient temperature range: -40.0 F to 149.0 F

Pressure connection size: 1/4

Current rating: 16A

Voltage: AC 400v

Contact type: SPDT

Reset: auto

Dimensions of electrical connections: 6-14mm

  • Description
  • Reviews (0)

Description

  • Danfoss KP pressure switches are used for regulating, monitoring and alarm systems in industrial applications.
  • These pressure switchesare used for starting and stopping refrigeration compressors and fans on air-cooled condensers.
  • The KP pressure switches from Danfoss are optimized for light and heavy commercial refrigeration providing excellent protection against low suction pressure or high discharge pressure.
  • The KP series are suitable for gaseous media and air.
  • They are fitted with a single-pole switch changeover (SPDT), and can control single-phase ac motors of up to 2 kW directly.
  • These switches have high contact load and Ultra short bounce-time.
  • These have high reliability both electrically and mechanically.
  • They have fully welded bellows element for good look and best performance.
  • Adjustable pressure settings, which is convenient for user.
