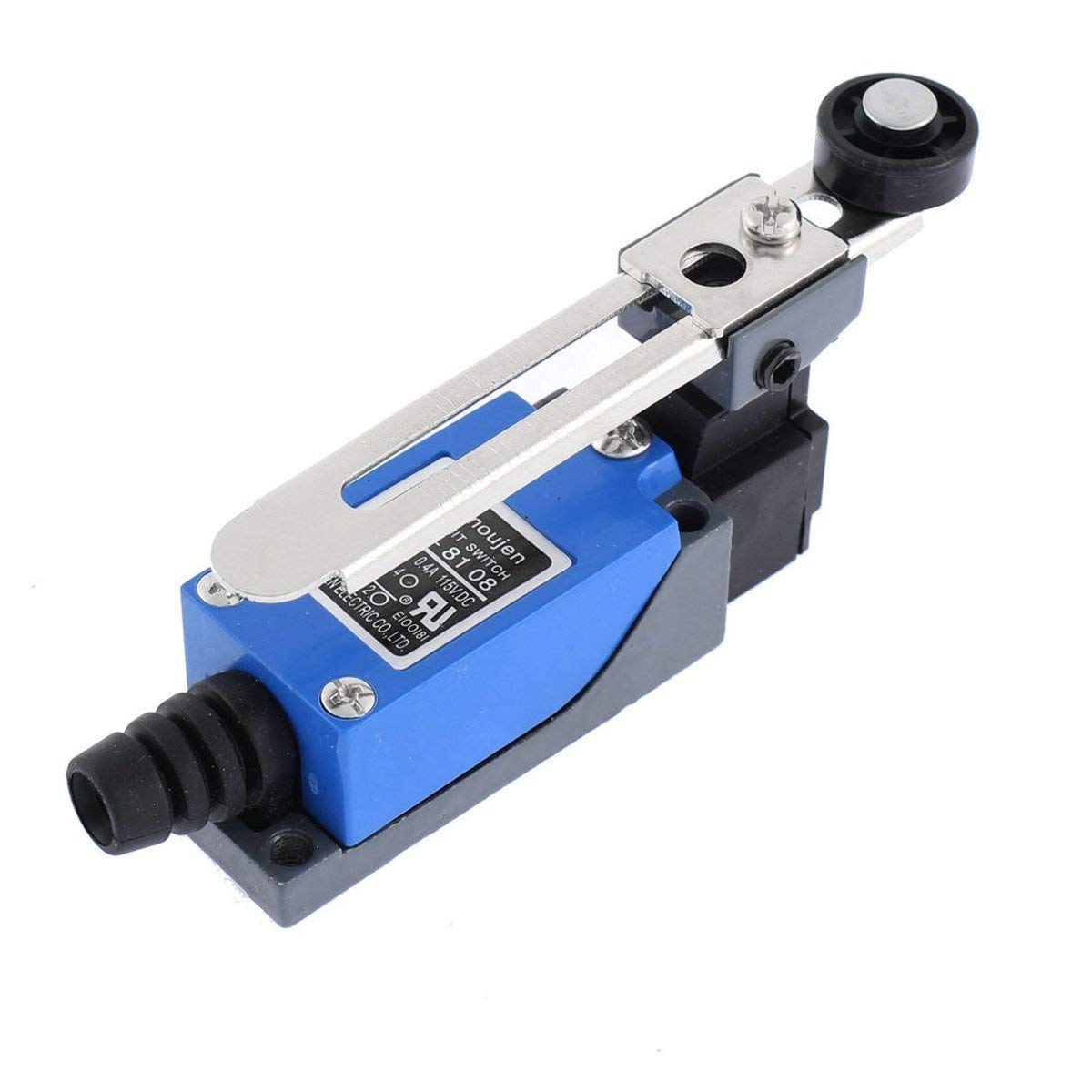

Limit Switch (ME-8108) Adjustable/Rotatable Roller Arm Type

Rs 880.00

Product: Limit switch

Model: ME-8108

Drive type: Adjustable/Rotatable roller arm, automatic reset

Wheel rotation: 360 degrees

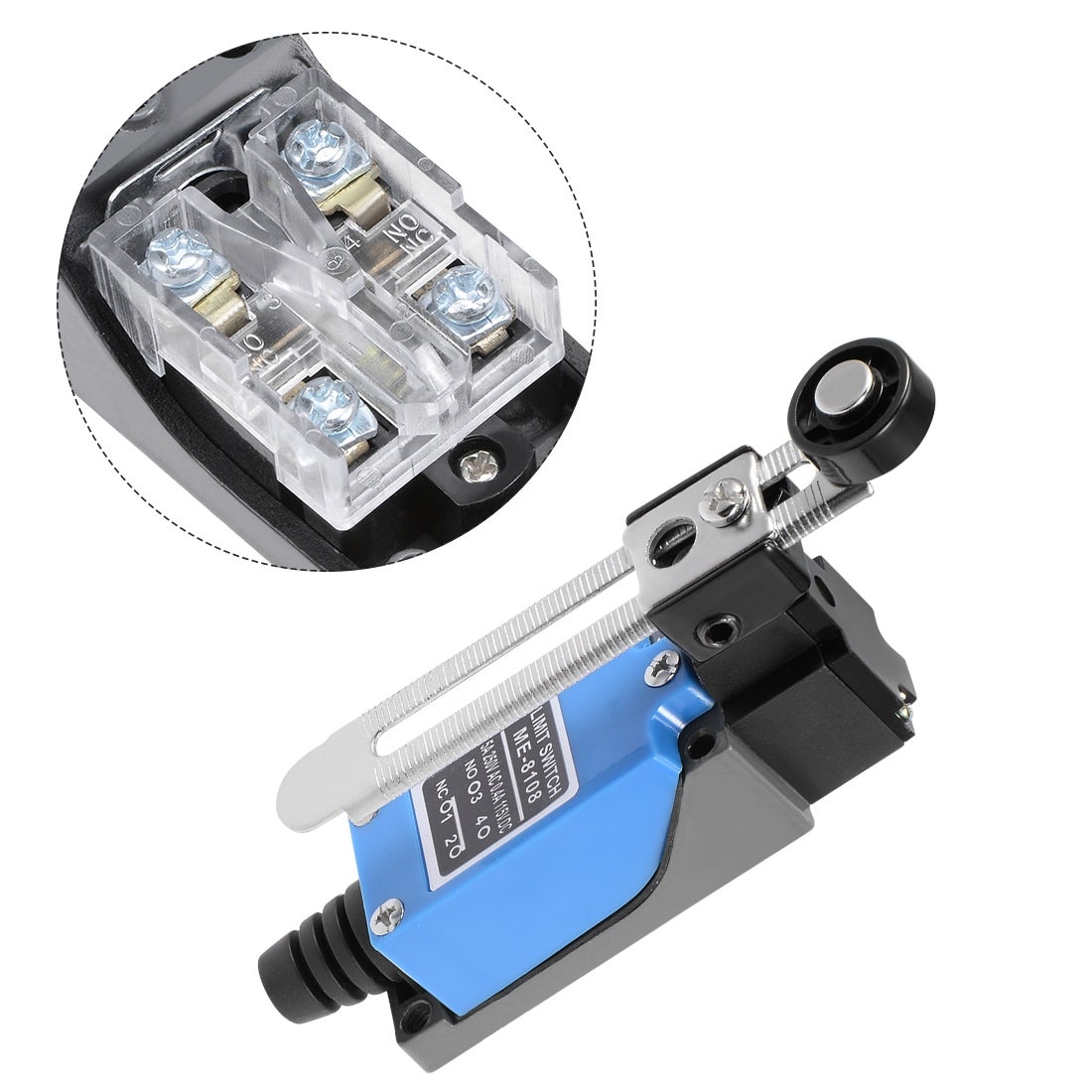

Contact Configuration: 2 NC + 2 NO

Power supply: AC 250V 5A, DC 115V 0.4A

Operating Temperature:-5~+65

Usage: industrial

Attachment thread diameter: 4.5 mm

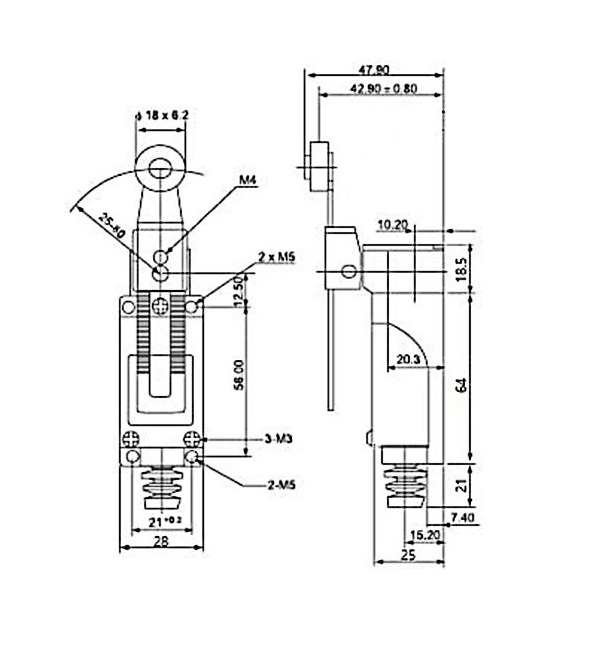

Mounting hole spacing: 56 mm x 21 mm

Mechanical Life : 10,000,000 operations

Electrical Life: 500,000 operations

View cart


  • This Limit switch features a compact design and a long mechanical life.
  • They have easy wiring with full open terminals and dust, water, oil proof construction.
  • A strong body with a combination of reinforced plastic and aluminium Die Casting components.
  • It is operated by the motion of a machine part or presence of an object.
  • The defining feature of it is that a relatively small movement at the actuator button produces a relatively large movement at the electrical contacts, which occurs at high speed (regardless of the speed of actuation).
  • Click and open the image for full view.
