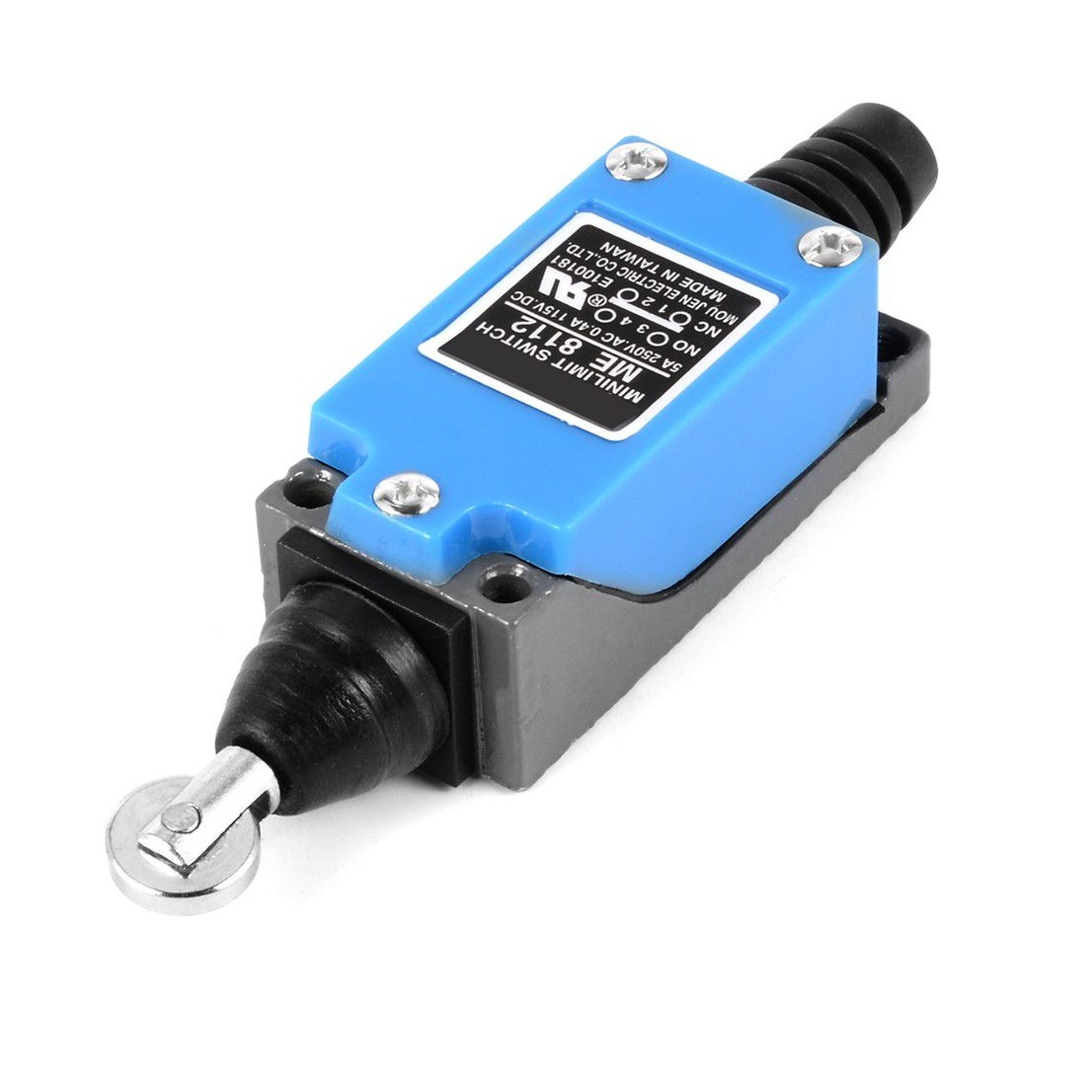

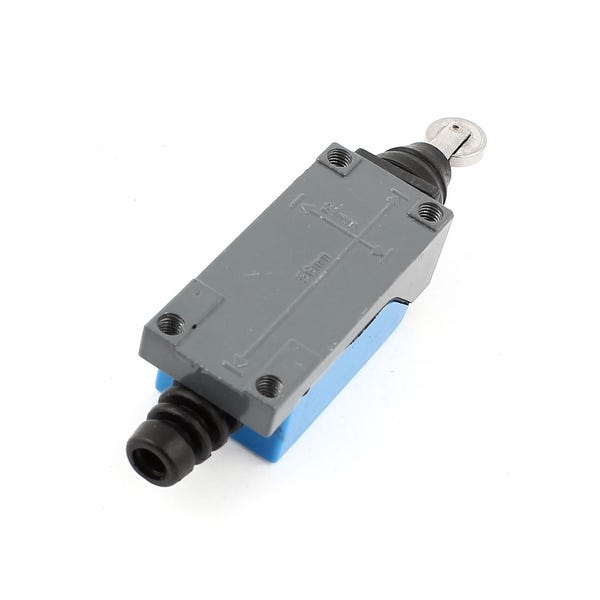

Limit Switch (ME-8112) Straight Roller Type
Product: Limit switch
Drive type: Straight roller, automatic reset
Wheel rotation: 360 degrees
Contact Configuration: 2 NC + 2 NO
Power supply: AC 250V 5A, DC 115V 0.4A
Attachment thread diameter: 4.5 mm

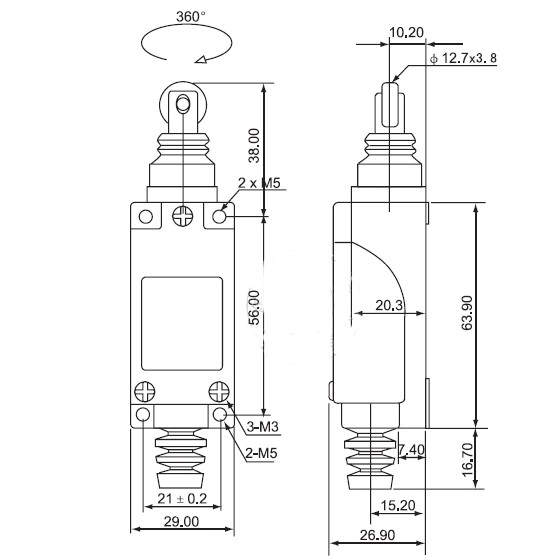

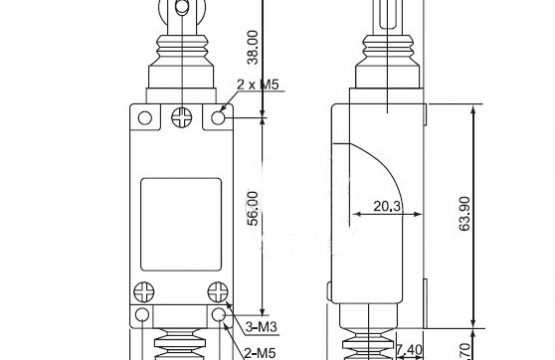

Mounting hole spacing: 56 mm x 21 mm
Mechanical Life : 10,000,000 operations
Electrical Life: 500,000 operations
- Reviews (0)
- This Limit switch features a compact design and a long mechanical life.

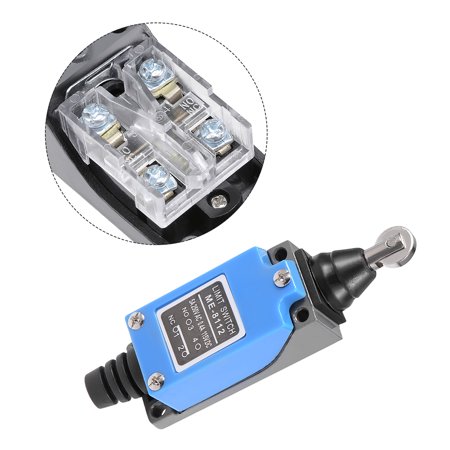

- They have easy wiring with full open terminals and dust, water, oil proof construction.
- A strong body with a combination of reinforced plastic and aluminium Die Casting components.
- It is operated by the motion of a machine part or presence of an object.
- The defining feature of it is that a relatively small movement at the actuator button produces a relatively large movement at the electrical contacts, which occurs at high speed (regardless of the speed of actuation).
- Click and open image for full view.
