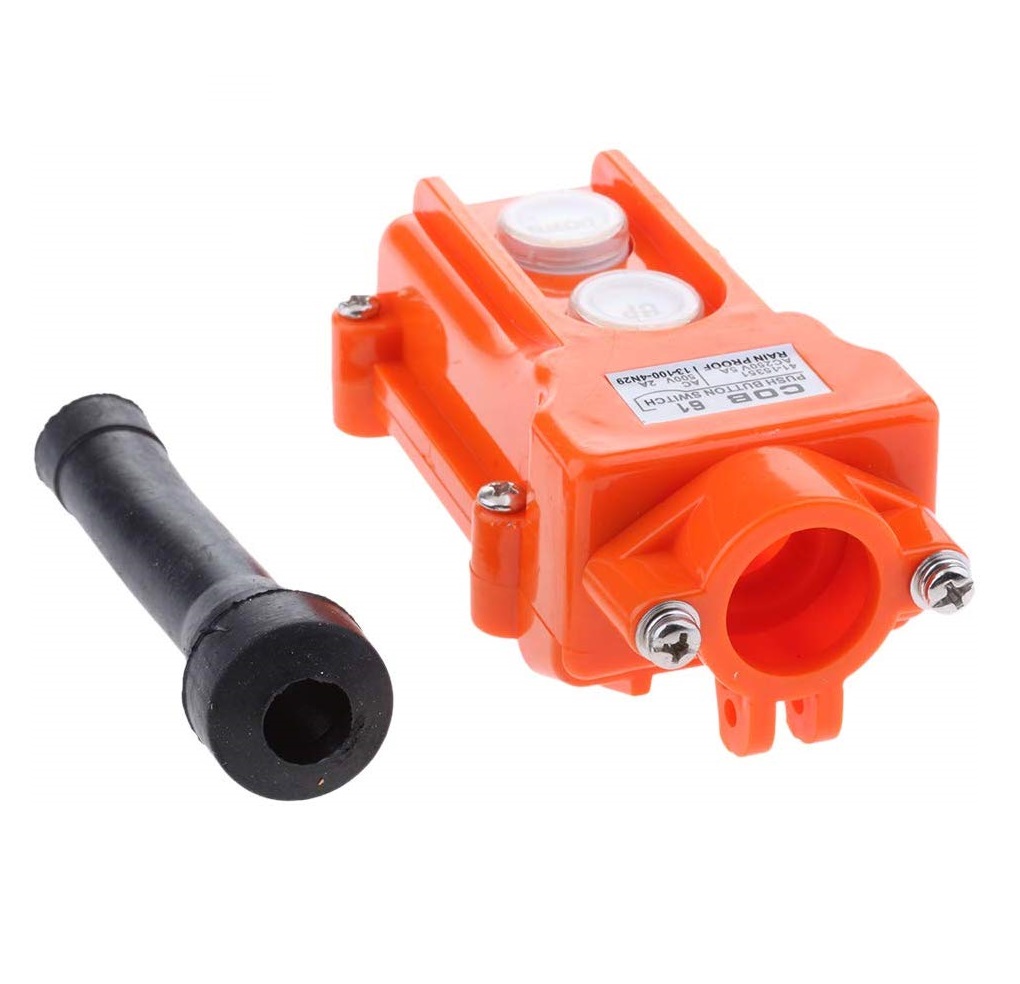

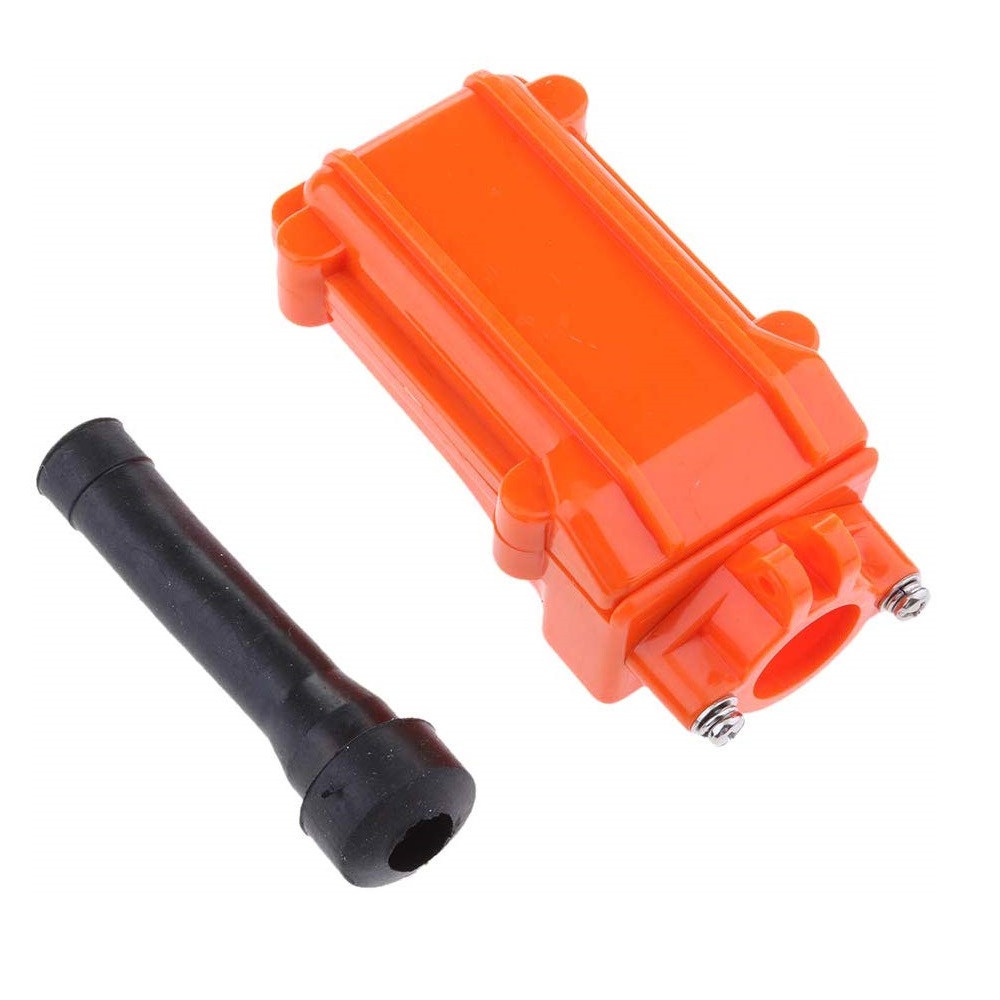

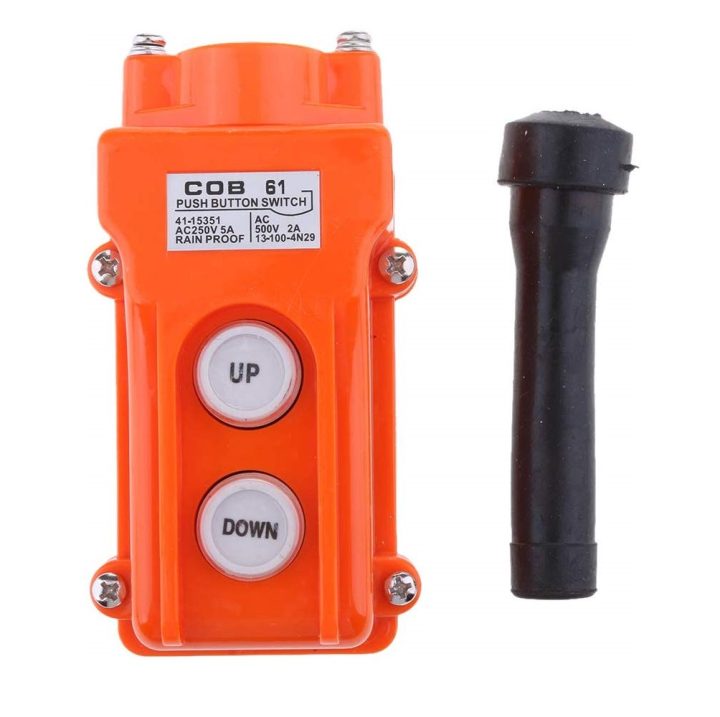

COB-61 Push Button Switch Rain Proof (Pack of 2pcs)
Water proof: yes
Size: 4,921 x 2,756 x 1,969 inch.
Ambient operating temperature: -20 ~ + 131 F.
Contact structure: composite button.
Contact resistance: 50 (Ω)
Insulation resistance: 50 (MΩ).
Push buttons: 2 ways, up and down.
Type of contact: momentary.
Easy to use and easy to install.
Small size and easy to carry.
- Reviews (0)
- The COB series are used in controlling circuit of AC 50HZ or 60HZ, Voltage to 660V, DC coltage below 400v, it is used for controlling signal and interlocking.
- The main body adopts zinc alloy and high grade anti-flaming plastic, the contact adopts circuit of AC voltage 380v, 50hz or 60hz, DC vooltage below 380V.
- Used as kinds of indication signal, warning signal, accident signal and other signals.
- These are rain proof crane control push button switch which are newly developed products.
- These are made up of very high quality fine plastic, and there design are very beautiful.
- These have advanced and big contact capacity, mechanical interlocking , and if necessary they can achieve interlock circuit to assure the more safety and reliable using.
- The products matched cable jacket and waterproof rubber sealing strip, have a good (IP65 level) performance of dust and rain.
- So these are most suitable for the remote controll in outdoor, rainy and snowy, dusty and damp environment, such as electric hoist, open conveyor blt, building line etc.
