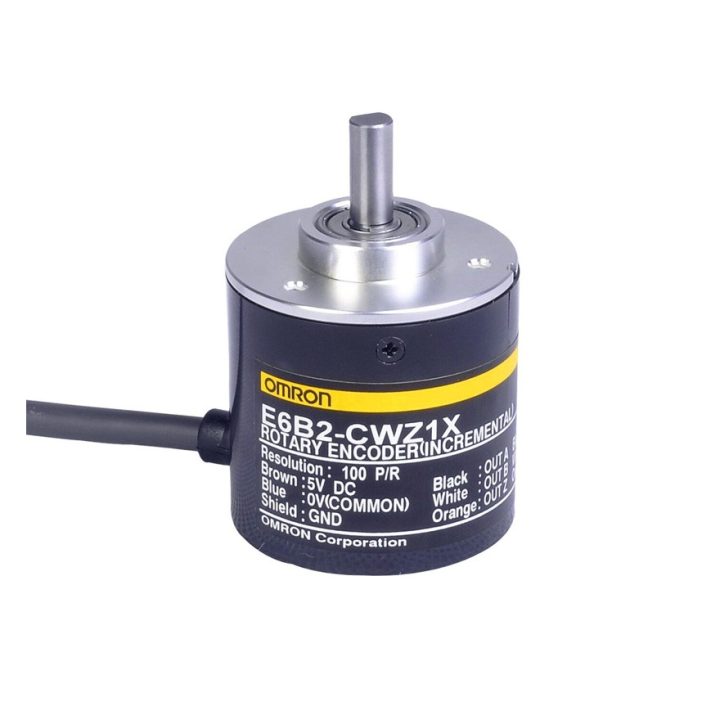

Omron Incremental Rotary Encoder E6B2-CWZ1X 100P/R

Rs 14,800.00


Model E6B2-CWZ1X 100P/R 0.5M
Diameter 40 mm dia.
Power supply voltage 5 VDC 5% ripple (p-p) 5% max.
Current consumption 160 mA max.
Resolution 100 P/R
Inrush current Approx. 9 A (0.3 ms)
Output phases A, -A, B, -B, Z and -Z
Control output Output type Line driver output
Output voltage Vo: 2.5 V min.
Vs: 0.5 V max
Load current High level (Io): -20 mA
Low level (Is): 20 mA
Starting positional point Supported
Max. response frequency 100 kHz
Phase difference on output 9045 between A and B (1/4 T 1/8 T)
Rise and fall times of output 0.1 s max. (Cable length: 2 m max., Io = -20 mA, Is = 20 mA)
Starting torque Room temperature: 0.98 mN.m max.
Moment of inertia 3 x 10**-7 kg.m**2 max.
Shaft loading Radial: 30 N
Thrust: 20 N
Max. permissible rotation 6000 r/min
Ambient temperature Operating: -10 to 70℃
Storage: -25 to 85℃
Ambient humidity Operating: 35 to 85%
Storage: 35 to 85%
Insulation resistance Between charged parts and the case: 20 MΩ min. (at 500 VDC)
Dielectric strength Between charged parts and the case: 500 VAC 50/60 Hz 1 min
Vibration resistance Destruction: 10 to 500 Hz, 2-mm or 150 m/s**2 double amplitude for 11 min 3 times each in X, Y, and Z directions
Shock resistance Destruction: 1000 m/s**2 for 3 times each in X, Y, and Z directions
Degree of protection IEC: IP50
Connection method Pre-wired models
Material Case: ABS
Main: Aluminum
Shaft: SUS420J2
Weight Package: Approx. 100 g
Accessories Instruction manual,Couplings,Hex-head spanner


View cart




Output Circuit Diagram

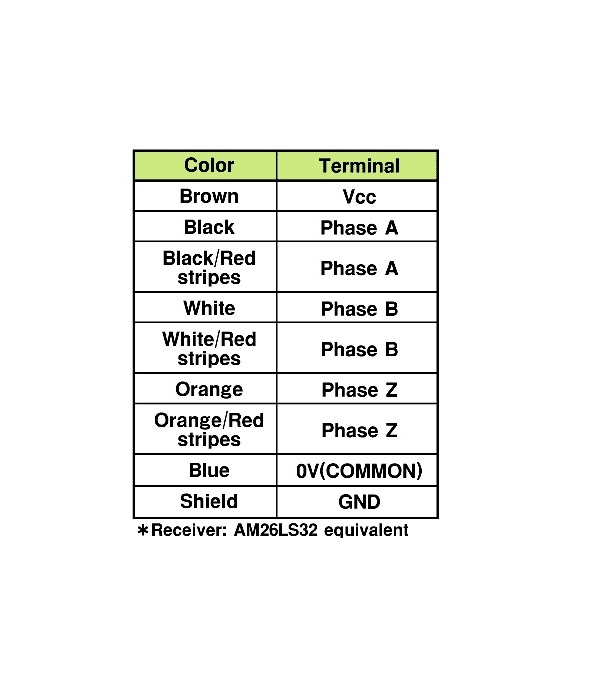

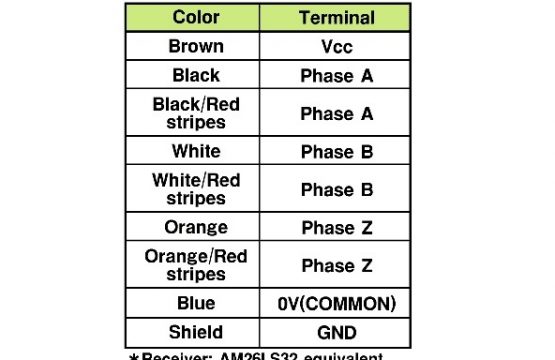

Connected Specification Chart
