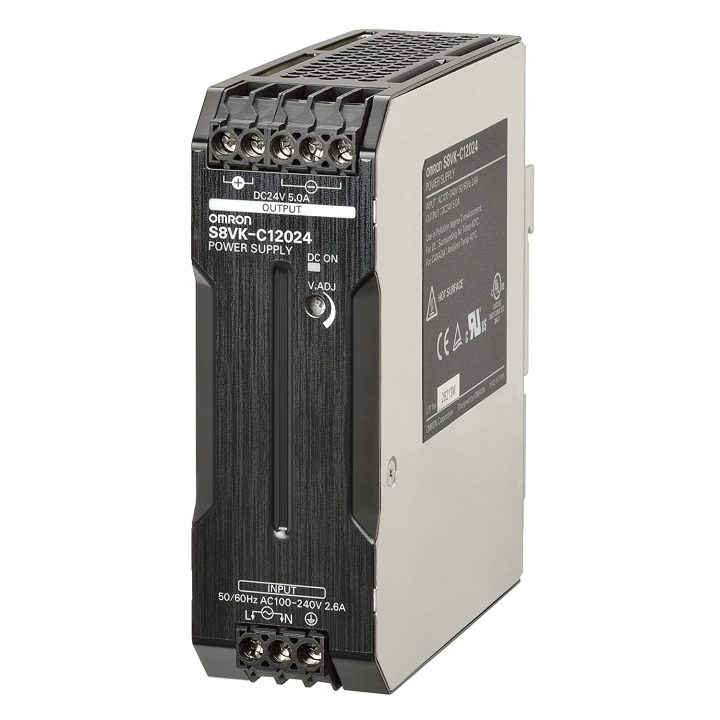

Omron Switching Mode Power Supply (S8VK-C12024) In 100~240 VAC, Out 24 VDC, 5 Amp

Rs 23,000.00

Model: S8VK-C12024

Power rating 120 W 5 A output
Output voltage 24 V
Efficiency 88% typ. (at 230 VAC input)
Input Rated input voltage 100 to 240 VAC
Allowable input voltage variable range 85 to 264 VAC
90 to 350 VDC
Frequency 50/60Hz (47 to 450 Hz)
Rated input curren 2.2 A typ. (at 115 VAC input)
1.4 A typ. (at 230 VAC input)
Power factor 0.45 typ.
Leakage current 0.19 mA max. (at 115 VAC input)
0.36 mA max. (at 230 VAC input)
Inrush current 16 A typ. (at 115 VAC input)
32 A typ. (at 230 VAC input)
Output Rated output current 5 A
Output voltage variable range -10 to +15% With V.ADJ
Ripple 120 mV(p-p) max. at 230 VAC input
Static input variation influence 0.5% max. at 85 to 265 VAC input, 100% load
Static load variation influence 1.5% max. (rated input, 0 to 100% load)
Ambient temperature variation influence 0.05%/℃ max.
Start up time 800 ms typ. (at 115 VAC input)
760 ms typ. (at 230 VAC input)
Hold time 27 ms typ. (at 115 VAC input)
128 ms typ. (at 230 VAC input)
Additional functions Overload protection Yes, Automatic reset
Overvoltage protection Yes, Shut off the input voltage and turn on the input again
Series operation Yes (Up to 2 Power Supplies with external diode)
Parallel operation No
Output indicator Yes (color: green, lighting from 80 to 90% or more of rated voltage)
Insulation Dielectric strength Between all input terminals and all output terminals: 3 kVAC for 1 min
Between all input terminals and PE terminals: 2 kVAC for 1 min
Between all output terminals and PE terminals: 1 kVAC for 1 min
Insulation resistance Between all output terminals and all input terminals/ PE terminals: 100 MΩ min., at 500 VDC
Environment Vibration resistance 10 to 55 Hz, 0.375 mm single amplitude in each 3 directions for 2 hours
10 to 150 Hz, 0.35 mm single amplitude in each 3 directions for 80 min
Shock resistance 150 m/s**2, in each 6 directions 3 times
Ambient temperature (Operating) -25 to 60℃
Ambient temperature (Storage) -25 to 65℃
Ambient humidity (Operating) 20 to 90%
Ambient humidity (Storage) 10 to 95%
Construction Construction Covered type
Connection Terminal blocks
Terminal type Rod terminal
Mounting DIN track mounting
Degree of protection IP20, EN/IEC 60529
Weight (Main) Approx. 580 g
