• Autonics Switching Mode Power Supply (SP-0305) In 100~240 VAC, Out 5 VDC (0.6 Amp)

    0 out of 5

    Model:SP-0305

    Output power 3W
    Input Voltage 100-240VAC~ 50/60Hz
    Permissible voltage 85-264VAC~50/60Hz
    Output_Voltage 5VDC
    Output_Current 0.6A
    Mounting type DIN Rail/Using Bolts
    Protection Over-Current/Output Short-Circuit
    Input_Frequency 50/60Hz
    Input_Efficiency 67~74%
    Input_Current consumption Max. 0.15A
    Output type_Voltage adjustment range Max. 5%
    Output type_Ripple Max. 5%
    Output type_Voltage fluctuation ratio Max. 0.5% (at 85-264VAC~ 100% load)
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 70℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Weight Approx. 100g



    Rs 6,800.00

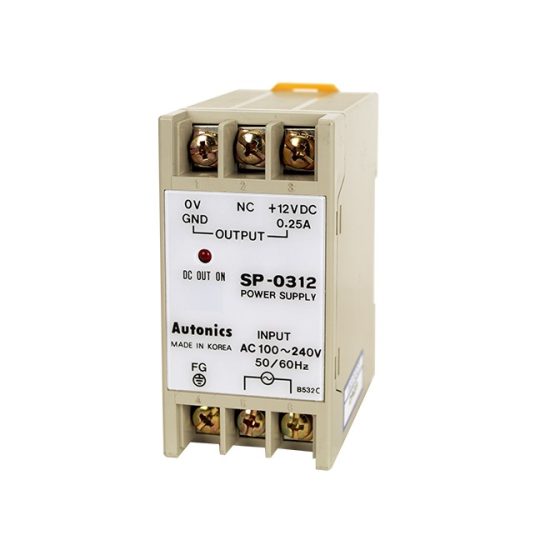

  • Autonics Switching Mode Power Supply (SP-0312) In 100~240 VAC, Out 12 VDC (0.25 Amp)

    0 out of 5

    Model:SP-0312

    Output power 3W
    Input Voltage 100-240VAC~ 50/60Hz
    Permissible voltage 85-264VAC~50/60Hz
    Output_Voltage 12VDC
    Output_Current 0.25A
    Mounting type DIN Rail/Using Bolts
    Protection Over-Current/Output Short-Circuit
    Input_Frequency 50/60Hz
    Input_Efficiency 67~74%
    Input_Current consumption Max. 0.15A
    Output type_Voltage adjustment range Max. 5%
    Output type_Ripple Max. 5%
    Output type_Voltage fluctuation ratio Max. 0.5% (at 85-264VAC~ 100% load)
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 70℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Weight Approx. 100g



    Rs 6,800.00
  • Autonics Switching Mode Power Supply (SP-0324) In 100~240 VAC, Out 24 VDC (0.13 Amp)

    0 out of 5

    Model:SP-0324

    Output power 3W
    Input Voltage 100-240VAC~ 50/60Hz
    Permissible voltage 85-264VAC~50/60Hz
    Output_Voltage 24VDC
    Output_Current 0.13A
    Mounting type DIN Rail/Using Bolts
    Protection Over-Current/Output Short-Circuit
    Input_Frequency 50/60Hz
    Input_Efficiency 67~74%
    Input_Current consumption Max. 0.15A
    Output type_Voltage adjustment range Max. 5%
    Output type_Ripple Max. 5%
    Output type_Voltage fluctuation ratio Max. 0.5% (at 85-264VAC~ 100% load)
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 70℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Weight Approx. 100g



    Rs 6,200.00
  • Autonics Switching Mode Power Supply (SPA-030-05) In 100~240 VAC, Out 5 VDC (6 Amp)

    0 out of 5

    Model:SPA-030-05

    Output power 30W
    Input Voltage 100-240VAC~ 50/60Hz
    Permissible voltage 85-264VAC~50/60Hz
    Output_Voltage 5VDC
    Output_Current 6A
    Mounting type Using Bolts
    Protection Over-Current,Inrush Current,Output Short-Circuit
    Input_Frequency 50/60Hz
    Input_Efficiency Min. 60%
    Input_Current consumption Max. 1.2A
    Output type_Voltage adjustment range 5%
    Output type_Input fluctuation ratio Max. 0.5%
    Output type_Load fluctuation ratio Max. 2%
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 70℃
    Environment_Ambient humidity 25 to 85%RH, storage: 25 to 90%RH
    Weight Approx. 350g



    Rs 13,000.00
  • Autonics Switching Mode Power Supply (SPA-030-12) In 100~240 VAC, Out 12 VDC (1 Amp)

    0 out of 5

    Model:SPA-030-12

    Output power 30W
    Input Voltage 100-240VAC~ 50/60Hz
    Permissible voltage 85-264VAC~50/60Hz
    Output_Voltage 12VDC
    Output_Current Max. 1.0A
    Mounting type Using Bolts
    Protection Over-Current,Inrush Current,Output Short-Circuit
    Input_Frequency 50/60Hz
    Input_Efficiency Min. 74%
    Input_Current consumption Max. 1.0A
    Output type_Voltage adjustment range 5%
    Output type_Input fluctuation ratio Max. 0.5%
    Output type_Load fluctuation ratio Max. 1%
    Environment_Ambient temperature -10 to 40℃
    Environment_Ambient humidity 25 to 85%RH, storage: 25 to 90%RH
    Weight Approx. 350g



    Rs 12,800.00
  • Autonics Switching Mode Power Supply (SPA-030-24) In 100~240 VAC, Out 24 VDC (0.8 Amp)

    0 out of 5

    Model:SPA-030-24

    Output power 30W
    Input Voltage 100-240VAC~ 50/60Hz
    Permissible voltage 85-264VAC~50/60Hz
    Output_Voltage 24VDC
    Output_Current Max. 0.8A
    Mounting type Using Bolts
    Protection Over-Current,Inrush Current,Output Short-Circuit
    Input_Frequency 50/60Hz
    Input_Efficiency Min. 80%
    Input_Current consumption Max. 0.8A
    Output type_Voltage adjustment range 5%
    Output type_Input fluctuation ratio Max. 0.5%
    Output type_Load fluctuation ratio Max. 1%
    Environment_Ambient temperature -10 to 50℃
    Environment_Ambient humidity 25 to 85%RH, storage: 25 to 90%RH
    Weight Approx. 350g



    Rs 12,000.00
  • Autonics Switching Mode Power Supply (SPA-050-05) In 100~240 VAC, Out 5 VDC (10 Amp)

    0 out of 5

    Model: SPA-050-05

    Output power 50W
    Input Voltage 100-240VAC~ 50/60Hz
    Permissible voltage 85-264VAC~50/60Hz
    Output_Voltage 5VDC
    Output_Current 10A
    Mounting type Using Bolts
    Protection Over-Current,Inrush Current,Output Short-Circuit
    Input_Frequency 50/60Hz
    Input_Efficiency Min. 67%
    Input_Current consumption Max. 1.6A
    Output type_Voltage adjustment range 5%
    Output type_Input fluctuation ratio Max. 0.5%
    Output type_Load fluctuation ratio Max. 2%
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 70℃
    Environment_Ambient humidity 25 to 85%RH, storage: 25 to 90%RH
    Weight Approx. 350g



    Rs 15,500.00
  • Autonics Switching Mode Power Supply (SPA-050-12) In 100~240 VAC, Out 12 VDC (4.2 Amp)

    0 out of 5

    Model:SPA-050-12

    Output power 50W
    Input Voltage 100-240VAC~ 50/60Hz
    Permissible voltage 85-264VAC~50/60Hz
    Output_Voltage 12VDC
    Output_Current 4.2A
    Mounting type Using Bolts
    Protection Over-Current,Inrush Current,Output Short-Circuit
    Input_Frequency 50/60Hz
    Input_Efficiency Min. 74%
    Input_Current consumption Max. 1.4A
    Output type_Voltage adjustment range 5%
    Output type_Input fluctuation ratio Max. 0.5%
    Output type_Load fluctuation ratio Max. 1%
    Environment_Ambient temperature -10 to 50℃
    Environment_Ambient humidity 25 to 85%RH, storage: 25 to 90%RH
    Weight Approx. 350g



    Rs 15,000.00
  • Autonics Switching Mode Power Supply (SPA-050-24) In 100~240 VAC, Out 24 VDC (2.1 Amp)

    0 out of 5

    Model:SPA-050-24

    Output power 50W
    Input Voltage 100-240VAC~ 50/60Hz
    Permissible voltage 85-264VAC~50/60Hz
    Output_Voltage 24VDC
    Output_Current 2 .1A
    Mounting type Using Bolts
    Protection Over-Current,Inrush Current,Output Short-Circuit
    Input_Frequency 50/60Hz
    Input_Efficiency Min. 80%
    Input_Current consumption Max. 1.1A
    Output type_Voltage adjustment range 5%
    Output type_Input fluctuation ratio Max. 0.5%
    Output type_Load fluctuation ratio Max. 1%
    Environment_Ambient temperature -10 to 50℃
    Environment_Ambient humidity 25 to 85%RH, storage: 25 to 90%RH
    Weight Approx. 350g

    Rs 14,500.00
  • Autonics Switching Mode Power Supply (SPA-075-12) In 100~240 VAC, Out 12 VDC (6.3 Amp)

    0 out of 5

    Model:SPA-075-12

    Output power 75W
    Input Voltage 100-120/200-240VAC~50/60Hz~
    Permissible voltage 85-132/170-264VAC~50/60Hz
    Output_Voltage 12VDC
    Output_Current 6.3A
    Mounting type Using Bolts
    Protection Over-Current,Over-Voltage,Inrush Current,Output Short-Circuit
    Input_Frequency 50/60Hz
    Input_Efficiency Min. 78%
    Input_Current consumption Max. 2.0A
    Output type_Voltage adjustment range 5%
    Output type_Input fluctuation ratio Max. 0.5%
    Output type_Load fluctuation ratio Max. 1%
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 70℃
    Environment_Ambient humidity 25 to 85%RH, storage: 25 to 90%RH
    Weight Approx. 400g



    Rs 22,500.00
  • Autonics Switching Mode Power Supply (SPA-075-24) In 100~240 VAC, Out 24 VDC (3.2 Amp)

    0 out of 5

    Model:SPA-075-24

    Output power 75W
    Input Voltage 100-120/200-240VAC~50/60Hz~
    Permissible voltage 85-132/170-264VAC~50/60Hz
    Output_Voltage 24VDC
    Output_Current 3.2A
    Mounting type Using Bolts
    Protection Over-Current,Over-Voltage,Inrush Current,Output Short-Circuit
    Input_Frequency 50/60Hz
    Input_Efficiency Min. 78%
    Input_Current consumption Max. 2.0A
    Output type_Voltage adjustment range 5%
    Output type_Input fluctuation ratio Max. 0.5%
    Output type_Load fluctuation ratio Max. 1%
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 70℃
    Environment_Ambient humidity 25 to 85%RH, storage: 25 to 90%RH
    Weight Approx. 400g



    Rs 22,000.00
  • Autonics Switching Mode Power Supply (SPA-100-12) In 100~240 VAC, Out 12 VDC (8.5 Amp)

    0 out of 5

    Model: SPA-100-12

    Output power 100W
    Input Voltage 100-120/200-240VAC~50/60Hz~
    Permissible voltage 85-132/170-264VAC~50/60Hz
    Output_Voltage 12VDC
    Output_Current 8.5A
    Mounting type Using Bolts
    Protection Over-Current,Over-Voltage,Inrush Current,Output Short-Circuit
    Input_Frequency 50/60Hz
    Input_Efficiency Min. 72%
    Input_Current consumption Max. 3.0A
    Output type_Voltage adjustment range 5%
    Output type_Input fluctuation ratio Max. 0.5%
    Output type_Load fluctuation ratio Max. 1%
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 70℃
    Environment_Ambient humidity 25 to 85%RH, storage: 25 to 90%RH
    Weight Approx. 400g



    Rs 24,000.00
  • Autonics Switching Mode Power Supply (SPA-100-24) In 100~240 VAC, Out 24 VDC (4.2 Amp)

    0 out of 5

    Model:SPA-100-24

    Output power 100W
    Input Voltage 100-120/200-240VAC~50/60Hz~
    Permissible voltage 85-132/170-264VAC~50/60Hz
    Output_Voltage 24VDC
    Output_Current 4.2A
    Mounting type Using Bolts
    Protection Over-Current,Over-Voltage,Inrush Current,Output Short-Circuit
    Input_Frequency 50/60Hz
    Input_Efficiency Min. 80%
    Input_Current consumption Max. 2.5A
    Output type_Voltage adjustment range 5%
    Output type_Input fluctuation ratio Max. 0.5%
    Output type_Load fluctuation ratio Max. 1%
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 70℃
    Environment_Ambient humidity 25 to 85%RH, storage: 25 to 90%RH
    Weight Approx. 400g



    Rs 24,000.00

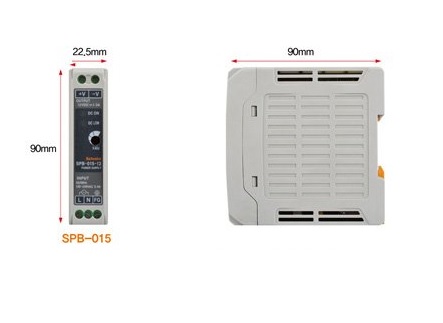

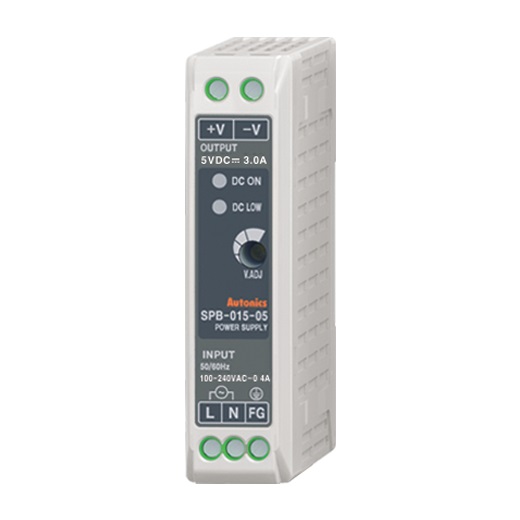

  • Autonics Switching Mode Power Supply (SPB-015-05) In 100~240 VAC, Out 5 VDC (3 Amp)

    0 out of 5

    Model:SPB-015-05

    Output power 15W
    Input Voltage 100-240VAC~ 50/60Hz
    Permissible voltage 85-264VAC~ 50/60Hz, 120-370VDC
    Output_Voltage 5VDC
    Output_Current 3A
    Mounting type DIN Rail
    Protection Over-Current/Inrush Current/Output Short-Circuit/Output Low-Voltage Indicate
    Input_Frequency 50/60Hz
    Input_Efficiency_100VAC~ 0.77
    Input_Efficiency_240VAC~ 0.76
    Input_Current consumption_100VAC~ 0.35A
    Input_Current consumption_240VAC~ 0.19A
    Output type_Voltage adjustment range Max. 10%
    Output type_Input fluctuation ratio Max. 0.5%
    Output type_Load fluctuation ratio Max. 1%
    Output type_Ripple&Ripple noise Max. 1.5%
    Protection structure IP20(IEC standard)
    Environment_Ambient temperature -10 to 50℃, storage: -25 to 65℃ (surrounding air temp.: Max. 40℃)
    Environment_Ambient humidity 25 to 85%RH, storage: 25 to 90%RH
    Weight Approx. 202g(approx. 129g)



    Rs 6,900.00

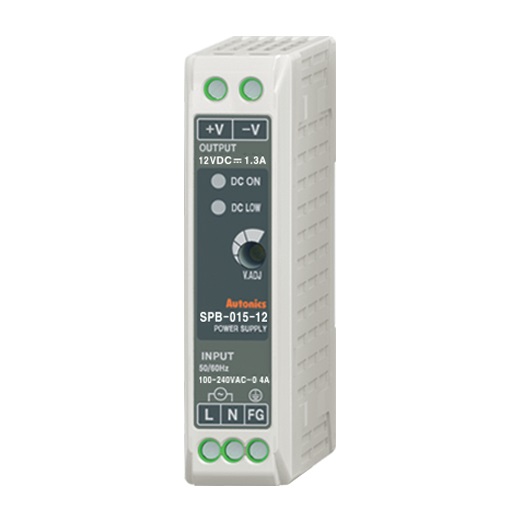

  • Autonics Switching Mode Power Supply (SPB-015-12) In 100~240 VAC, Out 12 VDC (1.3 Amp)

    0 out of 5

    Model:SPB-015-12

    Output power 15.6W
    Input Voltage 100-240VAC~ 50/60Hz
    Permissible voltage 85-264VAC~ 50/60Hz, 120-370VDC
    Output_Voltage 12VDC
    Output_Current 1.3A
    Mounting type DIN Rail
    Protection Over-Current/Inrush Current/Output Short-Circuit/Output Low-Voltage Indicate
    Input_Frequency 50/60Hz
    Input_Efficiency_100VAC~ 0.8
    Input_Efficiency_240VAC~ 0.79
    Input_Current consumption_100VAC~ 0.35A
    Input_Current consumption_240VAC~ 0.19A
    Output type_Voltage adjustment range Max. 10%
    Output type_Input fluctuation ratio Max. 0.5%
    Output type_Load fluctuation ratio Max. 1%
    Output type_Ripple&Ripple noise Max. 1%
    Protection structure IP20(IEC standard)
    Environment_Ambient temperature -10 to 50℃, storage: -25 to 65℃ (surrounding air temp.: Max. 40℃)
    Environment_Ambient humidity 25 to 85%RH, storage: 25 to 90%RH
    Weight Approx. 202g(approx. 129g)



    Rs 6,900.00
  • Autonics Switching Mode Power Supply (SPB-015-24) In 100~240 VAC, Out 24 VDC (0.65 Amp)

    0 out of 5

    Model:SPB-015-24

    Output power 15.6W
    Input Voltage 100-240VAC~ 50/60Hz
    Permissible voltage 85-264VAC~ 50/60Hz, 120-370VDC
    Output_Voltage 24VDC
    Output_Current 0.65A
    Mounting type DIN Rail
    Protection Over-Current/Inrush Current/Output Short-Circuit/Output Low-Voltage Indicate
    Input_Frequency 50/60Hz
    Input_Efficiency_100VAC~ 0.83
    Input_Efficiency_240VAC~ 0.82
    Input_Current consumption_100VAC~ 0.35A
    Input_Current consumption_240VAC~ 0.19A
    Output type_Voltage adjustment range Max. 10%
    Output type_Input fluctuation ratio Max. 0.5%
    Output type_Load fluctuation ratio Max. 1%
    Output type_Ripple&Ripple noise Max. 1%
    Protection structure IP20(IEC standard)
    Environment_Ambient temperature -10 to 50℃, storage: -25 to 65℃ (surrounding air temp.: Max. 40℃)
    Environment_Ambient humidity 25 to 85%RH, storage: 25 to 90%RH
    Weight Approx. 202g(approx. 129g)



    Rs 6,900.00

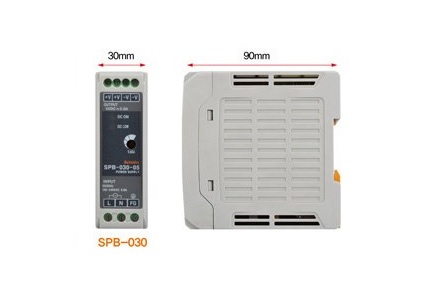

  • Autonics Switching Mode Power Supply (SPB-030-05) In 100~240 VAC, Out 5 VDC (5 Amp)

    0 out of 5

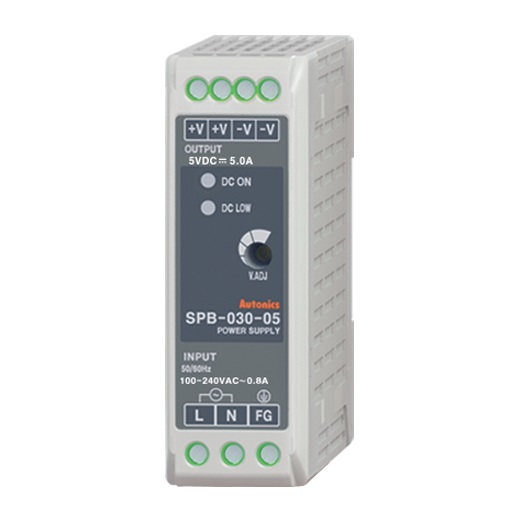

    Model:SPB-030-05

    Output power 25W
    Input Voltage 100-240VAC~ 50/60Hz
    Permissible voltage 85-264VAC~ 50/60Hz, 120-370VDC
    Output_Voltage 5VDC
    Output_Current 5A
    Mounting type DIN Rail
    Protection Over-Current/Inrush Current/Output Short-Circuit/Output Low-Voltage Indicate
    Input_Frequency 50/60Hz
    Input_Efficiency_100VAC~ 0.77
    Input_Efficiency_240VAC~ 0.78
    Input_Current consumption_100VAC~ 0.56A
    Input_Current consumption_240VAC~ 0.30A
    Output type_Voltage adjustment range Max. 10%
    Output type_Input fluctuation ratio Max. 0.5%
    Output type_Load fluctuation ratio Max. 1%
    Output type_Ripple&Ripple noise Max. 1.5%
    Protection structure IP20(IEC standard)
    Environment_Ambient temperature -10 to 50℃, storage: -25 to 65℃ (surrounding air temp.: Max. 40℃)
    Environment_Ambient humidity 25 to 85%RH, storage: 25 to 90%RH
    Weight Approx. 249g(approx. 176g)



    Rs 8,200.00
  • Autonics Switching Mode Power Supply (SPB-030-12) In 100~240 VAC, Out 12 VDC (2.5 Amp)

    0 out of 5

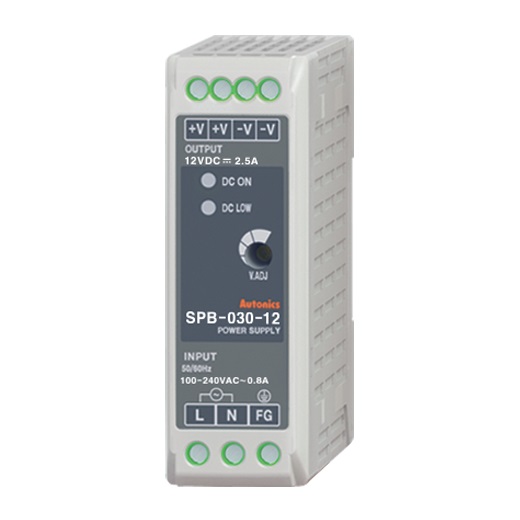

    Model: SPB-030-12

    Output power 30W
    Input Voltage 100-240VAC~ 50/60Hz
    Permissible voltage 85-264VAC~ 50/60Hz, 120-370VDC
    Output_Voltage 12VDC
    Output_Current 2.5A
    Mounting type DIN Rail
    Protection Over-Current/Inrush Current/Output Short-Circuit/Output Low-Voltage Indicate
    Input_Frequency 50/60Hz
    Input_Efficiency_100VAC~ 0.82
    Input_Efficiency_240VAC~ 0.83
    Input_Current consumption_100VAC~ 0.63A
    Input_Current consumption_240VAC~ 0.35A
    Output type_Voltage adjustment range Max. 10%
    Output type_Input fluctuation ratio Max. 0.5%
    Output type_Load fluctuation ratio Max. 1%
    Output type_Ripple&Ripple noise Max. 1%
    Protection structure IP20(IEC standard)
    Environment_Ambient temperature -10 to 50℃, storage: -25 to 65℃ (surrounding air temp.: Max. 40℃)
    Environment_Ambient humidity 25 to 85%RH, storage: 25 to 90%RH
    Weight Approx. 249g(approx. 176g)



    Rs 8,200.00
  • Autonics Switching Mode Power Supply (SPB-030-24) In 100~240 VAC, Out 24 VDC (1.3 Amp)

    0 out of 5

    Model:SPB-030-24

    Output power 31.2W
    Input Voltage 100-240VAC~ 50/60Hz
    Permissible voltage 85-264VAC~ 50/60Hz, 120-370VDC
    Output_Voltage 24VDC
    Output_Current 1.3A
    Mounting type DIN Rail
    Protection Over-Current/Inrush Current/Output Short-Circuit/Output Low-Voltage Indicate
    Input_Frequency 50/60Hz
    Input_Efficiency_100VAC~ 0.84
    Input_Efficiency_240VAC~ 0.85
    Input_Current consumption_100VAC~ 0.63A
    Input_Current consumption_240VAC~ 0.35A
    Output type_Voltage adjustment range Max. 10%
    Output type_Input fluctuation ratio Max. 0.5%
    Output type_Load fluctuation ratio Max. 1%
    Output type_Ripple&Ripple noise Max. 1%
    Protection structure IP20(IEC standard)
    Environment_Ambient temperature -10 to 50℃, storage: -25 to 65℃ (surrounding air temp.: Max. 40℃)
    Environment_Ambient humidity 25 to 85%RH, storage: 25 to 90%RH
    Weight Approx. 249g(approx. 176g)



    Rs 8,200.00
  • Autonics Switching Mode Power Supply (SPB-060-12) In 100~240 VAC, Out 12 VDC (5 Amp)

    0 out of 5

    Model:SPB-060-12

    Output power 60W
    Input Voltage 100-240VAC~ 50/60Hz
    Permissible voltage 85-264VAC~ 50/60Hz, 120-370VDC
    Output_Voltage 12VDC
    Output_Current 5A
    Mounting type DIN Rail
    Protection Over-Current/Inrush Current/Output Short-Circuit/Output Low-Voltage Indicate
    Input_Frequency 50/60Hz
    Input_Efficiency_100VAC~ 0.81
    Input_Efficiency_240VAC~ 0.83
    Input_Current consumption_100VAC~ 1.24A
    Input_Current consumption_240VAC~ 0.66A
    Output type_Voltage adjustment range Max. 5%
    Output type_Input fluctuation ratio Max. 0.5%
    Output type_Load fluctuation ratio Max. 1%
    Output type_Ripple&Ripple noise Max. 1%
    Protection structure IP20(IEC standard)
    Environment_Ambient temperature -10 to 50℃, storage: -25 to 65℃ (surrounding air temp.: Max. 40℃)
    Environment_Ambient humidity 25 to 85%RH, storage: 25 to 90%RH
    Weight Approx. 347g(approx. 274g)



    Rs 9,500.00
  • Autonics Switching Mode Power Supply (SPB-060-24) In 100~240 VAC, Out 24 VDC (2.5 Amp)

    0 out of 5

    Model:SPB-060-24

    Output power 60W
    Input Voltage 100-240VAC~ 50/60Hz
    Permissible voltage 85-264VAC~ 50/60Hz, 120-370VDC
    Output_Voltage 24VDC
    Output_Current 2.5A
    Mounting type DIN Rail
    Protection Over-Current/Inrush Current/Output Short-Circuit/Output Low-Voltage Indicate
    Input_Frequency 50/60Hz
    Input_Efficiency_100VAC~ 0.84
    Input_Efficiency_240VAC~ 0.86
    Input_Current consumption_100VAC~ 1.21A
    Input_Current consumption_240VAC~ 0.65A
    Output type_Voltage adjustment range Max. 5%
    Output type_Input fluctuation ratio Max. 0.5%
    Output type_Load fluctuation ratio Max. 1%
    Output type_Ripple&Ripple noise Max. 1%
    Protection structure IP20(IEC standard)
    Environment_Ambient temperature -10 to 50℃, storage: -25 to 65℃ (surrounding air temp.: Max. 40℃)
    Environment_Ambient humidity 25 to 85%RH, storage: 25 to 90%RH
    Weight Approx. 347g(approx. 274g)



    Rs 9,500.00
  • Autonics Switching Mode Power Supply (SPB-060-48) In 100~240 VAC, Out 48 VDC (1.3 Amp)

    0 out of 5

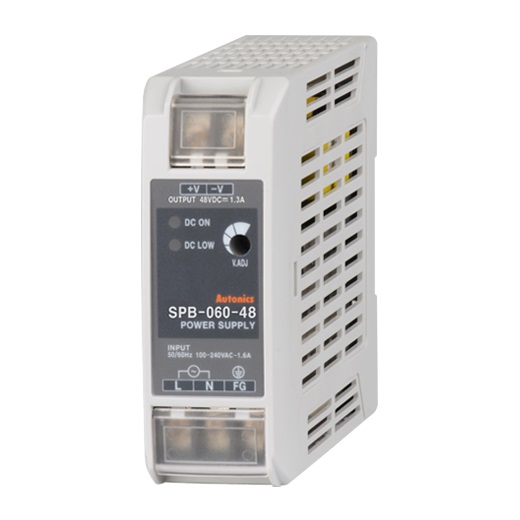

    Model: SPB-060-48

    Output power 62.4W
    Input Voltage 100-240VAC~ 50/60Hz
    Permissible voltage 85-264VAC~ 50/60Hz, 120-370VDC
    Output_Voltage 48VDC
    Output_Current 1.3A
    Mounting type DIN Rail
    Protection Over-Current/Inrush Current/Output Short-Circuit/Output Low-Voltage Indicate
    Input_Frequency 50/60Hz
    Input_Efficiency_100VAC~ 0.85
    Input_Efficiency_240VAC~ 0.87
    Input_Current consumption_100VAC~ 1.19A
    Input_Current consumption_240VAC~ 0.64A
    Output type_Voltage adjustment range Max. 5%
    Output type_Input fluctuation ratio Max. 0.5%
    Output type_Load fluctuation ratio Max. 1%
    Output type_Ripple&Ripple noise Max. 1%
    Protection structure IP20(IEC standard)
    Environment_Ambient temperature -10 to 50℃, storage: -25 to 65℃ (surrounding air temp.: Max. 40℃)
    Environment_Ambient humidity 25 to 85%RH, storage: 25 to 90%RH
    Weight Approx. 347g(approx. 274g)



    Rs 9,500.00
  • Autonics Switching Mode Power Supply (SPB-120-12) In 100~240 VAC, Out 12 VDC (8 Amp)

    0 out of 5

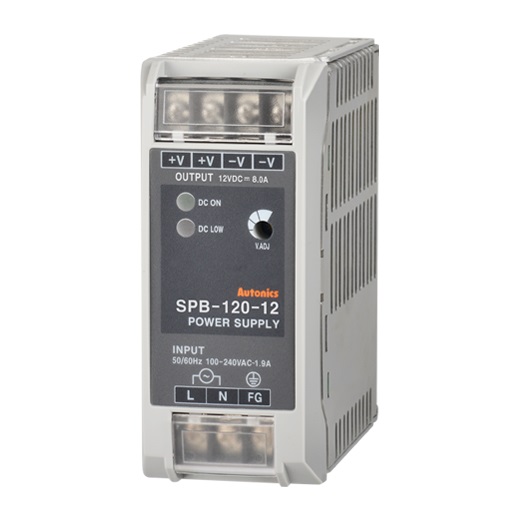

    Model:SPB-120-12

    Output power 96W
    Input Voltage 100-240VAC~ 50/60Hz
    Permissible voltage 85-264VAC~ 50/60Hz, 120-370VDC
    Output_Voltage 12VDC
    Output_Current 8A
    Mounting type DIN Rail
    Protection Over-Current/Over-Voltage/Inrush Current/Output Short-Circuit/Remote Control/Output Low-Voltage Indicate/Power Factor Correction/Terminal Cover
    Input_Frequency 50/60Hz
    Input_Efficiency_100VAC~ 0.82
    Input_Efficiency_240VAC~ 0.85
    Input_Power factor Min. 0.9
    Input_Current consumption_100VAC~ 1.19A
    Input_Current consumption_240VAC~ 0.52A
    Output type_Voltage adjustment range Max. 5%
    Output type_Input fluctuation ratio Max. 0.5%
    Output type_Load fluctuation ratio Max. 1%
    Output type_Ripple&Ripple noise Max. 1%
    Protection structure IP20(IEC standard)
    Environment_Ambient temperature -10 to 50℃, storage: -25 to 65℃ (surrounding air temp.: Max. 40℃)
    Environment_Ambient humidity 25 to 85%RH, storage: 25 to 90%RH
    Weight Approx. 570g(approx. 466g)



    Rs 15,500.00
  • Autonics Switching Mode Power Supply (SPB-120-24) In 100~240 VAC, Out 24 VDC (5 Amp)

    0 out of 5

    Model: SPB-120-24

    Output power 120W
    Input Voltage 100-240VAC~ 50/60Hz
    Permissible voltage 85-264VAC~ 50/60Hz, 120-370VDC
    Output_Voltage 24VDC
    Output_Current 5A
    Mounting type DIN Rail
    Protection Over-Current/Over-Voltage/Inrush Current/Output Short-Circuit/Remote Control/Output Low-Voltage Indicate/Power Factor Correction/Terminal Cover
    Input_Frequency 50/60Hz
    Input_Efficiency_100VAC~ 0.85
    Input_Efficiency_240VAC~ 0.88
    Input_Power factor Min. 0.9
    Input_Current consumption_100VAC~ 1.49A
    Input_Current consumption_240VAC~ 0.61A
    Output type_Voltage adjustment range Max. 5%
    Output type_Input fluctuation ratio Max. 0.5%
    Output type_Load fluctuation ratio Max. 1%
    Output type_Ripple&Ripple noise Max. 1%
    Protection structure IP20(IEC standard)
    Environment_Ambient temperature -10 to 50℃, storage: -25 to 65℃ (surrounding air temp.: Max. 40℃)
    Environment_Ambient humidity 25 to 85%RH, storage: 25 to 90%RH
    Weight Approx. 570g(approx. 466g)



    Rs 15,500.00
  • Autonics Switching Mode Power Supply (SPB-120-48) In 100~240 VAC, Out 48 VDC (2.5 Amp)

    0 out of 5

    Model:SPB-120-48

    Output power 120W
    Input Voltage 100-240VAC~ 50/60Hz
    Permissible voltage 85-264VAC~ 50/60Hz, 120-370VDC
    Output_Voltage 48VDC
    Output_Current 2.5A
    Mounting type DIN Rail
    Protection Over-Current/Over-Voltage/Inrush Current/Output Short-Circuit/Remote Control/Output Low-Voltage Indicate/Power Factor Correction/Terminal Cover
    Input_Frequency 50/60Hz
    Input_Efficiency_100VAC~ 0.85
    Input_Efficiency_240VAC~ 0.88
    Input_Power factor Min. 0.9
    Input_Current consumption_100VAC~ 1.43A
    Input_Current consumption_240VAC~ 0.61A
    Output type_Voltage adjustment range Max. 5%
    Output type_Input fluctuation ratio Max. 0.5%
    Output type_Load fluctuation ratio Max. 1%
    Output type_Ripple&Ripple noise Max. 1%
    Protection structure IP20(IEC standard)
    Environment_Ambient temperature -10 to 50℃, storage: -25 to 65℃ (surrounding air temp.: Max. 40℃)
    Environment_Ambient humidity 25 to 85%RH, storage: 25 to 90%RH
    Weight Approx. 570g(approx. 466g)



    Rs 17,000.00
  • Autonics Switching Mode Power Supply (SPB-240-12) In 100~240 VAC, Out 12 VDC (20 Amp)

    0 out of 5

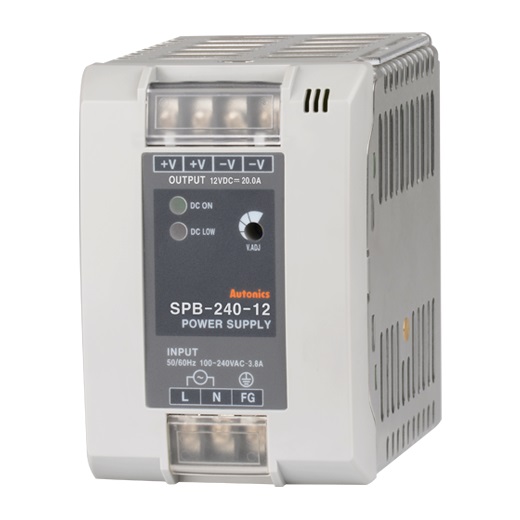

    Model: SPB-240-12

    Output power 240W
    Input Voltage 100-240VAC~ 50/60Hz
    Permissible voltage 85-264VAC~ 50/60Hz, 120-370VDC
    Output_Voltage 12VDC
    Output_Current 20A
    Mounting type DIN Rail
    Protection Over-Current/Over-Voltage/Inrush Current/Output Short-Circuit/Remote Control/Output Low-Voltage Indicate/Power Factor Correction/Terminal Cover
    Input_Frequency 50/60Hz
    Input_Efficiency_100VAC~ 0.87
    Input_Efficiency_240VAC~ 0.9
    Input_Power factor Min. 0.9
    Input_Current consumption_100VAC~ 2.76A
    Input_Current consumption_240VAC~ 1.14A
    Output type_Voltage adjustment range Max. 0.5%
    Output type_Input fluctuation ratio Max. 1%
    Output type_Load fluctuation ratio Max. 1%
    Output type_Ripple&Ripple noise Max. 1%
    Protection structure IP20(IEC standard)
    Environment_Ambient temperature -10 to 50℃, storage: -25 to 65℃ (surrounding air temp.: Max. 40℃)
    Environment_Ambient humidity 25 to 85%RH, storage: 25 to 90%RH
    Weight Approx. 866g(approx. 736g)



    Rs 26,000.00
  • Autonics Switching Mode Power Supply (SPB-240-24) In 100~240 VAC, Out 24 VDC (10 Amp)

    0 out of 5

    Model: SPB-240-24

    Output power 240W
    Input Voltage 100-240VAC~ 50/60Hz
    Permissible voltage 85-264VAC~ 50/60Hz, 120-370VDC
    Output_Voltage 24VDC
    Output_Current 10A
    Mounting type DIN Rail
    Protection Over-Current/Over-Voltage/Inrush Current/Output Short-Circuit/Remote Control/Output Low-Voltage Indicate/Power Factor Correction/Terminal Cover
    Input_Frequency 50/60Hz
    Input_Efficiency_100VAC~ 0.89
    Input_Efficiency_240VAC~ 0.92
    Input_Power factor Min. 0.9
    Input_Current consumption_100VAC~ 2.71A
    Input_Current consumption_240VAC~ 1.12A
    Output type_Voltage adjustment range Max. 0.5%
    Output type_Input fluctuation ratio Max. 1%
    Output type_Load fluctuation ratio Max. 1%
    Output type_Ripple&Ripple noise Max. 1%
    Protection structure IP20(IEC standard)
    Environment_Ambient temperature -10 to 50℃, storage: -25 to 65℃ (surrounding air temp.: Max. 40℃)
    Environment_Ambient humidity 25 to 85%RH, storage: 25 to 90%RH
    Weight Approx. 866g(approx. 736g)



    Rs 28,000.00
  • Autonics Switching Mode Power Supply (SPB-240-48) In 100~240 VAC, Out 48 VDC (5 Amp)

    0 out of 5

    Model:SPB-240-48

    Output power 240W
    Input Voltage 100-240VAC~ 50/60Hz
    Permissible voltage 85-264VAC~ 50/60Hz, 120-370VDC
    Output_Voltage 48VDC
    Output_Current 5A
    Mounting type DIN Rail
    Protection Over-Current/Over-Voltage/Inrush Current/Output Short-Circuit/Remote Control/Output Low-Voltage Indicate/Power Factor Correction/Terminal Cover
    Input_Frequency 50/60Hz
    Input_Efficiency_100VAC~ 0.89
    Input_Efficiency_240VAC~ 0.92
    Input_Power factor Min. 0.9
    Input_Current consumption_100VAC~ 2.73A
    Input_Current consumption_240VAC~ 1.13A
    Output type_Voltage adjustment range Max. 0.5%
    Output type_Input fluctuation ratio Max. 1%
    Output type_Load fluctuation ratio Max. 1%
    Output type_Ripple&Ripple noise Max. 1%
    Protection structure IP20(IEC standard)
    Environment_Ambient temperature -10 to 50℃, storage: -25 to 65℃ (surrounding air temp.: Max. 40℃)
    Environment_Ambient humidity 25 to 85%RH, storage: 25 to 90%RH
    Weight Approx. 866g(approx. 736g)



    Rs 28,000.00
  • Omron Switching Mode Power Supply (S8VK-C06024) In 100~240 VAC, Out 24 VDC, 2.5 Amp

    0 out of 5

    Model: S8VK-C06024

    Power ratings 2.5 A, 60 W output
    Output voltage 24 V
    Input Voltage 100 to 240 VAC
    Frequency 50/60 Hz



    Additional
    functions
    Overload protection *2 105% to 160% of rated load current
    Overvoltage protection *2 Yes *5
    Parallel operation No
    Series operation Possible for up to two Power Supplies (with external diode)
    Others Ambient operating
    temperature
    -25 to 60C (Refer to Engineering Data)
    Storage temperature -25 to 65C
    Ambient operating humidity 20% to 90% (Storage humidity: 10% to 95%)
    Dielectric strength
    (detection current: 20 mA)
    3.0 kVAC for 1 min. (between all inputs and outputs)
    2.0 kVAC for 1 min. (between all inputs and PE terminal)
    1.0 kVAC for 1 min. (between all outputs and PE terminal)
    Insulation resistance 100 MΩ min. (between all outputs and all inputs/PE terminals) at 500 VDC
    Vibration resistance 10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z
    directions
    10 to 150 Hz, 0.35-mm single amplitude (5 G max for 60W, 120W, 240 W,
    3 G max for 480 W) for 80 min. each in X, Y, and Z directions
    Shock resistance 150 m/s2, 3 times each in X, Y, and Z directions
    Output indicatior Yes (color: green), lighting from 80% to 90% or more of rated voltage
    EMI Conducted
    Emission
    Conforms to EN61204-3 EN55011 Class A and based on FCC Class A
    Radiated
    Emission
    Conforms to EN61204-3 EN55011 Class A
    EMS Conforms to EN61204-3 high severity levels
    Approved Standards UL Listed: UL508 (Listing)
    UL UR: UL60950-1 (Recognition)
    cUL: CSA C22.2 No.107.1
    cUR: CSA C22.2 No.60950-1
    EN/VDE: EN50178, EN60950-1
    Fulfilled Standards SELV (EN60950-1/EN50178/UL60950-1)
    EN50274 for Terminal parts
    Degree of protection IP20 by EN/IEC60529
    SEMI F47-0706 (200 to 240 VAC)
    Weight 260 g



    Rs 12,500.00

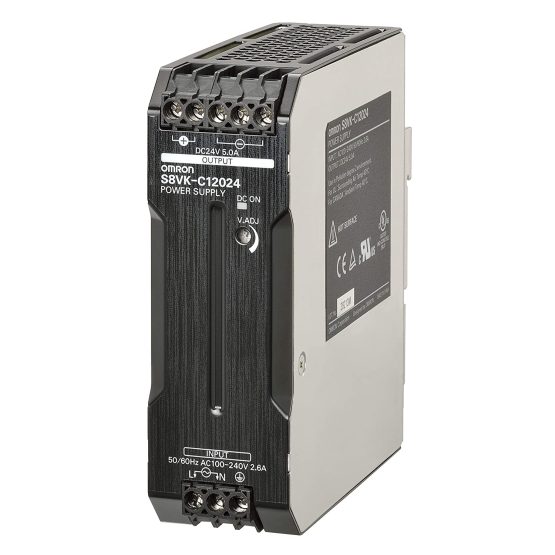

  • Omron Switching Mode Power Supply (S8VK-C12024) In 100~240 VAC, Out 24 VDC, 5 Amp

    0 out of 5

    Model: S8VK-C12024

    Power rating 120 W 5 A output
    Output voltage 24 V
    Efficiency 88% typ. (at 230 VAC input)
    Input Rated input voltage 100 to 240 VAC
    Allowable input voltage variable range 85 to 264 VAC
    90 to 350 VDC
    Frequency 50/60Hz (47 to 450 Hz)
    Rated input curren 2.2 A typ. (at 115 VAC input)
    1.4 A typ. (at 230 VAC input)
    Power factor 0.45 typ.
    Leakage current 0.19 mA max. (at 115 VAC input)
    0.36 mA max. (at 230 VAC input)
    Inrush current 16 A typ. (at 115 VAC input)
    32 A typ. (at 230 VAC input)
    Output Rated output current 5 A
    Output voltage variable range -10 to +15% With V.ADJ
    Ripple 120 mV(p-p) max. at 230 VAC input
    Static input variation influence 0.5% max. at 85 to 265 VAC input, 100% load
    Static load variation influence 1.5% max. (rated input, 0 to 100% load)
    Ambient temperature variation influence 0.05%/℃ max.
    Start up time 800 ms typ. (at 115 VAC input)
    760 ms typ. (at 230 VAC input)
    Hold time 27 ms typ. (at 115 VAC input)
    128 ms typ. (at 230 VAC input)
    Additional functions Overload protection Yes, Automatic reset
    Overvoltage protection Yes, Shut off the input voltage and turn on the input again
    Series operation Yes (Up to 2 Power Supplies with external diode)
    Parallel operation No
    Output indicator Yes (color: green, lighting from 80 to 90% or more of rated voltage)
    Insulation Dielectric strength Between all input terminals and all output terminals: 3 kVAC for 1 min
    Between all input terminals and PE terminals: 2 kVAC for 1 min
    Between all output terminals and PE terminals: 1 kVAC for 1 min
    Insulation resistance Between all output terminals and all input terminals/ PE terminals: 100 MΩ min., at 500 VDC
    Environment Vibration resistance 10 to 55 Hz, 0.375 mm single amplitude in each 3 directions for 2 hours
    10 to 150 Hz, 0.35 mm single amplitude in each 3 directions for 80 min
    Shock resistance 150 m/s**2, in each 6 directions 3 times
    Ambient temperature (Operating) -25 to 60℃
    Ambient temperature (Storage) -25 to 65℃
    Ambient humidity (Operating) 20 to 90%
    Ambient humidity (Storage) 10 to 95%
    Construction Construction Covered type
    Connection Terminal blocks
    Terminal type Rod terminal
    Mounting DIN track mounting
    Degree of protection IP20, EN/IEC 60529
    Weight (Main) Approx. 580 g
    Rs 14,900.00
  • Omron Switching Mode Power Supply (S8VK-C24024) In 100~240 VAC, Out 24 VDC, 10 Amp

    0 out of 5

    Model: S8VK-C24024

    Power rating 240 W 10 Amp output
    Output voltage 24 V
    Efficiency 87% typ. (at 230 VAC input)
    Input Rated input voltage 100 to 240 VAC
    Allowable input voltage variable range 85 to 264 VAC
    90 to 350 VDC
    Frequency 50/60Hz (47 to 63 Hz)
    Rated input curren 2.5 A typ. (at 115 VAC input)
    1.3 A typ. (at 230 VAC input)
    Power factor 0.92 typ.
    Leakage current 0.24 mA max. (at 115 VAC input)
    0.54 mA max. (at 230 VAC input)
    Inrush current 16 A typ. (at 115 VAC input)
    32 A typ. (at 230 VAC input)
    Output Rated output current 10 A
    Output voltage variable range -10 to +15% With V.ADJ
    Ripple 150 mV(p-p) max. at 230 VAC input
    Static input variation influence 0.5% max. at 85 to 265 VAC input, 100% load
    Static load variation influence 1.5% max. (rated input, 0 to 100% load)
    Ambient temperature variation influence 0.05%/℃ max.
    Start up time 790 ms typ. (at 115 VAC input)
    750 ms typ. (at 230 VAC input)
    Hold time 34 ms typ. (at 115 VAC input)
    36 ms typ. (at 230 VAC input)
    Additional functions Overload protection Yes, Automatic reset
    Overvoltage protection Yes, Shut off the input voltage and turn on the input again
    Series operation Yes (Up to 2 Power Supplies with external diode)
    Parallel operation No
    Output indicator Yes (color: green, lighting from 80 to 90% or more of rated voltage)
    Insulation Dielectric strength Between all input terminals and all output terminals: 3 kVAC for 1 min
    Between all input terminals and PE terminals: 2 kVAC for 1 min
    Between all output terminals and PE terminals: 1 kVAC for 1 min
    Insulation resistance Between all output terminals and all input terminals/ PE terminals: 100 MΩ min., at 500 VDC
    Environment Vibration resistance 10 to 55 Hz, 0.375 mm single amplitude in each 3 directions for 2 hours
    10 to 150 Hz, 0.35 mm single amplitude in each 3 directions for 80 min
    Shock resistance 150 m/s**2, in each 6 directions 3 times
    Ambient temperature (Operating) -25 to 60℃
    Ambient temperature (Storage) -25 to 65℃
    Ambient humidity (Operating) 20 to 90%
    Ambient humidity (Storage) 10 to 95%
    Construction Construction Covered type
    Connection Terminal blocks
    Terminal type Rod terminal
    Mounting DIN track mounting
    Degree of protection IP20, EN/IEC 60529
    Weight (Main) Approx. 940 g
    Rs 26,000.00

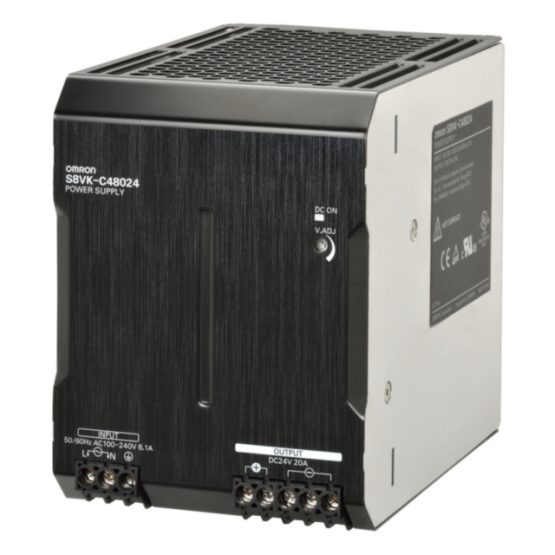

  • Omron Switching Mode Power Supply (S8VK-C48024) In 100~240 VAC, Out 24 VDC, 20 Amp

    0 out of 5

    Model: S8VK-C48024

    Power rating 480 W 20 Amp output
    Output voltage 24 V
    Efficiency 91% typ. (at 230 VAC input)
    Input Rated input voltage 100 to 240 VAC
    Allowable input voltage variable range 85 to 264 VAC
    90 to 350 VDC
    Frequency 50/60Hz (47 to 63 Hz)
    Rated input curren 4.8 A typ. (at 115 VAC input)
    2.4 A typ. (at 230 VAC input)
    Power factor 0.97 typ.
    Leakage current 0.26 mA max. (at 115 VAC input)
    0.65 mA max. (at 230 VAC input)
    Inrush current 16 A typ. (at 115 VAC input)
    32 A typ. (at 230 VAC input)
    Output Rated output current 20 A
    Output voltage variable range -10 to +15% With V.ADJ
    Ripple 130 mV(p-p) max. at 230 VAC input
    Static input variation influence 0.5% max. at 85 to 265 VAC input, 100% load
    Static load variation influence 1.5% max. (rated input, 0 to 100% load)
    Ambient temperature variation influence 0.05%/℃ max.
    Start up time 770 ms typ. (at 115 VAC input)
    670 ms typ. (at 230 VAC input)
    Hold time 21 ms typ. (at 115 VAC input)
    22 ms typ. (at 230 VAC input)
    Additional functions Overload protection Yes, Automatic reset
    Overvoltage protection Yes, Shut off the input voltage and turn on the input again
    Series operation Yes (Up to 2 Power Supplies with external diode)
    Parallel operation No
    Output indicator Yes (color: green, lighting from 80 to 90% or more of rated voltage)
    Insulation Dielectric strength Between all input terminals and all output terminals: 3 kVAC for 1 min
    Between all input terminals and PE terminals: 2 kVAC for 1 min
    Between all output terminals and PE terminals: 1 kVAC for 1 min
    Insulation resistance Between all output terminals and all input terminals/ PE terminals: 100 MΩ min., at 500 VDC
    Environment Vibration resistance 10 to 55 Hz, 0.375 mm single amplitude in each 3 directions for 2 hours
    10 to 150 Hz, 0.35 mm single amplitude in each 3 directions for 80 min
    Shock resistance 150 m/s**2, in each 6 directions 3 times
    Ambient temperature (Operating) -25 to 60℃
    Ambient temperature (Storage) -25 to 65℃
    Ambient humidity (Operating) 20 to 90%
    Ambient humidity (Storage) 10 to 95%
    Construction Construction Covered type
    Connection Terminal blocks
    Terminal type Rod terminal
    Mounting DIN track mounting
    Degree of protection IP20, EN/IEC 60529
    Weight (Main) Approx. 1550 g
    Rs 44,000.00
  • Omron Switching Mode Power Supply (S8VK-G01505) In 100~240 VAC, Out 5 VDC, 3 Amp

    0 out of 5

    Model: S8VK-G01505

    Power rating 15 W 3 Amp output
    Output voltage 5 V
    Efficiency 76% typ. (at 100 VAC input)
    76% typ. (at 200 VAC input)
    Input Rated input voltage 100 to 240 VAC
    Allowable input voltage variable range 85 to 264 VAC (Single phase)
    90 to 350 VDC
    Frequency 50/60Hz (47 to 450 Hz)
    Rated input curren 0.35 A typ. (at 100 VAC input)
    0.25 A typ. (at 200 VAC input)
    Leakage current 0.5 mA max. (at 100 VAC input)
    1.0 mA max. (at 200 VAC input)
    Inrush current 16 A typ. (For cold start at 25 ℃) (at 100 VAC input)
    32 A typ. (For cold start at 25 ℃) (at 200 VAC input)
    Output Rated output current 3 A
    Output voltage variable range -10 to +15% With V.ADJ
    Maximum peak current 3.6 A
    Ripple 60 mV(p-p) max. 20 MHz
    Static input variation influence 0.4% max.
    Static load variation influence 0.8% max. (100 to 240 VAC input in the range of 0 A to the rated output current.)
    Ambient temperature variation influence 0.05%/℃ max.
    Start up time 600 ms typ. (at 100 VAC input)
    400 ms typ. (at 200 VAC input)
    Hold time 20 ms typ. (at 100 VAC input)
    100 ms typ. (at 200 VAC input)
    Additional functions Overload protection Yes Automatic reset
    Overvoltage protection Yes Shut off the input voltage and turn on the input again
    Series operation Yes (Up to 2 Power Supplies with external diode)
    Parallel operation Yes (Up to 2 Power Supplies)
    Output indicator Yes (color: green lighting from 80 to 90% or more of rated voltage)
    Insulation Dielectric strength Between all input terminals and all output terminals: 3 kVAC for 1 min Cut-off current: 20 mA
    Between all input terminals and PE terminals: 2 kVAC for 1 min Cut-off current: 20 mA
    Between all output terminals and PE terminals: 1 kVAC for 1 min Cut-off current: 20 mA
    Insulation resistance Between all output terminals and all input terminals/ PE terminals: 100 MΩ min. at 500 VDC
    Environment Vibration resistance 10 to 55 Hz 0.375 mm single amplitude in each 3 directions for 2 hours
    Shock resistance 150 m/s**2 in each 6 directions 3 times
    Ambient temperature (Operating) -40 to 70℃
    Ambient temperature (Storage) -40 to 85℃
    Ambient humidity (Operating) 0 to 95%
    Ambient humidity (Storage) 0 to 95%
    Reliability MTBF 135 000 hours min.
    Life expectancy 10 years (at rated input a load rate of 50% load under the temperature of 40 ℃ standard mounting)
    Construction Construction Covered type
    Connection Terminal blocks
    Terminal type Rod terminal
    Mounting DIN track mounting
    Cooling fan Cooling fan No
    Degree of protection IP20 EN/IEC 60529
    Weight (Main) Approx. 150 g
    Rs 10,000.00
  • Omron Switching Mode Power Supply (s8vk-g03005) In 100~240 VAC, Out 5 VDC, 5 Amp

    0 out of 5

    Model:s8vk-g03005

    Power rating 30 W 5 Amp output
    Output voltage 5 V
    Efficiency 78% typ. (at 100 VAC input)
    79% typ. (at 200 VAC input)
    Input Rated input voltage 100 to 240 VAC
    Allowable input voltage variable range 85 to 264 VAC (Single phase)
    90 to 350 VDC
    Frequency 50/60Hz (47 to 450 Hz)
    Rated input curren 0.6 A typ. (at 100 VAC input)
    0.35 A typ. (at 200 VAC input)
    Leakage current 0.5 mA max. (at 100 VAC input)
    1.0 mA max. (at 200 VAC input)
    Inrush current 16 A typ. (For cold start at 25 ℃) (at 100 VAC input)
    32 A typ. (For cold start at 25 ℃) (at 200 VAC input)
    Output Rated output current 5 A
    Output voltage variable range -10 to +15% With V.ADJ
    Maximum peak current 6 A
    Ripple 40 mV(p-p) max. 20 MHz
    Static input variation influence 0.4% max.
    Static load variation influence 0.8% max. (100 to 240 VAC input, in the range of 0 A to the rated output current.)
    Ambient temperature variation influence 0.05%/℃ max.
    Start up time 600 ms typ. (at 100 VAC input)
    500 ms typ. (at 200 VAC input)
    Hold time 20 ms typ. (at 100 VAC input)
    110 ms typ. (at 200 VAC input)
    Additional functions Overload protection Yes, Automatic reset
    Overvoltage protection Yes, Shut off the input voltage and turn on the input again
    Series operation Yes (Up to 2 Power Supplies with external diode)
    Parallel operation Yes (Up to 2 Power Supplies)
    Output indicator Yes (color: green, lighting from 80 to 90% or more of rated voltage)
    Insulation Dielectric strength Between all input terminals and all output terminals: 3 kVAC for 1 min, Cut-off current: 20 mA
    Between all input terminals and PE terminals: 2 kVAC for 1 min, Cut-off current: 20 mA
    Between all output terminals and PE terminals: 1 kVAC for 1 min, Cut-off current: 20 mA
    Insulation resistance Between all output terminals and all input terminals/ PE terminals: 100 MΩ min., at 500 VDC
    Environment Vibration resistance 10 to 55 Hz, 0.375 mm single amplitude in each 3 directions for 2 hours
    Shock resistance 150 m/s**2, in each 6 directions 3 times
    Ambient temperature (Operating) -40 to 70℃
    Ambient temperature (Storage) -40 to 85℃
    Ambient humidity (Operating) 0 to 95%
    Ambient humidity (Storage) 0 to 95%
    Reliability MTBF 135,000 hours min.
    Life expectancy 10 years (at rated input, a load rate of 50% load, under the temperature of 40 ℃, standard mounting)
    Construction Construction Covered type
    Connection Terminal blocks
    Terminal type Rod terminal
    Mounting DIN track mounting
    Cooling fan Cooling fan No
    Degree of protection IP20, EN/IEC 60529
    Weight (Main) Approx. 195 g
    Rs 11,500.00
  • Omron Switching Mode Power Supply (S8VK-G06012) In 100~240 VAC, Out 12 VDC, 4.5 Amp

    0 out of 5

    Model: S8VK-G06012

    Power rating 60 W 4.5 Amp output
    Output voltage 12 V
    Efficiency 84% typ. (at 100 VAC input)
    85% typ. (at 200 VAC input)
    Input Rated input voltage 100 to 240 VAC
    Allowable input voltage variable range 85 to 264 VAC (Single phase)
    90 to 350 VDC
    Frequency 50/60Hz (47 to 450 Hz)
    Rated input curren 1.2 A typ. (at 100 VAC input)
    0.7 A typ. (at 200 VAC input)
    Leakage current 0.5 mA max. (at 100 VAC input)
    1.0 mA max. (at 200 VAC input)
    Inrush current 16 A typ. (For cold start at 25 ℃) (at 100 VAC input)
    32 A typ. (For cold start at 25 ℃) (at 200 VAC input)
    Output Rated output current 4.5 A
    Output voltage variable range -10 to +15% With V.ADJ
    Maximum peak current 5.4 A
    Ripple 150 mV(p-p) max. 20 MHz
    Static input variation influence 0.4% max.
    Static load variation influence 0.8% max. (100 to 240 VAC input, in the range of 0 A to the rated output current.)
    Ambient temperature variation influence 0.05%/℃ max.
    Start up time 700 ms typ. (at 100 VAC input)
    500 ms typ. (at 200 VAC input)
    Hold time 20 ms typ. (at 100 VAC input)
    90 ms typ. (at 200 VAC input)
    Additional functions Overload protection Yes, Automatic reset
    Overvoltage protection Yes, Shut off the input voltage and turn on the input again
    Series operation Yes (Up to 2 Power Supplies with external diode)
    Parallel operation Yes (Up to 2 Power Supplies)
    Output indicator Yes (color: green, lighting from 80 to 90% or more of rated voltage)
    Insulation Dielectric strength Between all input terminals and all output terminals: 3 kVAC for 1 min, Cut-off current: 20 mA
    Between all input terminals and PE terminals: 2 kVAC for 1 min, Cut-off current: 20 mA
    Between all output terminals and PE terminals: 1 kVAC for 1 min, Cut-off current: 20 mA
    Insulation resistance Between all output terminals and all input terminals/ PE terminals: 100 MΩ min., at 500 VDC
    Environment Vibration resistance 10 to 55 Hz, 0.375 mm single amplitude in each 3 directions for 2 hours
    Shock resistance 150 m/s**2, in each 6 directions 3 times
    Ambient temperature (Operating) -40 to 70℃
    Ambient temperature (Storage) -40 to 85℃
    Ambient humidity (Operating) 0 to 95%
    Ambient humidity (Storage) 0 to 95%
    Reliability MTBF 135,000 hours min.
    Life expectancy 10 years (at rated input, a load rate of 50% load, under the temperature of 40 ℃, standard mounting)
    Construction Construction Covered type
    Connection Terminal blocks
    Terminal type Rod terminal
    Mounting DIN track mounting
    Cooling fan Cooling fan No
    Degree of protection IP20, EN/IEC 60529
    Weight (Main) Approx. 260 g



    Rs 13,000.00
  • Omron Switching Mode Power Supply (S8VK-G12024) In 100~240 VAC, Out 24 VDC, 5 Amp

    0 out of 5

    Model: S8VK-G12024

    Power rating 120 W 5 Amp output
    Output voltage 24 V
    Efficiency 83% typ. (at 100 VAC input)
    86% typ. (at 200 VAC input)
    Input Rated input voltage 100 to 240 VAC
    Allowable input voltage variable range 85 to 264 VAC (Single phase)
    90 to 350 VDC
    Frequency 50/60Hz (47 to 450 Hz)
    Rated input curren 1.5 A typ. (at 100 VAC input)
    0.75 A typ. (at 200 VAC input)
    Leakage current 0.5 mA max. (at 100 VAC input)
    1.0 mA max. (at 200 VAC input)
    Inrush current 16 A typ. (For cold start at 25 ℃) (at 100 VAC input)
    32 A typ. (For cold start at 25 ℃) (at 200 VAC input)
    Output Rated output current 5 A
    Output voltage variable range -10 to +15% With V.ADJ
    Maximum peak current 6 A
    Ripple 150 mV(p-p) max. 20 MHz
    Static input variation influence 0.4% max.
    Static load variation influence 0.8% max. (100 to 240 VAC input, in the range of 0 A to the rated output current.)
    Ambient temperature variation influence 0.05%/℃ max.
    Start up time 800 ms typ. (at 100 VAC input)
    800 ms typ. (at 200 VAC input)
    Hold time 40 ms typ. (at 100 VAC input)
    40 ms typ. (at 200 VAC input)
    Additional functions Overload protection Yes, Automatic reset
    Overvoltage protection Yes, Shut off the input voltage and turn on the input again
    Series operation Yes (Up to 2 Power Supplies with external diode)
    Parallel operation Yes (Up to 2 Power Supplies)
    Output indicator Yes (color: green, lighting from 80 to 90% or more of rated voltage)
    Insulation Dielectric strength Between all input terminals and all output terminals: 3 kVAC for 1 min, Cut-off current: 20 mA
    Between all input terminals and PE terminals: 2 kVAC for 1 min, Cut-off current: 20 mA
    Between all output terminals and PE terminals: 1 kVAC for 1 min, Cut-off current: 20 mA
    Insulation resistance Between all output terminals and all input terminals/ PE terminals: 100 MΩ min., at 500 VDC
    Environment Vibration resistance 10 to 55 Hz, 0.375 mm single amplitude in each 3 directions for 2 hours
    Shock resistance 150 m/s**2, in each 6 directions 3 times
    Ambient temperature (Operating) -40 to 70℃
    Ambient temperature (Storage) -40 to 85℃
    Ambient humidity (Operating) 0 to 95%
    Ambient humidity (Storage) 0 to 95%
    Reliability MTBF 135,000 hours min.
    Life expectancy 10 years (at rated input, a load rate of 50% load, under the temperature of 40 ℃, standard mounting)
    Construction Construction Covered type
    Connection Terminal blocks
    Terminal type Rod terminal
    Mounting DIN track mounting
    Cooling fan Cooling fan No
    Degree of protection IP20, EN/IEC 60529
    Weight (Main) Approx. 620 g
    Rs 16,500.00
  • Omron Switching Mode Power Supply (S8VK-G24024) In 100~240 VAC, Out 24 VDC, 10 Amp

    0 out of 5

    Model: S8VK-G24024

    Power rating 240 W 10 Amp output
    Output voltage 24 V
    Efficiency 88% typ. (at 100 VAC input)
    91% typ. (at 200 VAC input)
    Input Rated input voltage 100 to 240 VAC
    Allowable input voltage variable range 85 to 264 VAC (Single phase)
    90 to 350 VDC
    Frequency 50/60Hz (47 to 450 Hz)
    Rated input curren 2.9 A typ. (at 100 VAC input)
    1.5 A typ. (at 200 VAC input)
    Power factor 0.9 min.
    Leakage current 0.5 mA max. (at 100 VAC input)
    1.0 mA max. (at 200 VAC input)
    Inrush current 16 A typ. (For cold start at 25 ℃) (at 100 VAC input)
    32 A typ. (For cold start at 25 ℃) (at 200 VAC input)
    Output Rated output current 10 A
    Output voltage variable range -10 to +15% With V.ADJ
    Maximum peak current 12 A
    Ripple 240 mV(p-p) max. 20 MHz
    Static input variation influence 0.4% max.
    Static load variation influence 0.8% max. (100 to 240 VAC input, in the range of 0 A to the rated output current.)
    Ambient temperature variation influence 0.05%/℃ max.
    Start up time 300 ms typ. (at 100 VAC input)
    300 ms typ. (at 200 VAC input)
    Hold time 40 ms typ. (at 100 VAC input)
    40 ms typ. (at 200 VAC input)
    Additional functions Overload protection Yes, Automatic reset
    Overvoltage protection Yes, Shut off the input voltage and turn on the input again
    Series operation Yes (Up to 2 Power Supplies with external diode)
    Parallel operation Yes (Up to 2 Power Supplies)
    Output indicator Yes (color: green, lighting from 80 to 90% or more of rated voltage)
    Insulation Dielectric strength Between all input terminals and all output terminals: 3 kVAC for 1 min, Cut-off current: 20 mA
    Between all input terminals and PE terminals: 2 kVAC for 1 min, Cut-off current: 20 mA
    Between all output terminals and PE terminals: 1 kVAC for 1 min, Cut-off current: 20 mA
    Insulation resistance Between all output terminals and all input terminals/ PE terminals: 100 MΩ min., at 500 VDC
    Environment Vibration resistance 10 to 55 Hz, 0.375 mm single amplitude in each 3 directions for 2 hours
    Shock resistance 150 m/s**2, in each 6 directions 3 times
    Ambient temperature (Operating) -40 to 70℃
    Ambient temperature (Storage) -40 to 85℃
    Ambient humidity (Operating) 0 to 95%
    Ambient humidity (Storage) 0 to 95%
    Reliability MTBF 135,000 hours min.
    Life expectancy 10 years (at rated input, a load rate of 50% load, under the temperature of 40 ℃, standard mounting)
    Construction Construction Covered type
    Connection Terminal blocks
    Terminal type Rod terminal
    Mounting DIN track mounting
    Cooling fan Cooling fan No
    Degree of protection IP20, EN/IEC 60529
    Weight (Main) Approx. 900 g
    Rs 32,000.00

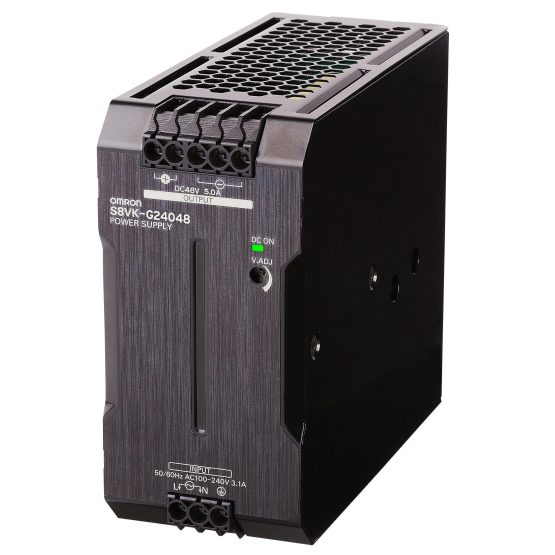

  • Omron Switching Mode Power Supply (S8VK-G24048) In 100~240 VAC, Out 48 VDC, 5 Amp

    0 out of 5

    Model: S8VK-G24048

    Power rating 240 W 5 Amp output
    Output voltage 48 V
    Efficiency 90% typ. (at 100 VAC input)
    92% typ. (at 200 VAC input)
    Input Rated input voltage 100 to 240 VAC
    Allowable input voltage variable range 85 to 264 VAC (Single phase)
    90 to 350 VDC
    Frequency 50/60Hz (47 to 450 Hz)
    Rated input curren 2.8 A typ. (at 100 VAC input)
    1.5 A typ. (at 200 VAC input)
    Power factor 0.9 min.
    Leakage current 0.5 mA max. (at 100 VAC input)
    1.0 mA max. (at 200 VAC input)
    Inrush current 16 A typ. (For cold start at 25 ℃) (at 100 VAC input)
    32 A typ. (For cold start at 25 ℃) (at 200 VAC input)
    Output Rated output current 5 A
    Output voltage variable range -10 to +15% With V.ADJ
    Maximum peak current 6 A
    Ripple 350 mV(p-p) max. 20 MHz
    Static input variation influence 0.4% max.
    Static load variation influence 0.8% max. (100 to 240 VAC input, in the range of 0 A to the rated output current.)
    Ambient temperature variation influence 0.05%/℃ max.
    Start up time 300 ms typ. (at 100 VAC input)
    300 ms typ. (at 200 VAC input)
    Hold time 40 ms typ. (at 100 VAC input)
    40 ms typ. (at 200 VAC input)
    Additional functions Overload protection Yes, Automatic reset
    Overvoltage protection Yes, Shut off the input voltage and turn on the input again
    Series operation Yes (Up to 2 Power Supplies with external diode)
    Parallel operation Yes (Up to 2 Power Supplies)
    Output indicator Yes (color: green, lighting from 80 to 90% or more of rated voltage)
    Insulation Dielectric strength Between all input terminals and all output terminals: 3 kVAC for 1 min, Cut-off current: 20 mA
    Between all input terminals and PE terminals: 2 kVAC for 1 min, Cut-off current: 20 mA
    Between all output terminals and PE terminals: 1 kVAC for 1 min, Cut-off current: 20 mA
    Insulation resistance Between all output terminals and all input terminals/ PE terminals: 100 MΩ min., at 500 VDC
    Environment Vibration resistance 10 to 55 Hz, 0.375 mm single amplitude in each 3 directions for 2 hours
    Shock resistance 150 m/s**2, in each 6 directions 3 times
    Ambient temperature (Operating) -40 to 70℃
    Ambient temperature (Storage) -40 to 85℃
    Ambient humidity (Operating) 0 to 95%
    Ambient humidity (Storage) 0 to 95%
    Reliability MTBF 135,000 hours min.
    Life expectancy 10 years (at rated input, a load rate of 50% load, under the temperature of 40 ℃, standard mounting)
    Construction Construction Covered type
    Connection Terminal blocks
    Terminal type Rod terminal
    Mounting DIN track mounting
    Cooling fan Cooling fan No
    Degree of protection IP20, EN/IEC 60529
    Weight (Main) Approx. 900 g



    Rs 28,000.00
  • Omron Switching Mode Power Supply (S8VK-G48024) In 100~240 VAC, Out 24 VDC, 20 Amp

    0 out of 5

    Model:S8VK-G48024

    Power rating 480 W 20 Amp output
    Output voltage 24 V
    Efficiency 89% typ. (at 100 VAC input)
    92% typ. (at 200 VAC input)
    Input Rated input voltage 100 to 240 VAC
    Allowable input voltage variable range 85 to 264 VAC (Single phase)
    90 to 350 VDC
    Frequency 50/60Hz (47 to 450 Hz)
    Rated input curren 5.5 A typ. (at 100 VAC input)
    2.7 A typ. (at 200 VAC input)
    Power factor 0.9 min.
    Leakage current 0.5 mA max. (at 100 VAC input)
    1.0 mA max. (at 200 VAC input)
    Inrush current 16 A typ. (For cold start at 25 ℃) (at 100 VAC input)
    32 A typ. (For cold start at 25 ℃) (at 200 VAC input)
    Output Rated output current 20 A
    Output voltage variable range -10 to +15% With V.ADJ
    Maximum peak current 24 A
    Ripple 290 mV(p-p) max. 20 MHz
    Static input variation influence 0.4% max.
    Static load variation influence 0.8% max. (100 to 240 VAC input, in the range of 0 A to the rated output current.)
    Ambient temperature variation influence 0.05%/℃ max.
    Start up time 500 ms typ. (at 100 VAC input)
    300 ms typ. (at 200 VAC input)
    Hold time 40 ms typ. (at 100 VAC input)
    50 ms typ. (at 200 VAC input)
    Additional functions Overload protection Yes, Automatic reset
    Overvoltage protection Yes, Shut off the input voltage and turn on the input again
    Series operation Yes (Up to 2 Power Supplies with external diode)
    Parallel operation Yes (Up to 2 Power Supplies)
    Output indicator Yes (color: green, lighting from 80 to 90% or more of rated voltage)
    Insulation Dielectric strength Between all input terminals and all output terminals: 3 kVAC for 1 min, Cut-off current: 20 mA
    Between all input terminals and PE terminals: 2 kVAC for 1 min, Cut-off current: 20 mA
    Between all output terminals and PE terminals: 1 kVAC for 1 min, Cut-off current: 20 mA
    Insulation resistance Between all output terminals and all input terminals/ PE terminals: 100 MΩ min., at 500 VDC
    Environment Vibration resistance 10 to 55 Hz, 0.375 mm single amplitude in each 3 directions for 2 hours
    Shock resistance 150 m/s**2, in each 6 directions 3 times
    Ambient temperature (Operating) -40 to 70℃
    Ambient temperature (Storage) -40 to 85℃
    Ambient humidity (Operating) 0 to 95%
    Ambient humidity (Storage) 0 to 95%
    Reliability MTBF 135,000 hours min.
    Life expectancy 10 years (at rated input, a load rate of 50% load, under the temperature of 40 ℃, standard mounting)
    Construction Construction Covered type
    Connection Terminal blocks
    Terminal type Rod terminal
    Mounting DIN track mounting
    Cooling fan Cooling fan No
    Degree of protection IP20, EN/IEC 60529
    Weight (Main) Approx. 1500 g



    Rs 52,000.00
  • Omron Switching Mode Power Supply (S8VK-G48048) In 100~240 VAC, Out 48 VDC, 10 Amp

    0 out of 5

    Model: S8VK-G48048

    Power rating 480 W 10 Amp output
    Output voltage 48 V
    Efficiency 90% typ. (at 100 VAC input)
    93% typ. (at 200 VAC input)
    Input Rated input voltage 100 to 240 VAC
    Allowable input voltage variable range 85 to 264 VAC (Single phase)
    90 to 350 VDC
    Frequency 50/60Hz (47 to 450 Hz)
    Rated input curren 5.4 A typ. (at 100 VAC input)
    2.7 A typ. (at 200 VAC input)
    Power factor 0.9 min.
    Leakage current 0.5 mA max. (at 100 VAC input)
    1.0 mA max. (at 200 VAC input)
    Inrush current 16 A typ. (For cold start at 25 ℃) (at 100 VAC input)
    32 A typ. (For cold start at 25 ℃) (at 200 VAC input)
    Output Rated output current 10 A
    Output voltage variable range -10 to +15% With V.ADJ
    Maximum peak current 12 A
    Ripple 610 mV(p-p) max. 20 MHz
    Static input variation influence 0.4% max.
    Static load variation influence 0.8% max. (100 to 240 VAC input, in the range of 0 A to the rated output current.)
    Ambient temperature variation influence 0.05%/℃ max.
    Start up time 500 ms typ. (at 100 VAC input)
    300 ms typ. (at 200 VAC input)
    Hold time 40 ms typ. (at 100 VAC input)
    50 ms typ. (at 200 VAC input)
    Additional functions Overload protection Yes, Automatic reset
    Overvoltage protection Yes, Shut off the input voltage and turn on the input again
    Series operation Yes (Up to 2 Power Supplies with external diode)
    Parallel operation Yes (Up to 2 Power Supplies)
    Output indicator Yes (color: green, lighting from 80 to 90% or more of rated voltage)
    Insulation Dielectric strength Between all input terminals and all output terminals: 3 kVAC for 1 min, Cut-off current: 20 mA
    Between all input terminals and PE terminals: 2 kVAC for 1 min, Cut-off current: 20 mA
    Between all output terminals and PE terminals: 1 kVAC for 1 min, Cut-off current: 20 mA
    Insulation resistance Between all output terminals and all input terminals/ PE terminals: 100 MΩ min., at 500 VDC
    Environment Vibration resistance 10 to 55 Hz, 0.375 mm single amplitude in each 3 directions for 2 hours
    Shock resistance 150 m/s**2, in each 6 directions 3 times
    Ambient temperature (Operating) -40 to 70℃
    Ambient temperature (Storage) -40 to 85℃
    Ambient humidity (Operating) 0 to 95%
    Ambient humidity (Storage) 0 to 95%
    Reliability MTBF 135,000 hours min.
    Life expectancy 10 years (at rated input, a load rate of 50% load, under the temperature of 40 ℃, standard mounting)
    Construction Construction Covered type
    Connection Terminal blocks
    Terminal type Rod terminal
    Mounting DIN track mounting
    Cooling fan Cooling fan No
    Degree of protection IP20, EN/IEC 60529
    Weight (Main) Approx. 1500 g
    Rs 42,000.00
  • Power Supply (12 volt DC, 10 Amp)

    0 out of 5
    • Product: power supply
    • Input Voltage: (110V/220V) 15%
    • Output voltage: 12 v DC
    • Ampere: 10 Amp
    • Screw terminals
    • Indication light: yes
    • Case material: metal aluminium
    • Colour: same as image
    • Protections: Overload / Over Voltage / Short Circuit
    • Auto-Recovery After Protection
    • It’s Good Quality and High Performance
    • Great Switching Power Supply for 12 volt appliances
    • Compact Size Light Weight.
    • High Reliability.
    • High Efficiency & low energy consumption
    • Output Type – DC
    • Weight: Around 500g (approx)
    Rs 3,900.00
  • Power Supply (12 volt DC, 3.5 Amp)

    0 out of 5
    • Product: power supply
    • Input Voltage: (110V/220V)
    • Output voltage: 12 v DC
    • Output ampere: 3.5 Amp
    • Screw terminals
    • Indication light: yes
    • Case material: metal aluminium
    • Colour: same as image
    • Protections: Overload / Over Voltage / Short Circuit
    • Auto-Recovery After Protection
    • Its Good Quality and High Performance
    • Great Switching Power Supply for 12 volt appliances
    • Compact Size Light Weight.
    • High Reliability.
    • High Efficiency & low energy consumption
    • Output Type DC
    Rs 2,700.00
  • Power Supply (24 volt DC, 10 Amp)

    0 out of 5
    • Product: power supply
    • Input Voltage: (110V/220V) AC
    • Output voltage: 24 v DC
    • Output ampere: 10 Amp
    • Screw terminals
    • Indication light: yes
    • Case material: metal aluminium
    • Colour: same as image
    • Protections: Overload / Over Voltage / Short Circuit
    • Auto-Recovery After Protection
    • Its Good Quality and High Performance
    • Great Switching Power Supply for 24 volt appliances
    • Compact Size Light Weight.
    • High Reliability.
    • High Efficiency & low energy consumption
    • Output Type DC
    Rs 4,800.00
  • Power Supply (24 volt DC, 4.5 Amp)

    0 out of 5
    • Product: power supply
    • Input Voltage: (110V/220V) 15%
    • Output voltage: 24 v DC
    • Output ampere: 4.5 Amp
    • Screw terminals
    • Indication light: yes
    • Case material: metal aluminium
    • Colour: same as image
    • Protections: Overload / Over Voltage / Short Circuit
    • Auto-Recovery After Protection
    • Its Good Quality and High Performance
    • Great Switching Power Supply for 24 volt appliances
    • Compact Size Light Weight.
    • High Reliability.
    • High Efficiency & low energy consumption
    • Output Type DC
    • Weight: Around 500g (approx)
    Rs 3,200.00
  • Schneider (ABL8MEM05040) 1 or 2 phase 100-240 VAC / 5 VDC 4 A Regulated SMPS Power Supply

    0 out of 5

    Model:ABL8MEM05040

    product or component type
    Power supply
    power supply type
    Regulated switch mode
    Nominal input voltage
    100…240 V AC phase to phase, terminal(s): L1-L2
    100…240 V AC single phase, terminal(s): N-L1
    120…250 V DC
    rated power in W
    20W
    output voltage
    5 V DC
    power supply output current
    4A
    Complementary
    Power Factor
    0.5
    efficiency
    75%
    Output voltage adjustment
    4.75…6.25 V adjustable
    power dissipation in W
    6.7W
    current consumption
    0.35 A at 240 V
    0.55 A at 100 V
    Hold-up time
    >= 10 ms at 100 V
    residual ripple
    250 mV
    connections – terminals
    For input connection: screw type terminals, connection capacity: 2 x 0.14…2 x 2.5 mm AWG 26…AWG 14
    For output connection: screw type terminals, connection capacity: 4 x 0.14…4 x 2.5 mm AWG 26…AWG 14
    status LED
    1 LED (green)output voltage:
    depth
    59mm
    height
    100mm
    width
    54mm



    Rs 15,500.00
  • Schneider (ABL8MEM12020) 1 or 2 phase 100-240 VAC / 12 VDC 2 A Regulated SMPS Power Supply

    0 out of 5

    Model: ABL8MEM12020

    product or component type
    Power supply
    power supply type
    Regulated switch mode
    Nominal input voltage
    100…240 V AC phase to phase, terminal(s): L1-L2
    100…240 V AC single phase, terminal(s): N-L1
    120…250 V DC
    rated power in W
    25W
    output voltage
    12-15 V DC
    power supply output current
    2.1A
    Power Factor
    0.5
    efficiency
    80%
    Output voltage adjustment
    11.4…15 V adjustable
    power dissipation in W
    6.2W
    current consumption
    0.35 A at 240 V
    0.6 A at 100 V
    Hold-up time
    >= 10 ms at 100 V
    residual ripple
    250 mV
    connections – terminals
    For input connection: screw type terminals, connection capacity: 2 x 0.14…2 x 2.5 mm AWG 26…AWG 14
    For output connection: screw type terminals, connection capacity: 4 x 0.14…4 x 2.5 mm AWG 26…AWG 14
    status LED
    1 LED (green)output voltage:
    depth
    59mm
    height
    100mm
    width
    54mm



    Rs 13,900.00
  • Schneider (ABL8MEM24003) 1 or 2 phase 100-240 VAC / 24 VDC 0.3 A Regulated SMPS Power Supply

    0 out of 5

    Model:ABL8MEM24003

    product or component type
    Power supply
    power supply type
    Regulated switch mode
    Nominal input voltage
    100…240 V AC phase to phase, terminal(s): L1-L2
    100…240 V AC single phase, terminal(s): N-L1
    120…250 V DC
    rated power in W
    7W
    output voltage
    24 V DC
    power supply output current
    0.3A
    Power Factor
    0.5
    efficiency
    78%
    Output voltage adjustment
    22.2…28.8 V adjustable
    power dissipation in W
    2W
    current consumption
    0.18 A at 240 V
    0.25 A at 100 V
    Hold-up time
    >= 10 ms at 100 V
    >= 150 ms at 230 V
    residual ripple
    250 mV
    connections – terminals
    For input connection: screw type terminals, connection capacity: 2 x 0.14…2 x 2.5 mm AWG 26…AWG 14
    For output connection: screw type terminals, connection capacity: 2 x 0.14…2 x 2.5 mm AWG 26…AWG 14
    status LED
    1 LED (green)output voltage:
    depth
    59mm
    height
    100mm
    width
    36mm



    Rs 14,200.00
  • Schneider Battery Control Module for SMPS Power Supply (ABL8BBU24200) Input 24-28.8 VDC Out 20 Amp

    0 out of 5

    Model:ABL8BBU24200

    product or component type
    Battery control module
    input voltage
    24…28.8 V DC
    output voltage
    (Ubattery-0.5) V in battery mode DC
    (Uin-0.25) V in nominal mode DC
    maximum output current
    20A
    input voltage limits
    22…30 V
    maximum power dissipation in W
    7W
    activation threshold
    Adjustable 22…36 V
    number of output channels
    1
    current consumption
    0.6 A on load
    0.1 mA no load
    <= 40.6 A
    output protection type
    Against overload, protection technology: 1.5 x In
    Against short-circuits, protection technology: battery-backed mode, automatic reset
    Against short-circuits, protection technology: power-supplied mode
    connections – terminals
    For diagnostic relay: removable screw terminal block, connection capacity: 1 x 0.75 mm
    For input connection: screw type terminals, connection capacity: 2 x 0.5…2 x 10 mm AWG 20…AWG 8
    For output connection: screw type terminals, connection capacity: 2 x 0.5…2 x 10 mm AWG 20…AWG 8
    fixing mode
    By clips on 35 mm symmetrical DIN rail, operating position: horizontal
    By clips on 35 mm symmetrical DIN rail, operating position: vertical
    operating altitude
    2000 m
    marking
    CE
    name of test
    Electrostatic discharges conforming to EN/IEC 61000-4-2
    Emission conforming to EN 61000-6-3
    Induced electromagnetic field conforming to EN/IEC 61000-4-6 level 3
    Radiated electromagnetic field conforming to EN/IEC 61000-4-3 level 3
    Rapid transient conforming to IEC 61000-4-4 level 3
    Surge conforming to EN/IEC 61000-4-5 level 2
    Conducted/radiated emissions conforming to EN 55022 class B, 20 %
    local signalling
    1 C/O relayalarm status:
    1 C/O relaybattery status:
    1 C/O relaypower supply status:
    LCD screenmodule status:
    width
    60mm
    height
    125mm
    depth
    160mm
    net weight
    0.5kg



    Rs 48,000.00
  • Schneider Switching Mode Power Supply (ABL1REM12050) In 100~240 VAC, Out 12 VDC, 60 W 5 Amp

    0 out of 5

    Model:ABL1REM12050

    product or component type
    Power supply
    power supply type
    Regulated switch mode
    rated power in W
    60W
    input voltage
    100…240 V AC single phase
    120…370 V DC
    output voltage
    12 V DC
    power supply output current
    5A
    operating position
    Any position
    vibration resistance
    2 gn (f= 9150Hz) conforming to EN/IEC 61131-2
    3.5 mm (f= 59Hz) conforming to EN/IEC 61131-2
    name of test
    Conducted interference conforming to EN 61000-4-8 level 4
    Electrostatic discharges conforming to EN/IEC 61000-4-2 level 3
    Induced electromagnetic field conforming to EN/IEC 61000-4-6 level 3
    Radiated electromagnetic field conforming to EN/IEC 61000-4-3 level 3
    Rapid transient conforming to IEC 61000-4-4 level 3
    Conducted/radiated emissions conforming to EN 55022 class B
    Conducted/radiated emissions conforming to EN/IEC 55011
    Emission conforming to EN/IEC 61000-6-3
    Primary outage conforming to IEC 61000-4-11
    Surge conforming to EN/IEC 61000-4-5
    input voltage limits
    85…264 V
    network frequency
    47…63 Hz
    inrush current
    50A at 115 V AC
    100A at 230 V AC
    cos phi
    0.65
    efficiency
    80%
    power dissipation in W
    15W
    current consumption
    1 A at 240 V
    2 A at 100 V
    input protection type
    Integrated fuse (not interchangeable)
    output voltage limits
    10.8…13.2 V
    line and load regulation
    +/- 3 %
    holding time
    >= 10 ms at 100 V
    >= 40 ms at 240 V
    output protection type
    Against overload, protection technology: 1.1…1.5 x In
    Against overvoltage, protection technology: tripping if U > 1.25 x Un
    Against short-circuits, protection technology: automatic reset
    Thermal
    connections – terminals
    For ground connection: screw type terminals, connection capacity: 1 x 4 mm AWG 12
    For input connection: screw type terminals, connection capacity: 2 x 4 mm AWG 12
    For output connection: screw type terminals, connection capacity: 2 x 4 mm AWG 12
    marking
    CE
    mounting support
    Panel
    Reversible mounting bracket
    operating altitude
    2000 m
    output coupling
    Series
    Parallel
    overvoltage category
    II
    meantime between failure [MTBF]
    100000h at 40C
    status LED
    1 LED (green)output voltage:
    net weight
    0.44kg



    Rs 12,000.00
  • Schneider Switching Mode Power Supply (ABL1REM24025) In 100~240 VAC, Out 24 VDC, 60 W 2.5 Amp

    0 out of 5

    Model:ABL1REM24025

    product or component type
    Power supply
    power supply type
    Regulated switch mode
    rated power in W
    60W
    input voltage 100…240 V AC single phase
    output voltage
    24 V DC
    power supply output current
    2.5A
    operating position
    Any position
    vibration resistance
    2 gn (f= 9150Hz) conforming to EN/IEC 61131-2
    3.5 mm (f= 59Hz) conforming to EN/IEC 61131-2
    name of test
    Conducted interference conforming to EN 61000-4-8 level 4
    Electrostatic discharges conforming to EN/IEC 61000-4-2 level 3
    Induced electromagnetic field conforming to EN/IEC 61000-4-6 level 3
    Radiated electromagnetic field conforming to EN/IEC 61000-4-3 level 3
    Rapid transient conforming to IEC 61000-4-4 level 3
    Conducted/radiated emissions conforming to EN 55022 class B
    Conducted/radiated emissions conforming to EN/IEC 55011
    Emission conforming to EN/IEC 61000-6-3
    Primary outage conforming to IEC 61000-4-11
    Surge conforming to EN/IEC 61000-4-5
    input voltage limits
    85…264 V
    network frequency
    47…63 Hz
    inrush current
    50A at 115 V AC
    100A at 230 V AC
    cos phi
    0.65
    efficiency
    80%
    power dissipation in W
    15W
    current consumption
    1 A at 240 V
    2 A at 100 V
    input protection type
    Integrated fuse (not interchangeable)
    output voltage limits
    21.6…26.4 V
    line and load regulation
    +/- 3 %
    holding time
    >= 10 ms at 100 V
    >= 40 ms at 240 V
    output protection type
    Against overload, protection technology: 1.1…1.5 x In
    Against overvoltage, protection technology: tripping if U > 1.25 x Un
    Against short-circuits, protection technology: automatic reset
    Thermal
    connections – terminals
    For ground connection: screw type terminals, connection capacity: 1 x 4 mm AWG 12
    For input connection: screw type terminals, connection capacity: 2 x 4 mm AWG 12
    For output connection: screw type terminals, connection capacity: 2 x 4 mm AWG 12
    marking
    CE
    mounting support
    Reversible mounting bracket
    Panel
    operating altitude
    2000 m
    output coupling
    Parallel
    Series
    overvoltage category
    II
    meantime between failure [MTBF]
    100000h at 40C
    status LED
    1 LED (green)output voltage:
    net weight
    0.44kg



    Rs 8,900.00
  • Schneider Switching Mode Power Supply (ABL1REM24100) In 100~240 VAC, Out 24 VDC, 240 W 10 Amp

    0 out of 5

    Model:ABL1REM24100

    product or component type
    Power supply
    power supply type
    Regulated switch mode
    rated power in W
    240W
    input voltage
    100…120 V AC single phase
    200…240 V AC single phase
    180…370 V DC
    output voltage
    24 V DC
    power supply output current
    10A
    operating position
    Any position
    vibration resistance
    2 gn (f= 9150Hz) conforming to EN/IEC 61131-2
    3.5 mm (f= 59Hz) conforming to EN/IEC 61131-2
    name of test
    Conducted interference conforming to EN 61000-4-8 level 4
    Electrostatic discharges conforming to EN/IEC 61000-4-2 level 3
    Induced electromagnetic field conforming to EN/IEC 61000-4-6 level 3
    Radiated electromagnetic field conforming to EN/IEC 61000-4-3 level 3
    Rapid transient conforming to IEC 61000-4-4 level 3
    Conducted/radiated emissions conforming to EN 55022 class B
    Conducted/radiated emissions conforming to EN/IEC 55011
    Emission conforming to EN/IEC 61000-6-3
    Primary outage conforming to IEC 61000-4-11
    Surge conforming to EN/IEC 61000-4-5
    input voltage limits
    170…264 V
    85…132 V
    network frequency
    47…63 Hz
    inrush current
    50A at 115 V AC
    100A at 230 V AC
    cos phi
    0.65
    efficiency
    80%
    power dissipation in W
    60W
    current consumption
    3 A at 240 V
    6 A at 100 V
    input protection type
    Integrated fuse (not interchangeable)
    output voltage limits
    21.6…26.4 V
    line and load regulation
    +/- 3 %
    holding time
    >= 10 ms at 100 V
    >= 40 ms at 240 V
    output protection type
    Against overload, protection technology: 1.1…1.5 x In
    Against overvoltage, protection technology: tripping if U > 1.25 x Un
    Against short-circuits, protection technology: automatic reset
    Thermal
    connections – terminals
    For ground connection: screw type terminals, connection capacity: 1 x 4 mm AWG 12
    For input connection: screw type terminals, connection capacity: 2 x 4 mm AWG 12
    For output connection: screw type terminals, connection capacity: 4 x 4 mm AWG 12
    marking
    CE
    mounting support
    Reversible mounting bracket
    Panel
    operating altitude
    2000 m
    output coupling
    Series
    Parallel
    overvoltage category
    II
    meantime between failure [MTBF]
    100000h at 40C
    status LED
    1 LED (green)output voltage:
    net weight
    0.88kg



    Rs 22,000.00
  • Schneider Switching Mode Power Supply (ABL1RPM24100) In 100~240 VAC, Out 24 VDC, 240 W 10 Amp

    0 out of 5

    Model: ABL1RPM24100

    product or component type
    Power supply
    power supply type
    Regulated switch mode
    rated power in W
    240W
    input voltage
    180…370 V DC
    100…240 V AC single phase
    output voltage
    24 V DC
    power supply output current
    10A
    operating position
    Any position
    vibration resistance
    2 gn (f= 9150Hz) conforming to EN/IEC 61131-2
    3.5 mm (f= 59Hz) conforming to EN/IEC 61131-2
    name of test
    Conducted interference conforming to EN 61000-4-8 level 4
    Electrostatic discharges conforming to EN/IEC 61000-4-2 level 3
    Induced electromagnetic field conforming to EN/IEC 61000-4-6 level 3
    Radiated electromagnetic field conforming to EN/IEC 61000-4-3 level 3
    Rapid transient conforming to IEC 61000-4-4 level 3
    Conducted/radiated emissions conforming to EN 55022 class B
    Conducted/radiated emissions conforming to EN/IEC 55011
    Emission conforming to EN/IEC 61000-6-3
    Primary outage conforming to IEC 61000-4-11
    Surge conforming to EN/IEC 61000-4-5
    input voltage limits
    85…132 V
    170…264 V
    network frequency
    47…63 Hz
    inrush current
    50A at 115 V AC
    100A at 230 V AC
    cos phi
    0.70.95
    efficiency
    80%
    power dissipation in W
    60W
    current consumption
    3 A at 240 V
    6 A at 100 V
    input protection type
    Integrated fuse (not interchangeable)
    output voltage limits
    21.6…26.4 V
    line and load regulation
    +/- 3 %
    holding time
    >= 10 ms at 100 V
    >= 40 ms at 240 V
    output protection type
    Against overload, protection technology: 1.1…1.5 x In
    Against overvoltage, protection technology: tripping if U > 1.25 x Un
    Against short-circuits, protection technology: automatic reset
    Thermal
    connections – terminals
    For ground connection: screw type terminals, connection capacity: 1 x 4 mm AWG 12
    For input connection: screw type terminals, connection capacity: 2 x 4 mm AWG 12
    For output connection: screw type terminals, connection capacity: 4 x 4 mm AWG 12
    marking
    CE
    mounting support
    Reversible mounting bracket
    Panel
    operating altitude
    2000 m
    output coupling
    Parallel
    Series
    overvoltage category
    II
    meantime between failure [MTBF]
    100000h at 40C
    status LED
    1 LED (green)output voltage:
    net weight
    1.23kg



    Rs 18,900.00
  • Schneider Switching Mode Power Supply (ABL2REM24045H) In 100~240 VAC, Out 24 VDC, 100 W 4.5 Amp

    0 out of 5

    Model: ABL2REM24045H

    range of product
    Easy Modicon ABL2
    product or component type
    Power supply
    power supply type
    Regulated switch mode
    rated power in W
    100W
    input voltage
    100…240 V AC single phase
    output voltage
    24 V DC
    power supply output current
    4.5A
    operating position
    Any position
    vibration resistance
    2 gn (f= 10500Hz) conforming to EN/IEC 61131-2
    name of test
    Conducted interference conforming to EN 61000-6-4 level A
    input voltage limits
    85…264 V
    network frequency
    47…63 Hz
    inrush current
    50A at 100…240 V AC
    cos phi
    0.45
    efficiency
    83%
    power dissipation in W
    11.1W
    current consumption
    1.1 A at 240 V
    input protection type
    Integrated fuse (not interchangeable)
    output voltage limits
    21.6…26.4 V
    line and load regulation
    +/- 1 %
    holding time
    >= 10 ms at 115 V
    output protection type
    Against overload, protection technology: 1.1…1.5 x In
    Against short-circuits, protection technology: 1.1…1.5 x In
    Against overvoltage, protection technology: 1.1…1.5 x In
    connections – terminals
    For ground connection: screw type terminals, connection capacity: 1 x 4 mm AWG 12
    marking
    CE
    mounting support
    DIN rail with accessory
    Panel mounting with accessory
    operating altitude
    2000 m
    output coupling
    Series
    overvoltage category
    II
    meantime between failure [MTBF]
    350000h at 25C
    status LED
    1 LED (green)output voltage:
    width
    97mm
    height
    164mm
    depth
    38mm
    net weight
    0.58kg



    Rs 15,500.00
  • Schneider Switching Mode Power Supply (ABL2REM24085H) In 100~240 VAC, Out 24 VDC, 200 W 8.3 Amp

    0 out of 5

    Model: ABL2REM24085H

    product or component type
    Power supply
    power supply type
    Regulated switch mode
    rated power in W
    200W
    input voltage
    100…120 V AC single phase
    200…240 V
    output voltage
    24 V DC
    power supply output current
    8.3A
    operating position
    Any position
    vibration resistance
    2 gn (f= 10500Hz) conforming to EN/IEC 61131-2
    name of test
    Conducted interference conforming to EN 61000-6-4 level A
    input voltage limits
    85…264 V
    90…132 V
    network frequency
    47…63 Hz
    inrush current
    60A at 100…120 V AC
    60A at 200…240 V AC
    cos phi
    0.5
    efficiency
    83%
    power dissipation in W
    27.2W
    current consumption
    2 A at 240 V
    input protection type
    Integrated fuse (not interchangeable)
    output voltage limits
    21.6…26.4 V
    line and load regulation
    +/- 1 %
    holding time
    >= 12 ms at 115 V
    output protection type
    Against overload, protection technology: 1.1…1.5 x In
    Against short-circuits, protection technology: 1.1…1.5 x In
    Against overvoltage, protection technology: 1.1…1.5 x In
    Thermal, protection technology: 1.1…1.5 x In
    connections – terminals
    For ground connection: screw type terminals, connection capacity: 1 x 4 mm AWG 12
    marking
    CE
    mounting support
    DIN rail with accessory
    Panel mounting with accessory
    operating altitude
    2000 m
    output coupling
    Series
    overvoltage category
    II
    meantime between failure [MTBF]
    350000h at 25C
    status LED
    1 LED (green)output voltage:
    width
    115mm
    height
    215mm
    depth
    50mm
    net weight
    0.97kg



    Rs 19,000.00
  • Schneider Switching Mode Power Supply (ABL2REM24150H) In 100~240 VAC, Out 24 VDC, 350 W 14,6 Amp

    0 out of 5



    range of product
    Easy Modicon ABL2
    product or component type
    Power supply
    power supply type
    Regulated switch mode
    rated power in W
    350W
    input voltage
    100…120 V AC single phase
    200…240 V
    output voltage
    24 V DC
    power supply output current
    14.6A
    operating position
    Any position
    vibration resistance
    2 gn (f= 10500Hz) conforming to EN/IEC 61131-2
    name of test
    Conducted interference conforming to EN 61000-6-4 level A
    Complementary
    input voltage limits
    85…264 V
    180…264 V
    network frequency
    47…63 Hz
    inrush current
    60A at 100…120 V AC
    60A at 200…240 V AC
    cos phi
    0.5
    efficiency
    83%
    power dissipation in W
    47.7W
    current consumption
    3.3 A at 240 V
    input protection type
    Integrated fuse (not interchangeable)
    output voltage limits
    21.6…26.4 V
    line and load regulation
    +/- 1 %
    holding time
    >= 12 ms at 115 V
    output protection type
    Against overload, protection technology: 1.1…1.5 x In
    Against short-circuits, protection technology: 1.1…1.5 x In
    Against overvoltage, protection technology: 1.1…1.5 x In
    Thermal, protection technology: 1.1…1.5 x In
    connections – terminals
    For ground connection: screw type terminals, connection capacity: 1 x 4 mm AWG 12
    marking
    CE
    mounting support
    DIN rail with accessory
    Panel mounting with accessory
    operating altitude
    2000 m
    output coupling
    Series
    overvoltage category
    II
    meantime between failure [MTBF]
    350000h at 25C
    status LED
    1 LED (green)output voltage:
    width
    115mm
    height
    215mm
    depth
    50mm
    net weight
    0.97kg
    Environment
    product certifications
    EAC
    IC
    RoHS
    environmental characteristic
    EMC conforming to EN 55022 class B
    IP degree of protection
    IP20 conforming to EN/IEC 60950
    ambient air temperature for operation
    -2070C (with rated power derating 5 W per C)
    ambient air temperature for storage
    -2085C
    relative humidity
    2090%
    overvoltage category
    Class I conforming to VDE 0106-1
    pollution degree
    2
    dielectric strength
    2000V between input and ground
    Offer Sustainability
    REACh Regulation
    REACh Declaration
    REACh free of SVHC
    Yes
    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration
    Mercury free
    Yes
    RoHS exemption information
    Yes
    China RoHS Regulation
    China RoHS declaration



    Rs 14,000.00
  • Schneider Switching Mode Power Supply (ABL8REM24050) In 100~240 VAC, Out 24 VDC, 5 Amp

    0 out of 5

    Model: ABL8REM24050

    product or component type
    Power supply
    power supply type
    Regulated switch mode
    Nominal input voltage
    100…240 V AC phase to phase, terminal(s): L1-L2
    100…240 V AC single phase, terminal(s): N-L1
    110…220 V DC
    rated power in W
    120W
    output voltage
    24 V DC
    power supply output current
    5A
    Power Factor
    0.65
    efficiency
    85%
    Output voltage adjustment
    100…120 % adjustable
    power dissipation in W
    21.2W
    current consumption
    1.2 A at 240 V
    1.9 A at 100 V
    Hold-up time
    >= 10 ms at 100 V
    >= 10 ms at 240 V
    connections – terminals
    For input connection: screw type terminals, connection capacity: 2 x 0.14…2 x 2.5 mm AWG 26…AWG 14
    For output connection: screw type terminals, connection capacity: 4 x 0.14…4 x 2.5 mm AWG 26…AWG 14
    For input ground connection: screw type terminals, connection capacity: 1 x 0.14…1 x 2.5 mm AWG 26…AWG 14
    For output ground connection: screw type terminals, connection capacity: 2 x 0.14…2 x 2.5 mm AWG 26…AWG 14
    status LED
    1 LED (green)output voltage:
    1 LED (orange)input voltage:
    depth
    120mm
    height
    120mm
    width
    54mm
    net weight
    1kg
    output coupling
    Series
    Parallel
    marking
    CE
    operating position
    Vertical



    Rs 25,900.00
  • Schneider Switching Mode Power Supply (ABL8RPM24200) In 100~240 VAC, Out 24 VDC, 20 Amp

    0 out of 5

    Model: ABL8RPM24200

    product or component type
    Power supply
    power supply type
    Regulated switch mode
    Nominal input voltage
    100…120 V AC single phase, terminal(s): N-L1
    200…240 V AC phase to phase, terminal(s): L1-L2
    rated power in W
    480W
    output voltage
    24 V DC
    power supply output current
    20A
    permissible temporary current boost
    1.5 x In (for 4 s)
    Power Factor
    0.68 at 240 V
    0.69 at 120 V
    efficiency
    88%
    Output voltage adjustment
    24…28.8 V adjustable
    power dissipation in W
    57.6W
    Hold-up time
    >= 120 ms at 400 V
    >= 20 ms at 100 V
    >= 40 ms at 240 V
    provided equipment
    Power factor correction filter conforming to IEC 61000-3-2
    connections – terminals
    For diagnostic relay: removable screw terminal block, connection capacity: 2 x 2.5 mm
    For input connection: screw type terminals, connection capacity: 3 x 0.5…3 x 4 mm AWG 22…AWG 12
    For input ground connection: screw type terminals, connection capacity: 1 x 0.5…1 x 4 mm AWG 22…AWG 12
    For output connection: screw type terminals, connection capacity: 4 x 0.5…4 x 4 mm AWG 22…AWG 12
    status LED
    1 LED (green and red)output voltage:
    1 LED (green, red and orange)output current:
    depth
    145mm
    height
    125mm
    width
    146mm
    net weight
    1.6kg



    Rs 99,000.00
  • Schneider Switching Mode Power Supply (ABL8RPS24050) In 100~500 VAC, Out 24 VDC, 5 Amp

    0 out of 5

    Model:ABL8RPS24050

    product or component type
    Power supply
    power supply type
    Regulated switch mode
    Nominal input voltage
    100…120 V AC single phase, terminal(s): N-L1
    200…500 V AC phase to phase, terminal(s): L1-L2
    rated power in W
    120W
    output voltage
    24 V DC
    power supply output current
    5A
    permissible temporary current boost
    1.5 x In (for 4 s)
    Power Factor
    0.51 at 240 V
    0.59 at 120 V
    efficiency
    87%
    Output voltage adjustment
    24…28.8 V adjustable
    power dissipation in W
    15.5W
    Hold-up time
    >= 120 ms at 400 V
    >= 20 ms at 100 V
    >= 40 ms at 240 V
    provided equipment
    Power factor correction filter conforming to IEC 61000-3-2
    connections – terminals
    For diagnostic relay: removable screw terminal block, connection capacity: 2 x 2.5 mm
    For input connection: screw type terminals, connection capacity: 3 x 0.5…3 x 4 mm AWG 22…AWG 12
    For input ground connection: screw type terminals, connection capacity: 1 x 0.5…1 x 4 mm AWG 22…AWG 12
    For output connection: screw type terminals, connection capacity: 4 x 0.5…4 x 4 mm AWG 22…AWG 12
    For output ground connection: screw type terminals, connection capacity: 1 x 0.5…1 x 4 mm AWG 22…AWG 12
    status LED
    1 LED (green and red)output voltage:
    1 LED (green, red and orange)output current:
    depth
    125mm
    height
    143mm
    width
    56mm
    net weight
    0.7kg
    output coupling
    Parallel
    Series
    marking
    CE
    operating position
    Vertical



    Rs 39,000.00
  • Schneider Switching Mode Power Supply (ABL8WPS24200) In 380~500 VAC, Out 24 VDC, 20 Amp

    0 out of 5

    Model: ABL8WPS24200

    product or component type
    Power supply
    power supply type
    Regulated switch mode
    Nominal input voltage
    380…500 V AC three phase, terminal(s): L1, L2, L3
    rated power in W
    480W
    output voltage
    24 V DC
    power supply output current
    20A
    permissible temporary current boost
    1.5 x In (for 4 s)
    Power Factor
    0.65
    efficiency
    92%
    Output voltage adjustment
    24…28.8 V adjustable
    power dissipation in W
    38.4W
    Hold-up time
    >= 18 ms at 400 V
    provided equipment
    Power factor correction filter conforming to IEC 61000-3-2
    connections – terminals
    For diagnostic relay: removable screw terminal block, connection capacity: 2 x 2.5 mm
    For input connection: screw type terminals, connection capacity: 3 x 0.5…3 x 4 mm AWG 22…AWG 12
    For input ground connection: screw type terminals, connection capacity: 1 x 0.5…1 x 4 mm AWG 22…AWG 12
    For output connection: screw type terminals, connection capacity: 4 x 0.5…4 x 10 mm AWG 22…AWG 8
    status LED
    1 LED (green and red)output voltage:
    1 LED (green, red and orange)output current:
    depth
    160mm
    height
    143mm
    width
    96mm
    net weight
    1.6kg
    output coupling
    Series
    Parallel
    marking
    CE
    operating position
    Vertical



    Rs 39,000.00
