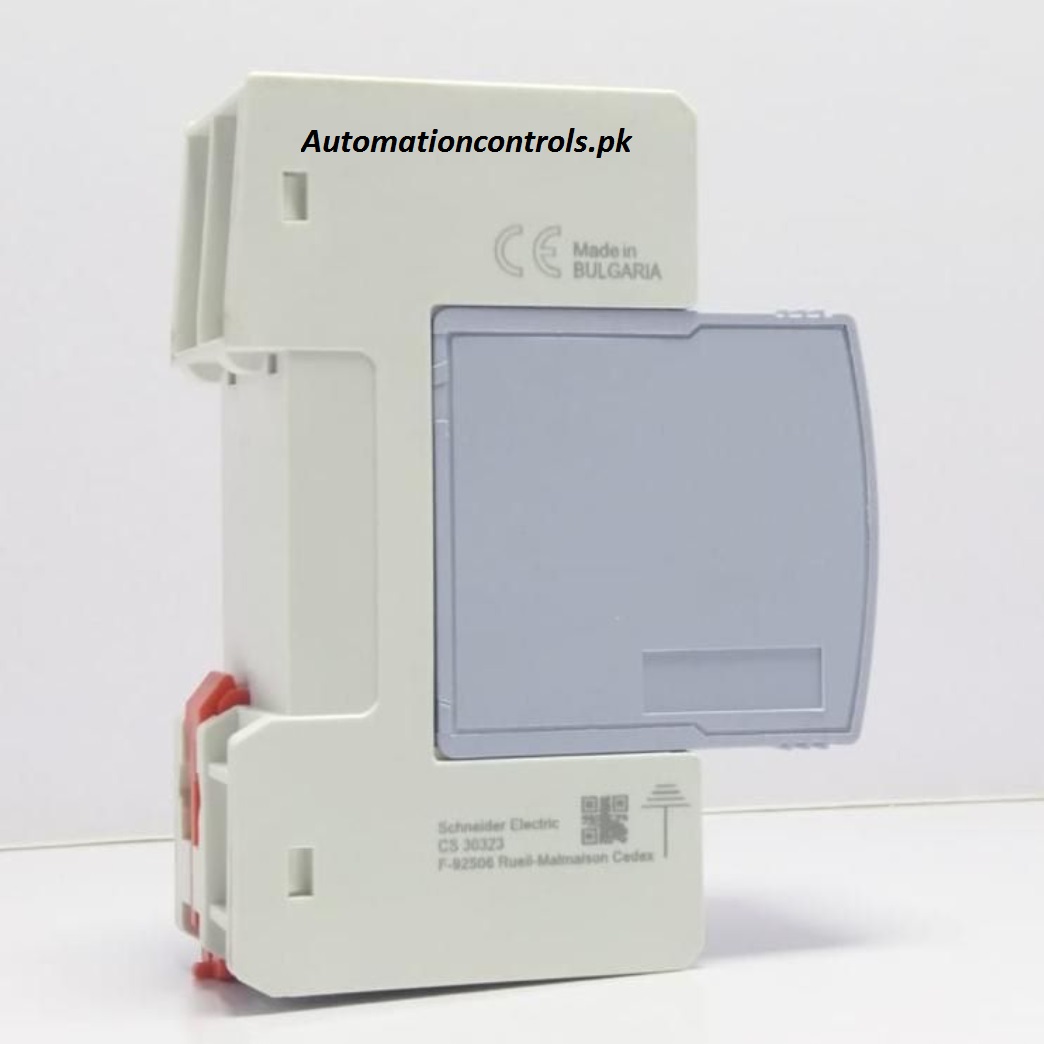

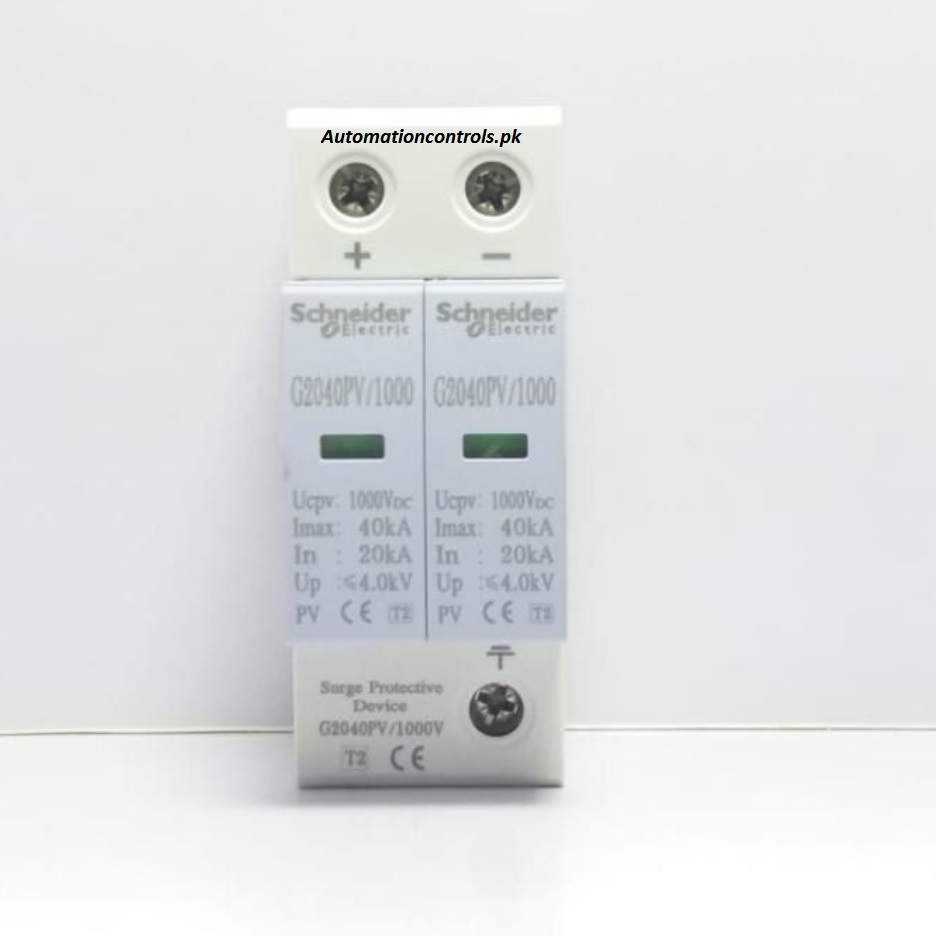

Schneider (G2040PV/1000) 2Pole 40kA DC (Surge Protection Device) SPD
Rs 3,800.00
Product : SPD surge protection device
Model : G2040PV/1000
Rated voltage : DC 500V
Voltage type : DC
Number of pole : 2pole
Ucpv : 1000vDC
Imax : 40kA
In : 20kA
Up : 4.0kV
Mounting : DIN rail
Mostly used for : solar systems
Cash on delivery available all over pakistan
- Description
- Reviews (1)
Description
- G2040PV/1000 series PV Surge Protective Device 40KA DC 1000V SPD is suitable for the new energy wind power generation system
- Its working voltage covers 500V,800V and 1000V.
- It is installed at main power system at DC circuit,to protect from indirect lighting current, direct lighting current or other instantaneous over voltage.
- It has module design, convenient installation ,with easy electric maintains operation.
- Adopt independent intelligence property right and high performance sensitivity resistance plates
- Small creepage current, fast response time, remnant low voltage
