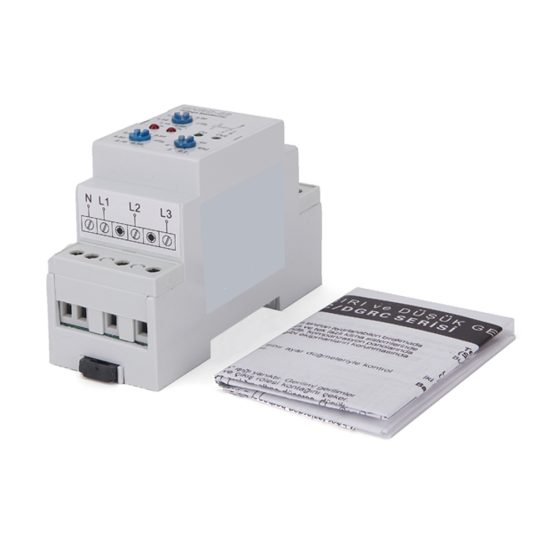

(Phase Sequence) Voltage Monitoring Device GKRC-02FA
Product: Phase sequence/failure relay
Model: GKRC-02FA
Brand: ENTES
Under-voltage setting range: (0.70 0.95) x Un
Over-voltage setting range: (1.05 1.30) x Un
Immediate switch: 0.5 x U/1.5 x Un
Immediate switch period: 500 ms
Power supply: 3-phase
Operating voltage: 220/230V AC
Switching current: 8A
Minimum temperature: -5 C
Maximum temprature: +50 C
Timing: 0.1 to 10 sec
Mounting: 35mm DIN rail
Add to cartQuick View -
Add to cartQuick View
ABB (CM-PFS.S) Phase Monitoring Relay 3 Phase
- Model: CM-PFS.S
- Monitoring application: Phase
- Contact configuration: DPDT
- Electrical phase: 3
- Phase sensivity: Phase failure / Phase sequence
- Time delay: 500ms
- Frequency sensing range: 45 – 65Hz
- Dimensions: 103.7mm*22.5mm*85.6mm
Add to cartQuick View -
Add to cartQuick View
ABB (MS116-1.0) Motor Protection Circuit Breaker 3pole (0.63-1.0 Amp)
Model: MS116-1.0
Setting range: 0.63 – 1.0 A
Actuator type: rotary
Short circuit breaking capacity: 16kA
Width: 45mm
Height: 90mm
Depth: 80mm
Add to cartQuick View -
Add to cartQuick View
Chint Electronic Over Load Relay (EOCR-DS 3) VAYA
Available ampere range (must write in additional information/order notes)
- 0.5 to 6 Amp
- 5 to 60 Amp
Available voltage (write with ampere)
- 220 V AC
- 400 V AC
Add to cartQuick View -
Add to cartQuick View
Chint Relay (JQX-10F 2Z) 8 Pin, Round (Pack of 3pcs)
Available in these coil voltage (must write any one in additional information/order notes)
- AC 220 V
- DC 24 V
- DC 12 V
Add to cartQuick View -
Add to cartQuick View
Chint Relay (JQX-10F 3Z) 11 Pin, Round (Pack of 3pcs)
Available in these coil voltage (must write any one in additional information/order notes)
- AC 220 V
- DC 24 V
- DC 12 V
Other coil voltages on request
Add to cartQuick View -
Add to cartQuick View
Chint Relay (JQX-13F (D) 2Z) 8 Pin, Flat (Pack of 3pcs)
Available in these coil voltage (must write any one in additional information/order notes)
- AC 220 V
- DC 24 V
- DC 12 V
Other coil voltages on request
Add to cartQuick View -
Add to cartQuick View
Chint Relay (JZX-22F 2Z) 8 Pin, Flat (Pack of 3pcs)
Available in these coil voltage (must write any one in additional information/order notes)
- AC 220 V
- DC 24 V
- DC 12 V
Other coil voltages on request
Add to cartQuick View -
Add to cartQuick View
Chint Relay (JZX-22F 4Z) 14 Pin, Flat (Pack of 3pcs)
Available in these coil voltage (must write any one in additional information/order notes)
- AC 220 V
- DC 24 V
- DC 12 V
Other coil voltages on request
Add to cartQuick View -
Add to cartQuick View

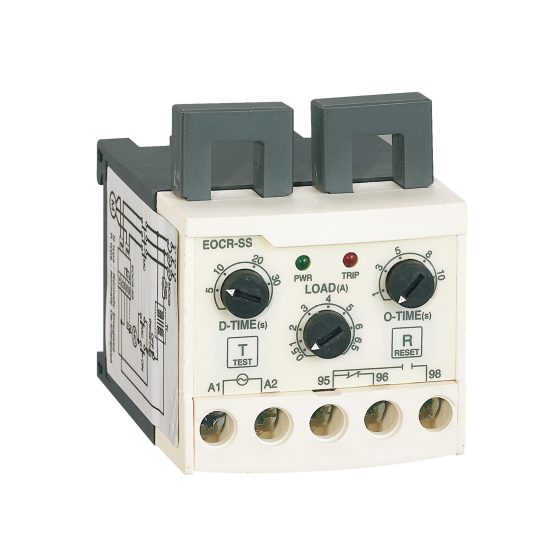

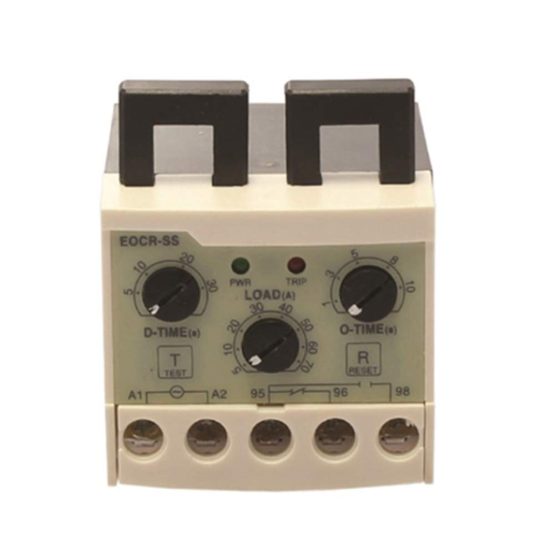

Electronic Over Load Relay (EOCR-SS)
Ampere Range optional: must write any one in additional information/order notes
- 0.5 to 6.5 Amp
- 5 to 70 Amp
Add to cartQuick View -
Add to cartQuick View
EOCR Motor Protection Electronic Over Load Relay upto 120A (OPR-SS3-120) 180v AC-440v AC
Product name: EOCR Motor Protection Electronic Over Load Relay upto 120A (OPR-SS3-120)Model: PGOPR SS-SS3Manufactured: ChinaUsage: ProtectiveTheory: ElectronicProtection: Overcurrent, Underrcurrent, Overvoltage, Undervoltage, Ground FaultCurrent: 0.5A~120AVoltage range: 180v AC-440v ACAdd to cartQuick View -
Add to cartQuick View
EOCR Motor Protection Electronic Over Load Relay upto 60A (OPR-SS3-60) 180v AC-440v AC
-
Product name: EOCR Motor Protection Electronic Over Load Relay upto 60A (OPR-SS3-60)Model: PGOPR SS-SS3Manufactured: ChinaUsage: ProtectiveTheory: ElectronicProtection: Overcurrent, Underrcurrent, Overvoltage, Undervoltage, Ground FaultCurrent: 0.5A~60AVoltage range: 180v AC-440v AC
Add to cartQuick View -
-
Add to cartQuick View
Finder (20.22) 16 Amp Latching (Step) Relay 230VAC (2 NO)
Product: Latch (step) relay
Coil voltage: 230 vac (other voltage on request)
Contact configuration: DPST
Mounting type: DIN rail
Switching current: 16 Amp
Depth: 58.4 mm
Height: 84 mm
Terminal type: screw
Features: Mechanical Flag Indicator, Test Button
Add to cartQuick View -
Add to cartQuick View
Finder (20.23) 16 Amp Latching (Step) Relay 230VAC (1NO+1NC)
Product: Latch (step) relay
Coil voltage: 230 vac (other voltage on request)
Contact configuration: DPST
Mounting type: DIN rail
Switching current: 16 Amp
Depth: 58.4 mm
Height: 84 mm
Terminal type: screw
Features: Mechanical Flag Indicator, Test Button
Add to cartQuick View -
Add to cartQuick View

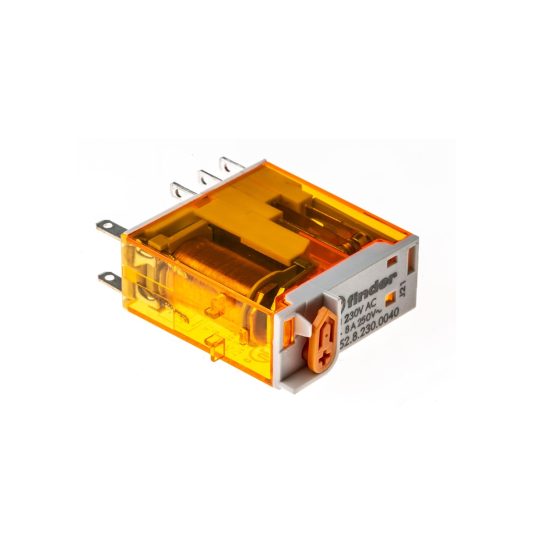

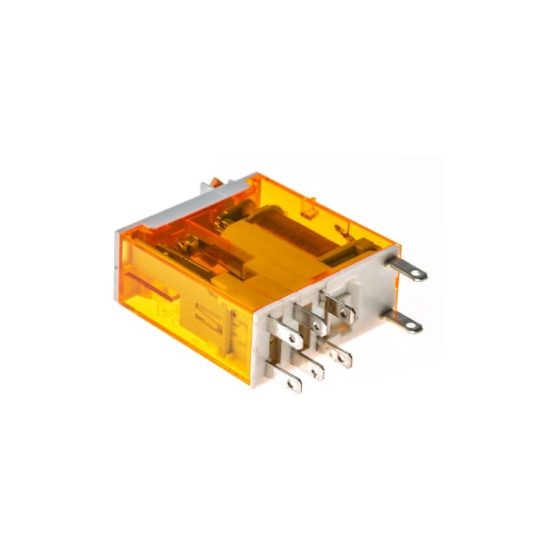

Finder (46.52) 8 Pin (Flat) Slim type Power Relay
Available voltage (must write any one in additional information/order notes)
- 24 vdc
- 230 vac
Add to cartQuick View -
Add to cartQuick View
Finder (55.32) 8 Pin (Flat) Industrial Plug-In Relay
Available coil voltage (must write any one in additional information/order notes)
- 230V ac
- 110V ac
- 110V dc
- 24V ac
- 24V dc
- 12V ac
- 12V dc
Other coil voltage on request
Add to cartQuick View -
Add to cartQuick View
Finder (55.34) 14 Pin (Flat) Industrial Plug-In Relay
Available coil voltage (must write any one in additional information/order notes)
- 230V ac
- 110V ac
- 110V dc
- 24V ac
- 24V dc
- 12V ac
- 12V dc
Other voltage on request.
Add to cartQuick View -
Add to cartQuick View
Finder (60.12) 8 Pin (Round) Industrial Plug-In Power Relay
Available coil voltage (must write any one in additional information/order notes)
- 230 VAC
- 110 VAC
- 110 VDC
- 24 VAC
- 24 VDC
- 12 VAC
- 12 VDC
Other coil voltages on request
Add to cartQuick View -
Add to cartQuick View
Finder (60.13) 11 Pin (Round) Industrial Plug-In Power Relay
Available coil voltage (must write any one in additional information/order notes)
- 230V ac
- 110V ac
- 110V dc
- 24V ac
- 24V dc
- 12V ac
- 12V dc
Other voltage on request.
Add to cartQuick View -
Add to cartQuick View
FOTEK (SSR) Solid State Relay “Input 3~32vDC , Output 24~380vAC”
Ampere Available (Must Choose one)
10 A
25 A
40 A
75 A
Voltage
Input : 3~32v DC
Output : 24~380v AC
Add to cartQuick View -
Add to cartQuick View

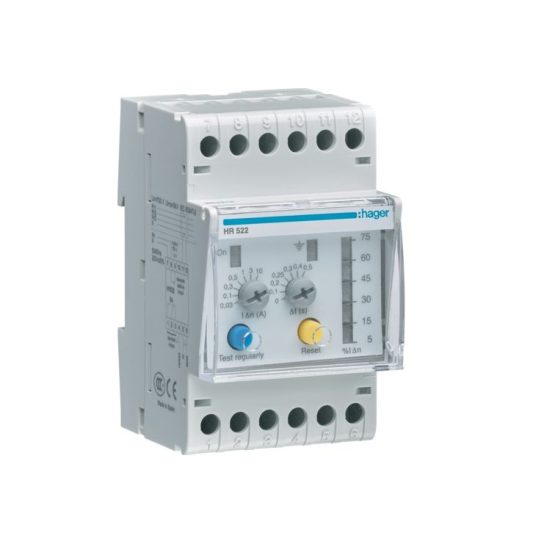

Hager (HR522) Earth Leakage Relay 0.03-10A Time Delay
Rated operational voltage: 230 V
Frequency: 50;60 Hz
Acceptable current rating with AC1: 8 A
Rated residual operating current: 30 / 100 / 300 / 500 / 1000 / 3000 / 10000 mA
Number of modules: 3
Connection cross-sect. flexible conductor: 1 ; 2,5mm
Connection cross-sect. rigid cable: 1,5 ; 4mm
Add to cartQuick View -
Add to cartQuick View
High Power Relay (JQX-62F-2Z) 220vAC 120A
Model : JQX-62F-2Z
Can adjust automatically, protect and transform the elaectric circuit.
Used widely in the remote control, communication, automatic control system, electronic equipments etc.
Add to cartQuick View -
Add to cartQuick View
LIRRD (11pin) 10A Electromagnetic Power Relay LMK3P (Pack of 2pcs)
Rs 1,900.00Add to cartQuick View -
Add to cartQuick View
LIRRD (8pin) 10A Electromagnetic Power Relay LMK2P (Pack of 2pcs)
Rs 1,700.00Add to cartQuick View -
Add to cartQuick View
LS Thermal Over Load Relay (GTH-22) Pack of 2pcs
Ampere Range (must choose one)
0.10 to 0.16 Amp
0.16 to 0.25 Amp
0.24 to 0.4o Amp
0.40 to 0.63 Amp
0.63 to 1.0 Amp
1.0 to 1.6 Amp
1.6 to 2.5 Amp
2.5 to 4.0 Amp
4 to 6 Amp
5 to 8 Amp
6 to 9 Amp
7 to 10 Amp
9 to 13 Amp
12 to 18 Amp
16 to 22 Amp
18 to 25 Amp
22 to 32 Amp
28 to 40 Amp
Add to cartQuick View -
Add to cartQuick View
MICRO (M-101-B) Phase Failure Relay
Rs 1,900.00Add to cartQuick View -
Add to cartQuick View
Omron (G2R-1-E 12DC) Non-Latching Relay SPDT (12vDC) Pack of 2pcs
Model: G2R-1-E 12DC
Coil voltage: 12v dc
Coil resistance: 275 Ω
Mounting: PCB mount
Switching current: 16A
Number of pins: 6
Depth: 13 mm
Length: 29 mm
Height: 25.5 mm
Add to cartQuick View -
Add to cartQuick View
Omron (G2R-2 24DC) Non-Latching Relay DPDT (24vDC) Pack of 2pcs
Model: G2R-2 24DC
Coil voltage: 24vDC
Mounting: PCB mount
Coil resistance: 1.1 kΩ
Switching current: 5A
Number of pins: 6
Depth: 13 mm
Length: 29 mm
Height: 25.5 mm
Add to cartQuick View -
Add to cartQuick View
Omron (ZEN-20C1AR-A-V2) Programmable Relay AC100-240V
Model: ZEN-20C1AR-A-V2
Rated supply voltage 100 to 240 VAC, 50/60 Hz Operating
voltage range85 to 264 VAC Power
consumptionCPU Units without Expansion I/O Units
ZEN-10C1AR-A-V2/ZEN-10C2AR-A-V2/
ZEN-10C3AR-A-V2
100 V AC: 5 VA max.
240 V AC: 7 VA max.
ZEN-10C4AR-A-V2
100 V AC: 6 VA max.
240 V AC: 8 VA max.
ZEN-20C[]AR-A-V2
100 V AC: 7 VA max.
240 V AC: 10 VA max.
CPU Units with three Expansion I/O Units
ZEN-10C1AR-A-V2/ZEN-10C2AR-A-V2
100 V AC: 6 VA max.
240 V AC: 8 VA max.
ZEN-10C4AR-A-V2
100 V AC: 7 VA max.
240 V AC: 9 VA max.
ZEN-20C[]AR-A-V2
100 V AC: 8 VA max.
240 V AC: 11 VA max.
Expansion I/O Units
ZEN-8E1AR
100 V AC: 3 VA max.
240 V AC: 4 VA max.Inrush current ZEN-10C[]AR-A-V2: 4.5 A max.
ZEN-20C[]AR-A-V2: 4.5 A max.
ZEN-8E1AR: 4 A max.Ambient temperature 0 to 55C (-25 to 55C for ZEN-[]C2[][]-[]-V2 models) Ambient storage
temperature-20 to 75C (-40 to 75C for ZEN-[]C2[][]-[]-V2 models) Ambient humidity 10% to 90% (with no condensation) Ambient conditions No corrosive gases Mounting method Surface mounting, DIN track mounting (standard (vertical) installation and horizontal installation)
(See notes 1 and 2.)Terminal block Solid-line terminal block (use solid wire or fine-stranded wire) Terminal screw
tightening torque0.565 to 0.6 Nm (5 to 5.3 in-lb) Degree of protection IP20 (Mounted inside a control panel) Add to cartQuick View -
Add to cartQuick View
Omron (ZEN-20C1DR-D-V2) Programmable Relay DC12-24V
Model: ZEN-20C1DR-D-V2
Rated supply voltage 12 to 24 VDC (DC ripple rate: 5% max.) Operating
voltage range10.8 to 28.8 VDC Power
consumptionCPU Units without Expansion I/O Units
ZEN-10C[]DR-D-V2
12/24 V DC: 3 W max.
(ZEN-10C3DR-D-V2: 2.8 W max.)
ZEN-10C[]DT-D-V2
12/24 V DC: 2 W max.
ZEN-20C[]DR-D-V2
12/24 V DC: 4 W max.
ZEN-20C[]DT-D-V2
12/24 V DC: 2 W max.
CPU Units with three Expansion I/O Units
ZEN-10C[]DR-D-V2
12/24 V DC: 4 W max.
ZEN-10C[]DT-D-V2
12/24 V DC: 3 W max.
ZEN-20C[]DR-D-V2
12/24 V DC: 5 W max.
ZEN-20C[]DT-D-V2
12/24 V DC: 3 W max.
Expansion I/O Units
ZEN-8E1DR
12/24 V DC: 2 W max.Inrush current ZEN-10C[]D[]-D-V2: 30 A max.
ZEN-20C[]D[]-D-V2: 30 A max.
ZEN-8E1DR: 15 A max.Ambient temperature 0 to 55C (-25 to 55C for ZEN-[]C2[][]-[]-V2 models) Ambient storage
temperature-20 to 75C (-40 to 75C for ZEN-[]C2[][]-[]-V2 models) Ambient humidity 10% to 90% (with no condensation) Ambient conditions No corrosive gases Mounting method Surface mounting, DIN track mounting (standard (vertical) installation and horizontal installation)
(See notes 1 and 2.)Terminal block Solid-line terminal block (use solid wire or fine-stranded wire) Terminal screw
tightening torque0.565 to 0.6 Nm (5 to 5.3 in-lb) Degree of protection IP20 (Mounted inside a control panel) Add to cartQuick View -
Add to cartQuick View
Omron G2R-2-SN 24DC(S) Non-Latching Relay DPDT (24vDC) Pack of 2pcs
Model: G2R-2-SN 24DC(S)
Coil voltage: 24v dc
Coil resistance: 1.113 kΩ
Mounting: plug In
Switching current: 5A
Number of pole: 2
Depth: 13 mm
Length: 29 mm
Height: 41.7 mm
Add to cartQuick View -
Add to cartQuick View
Omron LY2 series General Purpose Relay (Pack of 5 Pcs)
Available Voltage
12V AC
12V DC
24V AC
24V DC
110V AC
220V AC
Add to cartQuick View -
Add to cartQuick View
Omron LY3 series General Purpose Relay (Pack of 3 Pcs)
Available Voltage
12V AC
12V DC
24V AC
24V DC
110V AC
220V AC
Add to cartQuick View -
Add to cartQuick View
Omron LY4 series General Purpose Relay (Pack of 3 Pcs)
Available Voltage
12V AC
12V DC
24V AC
24V DC
110V AC
220V DC
Add to cartQuick View -
Add to cartQuick View
Omron MY2 series General Purpose Miniature Relay (Pack of 5 Pcs)
Rs 1,500.00Add to cartQuick View -
Add to cartQuick View
Omron MY2IN 24DC (S) Non-Latching Relay DPDT 24vDC Pack of 2pcs
Model: MY2IN 24DC (S)
Coil voltage: 24v dc
Coil power: 900mW
Coil resistance: 636 Ω
Mounting type: plug In
Switching current: 10A
Number of pole: 2
Depth: 21.5 mm
Length: 28 mm
Height: 36 mm
Add to cartQuick View -
Add to cartQuick View
Omron MY2N AC220/240(S) Non-Latching Relay DPDT (220VAC) 2Pole Pack of 2pcs
Model: MY2N AC220/240(S)
Coil voltage: 240v ac
Coil power: 1.1 kW
Mounting type: plug In
Coil resistance: 18.79 kΩ
Switching current: 10A
Number of pole: 2
Depth: 21.5 mm
Length: 28 mm
Height: 36 mm
Add to cartQuick View -
Add to cartQuick View
Omron MY3 series 5A General Purpose Miniature Relay (Pack of 5 pcs)
Must write your voltage in additional information / order notes
Add to cartQuick View -
Add to cartQuick View
Omron MY4 AC220/240(S) Non-Latching Relay 4PDT (220vAC) Pack of 2pcs
Model: MY4 AC220/240(S)
Coil voltage: 240vac
Coil power: 1.1W
Coil resistance: 18.79 kΩ
Switching current: 5A
Mounting: plug In
Number of pole: 4
Depth: 21.5 mm
Length: 28 mm
Height: 36 mm
Add to cartQuick View -
Add to cartQuick View
Omron MY4 series 5A General Purpose Miniature Relay (Pack of 5 Pcs)
Rs 1,500.00Add to cartQuick View -
Add to cartQuick View
Omron MY4IN 24AC (S) Non-Latching Relay 4PDT (24vAC) Pack of 2pcs
Model: MY4IN 24AC (S)
Coil voltage: 24vac
Coil power: 1.2W
Mounting: plug In
Coil resistance: 180 Ω
Switching current: 5A
Number of pole: 4
Depth: 21.5 mm
Length: 28 mm
Height: 36 mm
Add to cartQuick View -
Add to cartQuick View
Schneider (CA2KN40F7) Control Relay 4 NO 110 VAC coil
Model: CA2KN40F7
range TeSysproduct name TeSys CAKproduct or component type Control relaydevice short name CA2Kcontactor application Control circuitutilisation category DC-13
AC-15pole contact composition 4 NOcontrol circuit type AC at 50/60 Hz[Uc] control circuit voltage 110 V AC 50/60 Hz [Ith] conventional free air thermal current 10A (at 50C)Irms rated making capacity 110A conforming to IEC 60947associated fuse rating 10A gG conforming to IEC 60947
10A gG conforming to VDE 0660[Ui] rated insulation voltage 690V conforming to IEC 60947
750V conforming to VDE 0110 group C
690V conforming to BS 5424
600V conforming to CSA C22.2 No 14mounting support Rail
Plateconnections – terminals Screw clamp terminals 1 cable(s) 1.54mmsolid
Screw clamp terminals 2 cable(s) 1.54mmsolid
Screw clamp terminals 1 cable(s) 0.754mmflexible with cable end
Screw clamp terminals 2 cable(s) 0.754mmflexible without cable end
Screw clamp terminals 1 cable(s) 0.341.5mmflexible with cable end
Screw clamp terminals 2 cable(s) 0.341.5mmflexible without cable endtightening torque 1.3N.m – on screw clamp terminals – with screwdriver flat 6 mm
1.3N.m – on screw clamp terminals – with screwdriver Philips No 26mmcontrol circuit voltage limits Drop-out: 0.2…0.75 Uc (at <50C)
Operational: 0.8…1.15 Uc (at <50C)operating time 10…20 ms coil de-energisation and NO opening
10…20 ms coil energisation and NO closingmechanical durability 10Mcyclesmaximum operating rate 10000cyc/himmunity to microbreaks 2msinrush power in VA 30VA (at 20C)hold-in power consumption in VA 4.5VA (at 20C)heat dissipation 1.3Wminimum switching voltage 17Vminimum switching current 5mAnon overlap distance 0.5mminsulation resistance > 10 MOhmheight 58mmwidth 45mmdepth 57mmnet weight 0.18kgAdd to cartQuick View -
Add to cartQuick View
Schneider (CAE22B5) 2NO + 2NC Control Relay 24 VAC
Model: CAE22B5
range EasyPactproduct name EasyPact TVSproduct or component type Control relaydevice short name CAEcontactor application Control circuitcolour Grey (RAL 7011)utilization category AC-15
AC-14pole contact composition 2 NO + 2 NC[Ue] rated operational voltage <= 690 V ACcontrol circuit type AC at 50 Hz[Uc] control circuit voltage 24 V AC 50 Hz[Uimp] rated impulse withstand voltage 6kV conforming to IEC 60947[Ith] conventional free air thermal current 10A (at 40C)Irms rated making capacity 140A at 690 V AC conforming to IEC 60947-5-1[Icw] rated short-time withstand current 120A – 500 ms
140A – 100 msassociated fuse rating 10A gG at 690 V conforming to IEC 60947-5-1[Ui] rated insulation voltage 690V conforming to IEC 60947-5-1mounting support Rail
Plateconnections – terminals Screw clamp terminals 1 12.5mm – cable stiffness: flexible without cable end
Screw clamp terminals 2 12.5mm – cable stiffness: flexible without cable end
Screw clamp terminals 1 12.5mm – cable stiffness: flexible with cable end
Screw clamp terminals 2 12.5mm – cable stiffness: flexible with cable end
Screw clamp terminals 1 12.5mm – cable stiffness: solid without cable end
Screw clamp terminals 2 12.5mm – cable stiffness: solid without cable endtightening torque 1.2N.m – on screw clamp terminals – with screwdriver Philips No 2control circuit voltage limits Operational: 0.85…1.1 Uc at 50 Hz
Drop-out: 0.3…0.6 Ucoperating time 4…19 ms coil energisation and NC opening
12…22 ms coil energisation and NO closing
4…12 ms coil de-energisation and NC opening
6…17 ms coil de-energisation and NO closingmechanical durability 10Mcyclesmaximum operating rate 180cyc/mninrush power in VA 70VA 50 Hz (at 20C)hold-in power consumption in VA 8VA 50 Hz (at 20C)minimum switching voltage 17Vminimum switching current 5mAnon-overlap time 1.5ms on energisation between NC and NO contact
1.5ms on de-energisation between NC and NO contactinsulation resistance > 10 MOhmmechanical robustness Shocks control relay open: 7 Gn for 11 ms
Shocks control relay closed: 10 Gn for 11 ms
Vibrations control relay open: 1.5 Gn, 5…300 Hz
Vibrations control relay closed: 3 Gn, 5…300 Hzheight 74mmwidth 45mmdepth 80mmnet weight 0.28kgAdd to cartQuick View -
Add to cartQuick View
Schneider (CAE40N5) 4 NO Control Relay 415 VAC
Model: CAE40N5
product or component type Control relaydevice short name CAEcontactor application Control circuitcolour Grey (RAL 7011)Complementary utilisation category AC-15
AC-14pole contact composition 4 NO[Ue] rated operational voltage <= 690 V ACcontrol circuit type AC at 50 Hz[Uc] control circuit voltage 415 V AC 50 Hz[Uimp] rated impulse withstand voltage 6kV conforming to IEC 60947[Ith] conventional free air thermal current 10A (at 40C)Irms rated making capacity 140A at 690 V AC conforming to IEC 60947-5-1[Icw] rated short-time withstand current 120A – 500 ms
140A – 100 msassociated fuse rating 10A gG at 690 V conforming to IEC 60947-5-1[Ui] rated insulation voltage 690V conforming to IEC 60947-5-1mounting support Rail
Plateconnections – terminals Screw clamp terminals 1 12.5mm – cable stiffness: flexible without cable end
Screw clamp terminals 2 12.5mm – cable stiffness: flexible without cable end
Screw clamp terminals 1 12.5mm – cable stiffness: flexible with cable end
Screw clamp terminals 2 12.5mm – cable stiffness: flexible with cable end
Screw clamp terminals 1 12.5mm – cable stiffness: solid without cable end
Screw clamp terminals 2 12.5mm – cable stiffness: solid without cable endtightening torque 1.2N.m – on screw clamp terminals – with screwdriver Philips No 2control circuit voltage limits Operational: 0.85…1.1 Uc at 50 Hz
Drop-out: 0.3…0.6 Ucoperating time 12…22 ms coil energisation and NO closing
6…17 ms coil de-energisation and NO closingmechanical durability 10Mcyclesmaximum operating rate 180cyc/mninrush power in VA 70VA 50 Hz (at 20C)hold-in power consumption in VA 8VA 50 Hz (at 20C)minimum switching voltage 17Vminimum switching current 5mAinsulation resistance > 10 MOhmmechanical robustness Shocks control relay open: 7 Gn for 11 ms
Shocks control relay closed: 10 Gn for 11 ms
Vibrations control relay open: 1.5 Gn, 5…300 Hz
Vibrations control relay closed: 3 Gn, 5…300 Hzheight 74mmwidth 45mmdepth 80mmnet weight 0.28kgAdd to cartQuick View -
Add to cartQuick View
Schneider (LT4706M7A) EOCR Electronic Over Current Relay 0.5~6 A , 200~240 VAC
Model: LT4706M7A
product or component type Electronic over current relaydevice short name LT47device application Protectionrelay application Locked rotor, mechanical jamming I > 3 x Isetting
Sensitivity to phase failure
Overload Imax > Isetting[Us] rated supply voltage 200…240 V ACthermal protection adjustment range 0.56A[Ui] rated insulation voltage Power circuit: 600V AC conforming to CSA
Power circuit: 600V AC conforming to UL
Power circuit: 690V AC conforming to IEC 60947-4-1network frequency 50…60 Hzmounting support Railtripping threshold 0.5…5 Aelectromagnetic compatibility Resistance to electrostatic discharge: 8 kV in open air conforming to IEC 61000-4-2
Resistance to electrostatic discharge: 6 kV in direct mode conforming to IEC 61000-4-2
Conducted emission: class A conforming to EN 55011
Immunity to electromagnetic interference: 10 V/m conforming to IEC 61000-4-3
Immunity to fast transients: 2 kV conforming to IEC 61000-4-4
Surge withstand: 6 kV conforming to IEC 61000-4-5
Conducted HF disturbances: 10 V conforming to IEC 61000-4-6auxiliary contact composition 1 NO + 1 NC[Ith] conventional free air thermal current 3A for signalling circuitassociated fuse rating 3A gG for signalling circuit
3A BS for signalling circuit[Uimp] rated impulse withstand voltage 6kVtime range 1…120 s – control type R-time
0.3…30 s – control type O-timelocal signalling 1 LED (green)
1 LED (red)control type automatic: resetconnections – terminals Signalling circuit: screw clamp terminals 1 12.5mm – cable stiffness: flexible with cable end
Signalling circuit: screw clamp terminals 1 12.5mm – cable stiffness: flexible without cable end
Signalling circuit: screw clamp terminals 2 12.5mm – cable stiffness: flexible with cable end
Signalling circuit: screw clamp terminals 2 12.5mm – cable stiffness: flexible without cable endtightening torque Signalling circuit: 1.7N.m M3.5height 70.3mmwidth 71mmdepth 77.2mmnet weight 0.192kgAdd to cartQuick View -
Add to cartQuick View
Schneider (LT4760M7A) EOCR Electronic Over Current Relay 5~60 A , 200~240 VAC
Model: LT4760M7A
product or component type Electronic over current relaydevice short name LT47device application Protectionrelay application Overload Imax > Isetting
Locked rotor, mechanical jamming I > 3 x Isetting
Sensitivity to phase failure[Us] rated supply voltage 200…240 V ACthermal protection adjustment range 5~60A[Ui] rated insulation voltage Power circuit: 600V AC conforming to CSA
Power circuit: 600V AC conforming to UL
Power circuit: 690V AC conforming to IEC 60947-4-1network frequency 50…60 Hzmounting support Railtripping threshold 5…50 Aelectromagnetic compatibility Resistance to electrostatic discharge: 8 kV in open air conforming to IEC 61000-4-2
Resistance to electrostatic discharge: 6 kV in direct mode conforming to IEC 61000-4-2
Conducted emission: class A conforming to EN 55011
Immunity to electromagnetic interference: 10 V/m conforming to IEC 61000-4-3
Immunity to fast transients: 2 kV conforming to IEC 61000-4-4
Surge withstand: 6 kV conforming to IEC 61000-4-5
Conducted HF disturbances: 10 V conforming to IEC 61000-4-6auxiliary contact composition 1 NO + 1 NC[Ith] conventional free air thermal current 3A for signalling circuitassociated fuse rating 3A gG for signalling circuit
3A BS for signalling circuit[Uimp] rated impulse withstand voltage 6kVtime range 1…120 s – control type R-time
0.3…30 s – control type O-timelocal signalling 1 LED (green)
1 LED (red)control type automatic: resetconnections – terminals Signalling circuit: screw clamp terminals 1 12.5mm – cable stiffness: flexible with cable end
Signalling circuit: screw clamp terminals 1 12.5mm – cable stiffness: flexible without cable end
Signalling circuit: screw clamp terminals 2 12.5mm – cable stiffness: flexible with cable end
Signalling circuit: screw clamp terminals 2 12.5mm – cable stiffness: flexible without cable endtightening torque Signalling circuit: 1.7N.m M3.5height 70.3mmwidth 71mmdepth 77.2mmnet weight 0.192kgAdd to cartQuick View -
Add to cartQuick View
Schneider EasyPact (CAE31U5) 3NO + 1NC Control Relay 240 VAC
Model: CAE31U5
range EasyPactproduct name EasyPact TVSproduct or component type Control relaydevice short name CAEcontactor application Control circuitcolour Grey (RAL 7011)utilisation category AC-14
AC-15pole contact composition 3 NO + 1 NC[Ue] rated operational voltage <= 690 V ACcontrol circuit type AC at 50 Hz[Uc] control circuit voltage 240 V AC 50 Hz[Uimp] rated impulse withstand voltage 6kV conforming to IEC 60947[Ith] conventional free air thermal current 10A (at 40C)Irms rated making capacity 140A at 690 V AC conforming to IEC 60947-5-1[Icw] rated short-time withstand current 120A – 500 ms
140A – 100 msassociated fuse rating 10A gG at 690 V conforming to IEC 60947-5-1[Ui] rated insulation voltage 690V conforming to IEC 60947-5-1mounting support Plate
Railconnections – terminals Screw clamp terminals 1 12.5mm – cable stiffness: flexible without cable end
Screw clamp terminals 2 12.5mm – cable stiffness: flexible without cable end
Screw clamp terminals 1 12.5mm – cable stiffness: flexible with cable end
Screw clamp terminals 2 12.5mm – cable stiffness: flexible with cable end
Screw clamp terminals 1 12.5mm – cable stiffness: solid without cable end
Screw clamp terminals 2 12.5mm – cable stiffness: solid without cable endtightening torque 1.2N.m – on screw clamp terminals – with screwdriver Philips No 2control circuit voltage limits Operational: 0.85…1.1 Uc at 50 Hz
Drop-out: 0.3…0.6 Ucoperating time 4…19 ms coil energisation and NC opening
12…22 ms coil energisation and NO closing
4…12 ms coil de-energisation and NC opening
6…17 ms coil de-energisation and NO closingmechanical durability 10Mcyclesmaximum operating rate 180cyc/mninrush power in VA 70VA 50 Hz (at 20C)hold-in power consumption in VA 8VA 50 Hz (at 20C)minimum switching voltage 17Vminimum switching current 5mAnon-overlap time 1.5ms on energisation between NC and NO contact
1.5ms on de-energisation between NC and NO contactinsulation resistance > 10 MOhmmechanical robustness Shocks control relay open: 7 Gn for 11 ms
Shocks control relay closed: 10 Gn for 11 ms
Vibrations control relay open: 1.5 Gn, 5…300 Hz
Vibrations control relay closed: 3 Gn, 5…300 Hzheight 74mmwidth 45mmdepth 80mmnet weight 0.28kgAdd to cartQuick View -
Add to cartQuick View
ZAHRA RST 25 (3Phase) Sequence Relay
- Model Number: RST 25
- Place of Origin: Zhejiang, China
- Theory: Electromagnetic Relay
- Usage: Protective
- Size: Miniature
- Protect Feature: Sealed
- Contact Load: Low Power
Add to cartQuick View
