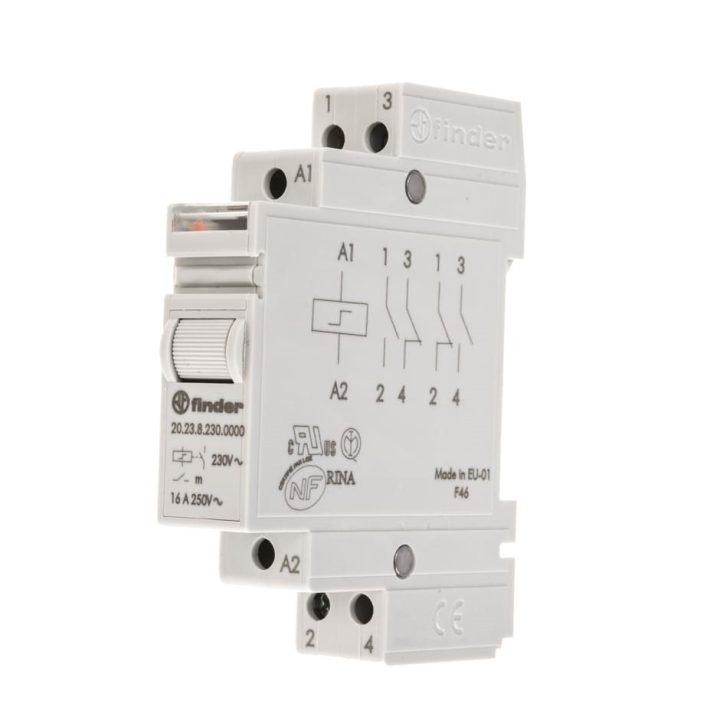

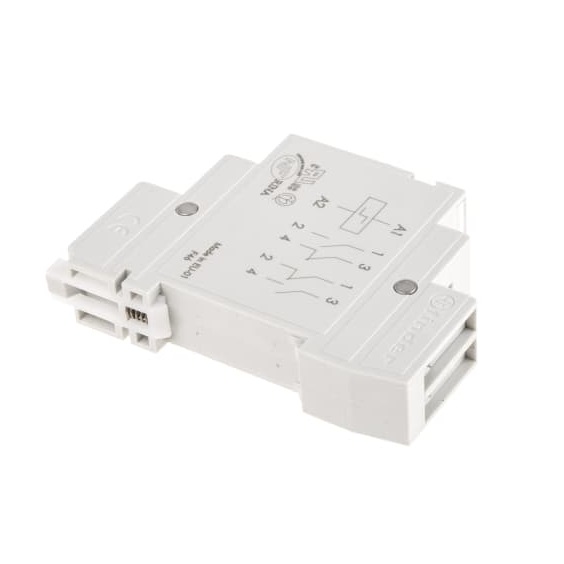

Finder (20.23) 16 Amp Latching (Step) Relay 230VAC (1NO+1NC)

Rs 6,700.00

Product: Latch (step) relay

Coil voltage: 230 vac (other voltage on request)

Contact configuration: DPST

Mounting type: DIN rail

Switching current: 16 Amp

Depth: 58.4 mm

Height: 84 mm

Terminal type: screw

Features: Mechanical Flag Indicator, Test Button

View cart


  • The Finder step relay is an AC powered double phase modular latching device with one NO and one NC contact and switching current 16A.
  • On each successive energization of the relay coil, this contacts change state thus providing a step or “flip flop” sequence of operation.
  • With the advantage of an override test button, it allows manual advancement of the step sequence and individual mechanical flags provide a visual indication of contact status.
