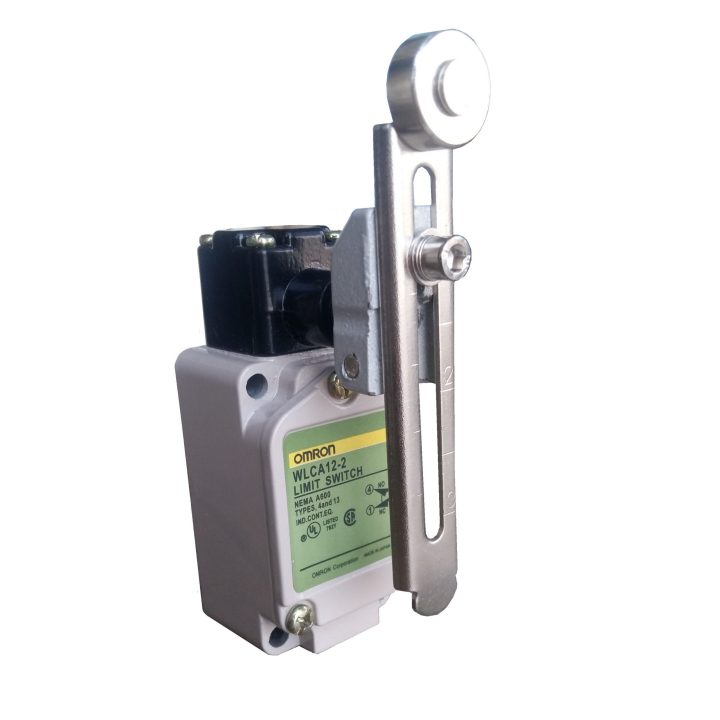

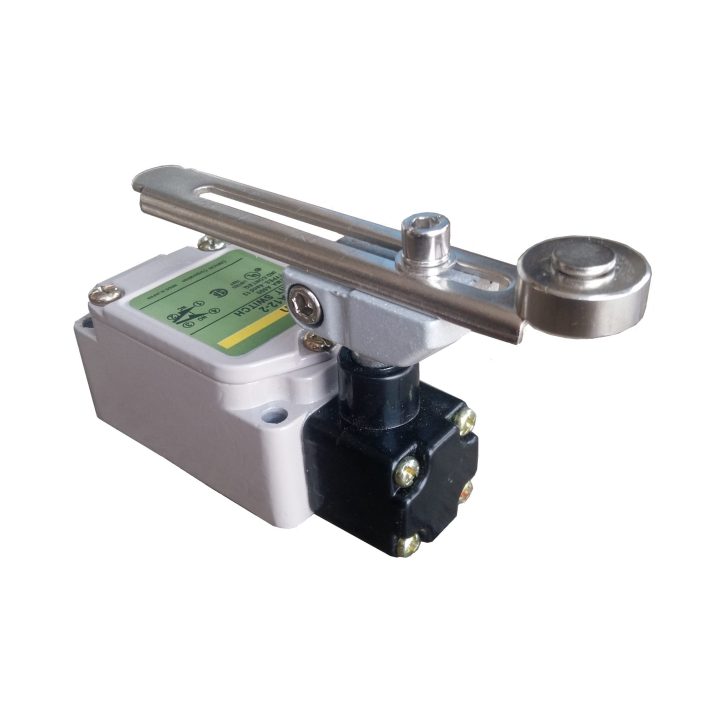

Omron Limit Switch WLCA12-2 (Wheel with Adjustable Lever Arm)

Rs 1,950.00

Product: limit switch

Model: WLCA12-2

Type: wheel with lever arm

Degree of protection : IP67

Durability (mechanical) : 15,000,000 operations min.

Rated voltage: 600v

Rated frequency : 50/60 Hz

Insulation resistance : 100 MO min. (at 500 VDC)

Ambient operating temperature : -10 to +80C (with no icing)

Ambient operating humidity : 35% to 95% RH

View cart


  • This is a power limit switch which features a compact design and a long mechanical life.
  • They have easy wiring with full open terminals and dust, water, oil proof construction.
  • A strong body with a combination of reinforced plastic and aluminium Die Casting components.
  • It is operated by the motion of a machine part or presence of an object.
  • The defining feature of it is that a relatively small movement at the actuator button produces a relatively large movement at the electrical contacts, which occurs at high speed (regardless of the speed of actuation).
  • click the image for full view.
