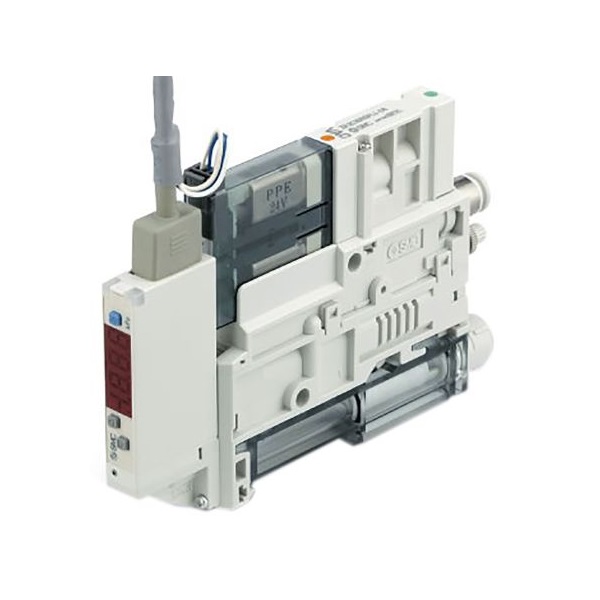

SMC (ZK2A12K5HL-08) Vacuum Ejector, 1.2mm nozzle , -91kPa 61L/mi

Rs 36,800.00


Attribute Value
Nozzle Diameter 1.2mm
Silencer Yes
Maximum Vacuum Pressure -91kPa
Maximum Input Pressure 0.6MPa
Maximum Suction Flow 61L/min
Maximum Operating Temperature 50C
Minimum Operating Temperature -5C
Inlet Port Size 8mm


  • Description
  • Reviews (0)


  • These vacuum unit from SMC has been developed for a market with an increasing demand for high performance and energy efficient vacuum technology.
  • The one piece design combines a pressure switch, control valves and vacuum ejector into one unit saving on weight and size and a two stage vacuum ejector to increase suction and reduce air consumption.
  • The ZK2 also features a 2-port dual release and supply valve to prevent work pieces from being dropped.

Features and Benefits

Easy to install
Simple to maintain
Reduced running costs
Highly flexible configuration
Excellent efficiency
Integrated pressure switch
Integrated supply and release valve
Normally closed supply and release valves

Pressure Sensor / Switch Options

The ZK2 is fitted a choice of 4 pressure sensor / pressure switch options,
-101 to 0 kPa Pressure sensor with a single 1 to 5 V output.
-100 to 100 kPa Pressure sensor with a single 1 to 5 V output.
-101 to 0 kPa Digital pressure switch with 2 NPN outputs and selectable units.
-100 to 100 kPa Digital pressure switch with a built-in energy saving function, 1 PNP output and selectable units.
