• Autonics (AT8N) Analogue Timer 8-pin (100-240 VAC, 24-240 VDC)

    0 out of 5

    Model:AT8N

    Operation method Time setting
    Output Operation POWER ON DELAY, FLICKER, INTERVAL
    Time operation POWER ON START
    Terminal 8-pin plug
    Power supply 100-240VAC~, 24-240VDC
    Setting range 0.05 to 0.5 sec, 0.1 to 1 sec, 0.5 to 5 sec, 1 to 10 sec, 0.05 to 0.5 min, 0.1 to 1 min, 0.5 to 5 min, 1 to 10 min, 0.05 to 0.5 hour, 0.1 to 1 hour, 0.5 to 5 hour, 1 to 10 hour, 5 to 50 hour, 10 to 100 hour
    Control output Time-limit SPDT (1c): 2 or Instantaneous SPDT (1c): 1 + Time-limit SPDT (1c): 1 depending on output operation mode
    Accessories Bracket
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH
    Weight Approx. 134.12g (approx. 86.71g)



    Rs 3,200.00
  • Autonics (AT8SDN) Analogue Timer 8-pin (100-240 VAC, 24-240 VDC)

    0 out of 5

    Model: AT8SDN

    Operation method Time setting
    Output Operation STAR-DELTA
    Time operation POWER ON START
    Terminal 8-pin plug
    Power supply 100-240VAC~, 24-240VDC
    Setting range 0.5 to 5 sec, 1 to 10 sec, 5 to 50 sec, 10 to 100 sec
    Control output STAR contact: SPST (1a): 1, DELTA contact: SPST (1a): 1
    Accessories Bracket
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH
    Weight Approx. 90g



    Rs 6,500.00
  • Autonics (ATE8-41) Analogue Timer 8-pin (100-240 VAC, 24-240 VDC)

    0 out of 5

    Model:ATE8-41

    Operation method Time setting
    Output Operation POWER ON DELAY
    Time operation POWER ON START
    Terminal 8-pin plug
    Power supply 100-240VAC~50/60Hz, 24-240VDC
    Setting range 0.1 to 1 sec, 1 to 10 sec, 0.1 to 1 min, 1 to 10 min, 0.1 to 1 hour
    Control output Time-limit SPDT (1c): 1, Instantaneous SPST (1a): 1
    Protection structure IP40(front panel)
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH
    Weight Approx. 122.2g(Approx. 75g)



    Rs 4,900.00
  • Autonics (ATS11-11D) Analogue Timer 11-pin (12 VDC)

    0 out of 5

    Model:ATS11-11D

    Operation method Time setting
    Output Operation SIGNAL ON DELAY, SIGNAL OFF DELAY, SIGNAL ON-OFF DELAY, FLICKER, INTERVAL
    Time operation SIGNAL ON START
    Terminal 11-pin plug
    Power supply 12VDC
    Setting range 0.1 to 1 sec, 1 to 10 sec, 0.1 to 1 min, 1 to 10 min, 0.1 to 1 hour, 1 to 10 hour
    Signal Input Method No-voltage input(NPN)
    Control output Time-limit SPDT (1c): 2
    Dimension W38 x H42 mm
    Min. signal Width START, INHIBIT, RESET: [No-voltage input] – Short-circuit impedance: Max. 1kΩ,
    Residual voltage: Max. 0.5V, Open-circuit impedance: Min. 100kΩ
    Accessories Bracket
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH
    Weight Approx. 95g (approx. 70g)



    Rs 3,200.00
  • Autonics (ATS11-13D) Analogue Timer 11-pin (12 VDC)

    0 out of 5

    Model:ATS11-13D

    Operation method Time setting
    Output Operation SIGNAL ON DELAY, SIGNAL OFF DELAY, SIGNAL ON-OFF DELAY, FLICKER, INTERVAL
    Time operation SIGNAL ON START
    Terminal 11-pin plug
    Power supply 12VDC
    Setting range 0.3 to 3 sec, 3 to 30 sec, 0.3 to 3 min, 3 to 30 min, 0.3 to 3 hour, 3 to 30 hour
    Signal Input Method No-voltage input(NPN)
    Control output Time-limit SPDT (1c): 2
    Dimension W38 x H42 mm
    Min. signal Width START, INHIBIT, RESET: [No-voltage input] – Short-circuit impedance: Max. 1kΩ,
    Residual voltage: Max. 0.5V, Open-circuit impedance: Min. 100kΩ
    Accessories Bracket
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH
    Weight Approx. 95g (approx. 70g)



    Rs 3,200.00
  • Autonics (ATS11-41D) Analogue Timer 11-pin (100-240 VAC, 24-240 VDC)

    0 out of 5

    Model:ATS11-41D

    Operation method Time setting
    Output Operation SIGNAL ON DELAY, SIGNAL OFF DELAY, SIGNAL ON-OFF DELAY, FLICKER, INTERVAL
    Time operation SIGNAL ON START
    Terminal 11-pin plug
    Power supply 100-240VAC~50/60Hz, 24-240VDC
    Setting range 0.1 to 1 sec, 1 to 10 sec, 0.1 to 1 min, 1 to 10 min, 0.1 to 1 hour, 1 to 10 hour
    Signal Input Method No-voltage input(NPN)
    Control output Time-limit SPDT (1c): 2
    Dimension W38 x H42 mm
    Min. signal Width START, INHIBIT, RESET: [No-voltage input] – Short-circuit impedance: Max. 1kΩ,
    Residual voltage: Max. 0.5V, Open-circuit impedance: Min. 100kΩ
    Accessories Bracket
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH
    Weight Approx. 95g (approx. 70g)



    Rs 3,200.00
  • Autonics (ATS11-43D) Analogue Timer 11-pin ( 100-240 VAC, 24-240 VDC )

    0 out of 5

    Model:ATS11-43D

    Operation method Time setting
    Output Operation SIGNAL ON DELAY, SIGNAL OFF DELAY, SIGNAL ON-OFF DELAY, FLICKER, INTERVAL
    Time operation SIGNAL ON START
    Terminal 11-pin plug
    Power supply 100-240VAC~50/60Hz, 24-240VDC
    Setting range 0.3 to 3 sec, 3 to 30 sec, 0.3 to 3 min, 3 to 30 min, 0.3 to 3 hour, 3 to 30 hour
    Signal Input Method No-voltage input(NPN)
    Control output Time-limit SPDT (1c): 2
    Dimension
    W38 x H42 mm
    Min. signal Width START, INHIBIT, RESET: [No-voltage input] – Short-circuit impedance: Max. 1kΩ,
    Residual voltage: Max. 0.5V, Open-circuit impedance: Min. 100kΩ
    Accessories Bracket
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH
    Weight Approx. 95g (approx. 70g)



    Rs 3,200.00
  • Autonics (ATS8-11) Analogue Timer 8-pin (12 VDC)

    0 out of 5

    Model: ATS8-11

    Operation method Time setting
    Output Operation POWER ON DELAY, FLICKER, INTERVAL
    Time operation POWER ON START
    Terminal 8-pin plug
    Power supply 12VDC
    Setting range 0.1 to 1 sec, 1 to 10 sec, 0.1 to 1 min, 1 to 10 min, 0.1 to 1 hour, 1 to 10 hour
    Control output Time-limit SPDT (1c): 2 or Instantaneous SPDT (1c): 1 + Time-limit SPDT (1c): 1 depending on output operation mode
    Dimension W38 x H42 mm
    Accessories Bracket
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH
    Weight Approx. 95g (approx. 70g)
    Rs 3,200.00
  • Autonics (ATS8-13) Analogue Timer 8-pin (12 VDC)

    0 out of 5

    Model:ATS8-13

    Operation method Time setting
    Output Operation POWER ON DELAY, FLICKER, INTERVAL
    Time operation POWER ON START
    Terminal 8-pin plug
    Power supply 12VDC
    Setting range 0.3 to 3 sec, 3 to 30 sec, 0.3 to 3 min, 3 to 30 min, 0.3 to 3 hour, 3 to 30 hour
    Control output Time-limit SPDT (1c): 2 or Instantaneous SPDT (1c): 1 + Time-limit SPDT (1c): 1 depending on output operation mode
    Dimension W38 x H42 mm
    Accessories Bracket
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH
    Weight Approx. 95g (approx. 70g)



    Rs 3,200.00
  • Autonics (ATS8-41) Analogue Timer 8-pin (100-240 VAC, 24-240 VDC)

    0 out of 5

    Model: ATS8-41

    Operation method Time setting
    Output Operation POWER ON DELAY, FLICKER, INTERVAL
    Time operation POWER ON START
    Terminal 8-pin plug
    Power supply 100-240VAC~50/60Hz, 24-240VDC
    Setting range 0.1 to 1 sec, 1 to 10 sec, 0.1 to 1 min, 1 to 10 min, 0.1 to 1 hour, 1 to 10 hour
    Control output Time-limit SPDT (1c): 2 or Instantaneous SPDT (1c): 1 + Time-limit SPDT (1c): 1 depending on output operation mode
    Dimension W38 x H42 mm
    Accessories Bracket
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH
    Weight Approx. 95g (approx. 70g)



    Rs 3,400.00
  • Autonics (ATS8-43) Analogue Timer 8-pin (100-240 VAC, 24-240 VDC)

    0 out of 5

    Model: ATS8-43

    Operation method Time setting
    Output Operation POWER ON DELAY, FLICKER, INTERVAL
    Time operation POWER ON START
    Terminal 8-pin plug
    Power supply 100-240VAC~50/60Hz, 24-240VDC
    Setting range 0.3 to 3 sec, 3 to 30 sec, 0.3 to 3 min, 3 to 30 min, 0.3 to 3 hour, 3 to 30 hour
    Control output Time-limit SPDT (1c): 2 or Instantaneous SPDT (1c): 1 + Time-limit SPDT (1c): 1 depending on output operation mode
    Dimension W38 x H42 mm
    Accessories Bracket
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH
    Weight Approx. 95g (approx. 70g)

    Rs 3,200.00
  • Autonics (CT4S-1P4) 4-Digit LED Digital Counter (100-240 VAC)

    0 out of 5

    Model:CT4S-1P4

    Display method 4-digit 7-segment LED
    Operation method Counter: Count up, Count down, Count up/down
    Timer: Count up, Count down
    Terminal Terminal block
    Output Operation SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME
    Power supply 100-240VAC~ 50/60Hz
    Time operation POWER ON START
    SIGNAL ON START
    External Power Supply Max. 12VDC10%, 100mA
    Signal Input Method Voltage input(PNP), No-voltage input(NPN)
    Max. Counting Speed 1, 30, 1k, 5k, 10k [cps]
    Min. signal Width 1ms/20ms
    Memory Protection Approx. 10 years
    Setting range 0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour
    Control output_Type 1-stage preset
    Control output_Relay SPDT (1c): 1
    Control output_NPN open collector 1
    Protection structure IP65(front panel)
    Dimension W48 x H48 mm
    Counter_Counting range -999 to 9999
    Counter_Scale Decimal point up to third digit
    Counter_Min. input signal width RESET: Selectable 1ms/20ms
    Timer_Min. input signal width INA, INH, RESET: Selectable 1ms/20ms
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Weight Approx. 212g (approx. 159g)



    Rs 15,000.00
  • Autonics (CT6M-1P4) 6-Digit Programmable Digital Counter

    0 out of 5



    Model CT6M-1P4
    Operation method Counter: Count up, Count down, Count up/down
    Timer: Count up, Count down
    Display method 6-digit 7-segment LED
    Output Operation SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME
    Power supply 100-240VAC~ 50/60Hz
    Time operation POWER ON START
    SIGNAL ON START
    External Power Supply Max. 12VDC @(=) 10%, 100mA
    Signal Input Method Voltage input(PNP), No-voltage input(NPN)
    Max. Counting Speed 1, 30, 1k, 5k, 10k [cps]
    Min. signal Width 1ms/20ms
    Memory Protection Approx. 10 years
    Setting range 0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour
    Control output_Type 1-stage preset
    Control output_Relay SPDT (1c): 1
    Control output_NPN open collector 2
    Protection structure IP65(front panel)
    Approval @(CE) @(CULUS)
    Counter_Counting range -99999 to 999999
    Counter_Scale Decimal point up to fifth digit
    Counter_Min. input signal width RESET: Selectable 1ms/20ms
    Timer_Min. input signal width INA, RESET, INHIBIT, BATCH, RESET: Selectable 1ms/20ms
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Weight Approx. 322g (approx. 252g)
    Rs 24,750.00
  • Autonics (CT6M-2P4) 6-Digit LED Digital Counter (100-240 VAC)

    0 out of 5

    Model:CT6M-2P4

    Display method 6-digit 7-segment LED
    Operation method Counter: Count up, Count down, Count up/down
    Timer: Count up, Count down
    Terminal Terminal block
    Output Operation SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME
    Power supply 100-240VAC~ 50/60Hz
    Time operation POWER ON START
    SIGNAL ON START
    External Power Supply Max. 12VDC10%, 100mA
    Signal Input Method Voltage input(PNP), No-voltage input(NPN)
    Max. Counting Speed 1, 30, 1k, 5k, 10k [cps]
    Min. signal Width 1ms/20ms
    Memory Protection Approx. 10 years
    Setting range 0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour
    Control output_Type 2-stage preset
    Control output_Relay SPST (1a): 1, SPDT (1c): 1
    Control output_NPN open collector 3
    Protection structure IP65(front panel)
    Dimension W72 x H72 mm
    Counter_Counting range -99999 to 999999
    Counter_Scale Decimal point up to fifth digit
    Counter_Min. input signal width RESET: Selectable 1ms/20ms
    Timer_Min. input signal width INA, RESET, INHIBIT, BATCH, RESET: Selectable 1ms/20ms
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Weight Approx. 322g (approx. 252g)



    Rs 22,000.00
  • Autonics (CT6S-1P4) 6-Digit LED Digital Counter (100-240 VAC)

    0 out of 5

    Model: CT6S-1P4

    Display method 6-digit 7-segment LED
    Operation method Counter: Count up, Count down, Count up/down
    Timer: Count up, Count down
    Terminal Terminal block
    Output Operation SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME
    Power supply 100-240VAC~ 50/60Hz
    Time operation POWER ON START
    SIGNAL ON START
    External Power Supply Max. 12VDC 10%, 100mA
    Signal Input Method Voltage input(PNP), No-voltage input(NPN)
    Max. Counting Speed 1, 30, 1k, 5k, 10k [cps]
    Min. signal Width 1ms/20ms
    Memory Protection Approx. 10 years
    Setting range 0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour
    Control output_Type 1-stage preset
    Control output_Relay SPDT (1c): 1
    Control output_NPN open collector 1
    Protection structure IP65(front panel)
    Dimension W48 x H48 mm
    Counter_Counting range -99999 to 999999
    Counter_Scale Decimal point up to fifth digit
    Counter_Min. input signal width RESET: Selectable 1ms/20ms
    Timer_Min. input signal width INA, INH, RESET: Selectable 1ms/20ms
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Weight Approx. 212g (approx. 159g)



    Rs 19,000.00
  • Autonics (CT6S-2P2) 6-Digit Multi Functional Digital Counter

    0 out of 5



    Model CT6S-2P2
    Operation method Counter: Count up, Count down, Count up/down
    Timer: Count up, Count down
    Display method 6-digit 7-segment LED
    Output Operation SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME
    Power supply 24VAC~ 50/60Hz, 24-48VDC @(=)
    Time operation POWER ON START
    SIGNAL ON START
    External Power Supply Max. 12VDC @(=) 10%, 100mA
    Signal Input Method Voltage input(PNP), No-voltage input(NPN)
    Max. Counting Speed 1, 30, 1k, 5k, 10k [cps]
    Min. signal Width 1ms/20ms
    Memory Protection Approx. 10 years
    Setting range 0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour
    Control output_Type 2-stage preset
    Control output_Relay SPST (1a): 2
    Control output_NPN open collector 1
    Protection structure IP65(front panel)
    Approval @(CE) @(CULUS)
    Counter_Counting range -99999 to 999999
    Counter_Scale Decimal point up to fifth digit
    Counter_Min. input signal width RESET: Selectable 1ms/20ms
    Timer_Min. input signal width INA, INH, RESET: Selectable 1ms/20ms
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Terminal terminal blocks



    Rs 24,850.00
  • Autonics (CT6S-2P4) 6-Digit LED Digital Counter (100-240 VAC)

    0 out of 5

    Model:CT6S-2P4

    Display method 6-digit 7-segment LED
    Operation method Counter: Count up, Count down, Count up/down
    Timer: Count up, Count down
    Terminal Terminal block
    Output Operation SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME
    Power supply 100-240VAC~ 50/60Hz
    Time operation POWER ON START
    SIGNAL ON START
    External Power Supply Max. 12VDC 10%, 100mA
    Signal Input Method Voltage input(PNP), No-voltage input(NPN)
    Max. Counting Speed 1, 30, 1k, 5k, 10k [cps]
    Min. signal Width 1ms/20ms
    Memory Protection Approx. 10 years
    Setting range 0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour
    Control output_Type 2-stage preset
    Control output_Relay SPST (1a): 2
    Control output_NPN open collector 1
    Protection structure IP65(front panel)
    Dimension W48 x H48 mm
    Counter_Counting range -99999 to 999999
    Counter_Scale Decimal point up to fifth digit
    Counter_Min. input signal width RESET: Selectable 1ms/20ms
    Timer_Min. input signal width INA, INH, RESET: Selectable 1ms/20ms
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Weight Approx. 212g (approx. 159g)



    Rs 19,500.00
  • Autonics (CT6Y-1P4) 6-Digit Counter/Timer

    0 out of 5



    Model CT6Y-1P4
    Operation method Counter: Count up, Count down, Count up/down
    Timer: Count up, Count down
    Display method 6-digit 7-segment
    Output Operation SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME
    Power supply 100-240VAC~ 50/60Hz
    Time operation POWER ON START
    SIGNAL ON START
    External Power Supply Max. 12VDC @(=) 10%, 100mA
    Signal Input Method Voltage input(PNP), No-voltage input(NPN)
    Max. Counting Speed 1, 30, 1k, 5k, 10k [cps]
    Min. signal Width 1ms/20ms
    Memory Protection Approx. 10 years
    Setting range 0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour
    Control output_Type 1-stage preset
    Control output_Relay SPDT (1c): 1
    Control output_NPN open collector 1
    Protection structure IP65(front panel)
    Approval @(CE) @(CULUS)
    Counter_Counting range -99999 to 999999
    Counter_Scale Decimal point up to fifth digit
    Counter_Min. input signal width RESET: Selectable 1ms/20ms
    Timer_Min. input signal width INA, INH, RESET: Selectable 1ms/20ms
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Terminal terminal blocks



    Rs 20,750.00
  • Autonics (FX4H-1P4) Counter, Timer

    0 out of 5

    Model: FX4H-1P4

    Display method 4-digit 7-segment LED
    Operation method Counter: Count up, Count down, Count up/down
    Timer: Count up, Count down
    Terminal Terminal block
    Output Operation POWER ON DELAY, FLICKER
    Power supply 100-240VAC~ 50/60Hz
    Time operation POWER ON START
    External Power Supply Max. 12VDC 10% 50mA
    Signal Input Method Voltage input(PNP), No-voltage input(NPN)
    Max. Counting Speed 1, 30, 2k, 5k [cps]
    Min. signal Width 20ms
    Memory Protection Approx. 10 years
    Setting range 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 99 hour 59 min, 0.1 hour to 999.9 hour, 1 hour to 9999 hour
    Control output_Type 1-stage preset
    Control output_Relay SPDT (1c): 1
    Control output_NPN open collector 1
    Protection structure IP20(front panel)
    Dimension 48 x 96 mm
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Weight Approx. 245g (approx. 180g)



    Rs 12,500.00
  • Autonics (FX4H-2P4) Counter, Timer

    0 out of 5

    Model: FX4H-2P4

    Display method 4-digit 7-segment LED
    Operation method Counter: Count up, Count down, Count up/down
    Timer: Count up, Count down
    Terminal Terminal block
    Output Operation POWER ON DELAY, FLICKER
    Power supply 100-240VAC~ 50/60Hz
    Time operation POWER ON START
    External Power Supply Max. 12VDC10% 50mA
    Signal Input Method Voltage input(PNP), No-voltage input(NPN)
    Max. Counting Speed 1, 30, 2k, 5k [cps]
    Min. signal Width 20ms
    Memory Protection Approx. 10 years
    Setting range 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 99 hour 59 min, 0.1 hour to 999.9 hour, 1 hour to 9999 hour
    Control output_Type 2-stage preset
    Control output_Relay SPDT (1c): 2
    Control output_NPN open collector 2
    Protection structure IP20(front panel)
    Dimension 48 x 96 mm
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Weight Approx. 265g (approx. 200g)



    Rs 12,500.00
  • Autonics (FX4M-1P4) Counter and Timer

    0 out of 5

    Model:FX4M-1P4

    Display method 4-digit 7-segment LED
    Operation method Counter: Count up, Count down, Count up/down
    Timer: Count up, Count down
    Terminal Terminal block
    Output Operation POWER ON DELAY, FLICKER
    Power supply 100-240VAC~ 50/60Hz
    Time operation POWER ON START
    External Power Supply Max. 12VDC10% 50mA
    Signal Input Method Voltage input(PNP), No-voltage input(NPN)
    Max. Counting Speed 1, 30, 2k, 5k [cps]
    Min. signal Width 20ms
    Memory Protection Approx. 10 years
    Setting range 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 99 hour 59 min, 0.1 hour to 999.9 hour, 1 hour to 9999 hour
    Control output_Type 1-stage preset
    Control output_Relay SPDT (1c): 1
    Control output_NPN open collector 1
    Protection structure IP20(front panel)
    Dimension 72 x 72 mm
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Weight Approx. 245g (approx. 180g)



    Rs 12,500.00
  • Autonics (FX4M-2P4) Counter, Timer

    0 out of 5

    Model:FX4M-2P4

    Display method 4-digit 7-segment LED
    Operation method Counter: Count up, Count down, Count up/down
    Timer: Count up, Count down
    Terminal Terminal block
    Output Operation POWER ON DELAY, FLICKER
    Power supply 100-240VAC~ 50/60Hz
    Time operation POWER ON START
    External Power Supply Max. 12VDC10% 50mA
    Signal Input Method Voltage input(PNP), No-voltage input(NPN)
    Max. Counting Speed 1, 30, 2k, 5k [cps]
    Min. signal Width 20ms
    Memory Protection Approx. 10 years
    Setting range 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 99 hour 59 min, 0.1 hour to 999.9 hour, 1 hour to 9999 hour
    Control output_Type 2-stage preset
    Control output_Relay SPDT (1c): 2
    Control output_NPN open collector 2
    Protection structure IP20(front panel)
    Dimension 72 x 72 mm
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Weight Approx. 265g (approx. 200g)



    Rs 22,000.00
  • Autonics (L8A) 8-Digit Digital Counter

    0 out of 5

    Product: digital counter meter

    Model: L8A

    Brand: Autonics

    Digit: 8

    Power supply: 100-240 VAC

    Max. counting speed: 1 cps/3o cps/ 2 kcps/ 5kcps

    8 digits counter: Selectable Up, Down, Up/Down mode

    Selectable voltage input(PNP) or no-voltage input(NPN)

    Decimal point setting(Fixed decimal point of display)

    Rs 16,350.00
  • Autonics (LA8N-BF) 8-Digit LCD Digital Counter Built-in-Battery

    0 out of 5
    • Model: LA8N-BF
    • Brand: Autonics
    • Display method 8-digit 7-segment LCD
    • Operation method: Count up
    • Terminal: Terminal block
    • Power supply: Built-in battery(over 7 years)
    • Input Method_Signal: Free voltage input
    • Input Method_Reset: No-voltage input(NPN)
    • Max. Counting Speed: 20 [cps]
    • Min. signal Width: 20ms
    • Control output: Indicator
    • Protection structure: IP66(front panel)
    • Approval: @(CE) @(CULUS)
    • Accessories: Mounting bracket, Rubber waterproof ring
    • Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
    • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
    Rs 11,350.00
  • Autonics (LA8N-BN) 8-Digit LCD Digital Counter Built-in-Battery

    0 out of 5

    Model: LA8N-BN

    Display method 8-digit 7-segment LCD
    Operation method Count up, Count down, Count up/down
    Terminal Terminal block
    Power supply Built-in battery(over 7 years)
    Input Method_Signal No-voltage input(NPN)
    Input Method_Reset No-voltage input(NPN)
    Max. Counting Speed 1, 30, 1k [cps]
    Min. signal Width 20ms
    Control output Indicator
    Protection structure IP66(front panel)
    Dimension 48mm *24 mm
    Accessories Mounting bracket, Rubber waterproof ring
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Weight Approx. 96g (approx. 50g)



    Rs 8,500.00
  • Autonics (LE365S-41) Timer

    0 out of 5

    Model:LE365S-41

    Number Of Setting Steps Weekly 48 steps, Yearly 24 steps
    Operation method Time setting
    Output Operation ON/OFF, CYCLE, PULSE
    Terminal Terminal block
    Power supply 100-240VAC~ 50/60Hz
    Memory Protection Approx. 5 years
    Control output_Relay SPST (1a): 1
    Time/Month deviation 15 sec/month
    Time deviation 15sec/month (ambient temperature: 25℃) (4sec/week)
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH
    Dimension 48 x 48 mm



    Rs 19,000.00
  • Autonics (LE3SB) On Delay Digital Timer

    0 out of 5

    Model: LE3SB

    Display method 3-digit 7-segment LCD
    Operation method Count up, Count down
    Output Operation POWER ON DELAY
    Time operation POWER ON DELAY
    Terminal 8-pin plug
    Power supply 24-240VAC~, 24-240VDC
    Setting range 0.01 sec to 9.99 sec, 0.1 sec to 99.9 sec, 1 sec to 999 sec, 0.1 min to 99.9 min, 1 min to 999 min, 0.1 hour to 99.9 hour, 1 hour to 999 hour, 10 hour to 9990 hour, 0 min 01 sec to 9 min 59 sec, 0 hour 01 min to 9 hour 59 min
    Control output_Relay Time-limit SPDT (1c): 1, Instantaneous SPDT (1c): 1
    Dimension 48 x 48 mm
    Accessories Bracket
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH
    Weight Approx. 105g
    Rs 8,000.00
  • Autonics (LE7M-2) Digital Time Switch

    0 out of 5
    Model:LE7M-2
    Number Of Setting Steps Weekly 48 steps, Yearly 24 steps
    Operation method Time setting
    Output Operation ON/OFF, CYCLE, PULSE
    Terminal Terminal block
    Power supply 100-240VAC~ 50/60Hz
    Memory Protection Approx. 5 years
    Control output_Relay SPDT (1c): 2
    Time/Month deviation 15 sec/month
    Time deviation 15sec/month (ambient temperature: 25℃) (4sec/week)
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH
    Dimension 72 x 72 mm

    Rs 24,000.00
  • Autonics (LE8N-BF) 8-Digit Digital Timer

    0 out of 5

    Model: LE8N-BF

    Display method 8-digit 7-segment LCD
    Operation method Count up
    Time operation POWER ON START
    Terminal Terminal block
    Power supply Built-in battery(over 10 years)
    Setting range 0.01 sec to 9999 hour 59 min 59 sec, 0.1 min to 99999 hour 59.9 min, 1 min to 999999 hour 59 min, 1 min to 9999 day 23 hour 59 min, 0.1 hour to 9999 day 23.9 hour, 1 sec to 99999999 sec, 0.1 min to 9999 hour 59.9 min, 1 min to 99999 hour 59 min, 0.1 hour
    Input Method_Signal Free voltage input
    Input Method_Reset No-voltage input(NPN)
    Control output Indicator
    Protection structure IP66(front panel)
    Dimension 48 x 24 mm
    Min. signal Width SIGNAL, RESET input: Approx. 20ms
    External set switch SW1, SW2, SW3
    Accessories Mounting bracket, Rubber waterproof ring
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH
    Weight Approx. 96g (approx. 50g)



    Rs 8,200.00
  • Autonics (LE8N-BN) 8-Digit Digital Timer

    0 out of 5

    Model:LE8N-BN

    Display method 8-digit 7-segment LCD
    Operation method Count up
    Time operation POWER ON START
    Terminal Terminal block
    Power supply Built-in battery(over 10 years)
    Setting range 0.01 sec to 9999 hour 59 min 59 sec, 0.1 min to 99999 hour 59.9 min, 1 min to 999999 hour 59 min, 1 min to 9999 day 23 hour 59 min, 0.1 hour to 9999 day 23.9 hour, 1 sec to 99999999 sec, 0.1 min to 9999 hour 59.9 min, 1 min to 99999 hour 59 min, 0.1 hour
    Input Method_Signal No-voltage input(NPN)
    Input Method_Reset No-voltage input(NPN)
    Control output Indicator
    Protection structure IP66(front panel)
    Dimension 48 x 24 mm
    Min. signal Width SIGNAL, RESET input: Approx. 20ms
    External set switch SW1, SW2, SW3
    Accessories Mounting bracket, Rubber waterproof ring
    Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH
    Weight Approx. 96g (approx. 50g)



    Rs 8,200.00

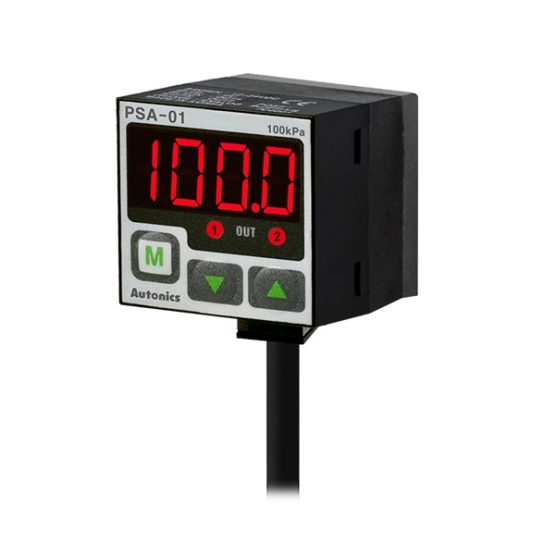

  • Autonics (PSA-01-RC1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSA-01-RC1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting(3-direction)
    Pressure port Rc(PT)1/8
    Connection type Cable type(cable type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0.0 to 100.0kPa
    Display pressure unit kPa, kgf/cm, bar, psi
    Control output_NPN open collector NPN open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Max. 50mA
    Protection structure IP40
    Appearance Square (30 mm x 30 mm)
    Control output_Hysteresis 1-digit fixed(2-digit for psi unit)
    Control output_Repeat error 0.2% F.S. 1-digit
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Material Front, Rear case: Polycarbonate(insert glass), Pressure port: die-cast(Zn)
    Weight Approx. 200g(approx. 120g)



    Rs 19,500.00

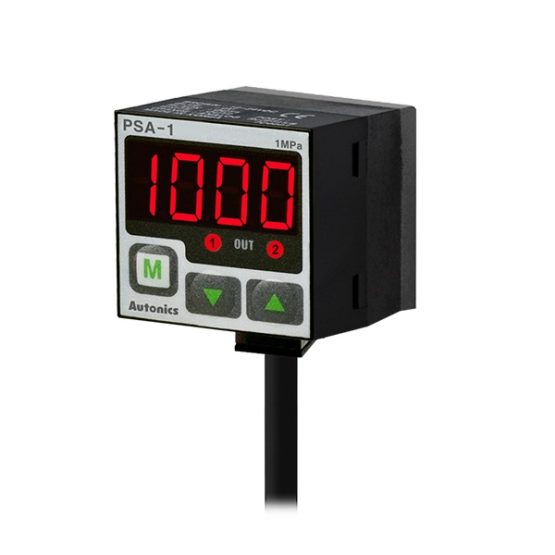

  • Autonics (PSA-1-NPT1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model: PSA-1-NPT1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting(3-direction)
    Pressure port NPT1/8
    Connection type Cable type(cable type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0 to 1,000kPa
    Display pressure unit kPa, kgf/cm, bar, psi
    Control output_NPN open collector NPN open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Max. 50mA
    Protection structure IP40
    Appearance Square (30 mm x 30 mm)
    Control output_Hysteresis 1-digit fixed(2-digit for psi unit)
    Control output_Repeat error 0.2% F.S. 1-digit
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Material Front, Rear case: Polycarbonate(insert glass), Pressure port: die-cast(Zn)
    Weight Approx. 200g(approx. 120g)



    Rs 19,500.00
  • Autonics (PSA-1-RC1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSA-1-RC1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting(3-direction)
    Pressure port Rc(PT)1/8
    Connection type Cable type(cable type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0 to 1,000kPa
    Display pressure unit kPa, kgf/cm, bar, psi
    Control output_NPN open collector NPN open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Max. 50mA
    Protection structure IP40
    Control output_Hysteresis 1-digit fixed(2-digit for psi unit)
    Control output_Repeat error 0.2% F.S. 1-digit
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Material Front, Rear case: Polycarbonate(insert glass), Pressure port: die-cast(Zn)
    Weight Approx. 200g(approx. 120g)
    Rs 19,500.00
  • Autonics (PSA-1P-NPT1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSA-1P-NPT1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting(3-direction)
    Pressure port NPT1/8
    Connection type Cable type(cable type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0 to 1,000kPa
    Display pressure unit kPa, kgf/cm, bar, psi
    Control output_PNP open collector PNP open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Max. 50mA
    Protection structure IP40
    Control output_Hysteresis 1-digit fixed(2-digit for psi unit)
    Control output_Repeat error 0.2% F.S. 1-digit
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Material Front, Rear case: Polycarbonate(insert glass), Pressure port: die-cast(Zn)
    Weight Approx. 200g(approx. 120g)



    Rs 19,500.00
  • Autonics (PSA-1P-RC1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model: PSA-1P-RC1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting(3-direction)
    Pressure port Rc(PT)1/8
    Connection type Cable type(cable type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0 to 1,000kPa
    Display pressure unit kPa, kgf/cm, bar, psi
    Control output_PNP open collector PNP open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Max. 50mA
    Protection structure IP40
    Control output_Hysteresis 1-digit fixed(2-digit for psi unit)
    Control output_Repeat error 0.2% F.S. 1-digit
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Material Front, Rear case: Polycarbonate(insert glass), Pressure port: die-cast(Zn)
    Weight Approx. 200g(approx. 120g)



    Rs 19,500.00
  • Autonics (PSA-C01-NPT1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSA-C01-NPT1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting(3-direction)
    Pressure port NPT1/8
    Connection type Cable type(cable type cable: 2m)
    Pressure type Compound pressure
    Rated pressure range -100.0 to 100.0kPa
    Display pressure unit kPa, kgf/cm, bar, psi, mmHg, inHg, mmH₂O
    Control output_NPN open collector NPN open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Max. 50mA
    Protection structure IP40
    Appearance Square (30 mm x 30 mm)
    Control output_Hysteresis 2-digit fixed
    Control output_Repeat error 0.2% F.S. 2-digit
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Material Front, Rear case: Polycarbonate(insert glass), Pressure port: die-cast(Zn)
    Weight Approx. 200g(approx. 120g)



    Rs 19,500.00

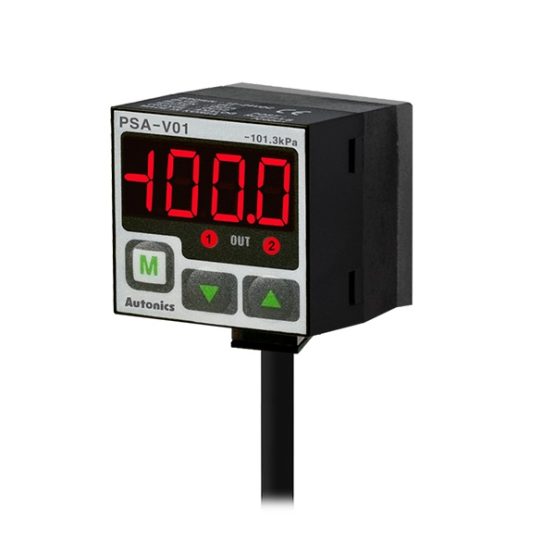

  • Autonics (PSA-V01-RC1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model: PSA-V01-RC1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting(3-direction)
    Pressure port Rc(PT)1/8
    Connection type Cable type(cable type cable: 2m)
    Pressure type Negative pressure
    Rated pressure range 0.0 to -101.3kPa
    Display pressure unit kPa, kgf/cm, bar, psi, mmHg, inHg, mmH₂O
    Control output_NPN open collector NPN open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Max. 50mA
    Protection structure IP40
    Appearance Square (30 mm x 30 mm)
    Control output_Hysteresis 1-digit fixed(2-digit for psi unit)
    Control output_Repeat error 0.2% F.S. 1-digit
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Material Front, Rear case: Polycarbonate(insert glass), Pressure port: die-cast(Zn)
    Weight Approx. 200g(approx. 120g)



    Rs 19,500.00

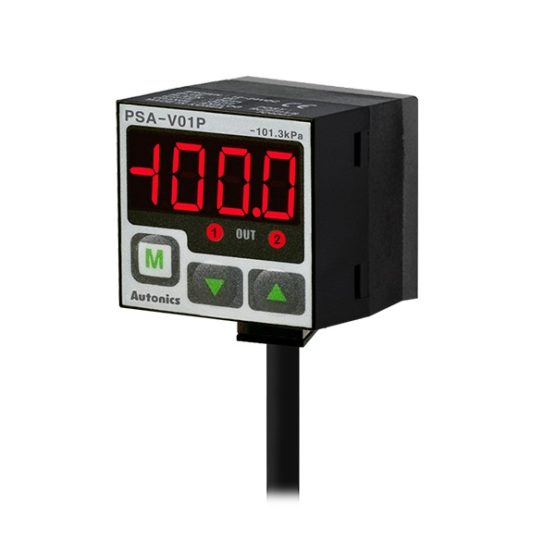

  • Autonics (PSA-V01P-NPT1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSA-V01P-NPT1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting(3-direction)
    Pressure port NPT1/8
    Connection type Cable type(cable type cable: 2m)
    Pressure type Negative pressure
    Rated pressure range 0.0 to -101.3kPa
    Display pressure unit kPa, kgf/cm, bar, psi, mmHg, inHg, mmH₂O
    Control output_PNP open collector PNP open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Max. 50mA
    Protection structure IP40
    Appearance
    Square (30 mm x 30 mm)
    Control output_Hysteresis 1-digit fixed(2-digit for psi unit)
    Control output_Repeat error 0.2% F.S. 1-digit
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Material Front, Rear case: Polycarbonate(insert glass), Pressure port: die-cast(Zn)
    Weight Approx. 200g(approx. 120g)



    Rs 19,500.00

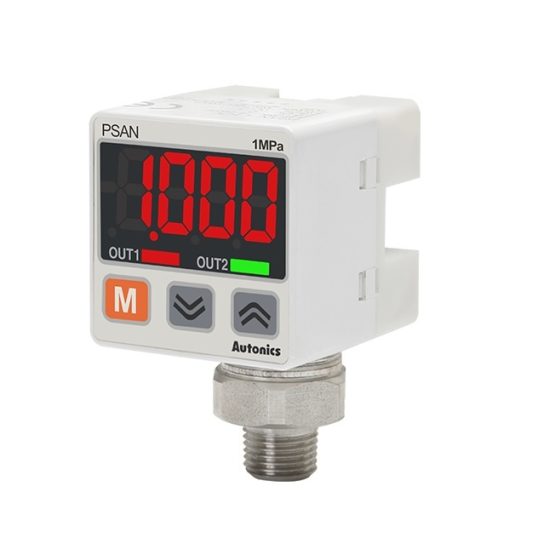

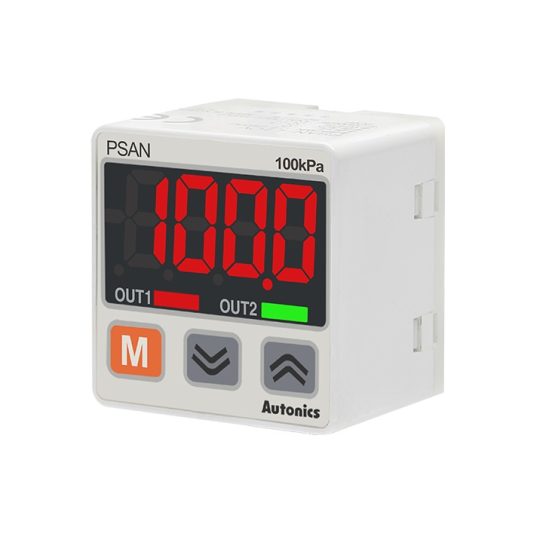

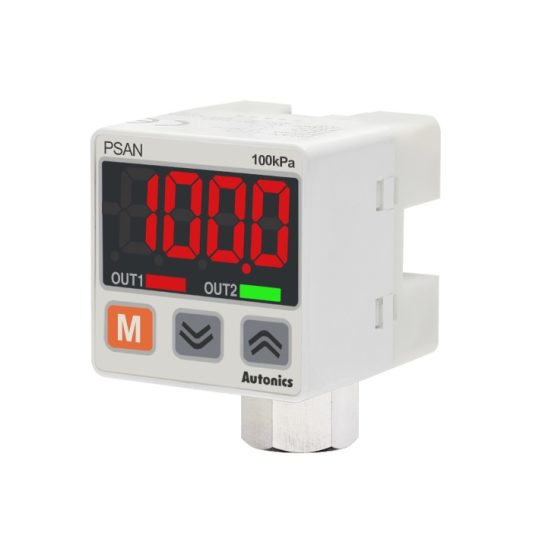

  • Autonics (PSAN-01CA-RC1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model: PSAN-01CA-RC1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting
    Pressure port Rc1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0.0 to 100.0kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_NPN open collector NPN open collector
    Option input/output Current output(DC4-20mA)
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass
    Weight Approx. 165g(approx. 80g)



    Rs 20,500.00
  • Autonics (PSAN-01CH-RC1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-01CH-RC1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting
    Pressure port Rc1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0.0 to 100.0kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_NPN open collector NPN open collector
    Option input/output Hold/Auto shift input
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass
    Weight Approx. 165g(approx. 80g)



    Rs 20,500.00
  • Autonics (PSAN-01CPA-RC1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-01CPA-RC1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting
    Pressure port Rc1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0.0 to 100.0kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_PNP open collector PNP open collector
    Option input/output Current output(DC4-20mA)
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass
    Weight Approx. 165g(approx. 80g)



    Rs 20,500.00
  • Autonics (PSAN-01CPH-RC1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model: PSAN-01CPH-RC1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting
    Pressure port Rc1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0.0 to 100.0kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_PNP open collector PNP open collector
    Option input/output Hold/Auto shift input
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass
    Weight Approx. 165g(approx. 80g)



    Rs 20,500.00
  • Autonics (PSAN-01CPV-RC1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-01CPV-RC1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting
    Pressure port Rc1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0.0 to 100.0kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_PNP open collector PNP open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass
    Weight Approx. 165g(approx. 80g)



    Rs 20,500.00
  • Autonics (PSAN-01CV-RC1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-01CV-RC1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting
    Pressure port Rc1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0.0 to 100.0kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_NPN open collector NPN open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass
    Weight Approx. 165g(approx. 80g)



    Rs 20,500.00
  • Autonics (PSAN-1CA-RC1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-1CA-RC1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting
    Pressure port Rc1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0 to 1,000kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_NPN open collector NPN open collector
    Option input/output Current output(DC4-20mA)
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass
    Weight Approx. 165g(approx. 80g)



    Rs 20,500.00
  • Autonics (PSAN-1CH-RC1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-1CH-RC1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting
    Pressure port Rc1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0 to 1,000kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_NPN open collector NPN open collector
    Option input/output Hold/Auto shift input
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass
    Weight Approx. 165g(approx. 80g)



    Rs 20,500.00
  • Autonics (PSAN-1CPA-NPT1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-1CPA-NPT1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting
    Pressure port NPT1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0 to 1,000kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_PNP open collector PNP open collector
    Option input/output Current output(DC4-20mA)
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass
    Weight Approx. 165g(approx. 80g)



    Rs 20,500.00
  • Autonics (PSAN-1CPA-RC1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-1CPA-RC1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting
    Pressure port Rc1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0 to 1,000kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_PNP open collector PNP open collector
    Option input/output Current output(DC4-20mA)
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass
    Weight Approx. 165g(approx. 80g)



    Rs 20,500.00
  • Autonics (PSAN-1CPH-RC1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-1CPH-RC1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting
    Pressure port Rc1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0 to 1,000kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_PNP open collector PNP open collector
    Option input/output Hold/Auto shift input
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass
    Weight Approx. 165g(approx. 80g)



    Rs 20,500.00
  • Autonics (PSAN-1CPV-RC1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-1CPV-RC1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting
    Pressure port Rc1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0 to 1,000kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_PNP open collector PNP open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass
    Weight Approx. 165g(approx. 80g)



    Rs 20,500.00
  • Autonics (PSAN-1CV-NPT1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-1CV-NPT1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting
    Pressure port NPT1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0 to 1,000kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_NPN open collector NPN open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass
    Weight Approx. 165g(approx. 80g)



    Rs 20,500.00
  • Autonics (PSAN-1CV-RC1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-1CV-RC1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting
    Pressure port Rc1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0 to 1,000kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_NPN open collector NPN open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass
    Weight Approx. 165g(approx. 80g)



    Rs 20,500.00
  • Autonics (PSAN-C01CA-RC1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-C01CA-RC1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting
    Pressure port Rc1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Compound pressure
    Rated pressure range -101.3 to 100.0kPa
    Display pressure unit kPa, kgf/cm, bar, psi, mmHg, inHg, mmH₂O
    Control output_NPN open collector NPN open collector
    Option input/output Current output(DC4-20mA)
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass
    Weight Approx. 165g(approx. 80g)



    Rs 20,500.00
  • Autonics (PSAN-C01CH-RC1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-C01CH-RC1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting
    Pressure port Rc1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Compound pressure
    Rated pressure range -101.3 to 100.0kPa
    Display pressure unit kPa, kgf/cm, bar, psi, mmHg, inHg, mmH₂O
    Control output_NPN open collector NPN open collector
    Option input/output Hold/Auto shift input
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass
    Weight Approx. 165g(approx. 80g)



    Rs 20,500.00
  • Autonics (PSAN-C01CPA-RC1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-C01CPA-RC1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting
    Pressure port Rc1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Compound pressure
    Rated pressure range -101.3 to 100.0kPa
    Display pressure unit kPa, kgf/cm, bar, psi, mmHg, inHg, mmH₂O
    Control output_PNP open collector PNP open collector
    Option input/output Current output(DC4-20mA)
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass
    Weight Approx. 165g(approx. 80g)



    Rs 20,500.00
  • Autonics (PSAN-C01CPH-RC1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-C01CPH-RC1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting
    Pressure port Rc1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Compound pressure
    Rated pressure range -101.3 to 100.0kPa
    Display pressure unit kPa, kgf/cm, bar, psi, mmHg, inHg, mmH₂O
    Control output_PNP open collector PNP open collector
    Option input/output Hold/Auto shift input
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass
    Weight Approx. 165g(approx. 80g)



    Rs 20,500.00
  • Autonics (PSAN-C01CPV-RC1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-C01CPV-RC1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting
    Pressure port Rc1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Compound pressure
    Rated pressure range -101.3 to 100.0kPa
    Display pressure unit kPa, kgf/cm, bar, psi, mmHg, inHg, mmH₂O
    Control output_PNP open collector PNP open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass
    Weight Approx. 165g(approx. 80g)



    Rs 20,500.00
  • Autonics (PSAN-C01CV-RC1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-C01CV-RC1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting
    Pressure port Rc1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Compound pressure
    Rated pressure range -101.3 to 100.0kPa
    Display pressure unit kPa, kgf/cm, bar, psi, mmHg, inHg, mmH₂O
    Control output_NPN open collector NPN open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass
    Weight Approx. 165g(approx. 80g)



    Rs 20,500.00
  • Autonics (PSAN-D01CPV-NPT1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5
    Model:PSAN-D01CPV-NPT1/8
    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Bottom fitting
    Pressure port NPT1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0.0 to 100.0kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_PNP open collector PNP open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate Rear case: Polybutylene Terephthalate + Glass Fiber 15%, Pressure port: Nickel Plated Brass
    Weight Approx. 170g (approx. 85g)
    Rs 20,500.00
  • Autonics (PSAN-D01CPV-Rc1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-D01CPV-Rc1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Bottom fitting
    Pressure port Rc1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0.0 to 100.0kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_PNP open collector PNP open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate Rear case: Polybutylene Terephthalate + Glass Fiber 15%, Pressure port: Nickel Plated Brass
    Weight Approx. 170g (approx. 85g)



    Rs 20,500.00
  • Autonics (PSAN-D01CV-NPT1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-D01CV-NPT1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Bottom fitting
    Pressure port NPT1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0.0 to 100.0kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_NPN open collector NPN open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate Rear case: Polybutylene Terephthalate + Glass Fiber 15%, Pressure port: Nickel Plated Brass
    Weight Approx. 170g (approx. 85g)



    Rs 20,500.00
  • Autonics (PSAN-D01CV-Rc1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model: PSAN-D01CV-Rc1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Bottom fitting
    Pressure port Rc1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0.0 to 100.0kPa
    Display pressure unit kPa, kgf/cm, bar, psi, mmHg, inHg, mmH₂O
    Control output_NPN open collector NPN open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass
    Weight Approx. 165g(approx. 80g)



    Rs 20,500.00
  • Autonics (PSAN-D1CPV-NPT1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-D1CPV-NPT1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Bottom fitting
    Pressure port NPT1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0 to 1,000kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_PNP open collector PNP open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate Rear case: Polybutylene Terephthalate + Glass Fiber 15%, Pressure port: Nickel Plated Brass
    Weight Approx. 170g (approx. 85g)



    Rs 20,500.00
  • Autonics (PSAN-D1CPV-Rc1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5
    Model: PSAN-D1CPV-Rc1/8)
    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Bottom fitting
    Pressure port Rc1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0 to 1,000kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_PNP open collector PNP open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate Rear case: Polybutylene Terephthalate + Glass Fiber 15%, Pressure port: Nickel Plated Brass
    Weight Approx. 170g (approx. 85g)
    Rs 20,500.00
  • Autonics (PSAN-D1CV-NPT1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5
    Model:PSAN-D1CV-NPT1/8
    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Bottom fitting
    Pressure port NPT1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0 to 1,000kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_NPN open collector NPN open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate Rear case: Polybutylene Terephthalate + Glass Fiber 15%, Pressure port: Nickel Plated Brass
    Weight Approx. 170g (approx. 85g)
    Rs 20,500.00
  • Autonics (PSAN-D1CV-Rc1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-D1CV-Rc1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Bottom fitting
    Pressure port Rc1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0 to 1,000kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_NPN open collector NPN open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate Rear case: Polybutylene Terephthalate + Glass Fiber 15%, Pressure port: Nickel Plated Brass
    Weight Approx. 170g (approx. 85g)



    Rs 20,500.00
  • Autonics (PSAN-DC01CPV-NPT1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model: PSAN-DC01CPV-NPT1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Bottom fitting
    Pressure port NPT1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Compound pressure
    Rated pressure range -101.3 to 100.0kPa
    Display pressure unit kPa, kgf/cm, bar, psi, mmHg, inHg, mmH₂O
    Control output_PNP open collector PNP open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate Rear case: Polybutylene Terephthalate + Glass Fiber 15%, Pressure port: Nickel Plated Brass
    Weight Approx. 170g (approx. 85g)



    Rs 20,500.00
  • Autonics (PSAN-DC01CPV-Rc1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-DC01CPV-Rc1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Bottom fitting
    Pressure port Rc1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Compound pressure
    Rated pressure range -101.3 to 100.0kPa
    Display pressure unit kPa, kgf/cm, bar, psi, mmHg, inHg, mmH₂O
    Control output_PNP open collector PNP open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate Rear case: Polybutylene Terephthalate + Glass Fiber 15%, Pressure port: Nickel Plated Brass
    Weight Approx. 170g (approx. 85g)



    Rs 20,500.00
  • Autonics (PSAN-DC01CV-NPT1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5
    Model:PSAN-DC01CV-NPT1/8
    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Bottom fitting
    Pressure port NPT1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Compound pressure
    Rated pressure range -101.3 to 100.0kPa
    Display pressure unit kPa, kgf/cm, bar, psi, mmHg, inHg, mmH₂O
    Control output_NPN open collector NPN open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate Rear case: Polybutylene Terephthalate + Glass Fiber 15%, Pressure port: Nickel Plated Brass
    Weight Approx. 170g (approx. 85g)
    Rs 20,500.00
  • Autonics (PSAN-DC01CV-Rc1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5
    Model:PSAN-DC01CV-Rc1/8
    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Bottom fitting
    Pressure port Rc1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Compound pressure
    Rated pressure range -101.3 to 100.0kPa
    Display pressure unit kPa, kgf/cm, bar, psi, mmHg, inHg, mmH₂O
    Control output_NPN open collector NPN open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate Rear case: Polybutylene Terephthalate + Glass Fiber 15%, Pressure port: Nickel Plated Brass
    Weight Approx. 170g (approx. 85g)
    Rs 20,500.00
  • Autonics (PSAN-DV01CPV-NPT1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-DV01CPV-NPT1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Bottom fitting
    Pressure port NPT1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Negative pressure
    Rated pressure range 0.0 to -101.3kPa
    Display pressure unit kPa, kgf/cm, bar, psi, mmHg, inHg, mmH₂O
    Control output_PNP open collector PNP open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate Rear case: Polybutylene Terephthalate + Glass Fiber 15%, Pressure port: Nickel Plated Brass
    Weight Approx. 170g (approx. 85g)



    Rs 20,500.00
  • Autonics (PSAN-DV01CPV-Rc1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5
    Model:PSAN-DV01CPV-Rc1/8
    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Bottom fitting
    Pressure port Rc1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Negative pressure
    Rated pressure range 0.0 to -101.3kPa
    Display pressure unit kPa, kgf/cm, bar, psi, mmHg, inHg, mmH₂O
    Control output_PNP open collector PNP open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate Rear case: Polybutylene Terephthalate + Glass Fiber 15%, Pressure port: Nickel Plated Brass
    Weight Approx. 170g (approx. 85g)
    Rs 20,500.00
  • Autonics (PSAN-DV01CV-NPT1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-DV01CV-NPT1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Bottom fitting
    Pressure port NPT1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Negative pressure
    Rated pressure range 0.0 to -101.3kPa
    Display pressure unit kPa, kgf/cm, bar, psi, mmHg, inHg, mmH₂O
    Control output_NPN open collector NPN open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate Rear case: Polybutylene Terephthalate + Glass Fiber 15%, Pressure port: Nickel Plated Brass
    Weight Approx. 170g (approx. 85g)
    Rs 20,500.00
  • Autonics (PSAN-DV01CV-Rc1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5
    Model:PSAN-DV01CV-Rc1/8
    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Bottom fitting
    Pressure port Rc1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Negative pressure
    Rated pressure range 0.0 to -101.3kPa
    Display pressure unit kPa, kgf/cm, bar, psi, mmHg, inHg, mmH₂O
    Control output_NPN open collector NPN open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate Rear case: Polybutylene Terephthalate + Glass Fiber 15%, Pressure port: Nickel Plated Brass
    Weight Approx. 170g (approx. 85g)
    Rs 20,500.00
  • Autonics (PSAN-L01CA-R1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model: PSAN-L01CA-R1/8

    Applicable fluid (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L
    Pressure port direction Bottom fitting
    Pressure port R1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0.0 to 100.0kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_NPN open collector NPN open collector
    Option input/output Current output(DC4-20mA)
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate, Rear case: Polyamide 6, Pressure port: SUS304/SUS316L
    Weight Approx. 173g(approx. 88g)



    Rs 48,000.00
  • Autonics (PSAN-L01CH-R1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model: PSAN-L01CH-R1/8

    Applicable fluid (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L
    Pressure port direction Bottom fitting
    Pressure port R1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0.0 to 100.0kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_NPN open collector NPN open collector
    Option input/output Hold/Auto shift input
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate, Rear case: Polyamide 6, Pressure port: SUS304/SUS316L
    Weight Approx. 173g(approx. 88g)



    Rs 48,000.00
  • Autonics (PSAN-L01CPA-R1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-L01CPA-R1/8

    Applicable fluid (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L
    Pressure port direction Bottom fitting
    Pressure port R1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0.0 to 100.0kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_PNP open collector PNP open collector
    Option input/output Current output(DC4-20mA)
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate, Rear case: Polyamide 6, Pressure port: SUS304/SUS316L
    Weight Approx. 173g(approx. 88g)



    Rs 48,000.00
  • Autonics (PSAN-L01CPH-R1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model: PSAN-L01CPH-R1/8

    Applicable fluid (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L
    Pressure port direction Bottom fitting
    Pressure port R1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0.0 to 100.0kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_PNP open collector PNP open collector
    Option input/output Hold/Auto shift input
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate, Rear case: Polyamide 6, Pressure port: SUS304/SUS316L
    Weight Approx. 173g(approx. 88g)



    Rs 54,000.00
  • Autonics (PSAN-L01CPV-R1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model: PSAN-L01CPV-R1/8

    Applicable fluid (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L
    Pressure port direction Bottom fitting
    Pressure port R1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0.0 to 100.0kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_PNP open collector PNP open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate, Rear case: Polyamide 6, Pressure port: SUS304/SUS316L
    Weight Approx. 173g(approx. 88g)



    Rs 48,000.00
  • Autonics (PSAN-L01CV-R1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model: PSAN-L01CV-R1/8

    Applicable fluid (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L
    Pressure port direction Bottom fitting
    Pressure port R1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0.0 to 100.0kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_NPN open collector NPN open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate, Rear case: Polyamide 6, Pressure port: SUS304/SUS316L
    Weight Approx. 173g(approx. 88g)



    Rs 48,000.00
  • Autonics (PSAN-L1CA-R1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-L1CA-R1/8

    Applicable fluid (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L
    Pressure port direction Bottom fitting
    Pressure port R1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0 to 1,000kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_NPN open collector NPN open collector
    Option input/output Current output(DC4-20mA)
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate, Rear case: Polyamide 6, Pressure port: SUS304/SUS316L
    Weight Approx. 173g(approx. 88g)



    Rs 48,000.00
  • Autonics (PSAN-L1CH-R1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model: PSAN-L1CH-R1/8

    Applicable fluid (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L
    Pressure port direction Bottom fitting
    Pressure port R1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0 to 1,000kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_NPN open collector NPN open collector
    Option input/output Hold/Auto shift input
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate, Rear case: Polyamide 6, Pressure port: SUS304/SUS316L
    Weight Approx. 173g(approx. 88g)



    Rs 48,000.00
  • Autonics (PSAN-L1CPA-R1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model: PSAN-L1CPA-R1/8

    Applicable fluid (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L
    Pressure port direction Bottom fitting
    Pressure port R1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0 to 1,000kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_PNP open collector PNP open collector
    Option input/output Current output(DC4-20mA)
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate, Rear case: Polyamide 6, Pressure port: SUS304/SUS316L
    Weight Approx. 173g(approx. 88g)



    Rs 48,000.00
  • Autonics (PSAN-L1CPH-R1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model: PSAN-L1CPH-R1/8

    Applicable fluid (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L
    Pressure port direction Bottom fitting
    Pressure port R1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0 to 1,000kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_PNP open collector PNP open collector
    Option input/output Hold/Auto shift input
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate, Rear case: Polyamide 6, Pressure port: SUS304/SUS316L
    Weight Approx. 173g(approx. 88g)



    Rs 48,000.00
  • Autonics (PSAN-L1CPV-R1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model: PSAN-L1CPV-R1/8

    Applicable fluid (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L
    Pressure port direction Bottom fitting
    Pressure port R1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0 to 1,000kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_PNP open collector PNP open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate, Rear case: Polyamide 6, Pressure port: SUS304/SUS316L
    Weight Approx. 173g(approx. 88g)



    Rs 48,000.00
  • Autonics (PSAN-L1CV-R1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model: PSAN-L1CV-R1/8

    Applicable fluid (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L
    Pressure port direction Bottom fitting
    Pressure port R1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Standard pressure
    Rated pressure range 0 to 1,000kPa
    Display pressure unit MPa, kPa, kgf/cm, bar, psi
    Control output_NPN open collector NPN open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate, Rear case: Polyamide 6, Pressure port: SUS304/SUS316L
    Weight Approx. 173g(approx. 88g)



    Rs 48,000.00
  • Autonics (PSAN-LC01CV-R1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model: PSAN-LC01CV-R1/8

    Applicable fluid (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L
    Pressure port direction Bottom fitting
    Pressure port R1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Compound pressure
    Rated pressure range -101.3 to 100.0kPa
    Display pressure unit kPa, kgf/cm, bar, psi, mmHg, inHg, mmH₂O
    Control output_NPN open collector NPN open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Approval
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate, Rear case: Polyamide 6, Pressure port: SUS304/SUS316L
    Weight Approx. 173g(approx. 88g)
    Rs 48,000.00
  • Autonics (PSAN-LV01CA-R1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-LV01CA-R1/8

    Applicable fluid (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L
    Pressure port direction Bottom fitting
    Pressure port R1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Negative pressure
    Rated pressure range 0.0 to -101.3kPa
    Display pressure unit kPa, kgf/cm, bar, psi, mmHg, inHg, mmH₂O
    Control output_NPN open collector NPN open collector
    Option input/output Current output(DC4-20mA)
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate, Rear case: Polyamide 6, Pressure port: SUS304/SUS316L
    Weight Approx. 173g(approx. 88g)



    Rs 48,000.00
  • Autonics (PSAN-LV01CH-R1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-LV01CH-R1/8

    Applicable fluid (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L
    Pressure port direction Bottom fitting
    Pressure port R1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Negative pressure
    Rated pressure range 0.0 to -101.3kPa
    Display pressure unit kPa, kgf/cm, bar, psi, mmHg, inHg, mmH₂O
    Control output_NPN open collector NPN open collector
    Option input/output Hold/Auto shift input
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate, Rear case: Polyamide 6, Pressure port: SUS304/SUS316L
    Weight Approx. 173g(approx. 88g)



    Rs 48,000.00
  • Autonics (PSAN-LV01CPA-R1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-LV01CPA-R1/8

    Applicable fluid (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L
    Pressure port direction Bottom fitting
    Pressure port R1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Negative pressure
    Rated pressure range 0.0 to -101.3kPa
    Display pressure unit kPa, kgf/cm, bar, psi, mmHg, inHg, mmH₂O
    Control output_PNP open collector PNP open collector
    Option input/output Current output(DC4-20mA)
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate, Rear case: Polyamide 6, Pressure port: SUS304/SUS316L
    Weight Approx. 173g(approx. 88g)



    Rs 48,000.00
  • Autonics (PSAN-LV01CPH-R1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-LV01CPH-R1/8

    Applicable fluid (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L
    Pressure port direction Bottom fitting
    Pressure port R1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Negative pressure
    Rated pressure range 0.0 to -101.3kPa
    Display pressure unit kPa, kgf/cm, bar, psi, mmHg, inHg, mmH₂O
    Control output_PNP open collector PNP open collector
    Option input/output Hold/Auto shift input
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate, Rear case: Polyamide 6, Pressure port: SUS304/SUS316L
    Weight Approx. 173g(approx. 88g)



    Rs 48,000.00
  • Autonics (PSAN-LV01CPV-R1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-LV01CPV-R1/8

    Applicable fluid (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L
    Pressure port direction Bottom fitting
    Pressure port R1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Negative pressure
    Rated pressure range 0.0 to -101.3kPa
    Display pressure unit kPa, kgf/cm, bar, psi, mmHg, inHg, mmH₂O
    Control output_PNP open collector PNP open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate, Rear case: Polyamide 6, Pressure port: SUS304/SUS316L
    Weight Approx. 173g(approx. 88g)



    Rs 48,000.00
  • Autonics (PSAN-LV01CV-R1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-LV01CV-R1/8

    Applicable fluid (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L
    Pressure port direction Bottom fitting
    Pressure port R1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Negative pressure
    Rated pressure range 0.0 to -101.3kPa
    Display pressure unit kPa, kgf/cm, bar, psi, mmHg, inHg, mmH₂O
    Control output_NPN open collector NPN open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front case: Polycarbonate, Rear case: Polyamide 6, Pressure port: SUS304/SUS316L
    Weight Approx. 173g(approx. 88g)



    Rs 48,000.00
  • Autonics (PSAN-V01CA-RC1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model: PSAN-V01CA-RC1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting
    Pressure port Rc1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Negative pressure
    Rated pressure range 0.0 to -101.3kPa
    Display pressure unit kPa, kgf/cm, bar, psi, mmHg, inHg, mmH₂O
    Control output_NPN open collector NPN open collector
    Option input/output Current output(DC4-20mA)
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass
    Weight Approx. 165g(approx. 80g)



    Rs 20,500.00
  • Autonics (PSAN-V01CH-RC1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-V01CH-RC1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting
    Pressure port Rc1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Negative pressure
    Rated pressure range 0.0 to -101.3kPa
    Display pressure unit kPa, kgf/cm, bar, psi, mmHg, inHg, mmH₂O
    Control output_NPN open collector NPN open collector
    Option input/output Hold/Auto shift input
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass
    Weight Approx. 165g(approx. 80g)



    Rs 20,500.00
  • Autonics (PSAN-V01CPA-RC1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-V01CPA-RC1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting
    Pressure port Rc1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Negative pressure
    Rated pressure range 0.0 to -101.3kPa
    Display pressure unit kPa, kgf/cm, bar, psi, mmHg, inHg, mmH₂O
    Control output_PNP open collector PNP open collector
    Option input/output Current output(DC4-20mA)
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass
    Weight Approx. 165g(approx. 80g)



    Rs 20,500.00
  • Autonics (PSAN-V01CPH-RC1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-V01CPH-RC1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting
    Pressure port Rc1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Negative pressure
    Rated pressure range 0.0 to -101.3kPa
    Display pressure unit kPa, kgf/cm, bar, psi, mmHg, inHg, mmH₂O
    Control output_PNP open collector PNP open collector
    Option input/output Hold/Auto shift input
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass
    Weight Approx. 165g(approx. 80g)



    Rs 20,500.00
  • Autonics (PSAN-V01CPV-RC1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-V01CPV-RC1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting
    Pressure port Rc1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Negative pressure
    Rated pressure range 0.0 to -101.3kPa
    Display pressure unit kPa, kgf/cm, bar, psi, mmHg, inHg, mmH₂O
    Control output_PNP open collector PNP open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass
    Weight Approx. 165g(approx. 80g)



    Rs 20,500.00
  • Autonics (PSAN-V01CV-RC1/8) LED Digital Pressure Sensor (12-24VDC)

    0 out of 5

    Model:PSAN-V01CV-RC1/8

    Applicable fluid (Pneumatic type) Air, Non-corrosive gas
    Pressure port direction Rear fitting
    Pressure port Rc1/8
    Connection type Connector type(connector type cable: 2m)
    Pressure type Negative pressure
    Rated pressure range 0.0 to -101.3kPa
    Display pressure unit kPa, kgf/cm, bar, psi, mmHg, inHg, mmH₂O
    Control output_NPN open collector NPN open collector
    Option input/output Voltage(1-5VDC ) output
    Power supply 12-24VDC 10%(ripple P-P: max. 10%)
    Current consumption Voltage output type: Max. 50mA
    Current output type: Max. 75mA
    Protection structure IP40
    Control output_Hysteresis Min. display interval
    Control output_Repeat error 0.2% F.S. Min. display interval
    Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
    Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
    Material Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass
    Weight Approx. 165g(approx. 80g)



    Rs 20,500.00
  • Autonics Incremental Rotary Encoder (E50S8-3600-6-L-5)

    0 out of 5
    Model E50S8-3600-6-L-5
    Shaft outer diameter 8mm
    Max. response frequency 300kHz
    Resolution 3600P/R
    Starting torque Max. 70gf.cm(max. 0.00686N.m)
    Max. allowable revolution 5000rpm
    Output phase A, @(A^), B, @(B^), Z, @(Z^)
    Control output Line Driver
    Power supply 5VDC @(=) 5%(ripple P-P: max. 5%)
    Connection type Axial cable type
    Protection structure IP50
    Environment_Ambient temperature -10 to 70℃, storage: -25 to 85℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 90% RH
    Accessories 8mm coupling, Bracket



    Rs 28,900.00
